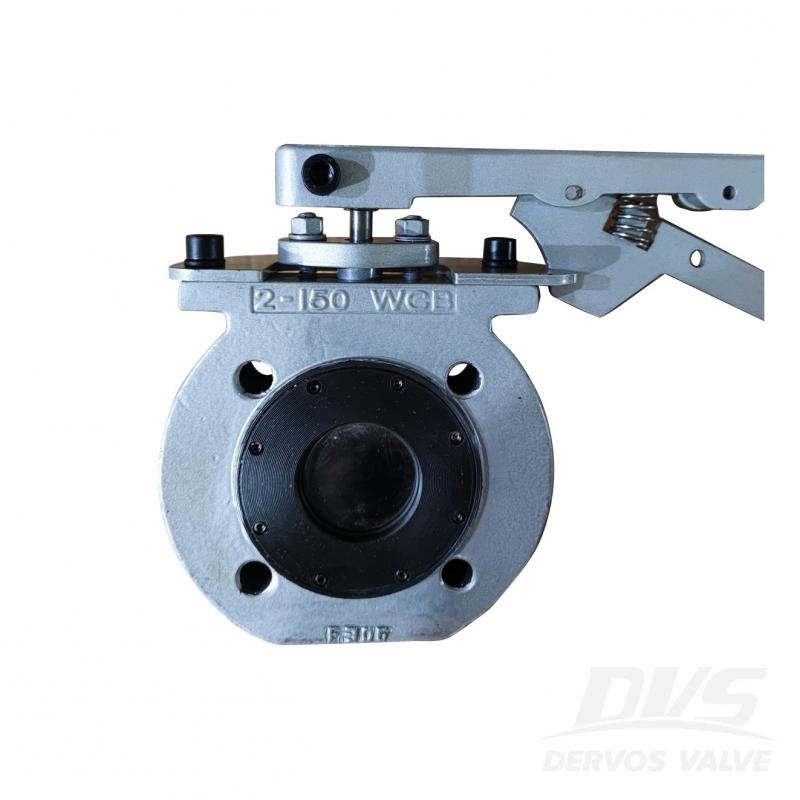

2" 150LB butterfly valve is made according to API609 standard. The valve body is made of WCB. It has the structural characteristics of double eccentricity, high performance. Its connection mode is LUG. And it has lever operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
WCBMethod of Operation:
LeverProduct Description
Type |
Butterfly Valve |
Size |
2" |
Pressure |
150LB |
Connection |
Lug |
Operation |
Lever |
Body Material |
WCB |
Design Norm |
API 609 |
Temperature & Pressure |
ASME B16.34 |
Flange Size |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 180°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Good sealing performance, low starting torque, adjustable flow rate, suitable for high-pressure and high-temperature environments;
2. Fast response, low fluid resistance, simple structure, small volume, and high reliability.

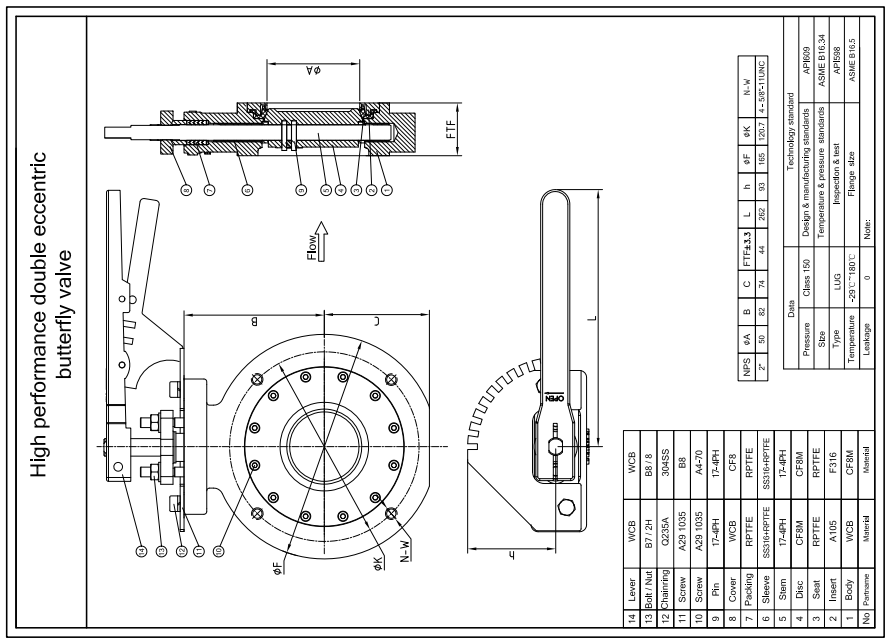

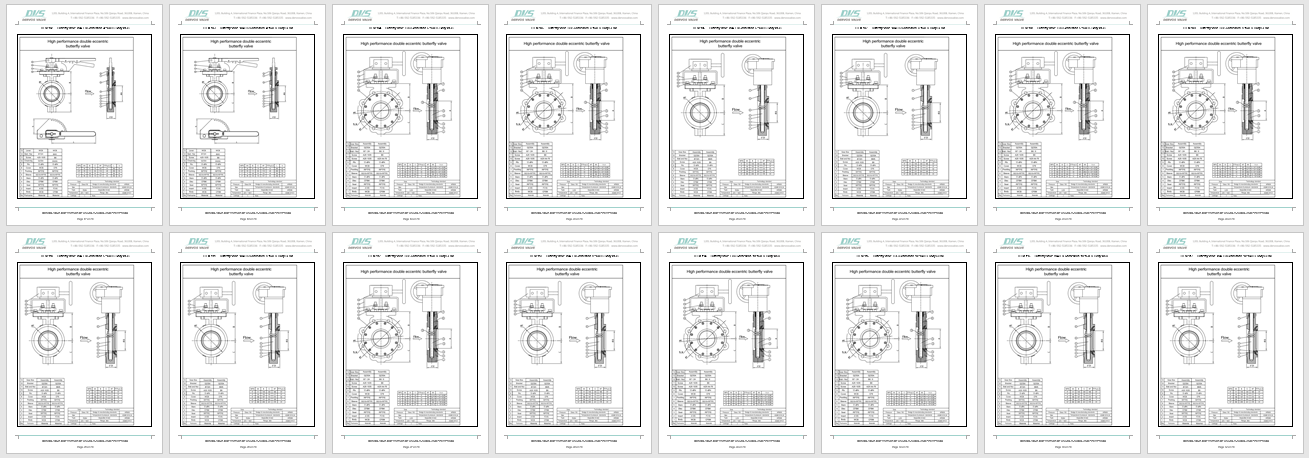

Technical Drawing

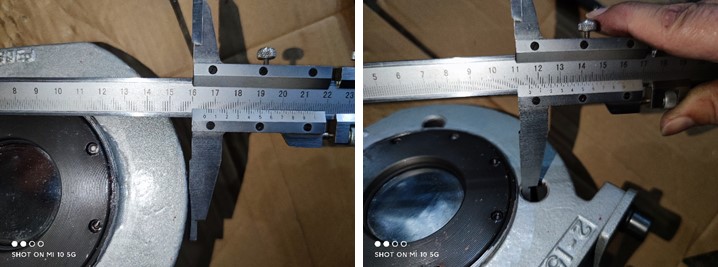

Dimension Checking

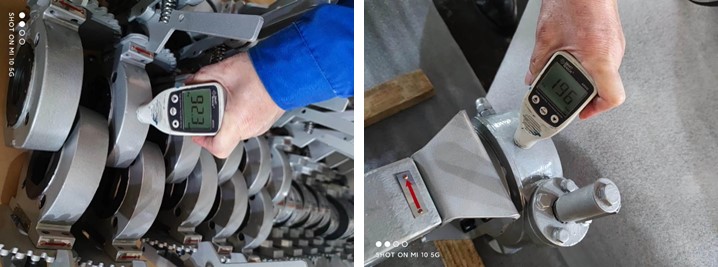

Painting

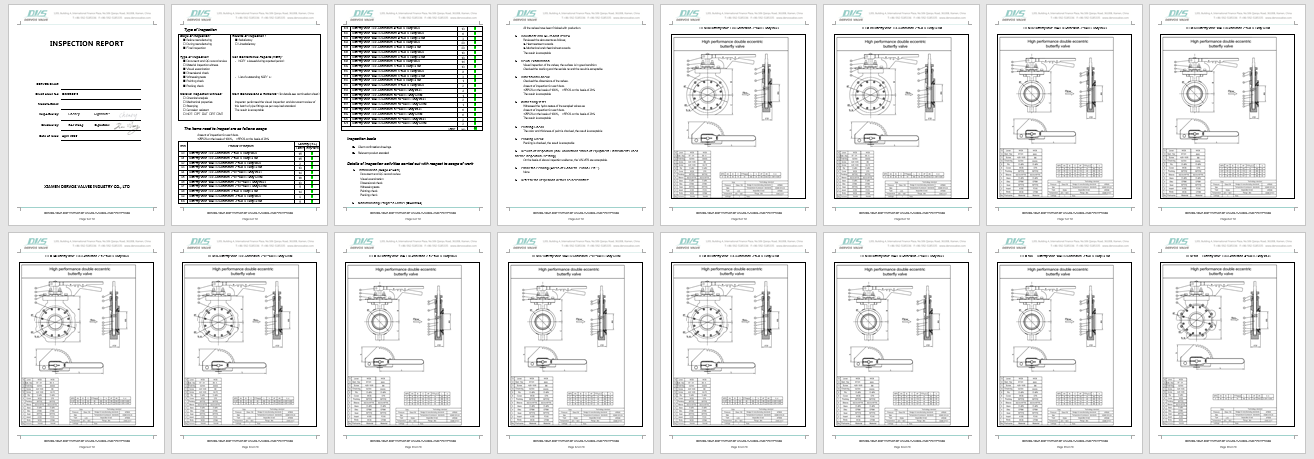

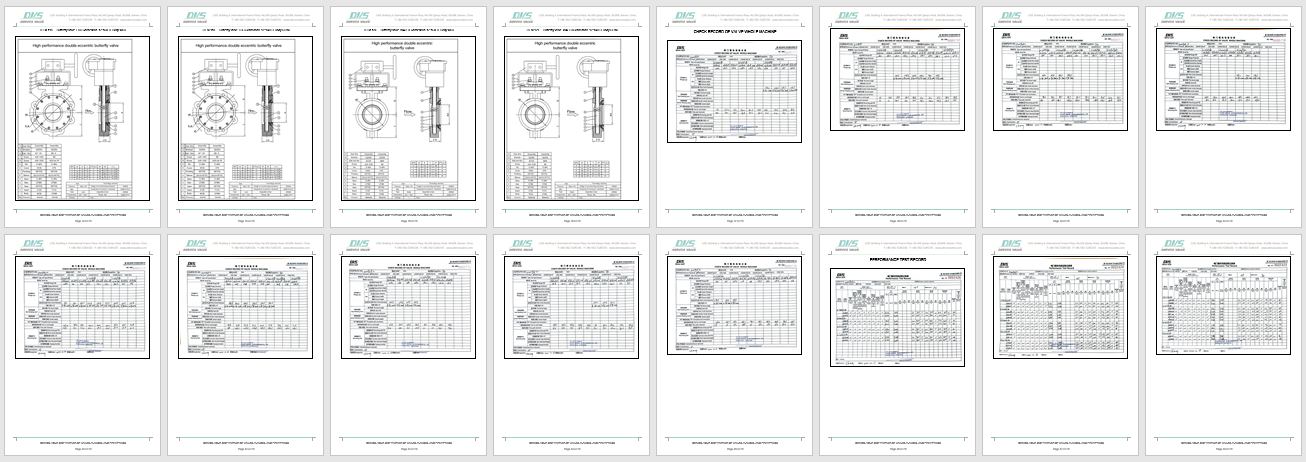

Inspection report
