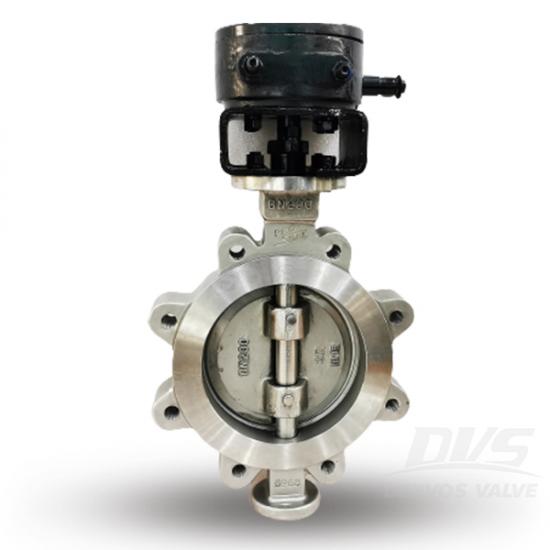

The PN10 DN200 double offset butterfly valve collects durable body and an easy replaceable seat for control services the power, chemical, petrochemical and other fields.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
CF8MMethod of Operation:
GearboxQuick Detail
Type |
Butterfly Valve |
Size |
DN200 |
Design Pressure |
PN10 |
Construction |
Double-Eccentric; |
Connection Type |
Lug RF |
Operation |
Gearbox |
Design Code |
API609 |
Face to Face |
API609 |
End Connection |
BS EN1092-1 |
Test & Inspection |
API598 |
Body Material |
CF8M |
Temperature Range |
-29℃~150℃ |
Application |
Water, Oil, Gas |
Features
--Double offset shaft position
--Shaft in PTFE lines bearings
--Easy replaceable seat
--Standardized actuation flange
--Polymer or PTFE seat
--Easy actuator automation
--Low operating torques
--High reliabililty

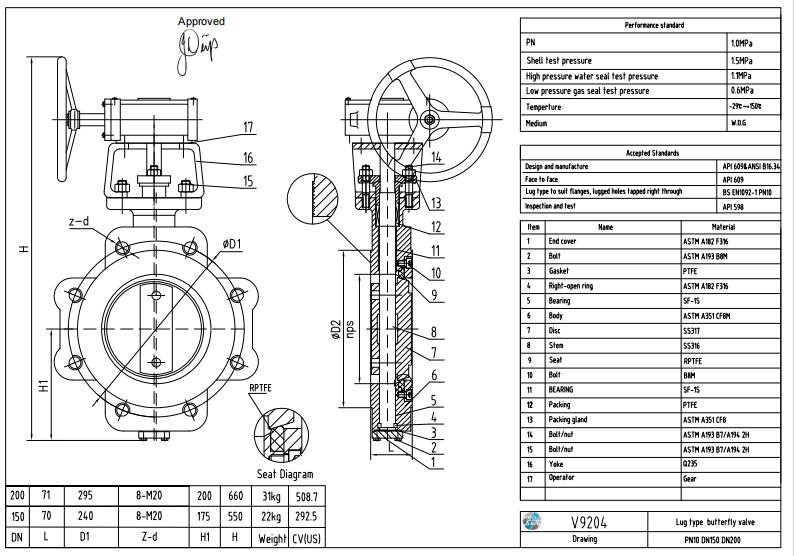

Technical Drawing

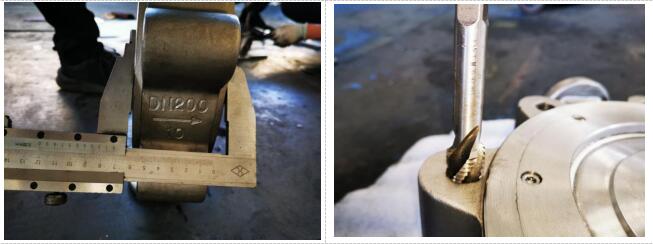

Dimension Check

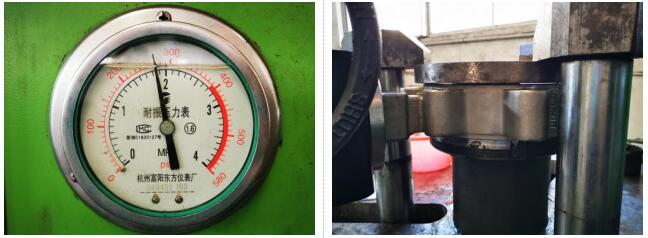

Witness Tests

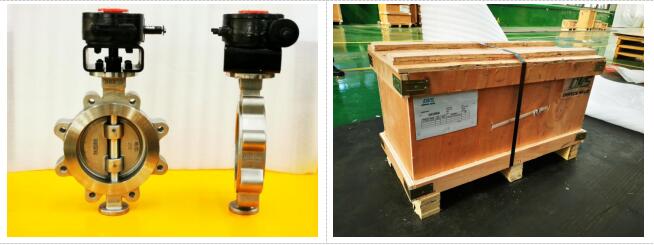

Packing
About Dervos
Xiamen Dervos Valves Industry Co.,Ltd (stock code 861601), founded in June 2008, is a one-stop industrial valves supplier integrated of R&D, manufacture, resource integration, and trade service.
For 13 years, we have been committed to finding solutions for industrial needs and providing professional service for both general and special valves.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
