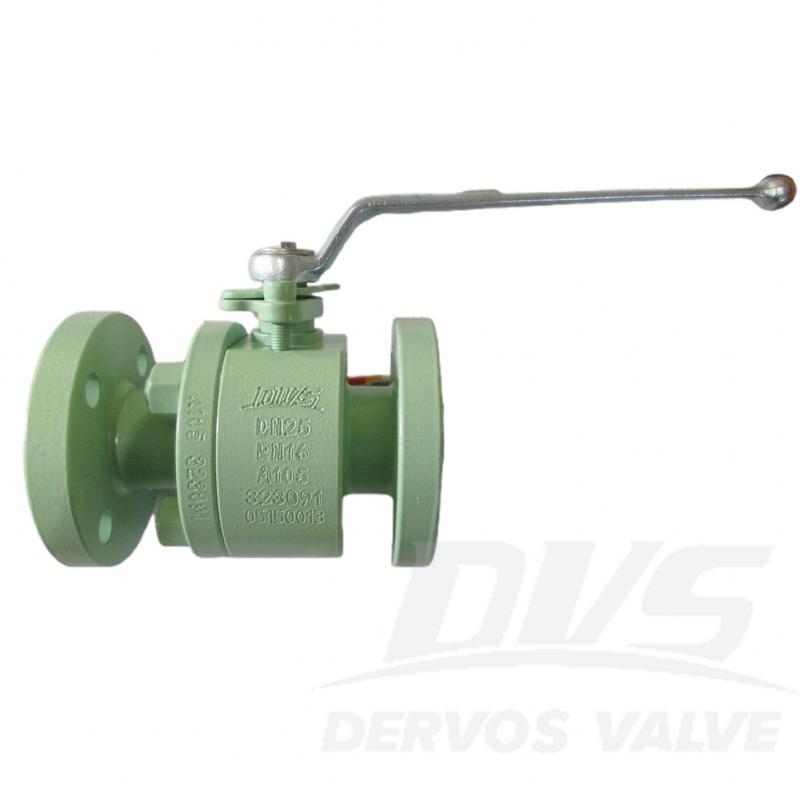

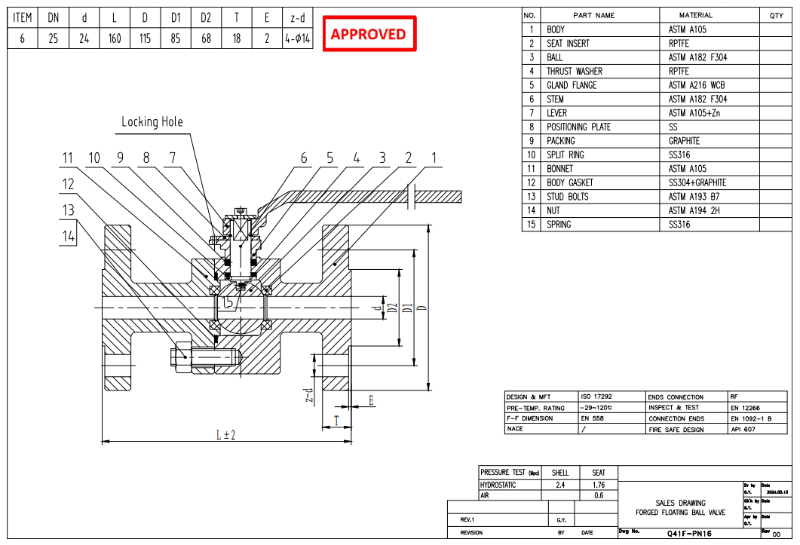

DN25 PN16 Forged Floating Ball Valve is made according to ISO17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of Design Features: Floating Ball, Full Port, Fire-safe & Anti-static Design, Blow-out Proof Stem. Its connection mode is EN1092-1 B1. And it has hand wheel operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmation|
Type |
Forged Floating Ball Valve |
|
Size |
DN25 |
|
Pressure |
PN16 |
|
Connection |
EN1092-1 B1 |
|
Operation |
H.W. |
|
Body Material |
ASTM A105 |
|
Design Norm |
ISO 17292 |
|
Face to Face |
EN 558 |
|
End Connection |
RF |
|
Test & Inspection Code |
EN 12266 |
|
FIRE SAFE DESIGN |
API 607 |
|
Temperature |
-29 ~ 120°C |
|
Applicable Medium |
Water, Oil and Gas |
1. Forged from ASTM A105 carbon steel, ensuring high strength and reliable sealing performance under PN16 pressure.
2. Floating ball design compliant with ISO 17292 provides smooth operation and effective flow control.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
