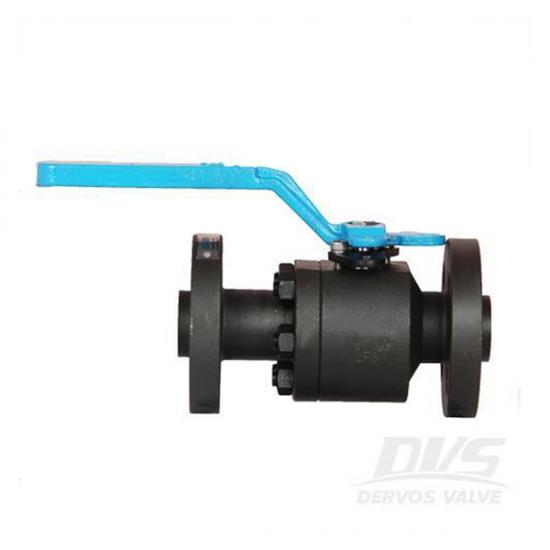

China Flanged End Ball Valve Producer,Dervos Offers Flanged End Ball Valve, ASTM A350 LF6, Class 600, 1/2 Inch, Two Piece, Forging, API 608, BS 5351, ASME B16.34.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM LF6Method of Operation:
Manual
Quick Detail:
Type: Flanged End Ball Valve.
Material: ASTM LF6.
Valve Size: 1/2 Inch.
Applicable Pressure Rating: Class 600 LB.
Temperature Rating: Up to 250℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 608, BS 5351, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 250℃.
Molding Style: Forging.
FORGED STEEL SIDE ENTRY BALL VALVE - Free Floating Ball ( 2 Piece )
STANDARD MATERIALS
|
PART NAMES |
MATERIALS |
BODY |
ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy. |
|
BONNET |
ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy. |
|
SEAT |
R-PTFE |
|
BALL |
ASTM A276 316 |
|
Stem |
ASTM A276 316 |
|
O-RING |
NBR |
|
BACK SEAT GASKET |
PTFE |
|
PACKING |
GRAPHITE |
|
WRENCH |
CARBON STEEL |
|
PRESSURE TEST ( A105 ) |
||||
Class |
SHELL (psig) |
BACKSEAT(psig) |
SEAT(psig) |
||
WATER |
WATER |
AIR |
WATER |
||
150 LB |
450 |
- |
90 |
325 |
|
300 LB |
1125 |
825 |
|||
600 LB |
2225 |
1650 |
|||
800 LB |
2975 |
2175 |
|||
900 LB |
3350 |
2450 |
|||
1500 LB |
5575 |
4100 |
|||
2500 LB |
9275 |
6800 |
Design and Manufacture Conform to: API 608, BS 5351, ASME B16.34/ B16.11/ B1.20.1/ B16.25
Structure Features:
★ 2 Piece Body
★ End Connection: Flanged Type
★ Floating Ball Type
★ Reduced Bore / Full Bore
★ Fire Safety Construction ( API 607 )
★ Manual Operating
