Based on publicly available industry data, company websites, and authoritative rankings in 2025, this article selects ten Chinese valve manufacturers that are representative in terms of technology, production capacity, qualifications, and market performance. The ranking emphasizes overall corporate capability and market influence, aiming to provide a reference for procurement and engineering selection. Suzhou Neway Valve Co., Ltd. (Brand: NEWAY) Neway is one of the few domestic valve manufacturers capable of serving high-end applications such as deep-sea, LNG, and nuclear power. The company possesses comprehensive technology and international certifications, with outstanding production capacity and project support capabilities. It holds a significant share in large-scale projects and export markets, making it a representative of leading domestic valve enterprises. DERVOS VALVE (Brand: DERVOS VALVE) DERVOSVALVE' s product line covers a full range of valves, including ball valves, butterfly valves, gate valves, globe valves, and check valves. The company holds comprehensive technology and international certifications, ensuring its products meet the requirements of various operating conditions and markets. With in-house manufacturing capabilities and first-class supply strength, DERVOS VALVE can offer customers excellent delivery speed and consistent quality assurance. The company supports orders starting from a single unit (MOQ≧1) and provides one-stop services from inquiry and quality inspection to final delivery. Lianggu Valve Group Co., Ltd. (Brand: Lianggu) Lianggu specializes in forging, casting, and CNC machining, offering a comprehensive range of valve specifications across multiple manufacturing sites and its own casting and forging facilities. The company is well-suited for mid-to-high-end engineering projects and maintains stable clients and standardized capabilities in sectors such as nuclear power and petrochemicals. CNNC Suzhou Valve Technology & Industrial Co., Ltd. (Brand: CNNC Su Valve) CNNC Su Valve originates from the state-owned system and has long been responsible for supplying valves for nuclear power and major engineering projects. Its qualifications and testing capabilities are among the industry' s leading standards. The company possesses irreplaceable engineering experience in high-integrity and specialty valves. Suzhou Dawson Drilling & Production Equipment Co., Ltd. Founded in 2006, the company primarily manufactures oil and gas drilling and production equipment as well as valve products. Its products are widely used in the energy sector, including oil and natural gas. With strong R&D and manufacturing capabilities, Dawson maintains a stable position in both the drilling equipment and industrial valve markets. Zhejiang KCM Valve Co., Ltd. (KCM Valve) KCM Valve has long focused on the research and manufacturing of marine valves. Its products ...
Have you ever encountered repeated fluid shocks, frequent valve cycling, or excessive noise in your pipeline system? If a check valve is not selected properly, issues such as leakage, valve damage, or fluid hammer can occur. While check valves are effective at preventing backflow, they are not suitable for all operating conditions. The following cases require special attention: High-frequency opening and closing conditions Check valves rely on the disc or flap to close automatically. If the medium in the pipeline flows frequently or the valve cycles too often, impact, water hammer, or vibration may occur, shortening the valve’s service life. In such cases, consider using spring-loaded or damped check valves, or even other valve types better suited to the application. High-viscosity fluids or media with solid particles Thick fluids or those containing solids can prevent the valve disc from closing fully, increasing the risk of leakage. For slurries, mud, or liquids with a high concentration of particles, specialized valves or additional filtration equipment should be used instead. High-pressure systems In high-pressure applications, the valve disc is subject to strong impacts and repeated collisions, which can cause wear on the sealing surfaces or structural damage. For such environments, more robust backflow prevention solutions should be considered. Systems Sensitive to Pressure or Flow Variations When a check valve closes, it may cause pressure loss or flow fluctuations. If the system is highly sensitive to such variations, careful evaluation of the valve type and installation location is required to avoid negative impacts on overall pipeline performance. Conclusion A check valve is an essential device for preventing backflow, but it should be used with caution in certain operating conditions such as high-frequency cycling, high-viscosity fluids, high-pressure systems, or applications sensitive to flow variations. By properly assessing the pipeline operating conditions and fluid characteristics, you can ensure the check valve performs at its best, extends service life, and reduces maintenance costs.
Have you ever faced the challenge of selecting the right globe valve disc during pipeline system design or operation? When using a globe valve to control fluid flow, the disc type directly affects sealing performance, flow regulation, and suitability for specific conditions. Understanding the types of discs and their applications can help you make faster, more accurate selections and improve overall system efficiency. Flat / Standard Disc Features: The disc has a flat sealing surface, simple structure, and relatively low manufacturing cost. Applications: Commonly used for water, steam, air, and other low-viscosity media. Suitable for medium to low-pressure systems. Pros & Cons: Provides basic and reliable shutoff, but sealing reliability is moderate. Under long-term high pressure or high temperature, the sealing surface may wear more quickly. Conical / Tapered Disc Features: The disc is conical in shape, matching the sealing surface of the valve seat with a smaller contact area. Applications: Ideal for high-pressure conditions or systems requiring precise shutoff, such as steam and oil pipelines. Pros & Cons: Offers excellent sealing performance, but requires greater operating torque for opening and closing. Plug / Concave Disc Features: The disc surface is slightly convex, forming point contact with the valve seat, offering high sealing precision. Applications: Suitable for gases, liquids, and some corrosive media, allowing effective flow regulation. Pros & Cons: Manufacturing cost is higher, but sealing performance and wear resistance are superior to flat discs. Double Disc Features: A large disc contains a smaller inner disc. Applications: Commonly used in high-pressure, large-diameter valves. It helps balance pressure and extend valve service life. Pros & Cons: Structurally more complex and more expensive, but ideal for high-pressure, large-diameter applications. Conclusion Globe valve discs come in a variety of types, each with unique advantages and suitable working conditions. When selecting a disc, consider the medium type, pressure, temperature, and flow requirements. Choosing the correct disc ensures reliable system sealing, extends valve life, and reduces maintenance costs.

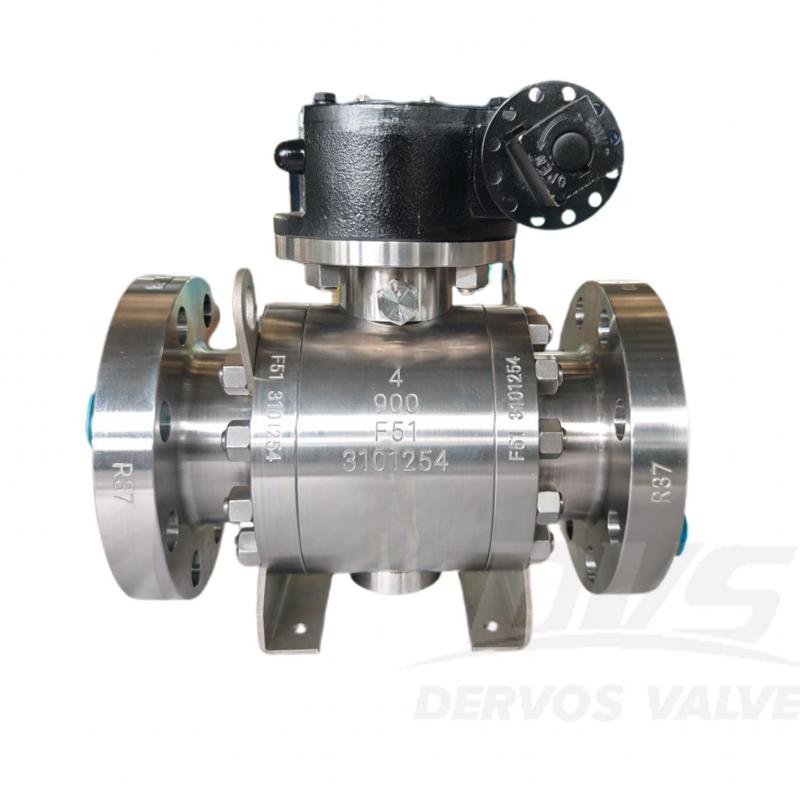

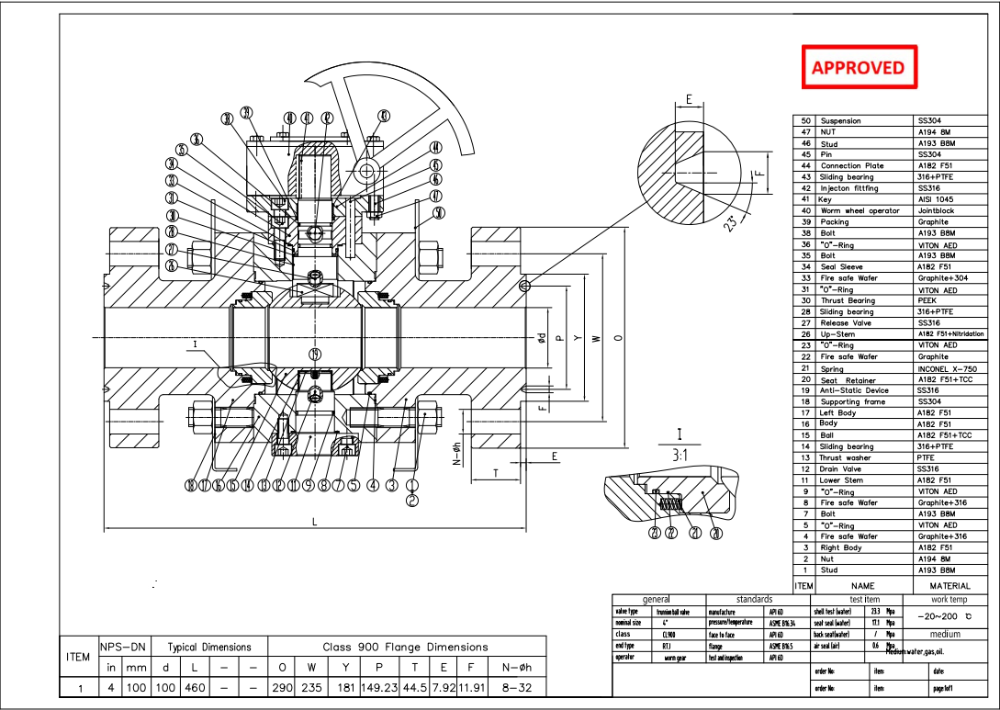

4” 900LB Trunnion Mounted Ball Valve is made according to API6D standard. The valve body is made of A182 F51. This valve features a split body and side-entry design, with a trunnion mounted ball, full bore passage, and durable metal-to-metal sealing suitable for high-pressure and abrasive service. Its connection mode is RTJ. It operates like a turbine.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A182 F51Method of Operation:
turbine
|
Type |
Trunnion Mounted Ball Valve |
|
Size |
4" |
|
Pressure |
900LB |
|
Connection |
RTJ |
|
Body Material |
A182 F51 |
|
Design Norm |
API 6D |
|
Face to Face Dimensions |
API 6D |
|
End Flange Dimensions |
ANSI B16.5 |
|
Test & Inspection Code |
API 6D |
|
Temperature |
-20 ~ 200°C |
|
Applicable Medium |
Water, Oil and Gas |
1. Trunnion-mounted design ensures low operating torque and stable sealing under high pressure.
2. Equipped with a turbine operator and RTJ ends, compliant with API 6D for critical pipeline control.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 12 inch 600LB trunnion mounted ball valve has gearbox, RTJ flange, fire safe design per API 607. The 3 piece ball valve is designed per API 6D. Design Feature & Benefit 1.Small flow resistance means less pressure drop 2.Simple valve structure and light weight 3.Diversified sealing material available, from metal material TCC, satellite, stainless steel to soft material PTFE, Teflon, Nylon, Peek and etc 4.Good performance of both metallic sealing and soft sealing 5.Convenient and swift operation of the valve 6.Easy to maintain due to renewable seat ring 7.When fully opened or closed, the valve sealing face is isolated from medium corrosion. 8.Wide range of application in terms of size and pressure rating Quick Detail Type Ball Valve Size 12" Pressure Class 600 Construction Trunnion Mounted Ball, Three-Piece Type, Side Entry Connection RF Flange Operation Gear Operated Body Material ASTM A105 Design & Manufacture API 6D Pressure & Temp ASME B16.34 Face to Face ASME B16.10 End Connection ASME B16.5 Test & Inspection Code API 598 Fire Safe API 607 Temperature Range -29℃~+200℃ Medium Water, Oil and Gas Origin China Material Specification No Part Name Carbon steel to ASTM Stainless Steel to ASTM WCB LCB CF8 CF8M CF3 CF3M 1 Underplate WCB LCB CF8 CF8M CF3 CF3M 2 Underplate Bolt A193 B7 A320 L7 A193 B8 3 Trunnion A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 4 Body A216 WCB A352 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M 5 Bonnet Nut A194 2H A194 4 A194 8 6 Bonnet Bolt A193 B7 A320 L7 A193 B8 7 Cap A216 WCB A352 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M 8 Gasket SS Spiral Wound/graphite or SS Spiral Wound/PTFE 9 Shaft Sleeve SS/graphite 10 Seat Ring RPTFE or POM 11 Ball A105/Ep.Cr or F6 A182 F6 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 12 Seat A105/Ep.Cr or F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 13 Spring 17-17PH(inconel for NACE)Ni-cr Alloy 14 O-Ring Viton 15 Stem A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 16 Sealing Cover A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 17 O-Ring Viton 18 Gear Actuator The material is according to ASTM standard Related Knowledge What is difference between floating and trunnion ball valve? The ball part of floating ball valve is movable. Under the pressure of medium, the ball has a certain displacement and presses on the sealing surface of outlet end to ensure its tight sealing. The floating structure is suitable for ball valve with small size and low & medium pressure rating. The ball part of trunnion mounted ball valve is fixed. Under the medium pressure, the floating seat will move towards the ball to ensure the sealing. The trunnion mounted ball valve is often with larger size and higher pressure.
The Class 300 flanged ball valve has cast steel WCB body, stainless steel ball, stem, seat ring along with Devlon seat insert. We also supply more types of trunnion mounted ball valve, accept customized. Design Feature 1.Firesafe design as per API 607 2.With sealant injection for self lubricating 3.With antistatic design 4.With anti-blowout stem 5.With vent and drain port 6.Full bore design 7.Three-piece type and trunnion ball 8.Gear operated for easy operation Quick Detail Type Ball Valve Size 24" Pressure ANSI 300 Construction Trunnion Type Ball, 3-Piece Body, Side Entry, Full Bore Connection Flange Connection Operation Gearbox Operation Body Material ASTM A216 WCB Design Code API 6D Pressure & Temp Code ASME B16.34 Face to Face ASME B16.10 End Connection ASME B16.5 Test & Inspection Code API 598, API 6D Fire Safe API 607 Temperature Range -29℃~+200℃ Medium WOG Origin China Dimension CLASS 300 DN mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 NPS in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 L (RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143 1346 in 8.5 9.5 11.13 12 15.88 19.75 22.38 25.5 30 33 36 39 45 53 L1 (BW) mm 216 241 283 305 457 521 559 635 762 838 914 991 1143 1346 in 8.5 9.5 11.13 12 18 20.5 22 25 30 33 36 39 45 53 L2 (RTJ) mm 232 257 298 321 419 518 584 664 778 854 930 1010 1165 1372 in 9.13 10.13 11.75 12.63 16.5 20.38 23 26.13 30.63 33.63 36.63 39.75 45.89 54 H mm 153 165 195 213 272 342 495 580 625 720 790 840 1050 1150 in 6.02 6.5 7.68 8.39 10.7 13.5 19.5 22.85 24.6 28.35 31 33.1 41.34 45.3 Do(W) mm 400 400 600 850 1100 1500 *350 *350 *600 *600 *800 *800 *800 *800 in 15.74 15.74 23.62 33.46 43.3 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5 31.5 RF(Kg) 18 27 47 80 118 200 365 530 740 1030 1320 1540 2600 3900 BW(Kg) 14 2 38 65 105 185 342 503 713 1000 1285 1498 2540 3825 *Worm Gear or Electric Actuator Operated Dervos Quality Checking System In Dervos, we control quality throughout the whole manufacturing process. Casting inspection: Though casting inspection, we can find out the problem of raw material, such as shoddy casting, unqualified wall thickness, chemical composition and so on, which ensure that you will not be cheated. Machining Inspection: On the one hand, we could ensure machining accuracy through this process. On the other hand, we can find out machining mistake as early as possible, to win more time for repairing and remaking Final Inspection: Final inspection activities include document and QC record review, visual examination, dimension check, pressure test, painting and packing check. You don’t need to come and inspect in person and all the documents could be provided as proof.
Trunnion mounted ball valve DN300 PN63 full bore Double Block and Bleed PMSS seal(metal seal+soft seal）blowout proof stem gearbox operation with LF2 body, LF2+ENP ball/seat and 410 stem. Quick Detail Type Ball Valve Size DN300 Design Pressure PN63 Construction DBB,Trunnion mounted ball valve ConnectionType Flange OperationType Gearbox Operated Body Material LF2 Ball Material LF2+ENP Stem Material 410 Seat Material LF2 +ENP Design Code API 6D Face to Face Dimension API 6D End Connection ASME B16.5 Pressure & Temp ASME B16.34 Medium Water, Oil and Gas Origin China
API 6D ball valve is designed with trunnion mounted ball and full bore structure. The flanged ball valve has 300LB design pressure and 8 inch nominal size with gearbox operation mode, conforming to NACE MR0175 requirement. Quick Detail Type Ball Valve Size 8” Pressure 300LB Construction Two-Piece Body, Full Bore, Trunnion Ball Connection RF Flange Operation Mode Gearbox Body Material A216 WCB Trim Material Ball/Stem F6a, Seat RPTFE Design & Manufacture API 6D Pressure & Temp Code ASME B16.34 End to End ASME B16.10 End Connection ASME B16.5 Inspection API 6D, API 598 Temperature Range -29℃~+200℃ Medium Oil, Water, Gas Dervos Packing Painting Test & Report Pressure Testing & Dimension Checking
The API 6D ball valve is designed with trunnion mounted ball and full bore structure. The flanged ball valve has 600LB design pressure and 10 inch nominal size with gearbox operation mode, conforming to NACE MR0175 requirement.
The 4 inch 150LB ball valve is a 3-piece one with reduced port, A105 body, F6A stem, ball and seat. The The valve is made as per API6D and is tested under API 598.
The 150LB ball valve, made of Duplex stainless steel 4A, has a special V port ball. The valve is particularly suitable for media containing fibers, tiny solid particles, slurry and so on.
China Carbon Steel Ball Valve Provider Offers 3 Piece Position Type Ball Valve, ASTM A105N, Class 800, 1 Inch, Free Floating Ball, API 608, BS 5351.
DN150 PN16 Ball Valve is made according to ISO 17292 standard. The fire resistance test meets the requirements of API 607 standard. The valve body is made of ASTM A105. Its operation mode is turbine operation. The trunnion mounted ball valve with a structural length of 400mm has the structural characteristics of full bore.
8" 2500LB ball valve is made according to API 6D standard. The valve body is made of F51. It has the structural characteristics of trunnion mounted ball, full bore. It also has the design of anti-fire, anti-static and anti-flying valve stem. In addition, it also meets NACE MR0175 requirements.
2" 1500LB ball valve is made according to API 6D standard. It also complies with the design standard of NACE MR0175. The valve body is made of ASTM-A105. It has the structural characteristics of full flow and trunnion mounted ball. It has RTJ connection mode and gearbox operation mode.
