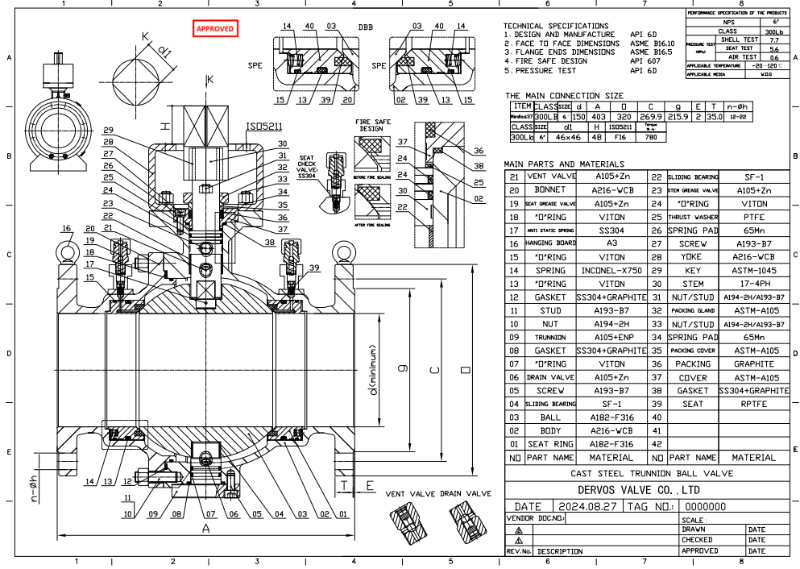

6” 300LB Cast Steel Trunnion Ball Valve is made according to API6D standard. The valve body is made of A216-WCB. This valve features a split body design with a trunnion mounted ball and full bore construction. It is fire-safe, anti-static, and equipped with a blow-out proof stem for enhanced safety and reliable operation. Its connection mode is RF(ASME B16.5).The valve is operated by Plain Stem.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A216-WCB
|
Type |
Trunnion Ball Valve |
|
Size |
6” |
|
Pressure |
300LB |
|
Connection |
RF |
|
Body Material |
A216-WCB |
|
Design Norm |
API 6D |
|
Face to Face |
ASME B16.10 |
|
Flange End Dimension |
ASME B16.5 |
|
Test & Inspection Code |
API 6D |
|
Temperature |
-29 ~ 120°C |
|
Applicable Medium |
Water, Oil and Gas |
1.Constructed from WCB cast steel, providing high strength and durability for 300LB pressure class systems.
2.Trunnion-mounted ball design with plain stem and API 6D compliance ensures stable operation and reliable sealing performance.
