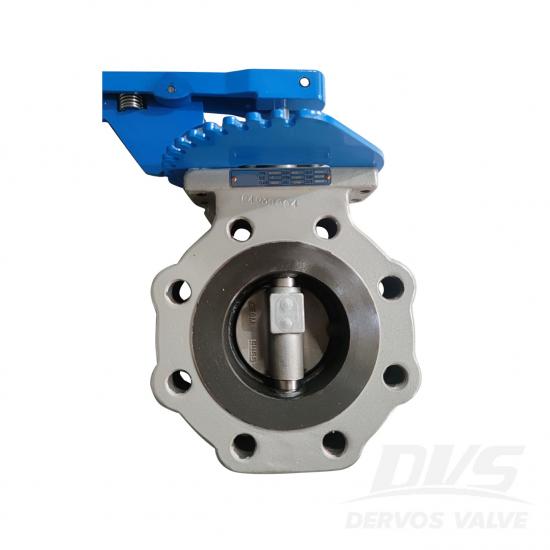

3" 300LB butterfly valve is made according to API609 standard. The valve body is made of WCB. It has the structural characteristics of double eccentric and high performance. Its connection mode is lug.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
WCBProduct Description
Type |
Butterfly Valve |
Size |
3" |
Pressure |
300LB |
Connection |
Lug |
Body Material |
WCB |
Design Norm |
API609 |
Temperature & Pressure |
ASME B16.34 |
Flange Size |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 180°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. It greatly eliminates unnecessary excessive squeezing and scraping between the butterfly plate and valve seat;
2. It reduces opening resistance, reduces wear, and improves valve seat life.

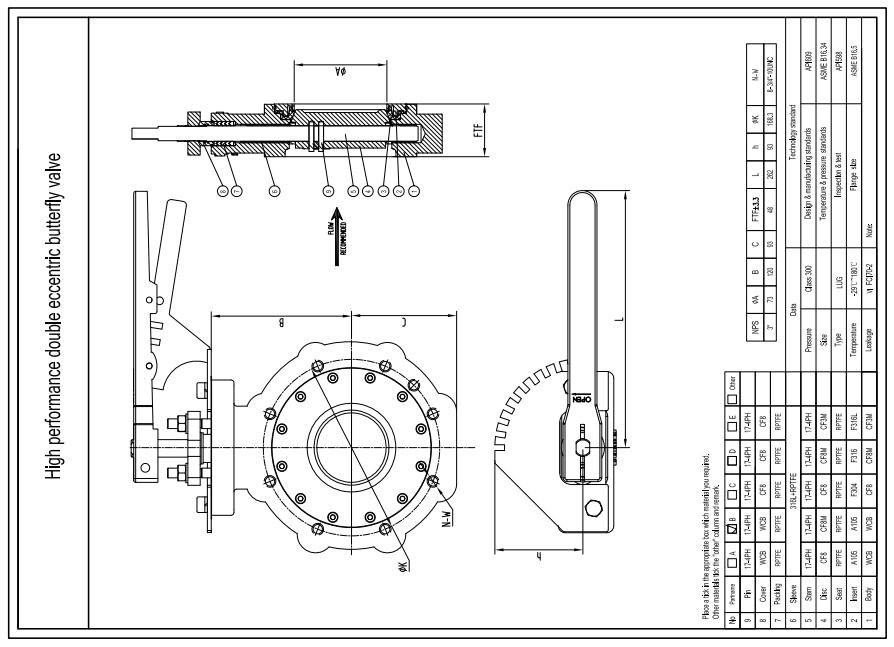

Technical Drawing

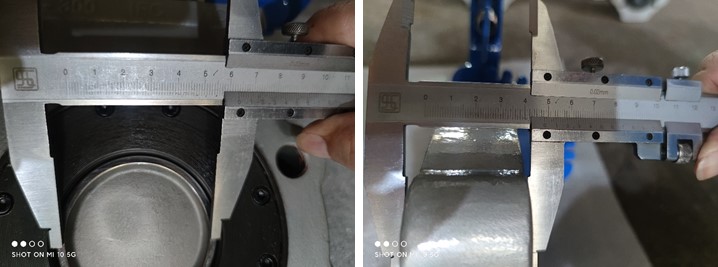

Dimension Checking

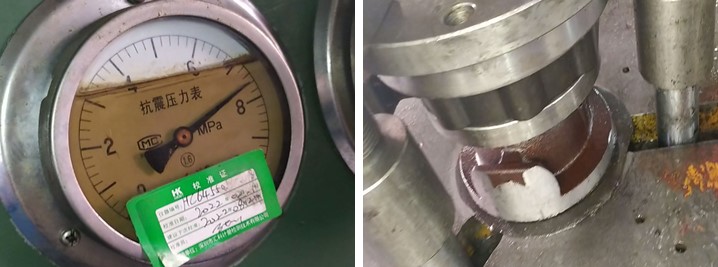

Pressure Testing

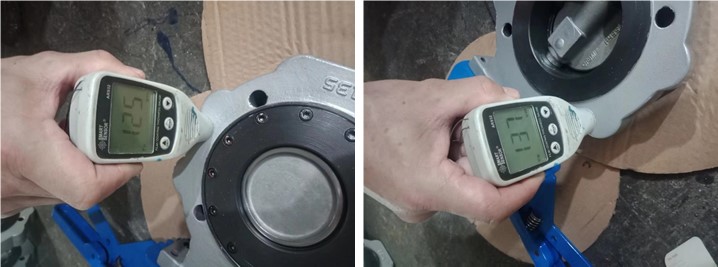

Painting

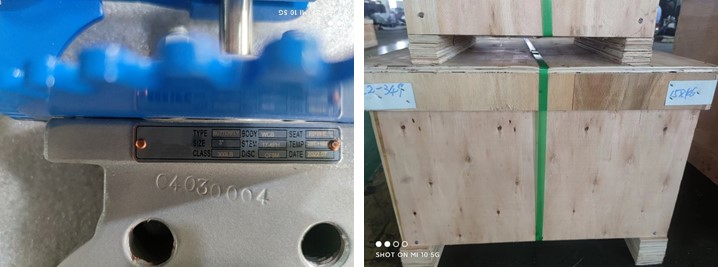

Nameplate & Packing

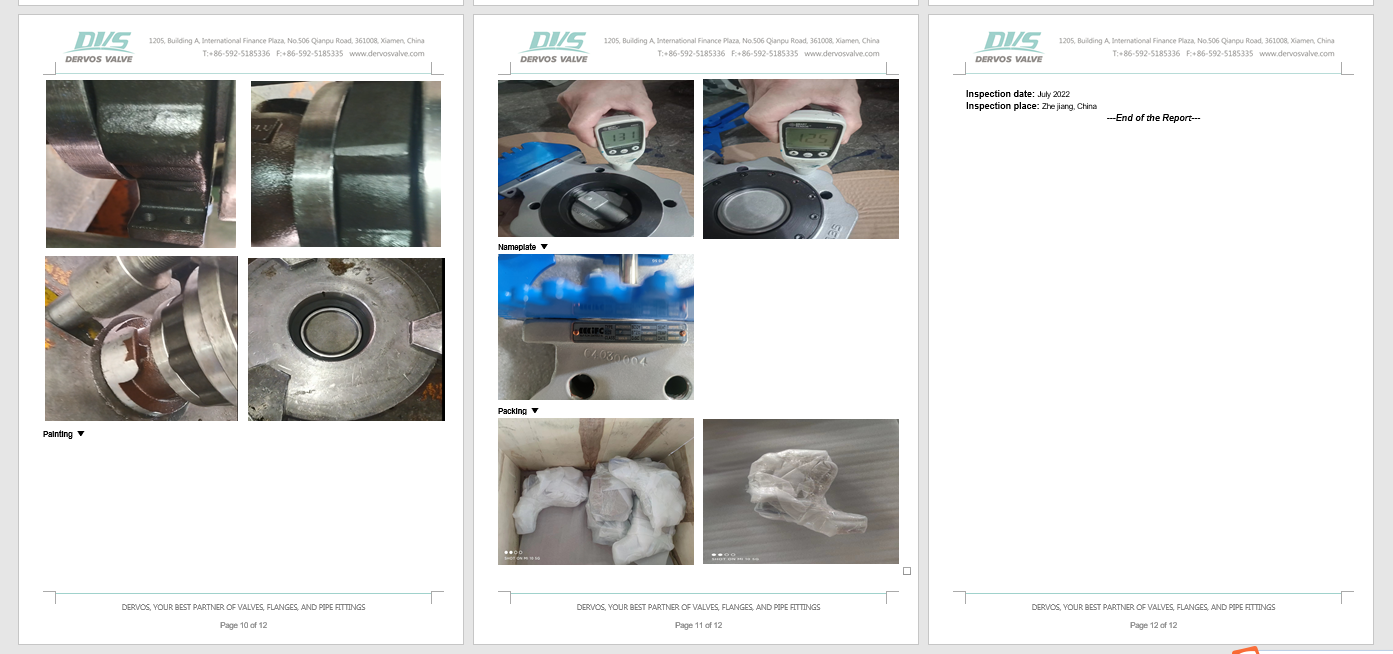

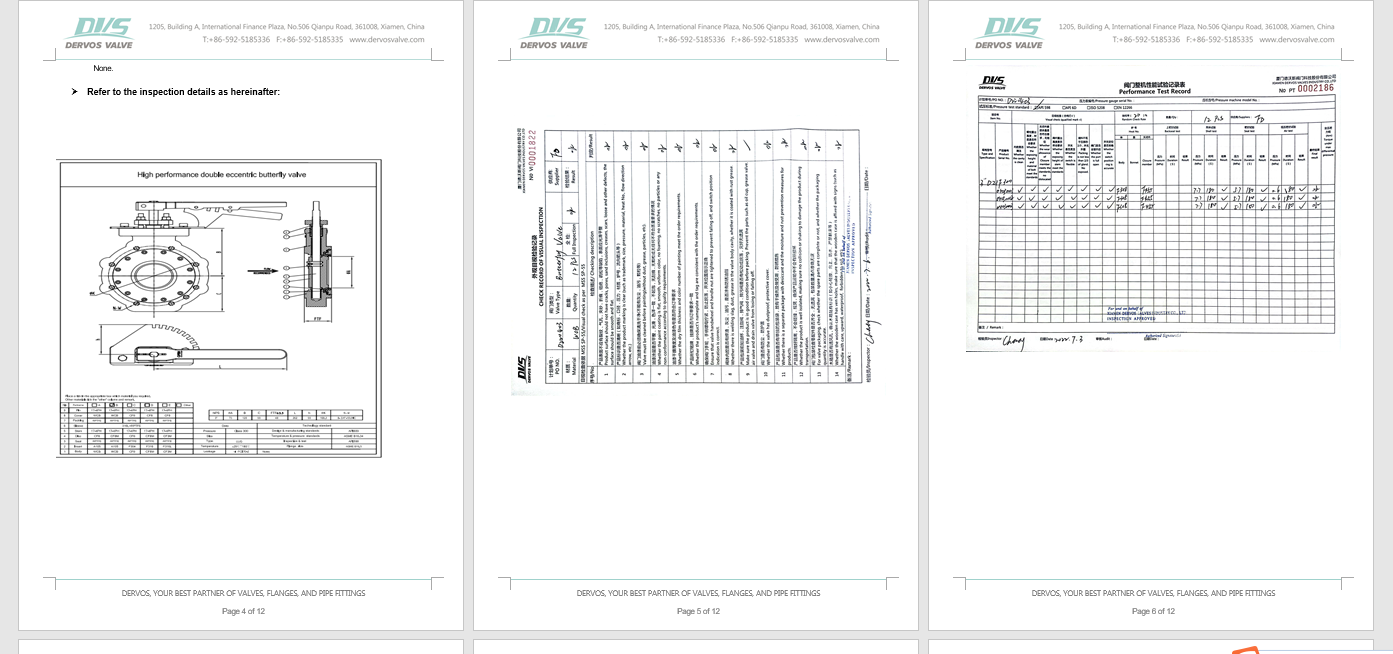

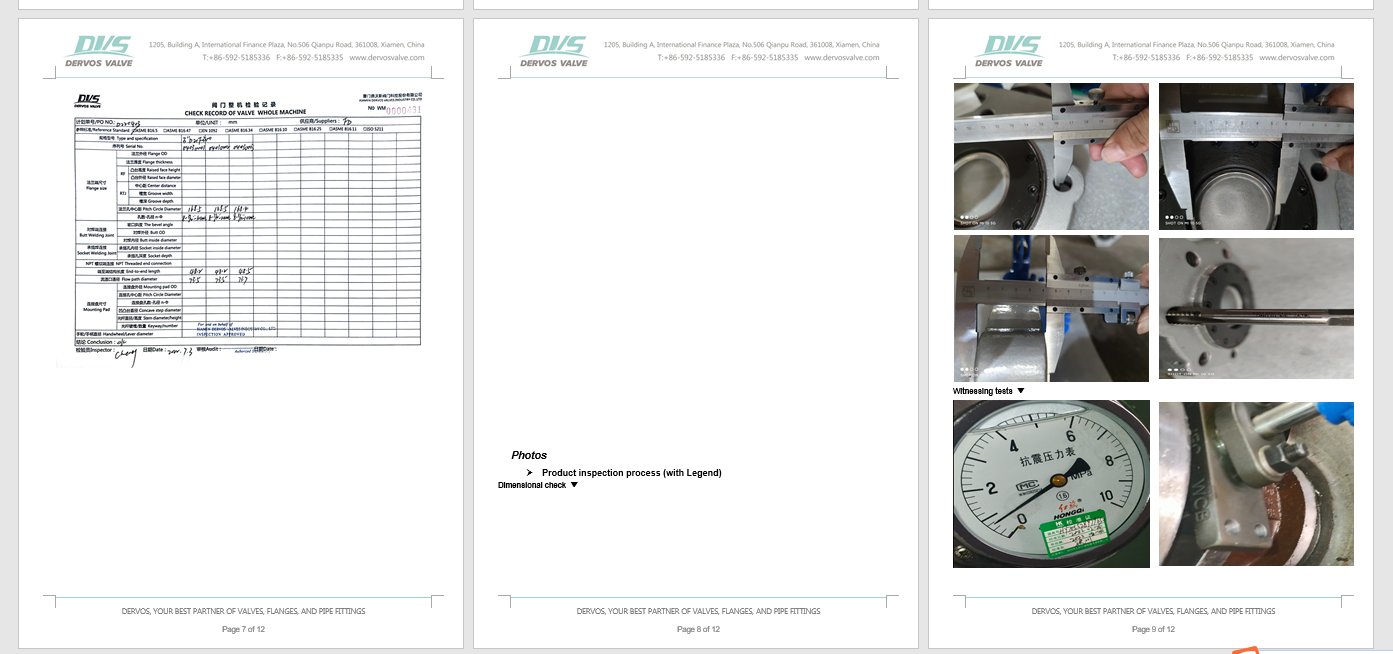

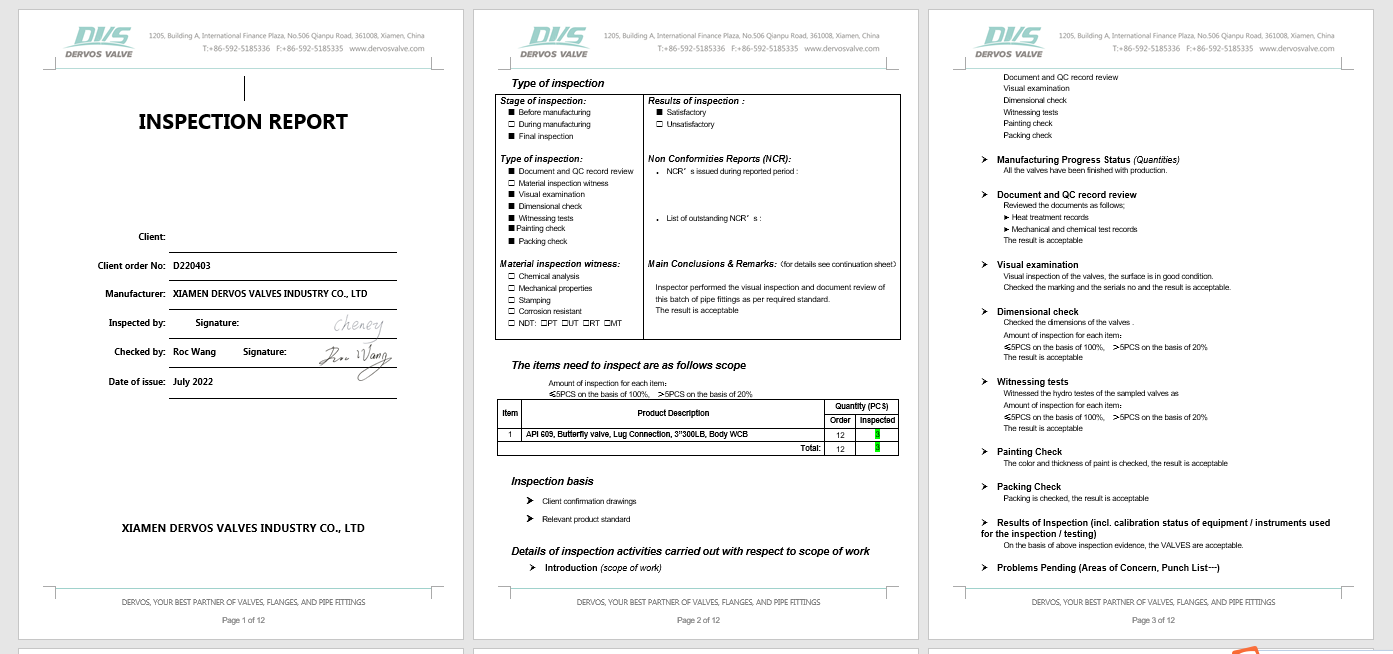

Inspection report
