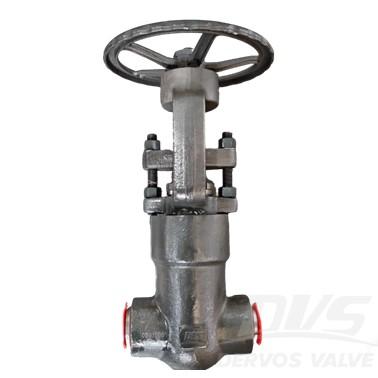

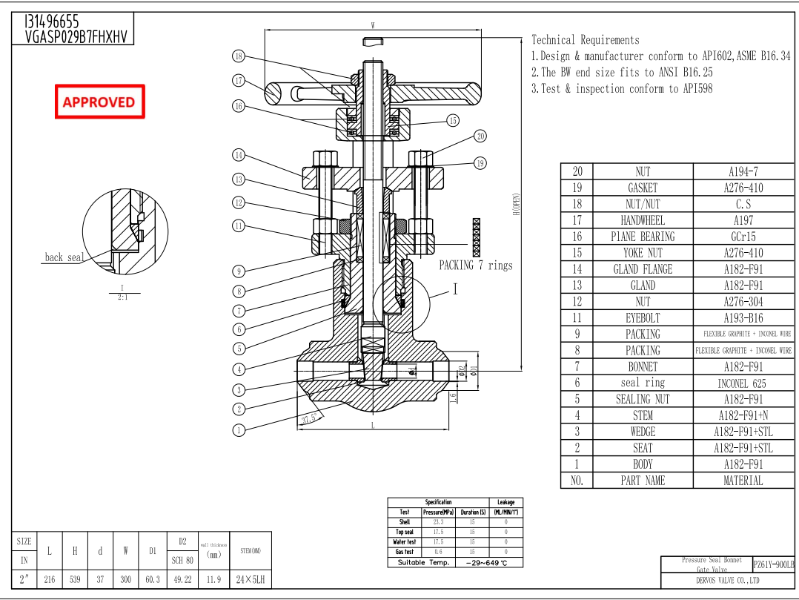

2”900LB Pressure Seal Bonnet Gate Valve is made according to ASME B16.34 standard. The valve body is made of A182-F91. It has the structural characteristics of PSB, OS&Y,Solid Wedge . Its connection mode is BW sch 80 ASME B16.25. And it has Handwheel operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A182-F91Method of Operation:
A182-F91
|
Type |
Gate Valve |
|
Size |
2” |
|
Pressure |
900LB |
|
Connection |
BW sch 80 ASME B16.25 |
|
Body Material |
A182-F91 |
|
Design Norm |
ASME B16.34,API602 |
|
BW end size |
ASME/B16.25 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 649°C |
|
Applicable Medium |
Water, Oil and Gas |
1.Manufactured from F91 alloy steel, offering exceptional high-temperature strength and reliability for 900LB pressure class applications.
2.Pressure seal bonnet gate valve with BW ends and ASME B16.34 compliance ensures secure sealing and long-lasting performance in critical service conditions.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
