A steam trap valve is a device designed on devices that require steam, which can automatically discharge condensate, air, and non condensable gases from the steam system and prevent steam from being discharged. Important Functions (1) Able to quickly remove condensate generated; (2) Prevent steam leakage; (3) Remove air and other non condensable gases. The necessity of using steam equipment to remove condensate and air: (1) Prevent water hammer: If there is condensate in the steam pipeline, it will be strongly impacted by the high-speed flowing steam on the pipe wall, valves, and steam equipment, causing damage or damage to the pipeline bends, valves, and steam equipment. (2) To prevent a decrease in the efficiency of steam using equipment: Steam using equipment (especially indirect heating devices) is aimed at effectively utilizing the latent heat of steam. Excessive condensate trapped in these devices comes into contact with the heating surface, reducing the heating area and uneven heating up and down, resulting in a significant decrease in equipment efficiency. (3) Prevent corrosion of steam inside equipment: Oxygen in water and air coming into contact with the equipment can cause chemical reactions, leading to rust corrosion. (4) Prevent damage to steam using equipment: Due to the different temperatures of steam and water, the condensed water inside the equipment generates temperature differences locally, causing temperature difference stress and equipment damage. Specific requirements for steam trap valves: (1) No steam leakage during the discharge of condensate; (2) It can eliminate all condensed water from any part of the steam system; (3) Capable of simultaneously discharging air and condensate; (4) Suitable for a wide range of pressures; (5) Easy to repair and maintain: simple structure with few moving parts; (6) High practicality: small size, light weight, long lifespan, low price, and no loss of emission capacity due to air and steam.
In industrial production, high-pressure ball valves play a crucial role, and damage to the sealing surface may lead to leakage and performance degradation. Therefore, measures must be taken to prevent and protect the sealing surface. 1. Proper Operation and Usage When operating high-pressure ball valves, it is essential to follow the correct operating procedures and technical requirements. Do not exceed the rated pressure and temperature range of the valve. Avoid over-tightening the valve to prevent damage to the sealing surface or premature wear. 2. Regular Inspection and Maintenance Regularly inspect the sealing surface of the ball valve, especially valves exposed to high-pressure and high-temperature environments. Remove any debris and dirt around the valve to ensure the sealing surface is in good working condition. 3. Select Appropriate Sealing Materials Choose suitable sealing materials according to the requirements of the working environment. For instance, in high-temperature or chemically corrosive environments, select sealing materials that are resistant to high temperatures and corrosion. Regularly inspect the wear and aging of sealing materials and promptly replace damaged seals. 4. Preventing Foreign Object Intrusion Install filters or screens to prevent foreign objects from entering the valve body and damaging the sealing surface. Avoid conducting messy operations around high-pressure ball valves to reduce the intrusion of external impurities. 5. Timely Repair and Replacement If damage or wear is found on the sealing surface, stop using it immediately and proceed with repairing or replacing the seals to prevent leaks from causing more serious issues. 6. Training and Education Provide training to operators to ensure they understand the working principles and proper operation methods of high-pressure ball valves, reducing the risk of seal surface damage due to operational errors. 7. Minimize Frequent Opening and Closing Reduce the frequency of opening and closing high-pressure ball valves because frequent operation increases wear and fatigue on the sealing surface, leading to premature failure. Where possible, take measures to minimize valve cycling, such as planning production schedules rationally or employing automated control systems. 8. Regular Cleaning and Maintenance Perform regular cleaning and maintenance on high-pressure ball valves to remove accumulated dirt and deposits inside the valve body, ensuring the valve operates smoothly and the sealing surface remains clean. Regular cleaning effectively reduces contamination and corrosion of the sealing surface, extending the lifespan of the seals. 9. Choose High-Quality Ball Valves Select high-quality high-pressure ball valve products to ensure that the design and manufacturing quality of the valves meet standard requirements and possess excellent performance and reliable sealing capabilities. Valves from DERVOS typically offer longer lifespan and better sealing effects, effectively...
Stainless steel trunnion mounted ball valve is a commonly used valve type, usually used to control the flow of fluids (such as water, gas, steam, etc.) in pipelines. Advantages: 1. High-pressure resistance. 2. Corrosion resistance due to stainless steel material. 3. Excellent sealing performance with advanced sealing technology. 4. Using PEEK valve seats, zero leakage, and light torque. 5. Robust structure for high reliability. 6. Convenient operation, including remote control, enhancing system efficiency. 7. Wide applicability across industries such as petroleum, chemical, natural gas, and metallurgy. Stainless steel trunnion mounted ball valve is a reliable valve type suitable for various industrial scenarios, especially in environments that require corrosion resistance and high temperature resistance accompanied by corrosion.

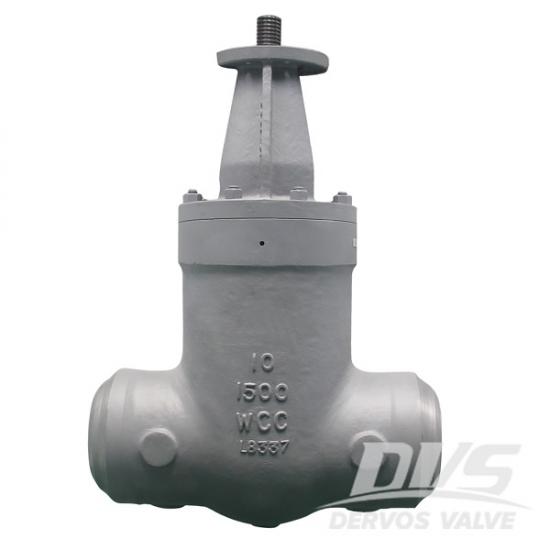

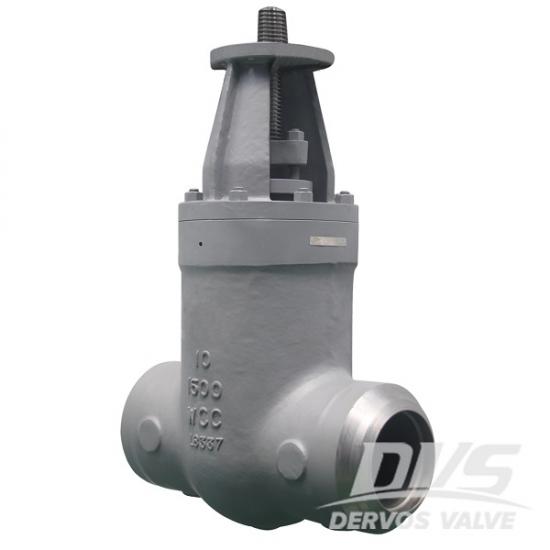

10'' 1500LB gate valve is made according to ASME B16.34 standard. The valve body is made of WCC. It has the structural characteristics of pressure self sealing, rising stem, elastic wedge and structural length of 864mm. Both ends of the valve stem are threaded. It has BW connection type.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCCMethod of Operation:
Bare StemProduct Description
|
Type |
Gate Valve |
|
Size |
10'' |
|
Pressure |
1500LB |
|
Body Material |
ASTM A216 WCC |
|
Design Norm |
ASME B16.34 |
|
Type of Valve |
PSB |
|
Valve Operating |
Bare Stem |
|
End Connection Type |
BW |
|
End to End Dimension |
ANSI B16.10 |
|
BW Dimension |
ANSI B16.25 |
|
Test |
API 598 |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Elastic wedge is adopted, which has certain elastic compensation under high pressure conditions, and the sealing is more reliable;
2. The sealing structure and sealing material can be selected according to different working conditions and preload requirements.

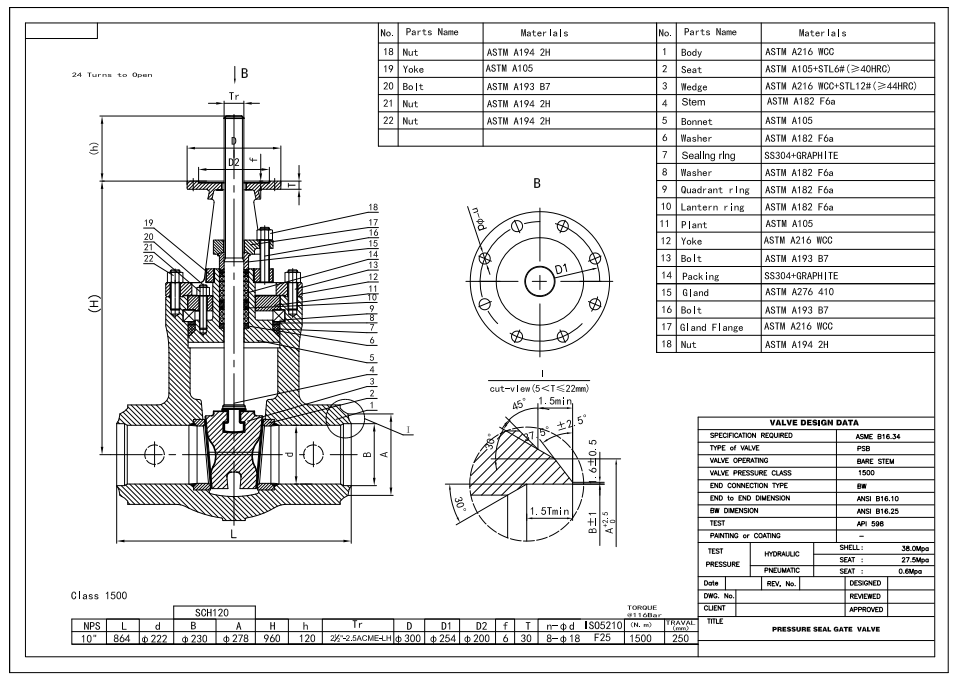

Technical Drawing

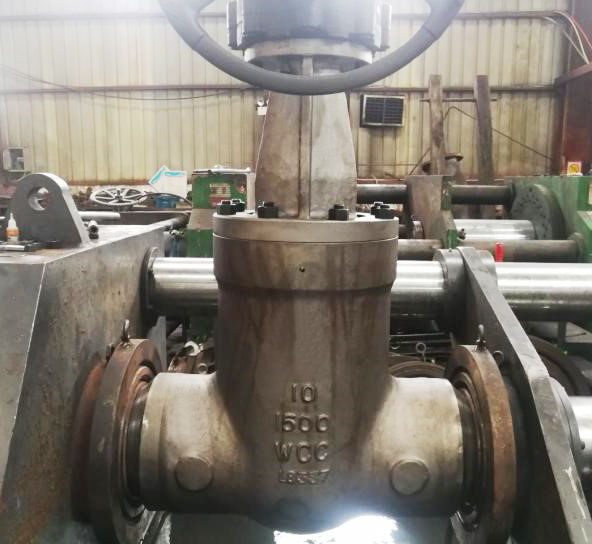

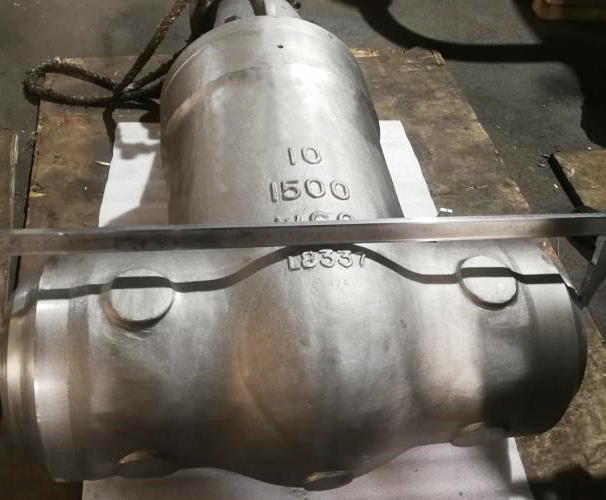

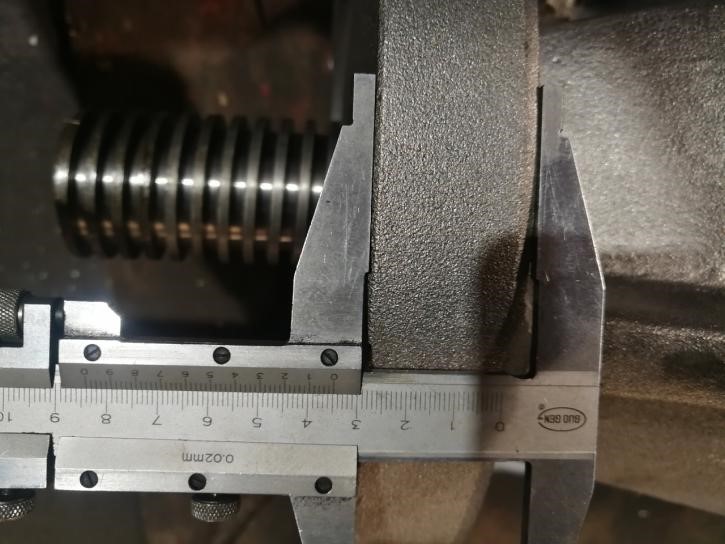

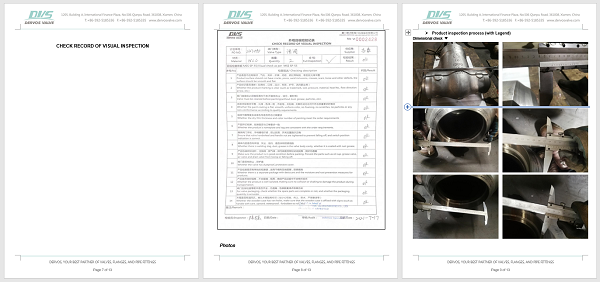

Dimension Checking

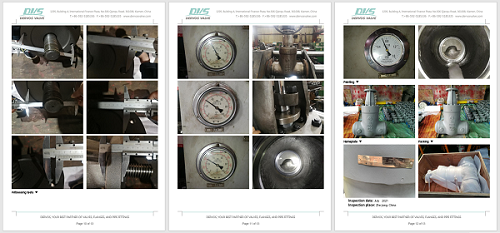

Witnessing Tests

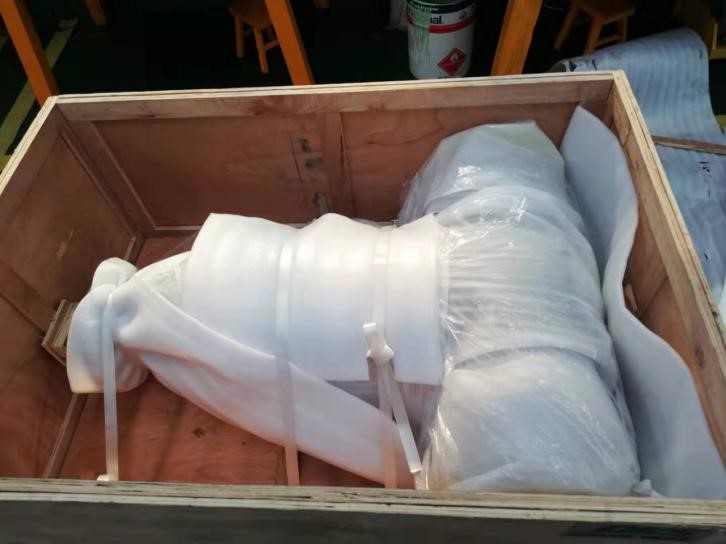

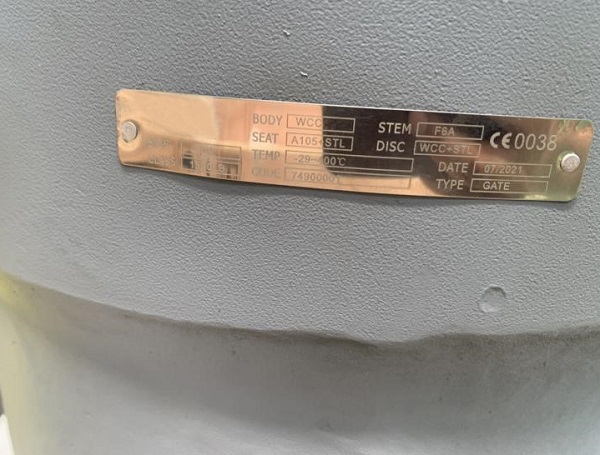

Nameplate & Packing

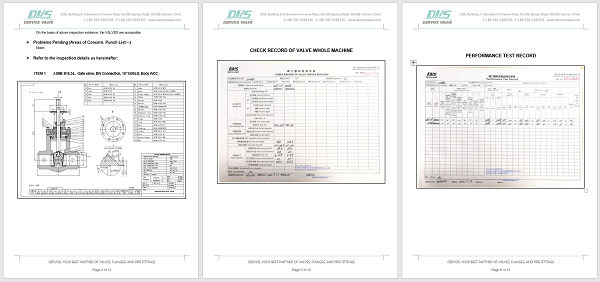

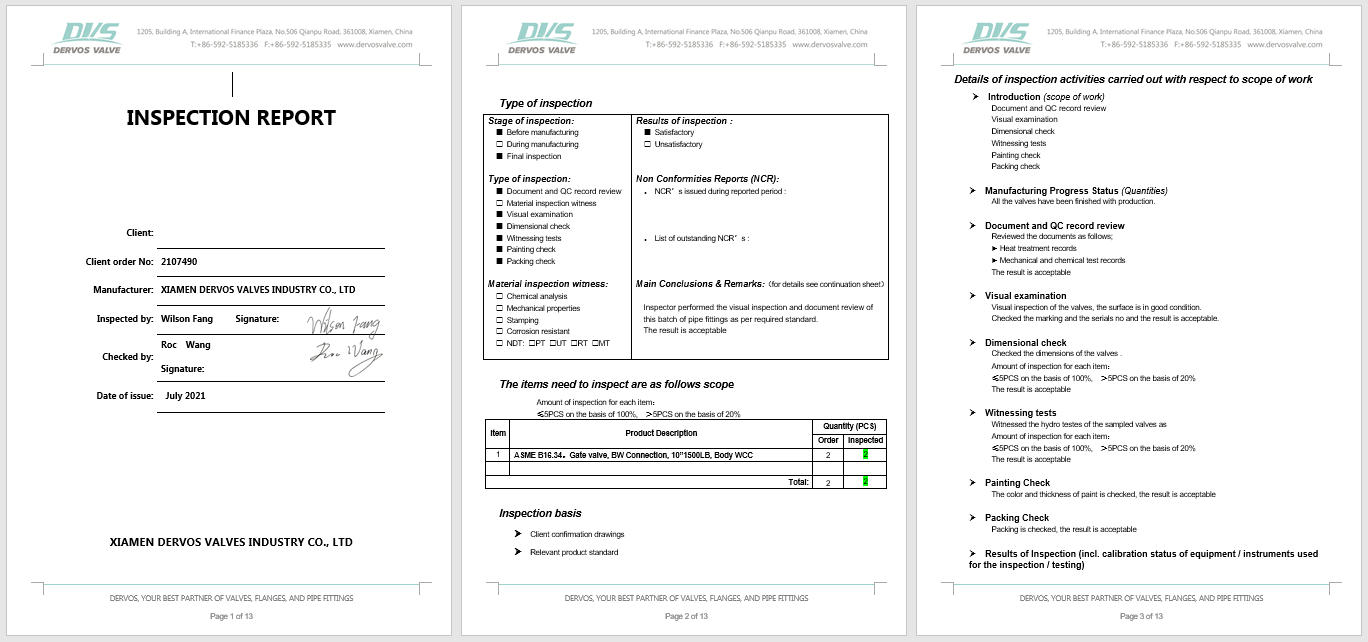

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 8 inch Class 2500 gate valve is designed with pressure seal bonnet, butt weld connection, and gearbox operation. The 8 inch gate valve has carbon steel WCB body and trim 5. Quick Detail Type Gate Valve Size 8'' Design Pressure ANSI 2500 Construction Pressure Seal Bonnet, Flexible Wedge, Metal to Metal Seat ConnectionType Butt Weld (SW) OperationType Gearbox Operation Body Material A217 WC6 TrimMaterial Trim 5 Design Code API 600 Face to Face Dimension ASME B16.10 End Connection ASME B16.25 Pressure & Temp ASME B16.34 Medium Water, Oil and Gas Origin China Dimension & Material NPS DN Class 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24 50 65 80 100 150 200 250 300 350 400 450 500 600 L(RF) 900LB 368 419 381 457 610 737 838 965 1029 1130 1500LB 368 419 470 546 705 832 991 1130 1257 1384 2500LB 451 508 578 673 917 1022 1270 L1(BW) 900LB 216 254 305 355 508 660 787 914 991 1092 1346 1473 1600 1500LB 216 254 305 406 559 711 864 991 1067 1194 1697 2500LB 279 330 368 457 610 762 914 1041 1118 1245 L2(RTJ) 900LB 371 422 384 460 613 740 841 968 1038 1140 1500LB 371 422 473 549 711 841 1000 1146 1276 1407 2500LB 454 514 584 683 927 1038 1292 H(Opne) 900LB 554 637 680 796 1084 1372 1494 1550 1960 2210 1500LB 554 637 767 875 1094 1372 1655 1834 2150 2260 2460 2721 2940 2500LB 610 654 753 850 1254 1374 1685 1894 2226 2382 2585 W 900LB 300 350 350 400 560 460* 610* 610* 610* 760* 1500LB 300 450 450 560 305* 460* 610* 610* 760* 760* 2500LB 500 500 600 600 460* 460* 610* Weight (RF) 900LB 50 84 92 154 341 622 950 1295 1720 2380 1500LB 60 91 128 182 394 795 1370 2120 2800 3870 2500LB 121 175 195 229 720 1295 2250 Weight (BW) 900LB 39 64 82 120 266 524 760 1090 1450 2018 1500LB 46 71 85 130 292 578 974 1615 2010 2815 3315 4150 5219 2500LB 88 135 144 158 500 892 1550 1978 2580 3780 5988 *Manual gear operator is recommended No. Part WCB WC6 WC9 C5 CF8 CF8M 1 Body A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 2 Seat A182 F6a A182 F22 A182 F22 A182 F5 A182 F304 A182 F316 3 Wedge A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 4 Stem A182 F6a SAEHNV3 A182 F304 A182 F316 5 Stuffing Box A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 6 Seal Ring ANSI 316L Flexible Graphite+316 7 Split Ring Steel F6 F6 F6 A182 F304 F316 8 Back Ring Steel Steel Steel Steel SS SS 9 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 10 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 11 Yoke A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 12 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 13 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 14 Packing Plate ANSI 410 ANSI 410 ANSI 410 ANSI 410 ANSI 304 ANSI 316 15 Packing Flexible Graphite(Braided and Ring) or PTFE 16 Split Pin Steel Steel Steel Steel Steel Steel 17 Eyebolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 18 Gland A182 F6 A182 F6 A182 F6 A182 F6 A182 F304 A182 F316 19 Gland Flange A105 A105 A105 A105 A182 F304 A182 F316 20 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 21 Stud A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 22 Stem Nut Ni-resist A439-D2 23 Gear Box Purchased 24 Protector Steel 25 Nameplate ANSI 304 26 Rivet ANSI 304
8" 1500LB gate valve is made according to ASME B16.34 standard. The valve body is made of WCC. It has the structural characteristics of pressure self sealing, elastic gate and structural length of 711mm. The working principle of self sealing valve is mainly to use wedge sealing surface to seal under pressure.
The high-pressure Class 4500 gate valve is designed with PSB and SW end connection. Made of CS A105, the 2 inch gate valve follows the inspection standard API 598 and design standard API 602. Dervos could offer customizing service by providing clients with valves in different sizes, materials, standards, design pressure, structure, operation type and connection type.
2" 300LB ball valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of full bore, floating ball, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF. And it has lever operation mode.
14" 150LB butterfly valve is made according to API609 standard. The valve body is made of WCB+EPOXY COATING. It has the structural characteristics of center line. Its connection mode is wafer. And it has gear operation mode.
The 8 inch Class 2500 gate valve is designed with pressure seal bonnet, butt weld connection, and gearbox operation. The 8 inch gate valve has carbon steel WCB body and trim 5. Quick Detail Type Gate Valve Size 8'' Design Pressure ANSI 2500 Construction Pressure Seal Bonnet, Flexible Wedge, Metal to Metal Seat ConnectionType Butt Weld (SW) OperationType Gearbox Operation Body Material A217 WC6 TrimMaterial Trim 5 Design Code API 600 Face to Face Dimension ASME B16.10 End Connection ASME B16.25 Pressure & Temp ASME B16.34 Medium Water, Oil and Gas Origin China Dimension & Material NPS DN Class 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24 50 65 80 100 150 200 250 300 350 400 450 500 600 L(RF) 900LB 368 419 381 457 610 737 838 965 1029 1130 1500LB 368 419 470 546 705 832 991 1130 1257 1384 2500LB 451 508 578 673 917 1022 1270 L1(BW) 900LB 216 254 305 355 508 660 787 914 991 1092 1346 1473 1600 1500LB 216 254 305 406 559 711 864 991 1067 1194 1697 2500LB 279 330 368 457 610 762 914 1041 1118 1245 L2(RTJ) 900LB 371 422 384 460 613 740 841 968 1038 1140 1500LB 371 422 473 549 711 841 1000 1146 1276 1407 2500LB 454 514 584 683 927 1038 1292 H(Opne) 900LB 554 637 680 796 1084 1372 1494 1550 1960 2210 1500LB 554 637 767 875 1094 1372 1655 1834 2150 2260 2460 2721 2940 2500LB 610 654 753 850 1254 1374 1685 1894 2226 2382 2585 W 900LB 300 350 350 400 560 460* 610* 610* 610* 760* 1500LB 300 450 450 560 305* 460* 610* 610* 760* 760* 2500LB 500 500 600 600 460* 460* 610* Weight (RF) 900LB 50 84 92 154 341 622 950 1295 1720 2380 1500LB 60 91 128 182 394 795 1370 2120 2800 3870 2500LB 121 175 195 229 720 1295 2250 Weight (BW) 900LB 39 64 82 120 266 524 760 1090 1450 2018 1500LB 46 71 85 130 292 578 974 1615 2010 2815 3315 4150 5219 2500LB 88 135 144 158 500 892 1550 1978 2580 3780 5988 *Manual gear operator is recommended No. Part WCB WC6 WC9 C5 CF8 CF8M 1 Body A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 2 Seat A182 F6a A182 F22 A182 F22 A182 F5 A182 F304 A182 F316 3 Wedge A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 4 Stem A182 F6a SAEHNV3 A182 F304 A182 F316 5 Stuffing Box A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 6 Seal Ring ANSI 316L Flexible Graphite+316 7 Split Ring Steel F6 F6 F6 A182 F304 F316 8 Back Ring Steel Steel Steel Steel SS SS 9 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 10 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 11 Yoke A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 12 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 13 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 14 Packing Plate ANSI 410 ANSI 410 ANSI 410 ANSI 410 ANSI 304 ANSI 316 15 Packing Flexible Graphite(Braided and Ring) or PTFE 16 Split Pin Steel Steel Steel Steel Steel Steel 17 Eyebolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 18 Gland A182 F6 A182 F6 A182 F6 A182 F6 A182 F304 A182 F316 19 Gland Flange A105 A105 A105 A105 A182 F304 A182 F316 20 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 21 Stud A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 22 Stem Nut Ni-resist A439-D2 23 Gear Box Purchased 24 Protector Steel 25 Nameplate ANSI 304 26 Rivet ANSI 304
10’’ ~ 24’’ 600LB gate valve is made according to API 6D standard. The valve body is made of A516 Gr70. It has the structural characteristics of parallel gate. The operation mode is gear operation.
3" 1500LB strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of plug with DN20 blind flange. Its connection mode is RTJ.
DN125 PN16 gate valve is made according to DIN 3352 standard. The valve body is made of 1.4408. It has the structural characteristics of bolt cover, rising stem, elastic wedge, with SS316 insulation jacket and structural length of 325mm. Its connection mode is RF EN1092-1 B1. And it has hand wheel operation mode.
8" 150LB strainer is made according to ASME B16.34 standard. The valve body is made of CF3M. It has the structural characteristics of Y type. Its connection mode is RF.
