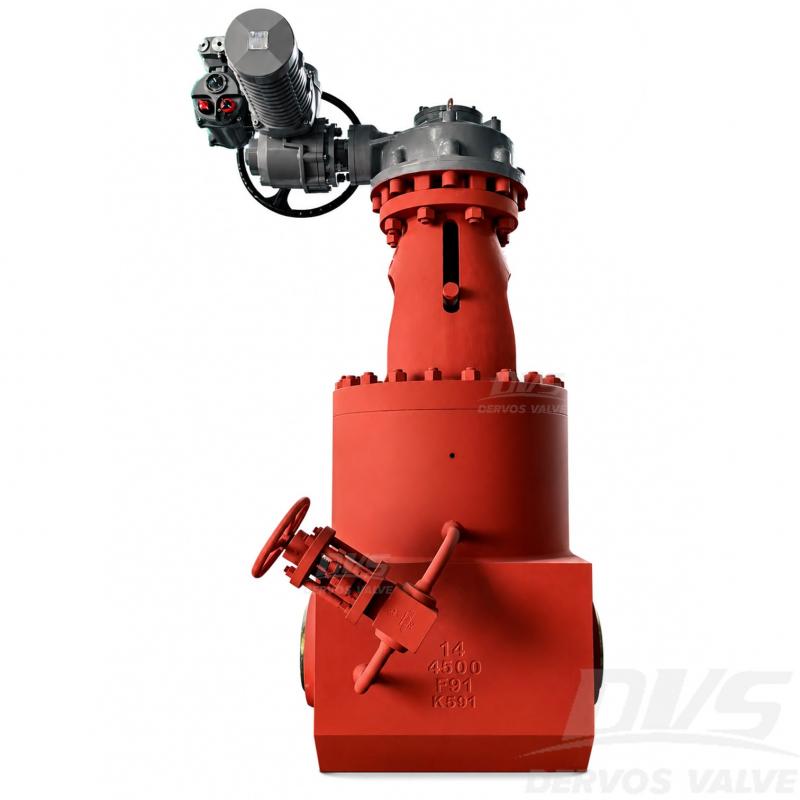

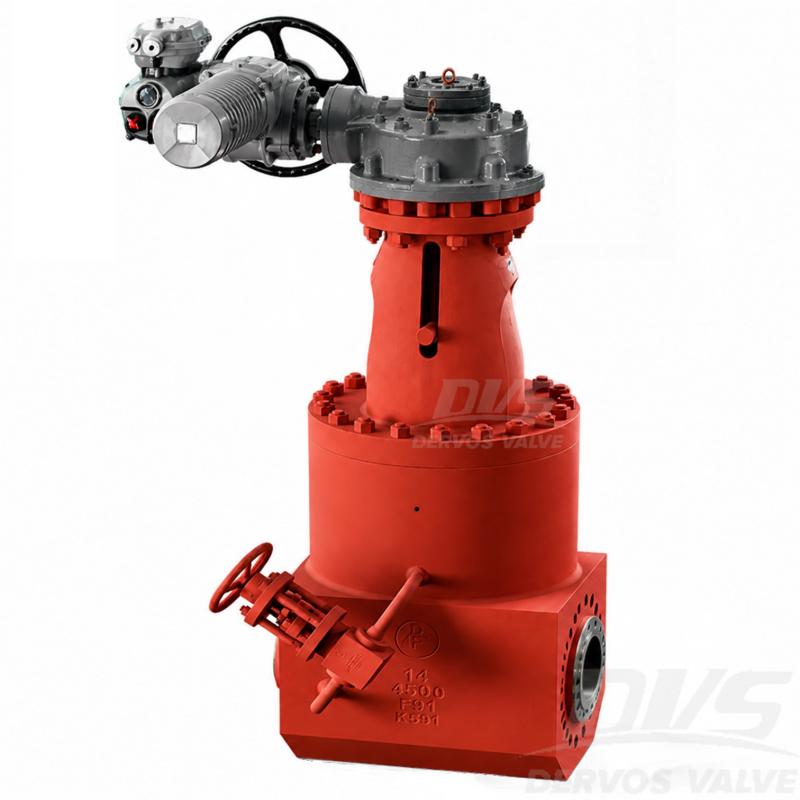

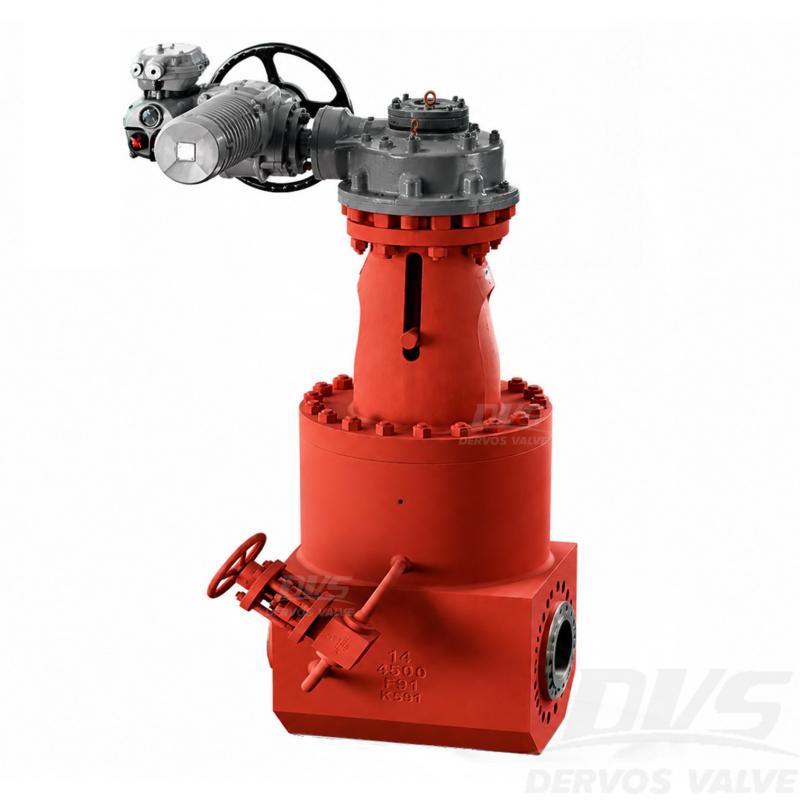

14 inch Class 4500 F91 pressure seal gate valve with electric actuator
加载中...

Pressure Seal Gate Valve 14" 4500LB F91 BW ASME B16.34 Electric Actuated

This 14" 4500LB F91 pressure seal gate valve is designed for high-temperature and high-pressure power plant boiler service. It features ASTM A182 F91 Type 2 material, a pressure seal bonnet, parallel double disc structure, BW ends, AOX electric actuator, and bypass valve for pressure equalization.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    china
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    ASTM A182 F91 Type 2
  • Method of Operation:

    AOX Electric Actuator
Inquiry now
Product Detail

Introduction



This 14" Class 4500 F91 pressure seal gate valve is designed for severe high temperature and high pressure boiler and steam pipeline service. It features a parallel double disc, rising stem, full-bore design with BW ends, electric actuation, and a bypass valve for pressure equalization.



Constructed from ASTM A182 F91 Type 2, the valve is suitable for design temperatures up to 649°C (1200°F). The ASME B16.25 butt-welded connection helps minimize potential flange leakage, while API 598 testing verifies pressure-containing and sealing performance before shipment.



This configuration is suitable for power plants, boiler systems, high-temperature steam pipelines, and other severe high-pressure isolation applications.



Product Parameters



Type

Pressure Seal Gate Valve

Size

14" / DN350

Pressure Rating

Class 4500 / 4500LB

Structure

Parallel Double Disc, Rising Stem, Full Bore

Connection

BW

Operation

AOX Electric Actuator

Body / Bonnet Material

ASTM A182 F91 Type 2

Disc / Seat

F91 + STL

Stem

F6A 2 + N

Trim

#5

Design Standard

ASME B16.34

Temperature

-29°C~649°C

End Connection Standard

ASME B16.25



Features



1. Pressure Seal Bonnet for Class 4500 Service

The pressure seal bonnet is suitable for high-pressure boiler and steam pipeline applications. As internal pressure increases, the bonnet sealing effect is strengthened, helping improve sealing reliability under severe pressure conditions.



2. ASTM A182 F91 Type 2 High-Temperature Material

F91 high-temperature alloy steel provides better high-temperature strength and creep resistance than ordinary carbon steel. It is commonly selected for power plant boiler and high-temperature steam service.



3. Parallel Double Disc, Rising Stem Design

The parallel double disc structure supports stable shut-off performance in high-pressure service. The rising stem design also helps operators confirm valve position during operation and maintenance.



4. BW Ends for Severe Pipeline Connection

The valve uses butt-weld ends according to ASME B16.25. BW connection is suitable for high-temperature and high-pressure pipelines where a welded connection is preferred to reduce potential leakage points.



5. Electric Actuated Operation

The AOX electric actuator supports controlled opening and closing, which is useful for a 14 inch Class 4500 valve where manual operation may be difficult due to high torque and severe service conditions.



6. Bypass Valve for Pressure Equalization

The bypass valve helps equalize pressure before the main valve is operated. This reduces operating load, protects the actuator, and improves operation stability under high differential pressure.



7. Tested to API 598

The valve is tested according to API 598. The specified shell test pressure is 116.4 MPa, and the seat test pressure is 47.4 MPa, supporting reliable pressure and sealing verification before delivery.



Flexible Design Options



Tailored Configurations for High-Temperature and High-Pressure Applications

Beyond the base configuration, this pressure seal gate valve can be customized according to power plant and boiler pipeline requirements. Available options include electric or gear operation, bypass valve arrangement, drain and vent connections, extended stem, special trim, hardfacing, actuator accessories, and customized testing or documentation.



For applications involving severe thermal cycling, high-pressure steam, or thick-wall butt-weld piping, material selection, pressure class, trim design, welding end preparation, actuator torque, and testing requirements should be confirmed before production.



high temperature valve

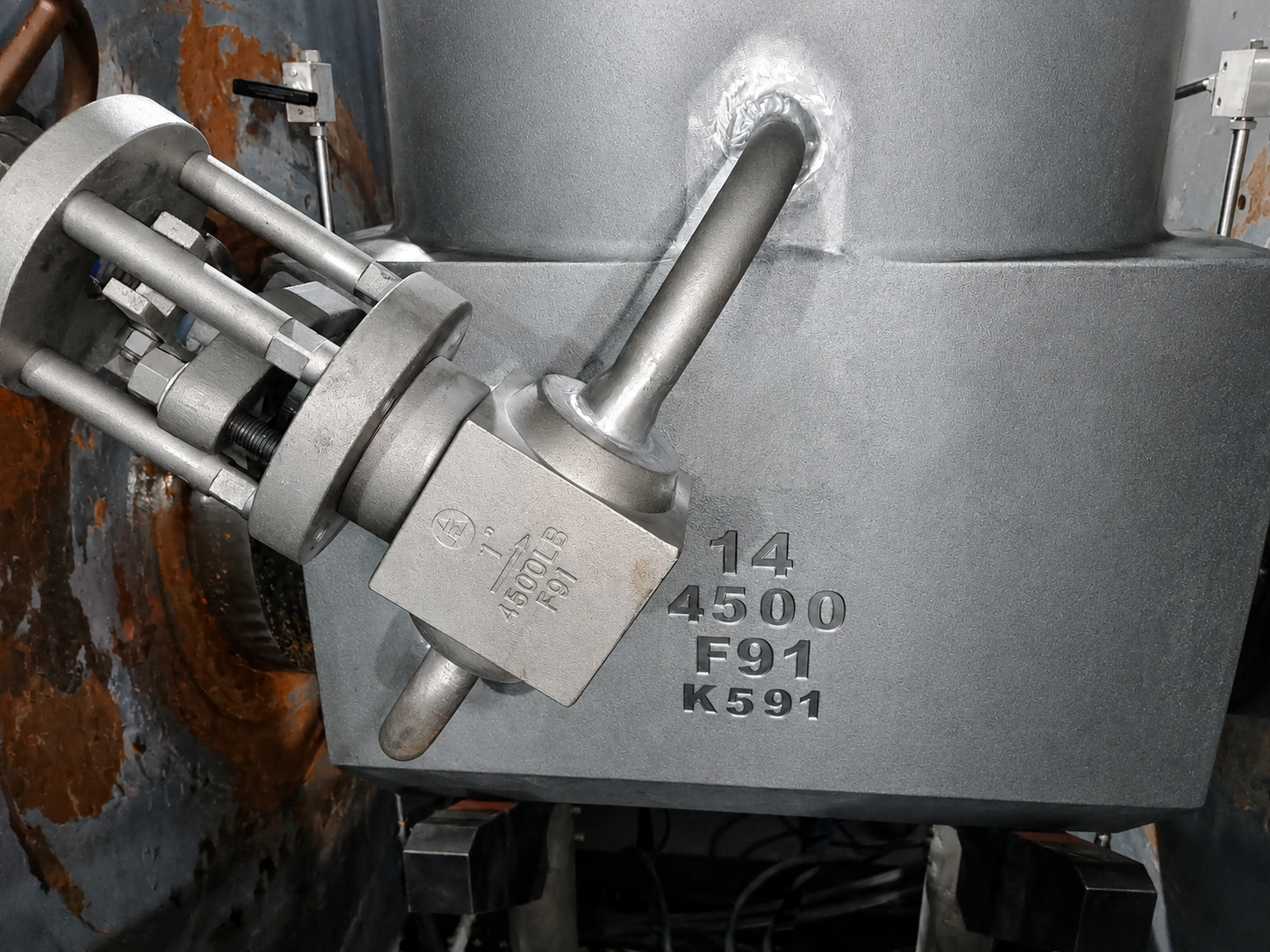

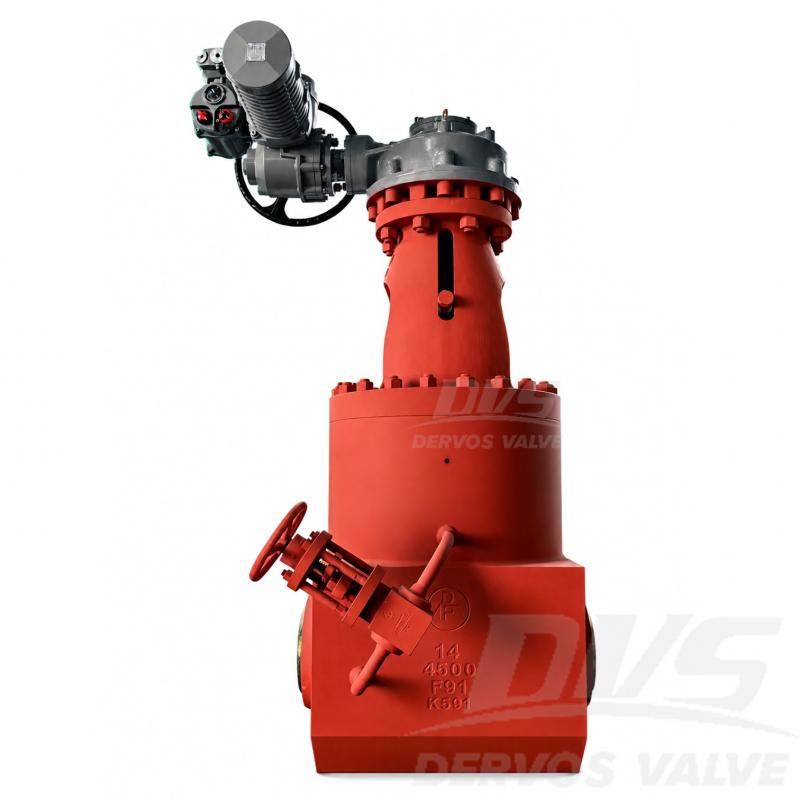

Bypass Valve for Pressure Equalization



For a large-size Class 4500 gate valve, high differential pressure across the disc can increase operating torque and create additional load during opening. The bypass valve allows pressure to be balanced before the main valve is operated.



This design helps improve operation safety and stability in high-pressure boiler service, especially during start-up, shutdown, or maintenance preparation.





Pressure Testing and Inspection



Each valve can be inspected and tested before shipment according to API 598 and project-specific requirements. For this 14 inch Class 4500 pressure seal gate valve, the specified shell test pressure is 116.4 MPa and the seat test pressure is 47.4 MPa.



Recommended inspection items include material certificate review, dimensional inspection, visual inspection, shell test, seat leakage test, actuator function test, bypass valve inspection, nameplate verification, painting inspection, packing inspection, and final document review.

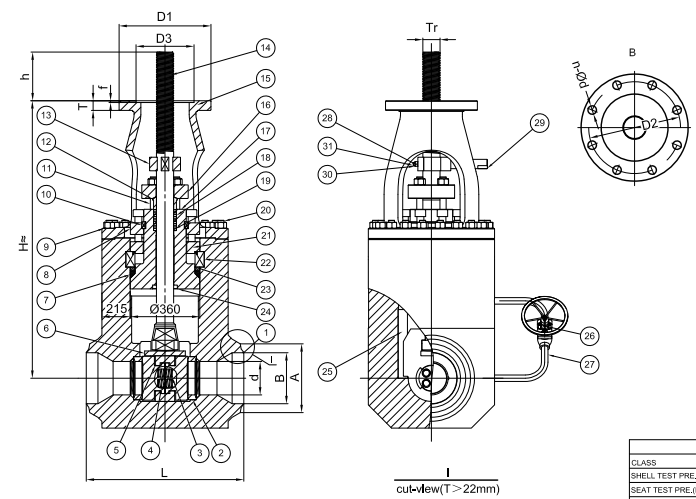

Technical Drawing

high temperature valve

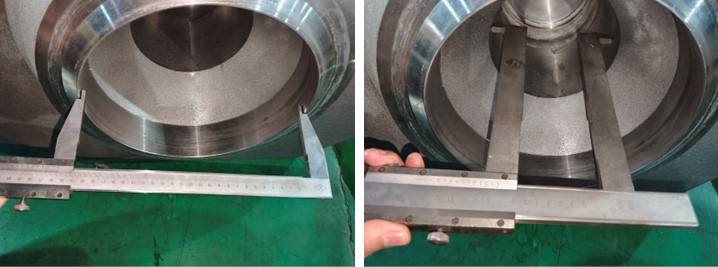

Dimension Checking

Pressure Seal Gate Valve

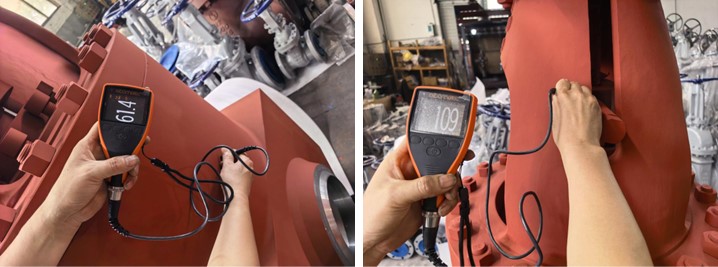

Painting

Pressure Seal Gate Valve

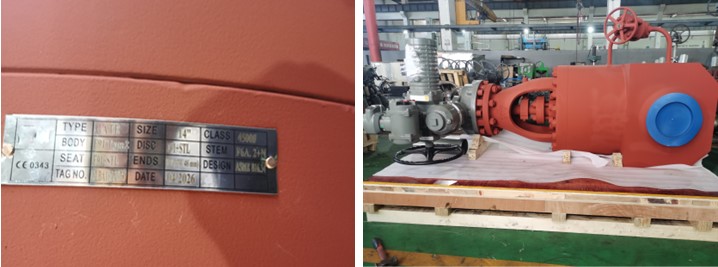

Nameplate & Packing

Pressure Seal Gate Valve



Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Pressure Seal Bonnet Gate Valve
Pressure Seal Bonnet Gate Valve BW 8 Inch 2500LB

The 8 inch Class 2500 gate valve is designed with pressure seal bonnet, butt weld connection, and gearbox operation. The 8 inch gate valve has carbon steel WCB body and trim 5. Quick Detail Type Gate Valve Size 8'' Design Pressure ANSI 2500 Construction Pressure Seal Bonnet, Flexible Wedge, Metal to Metal Seat ConnectionType Butt Weld (SW) OperationType Gearbox Operation Body Material A217 WC6 TrimMaterial Trim 5 Design Code API 600 Face to Face Dimension ASME B16.10 End Connection ASME B16.25 Pressure & Temp ASME B16.34 Medium Water, Oil and Gas Origin China Dimension & Material NPS      DN Class 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24 50 65 80 100 150 200 250 300 350 400 450 500 600 L(RF) 900LB 368 419 381 457 610 737 838 965 1029 1130       1500LB 368 419 470 546 705 832 991 1130 1257 1384       2500LB 451 508 578 673 917 1022 1270             L1(BW) 900LB 216 254 305 355 508 660 787 914 991 1092 1346 1473 1600 1500LB 216 254 305 406 559 711 864 991 1067 1194 1697     2500LB 279 330 368 457 610 762 914 1041 1118 1245       L2(RTJ) 900LB 371 422 384 460 613 740 841 968 1038 1140       1500LB 371 422 473 549 711 841 1000 1146 1276 1407       2500LB 454 514 584 683 927 1038 1292             H(Opne) 900LB 554 637 680 796 1084 1372 1494 1550 1960 2210       1500LB 554 637 767 875 1094 1372 1655 1834 2150 2260 2460 2721 2940 2500LB 610 654 753 850 1254 1374 1685 1894 2226 2382 2585     W 900LB 300 350 350 400 560 460* 610* 610* 610* 760*       1500LB 300 450 450 560 305* 460* 610* 610* 760* 760*       2500LB 500 500 600 600 460* 460* 610*             Weight   (RF) 900LB 50 84 92 154 341 622 950 1295 1720 2380       1500LB 60 91 128 182 394 795 1370 2120 2800 3870       2500LB 121 175 195 229 720 1295 2250             Weight   (BW) 900LB 39 64 82 120 266 524 760 1090 1450 2018       1500LB 46 71 85 130 292 578 974 1615 2010 2815 3315 4150 5219 2500LB 88 135 144 158 500 892 1550 1978 2580 3780 5988     *Manual gear operator is recommended No. Part WCB WC6 WC9  C5 CF8 CF8M 1 Body A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 2 Seat A182 F6a A182 F22 A182 F22 A182 F5 A182 F304 A182 F316 3 Wedge A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 4 Stem A182 F6a SAEHNV3 A182 F304 A182 F316 5 Stuffing Box A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 6 Seal Ring ANSI 316L Flexible Graphite+316 7 Split Ring Steel F6 F6 F6 A182 F304 F316 8 Back Ring Steel Steel Steel Steel SS SS 9 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 10 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 11 Yoke A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 12 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 13 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 14 Packing Plate ANSI 410 ANSI 410 ANSI 410 ANSI 410 ANSI 304 ANSI 316 15 Packing Flexible Graphite(Braided and Ring) or PTFE 16 Split Pin Steel Steel Steel Steel Steel Steel 17 Eyebolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 18 Gland A182 F6 A182 F6 A182 F6 A182 F6 A182 F304 A182 F316 19 Gland Flange A105 A105 A105 A105 A182 F304 A182 F316 20 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 21 Stud A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 22 Stem Nut Ni-resist A439-D2 23 Gear Box Purchased 24 Protector Steel 25 Nameplate ANSI 304 26 Rivet ANSI 304

Gate Valve
8" 1500LB Pressure Self Sealing Gate Valve WCC BW

8" 1500LB gate valve is made according to ASME B16.34 standard. The valve body is made of WCC. It has the structural characteristics of pressure self sealing, elastic gate and structural length of 711mm. The working principle of self sealing valve is mainly to use wedge sealing surface to seal under pressure.

Gate Valve
Pressure Seal Gate Valve 2 Inch 4500 LB SW API 602

The high-pressure Class 4500 gate valve is designed with PSB and SW end connection. Made of CS A105, the 2 inch gate valve follows the inspection standard API 598 and design standard API 602. Dervos could offer customizing service by providing clients with valves in different sizes, materials, standards, design pressure, structure, operation type and connection type.

Gate Valve
Pressure Seal Gate Valve 10'' 1500LB WCC BW PSB

10'' 1500LB gate valve is made according to ASME B16.34 standard. The valve body is made of WCC. It has the structural characteristics of pressure self sealing, rising stem, elastic wedge and structural length of 864mm. Both ends of the valve stem are threaded. It has BW connection type.

Gate Valve
2" 900LB Pressure Seal Bonnet Gate Valve F91 ASME B16.34 BW

2”900LB Pressure Seal Bonnet Gate Valve is made according to ASME B16.34 standard. The valve body is made of A182-F91. It has the structural characteristics of PSB, OS&Y,Solid Wedge . Its connection mode is BW sch 80 ASME B16.25. And it has Handwheel operation mode.

Pressure Seal Gate Valve 1/2 1500LB A105N FNPT
Pressure Seal Gate Valve 1/2" 1500LB A105N FNPT

1/2" 1500LB Pressure Seal Gate Valve is made according to BS3799 standard. The valve body is made of A105N. It has the structural characteristics of Pressure seal. Its connection mode is FNPT. And it has Hand Wheel operation mode.   Product Parameters   Type Pressure Seal Gate Valve Size 1/2" Pressure 1500LB Connection FNPT Operation Hand Wheel Body Material ASTM A105 Design Norm ASME B16.3 Face to Face Manufacturer'S Screwed ends (NPT) Dim. ASME B1.20.1 Test & Inspection Code API 598 Temperature -29 ~ 425°C Applicable Medium Water, Oil and Gas Features 1.The pressure seal bonnet provides enhanced sealing performance for demanding Class 1500 high-pressure service. 2.The A105N forged steel body and 1/2" FNPT ends ensure high strength and secure threaded installation. Technical Drawing Dimension Checking Pressure Testing Nameplate & Packing Inspection Report
