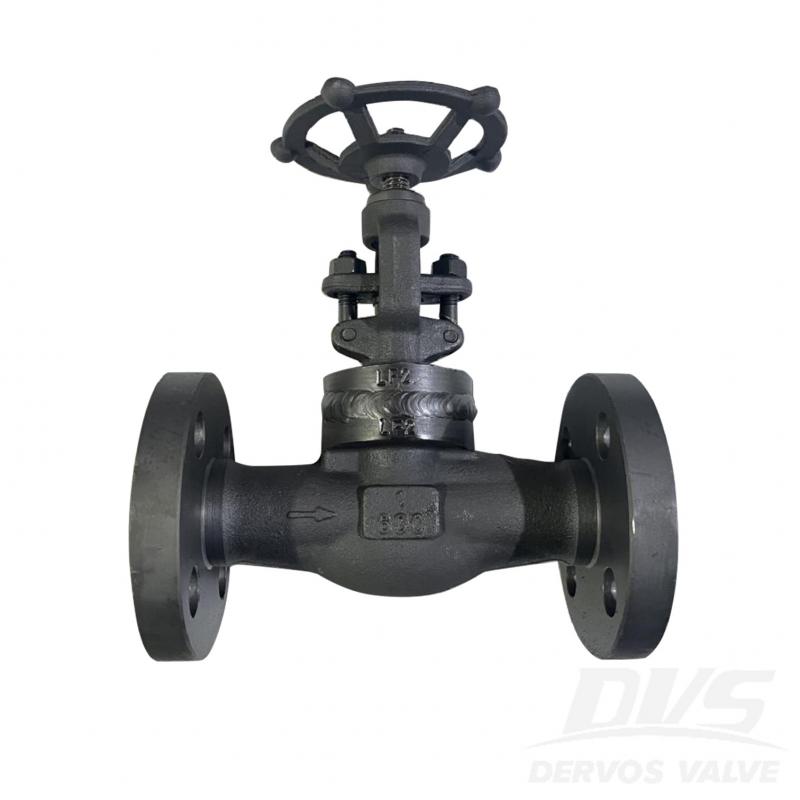

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

1" 600LB Forged Steel Globe valve is made according to API602 standard. The valve body is made of ASTM A350 LF2+STL. It has the structural characteristics of welded valve cover, needle valve disc. Its connection mode is RTJ. And it has Hand Wheel operation mode.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    ASTM A350 LF2+STL
  • Method of Operation:

    Hand Wheel
Inquiry now
Product Detail

Product Description



Type

Forged Steel Globe Valve

Size

1"

Pressure

600LB

Connection

RTJ

Operation

Hand Wheel

Body Material

ASTM A350 LF2+STL

Design Norm

API 602

Face to Face Dimensions

ANSI B16.10

Flange Ends Dimensions

ANSI B16.5

Test & Inspection Code

API STD. 598

Temperature

-29 ~ 200°C

Applicable Medium

Water, Oil and Gas

Features

1. The valve body is dense and free of sand holes, suitable for high temperature, high pressure and harsh working conditions;

2. Compact structure, wear-resistant components, suitable for frequent opening and closing conditions.

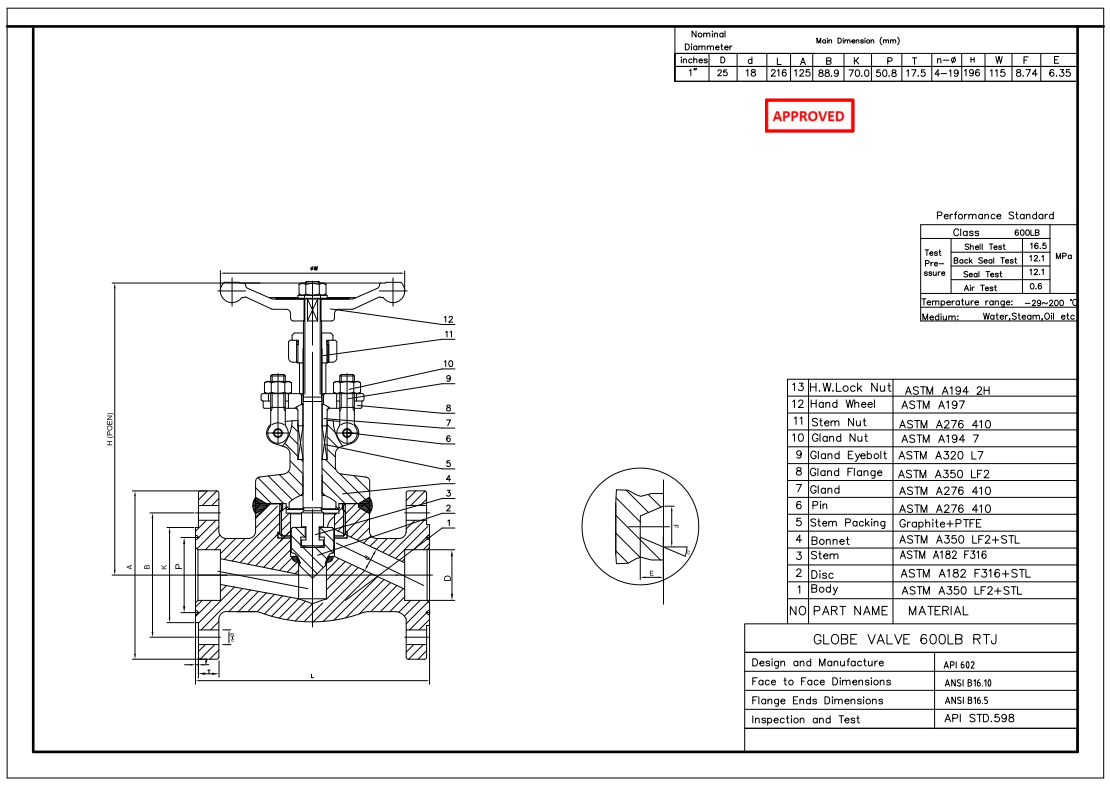

Technical Drawing

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

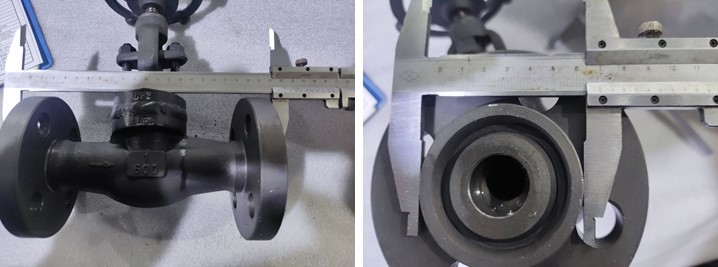

Dimension Checking

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

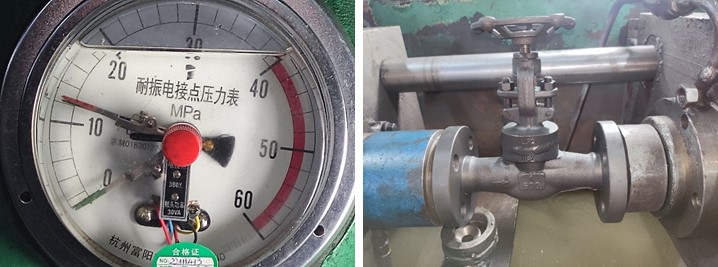

Pressure Testing

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

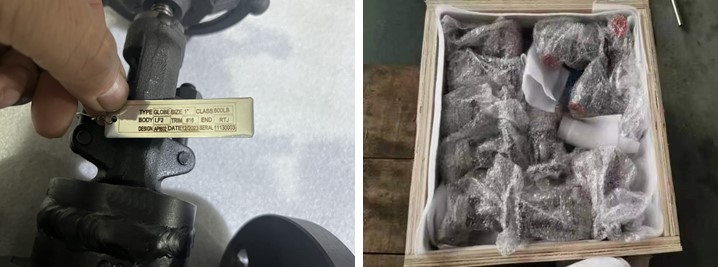

Nameplate & Packing

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

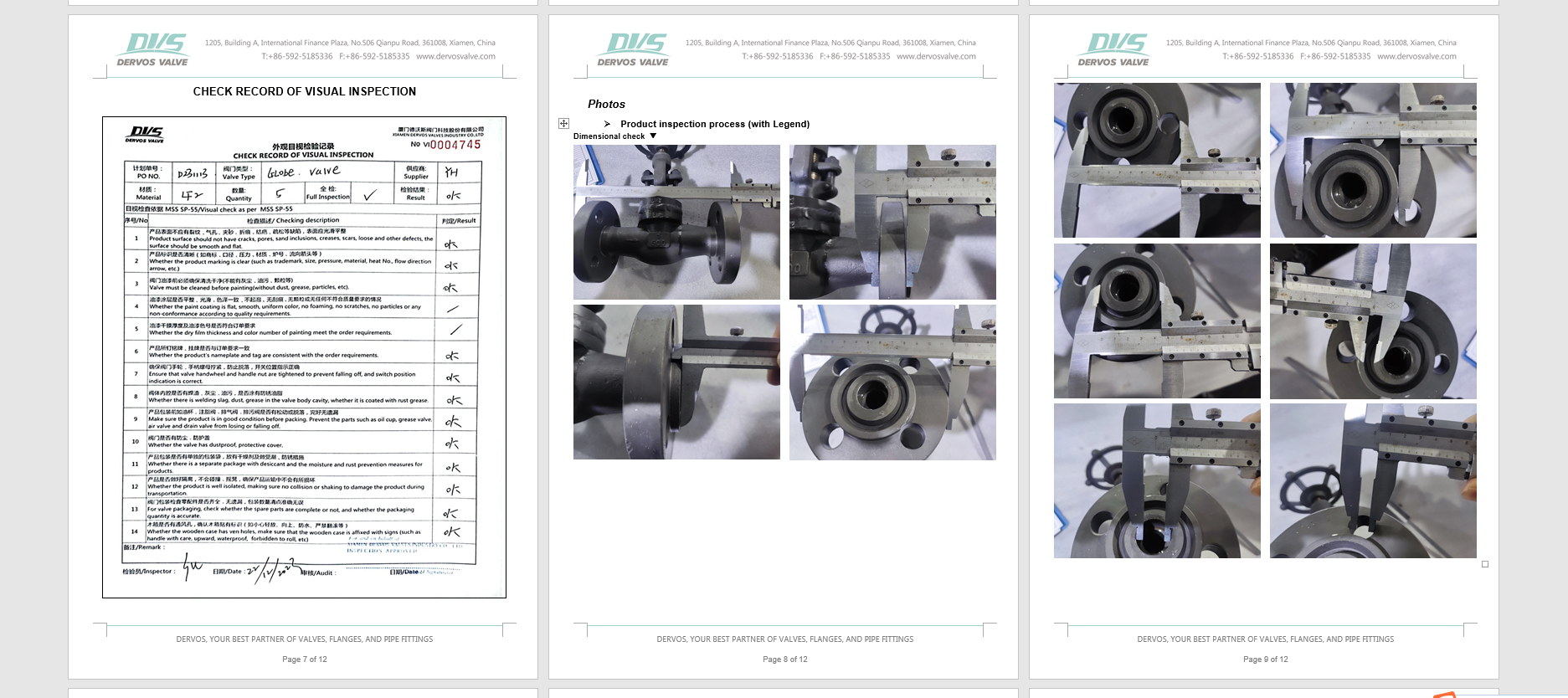

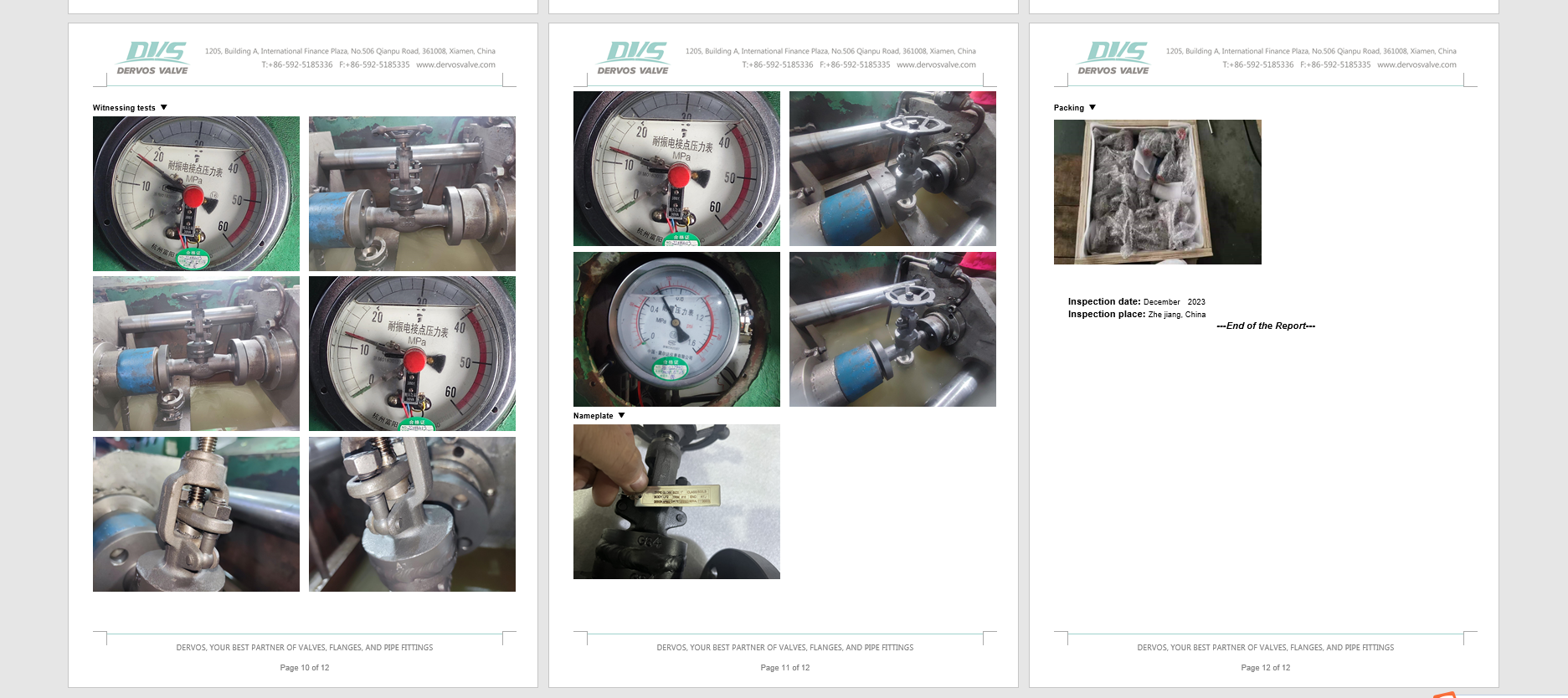

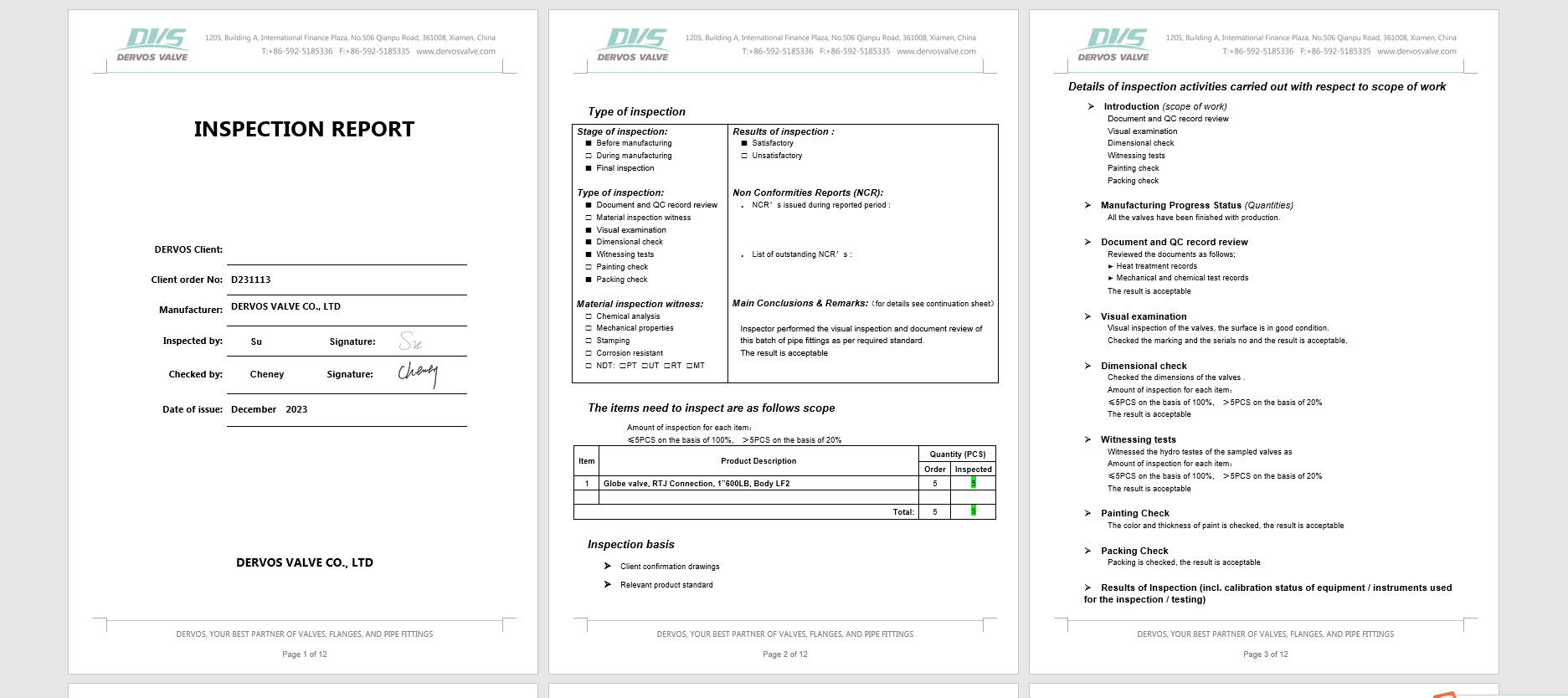

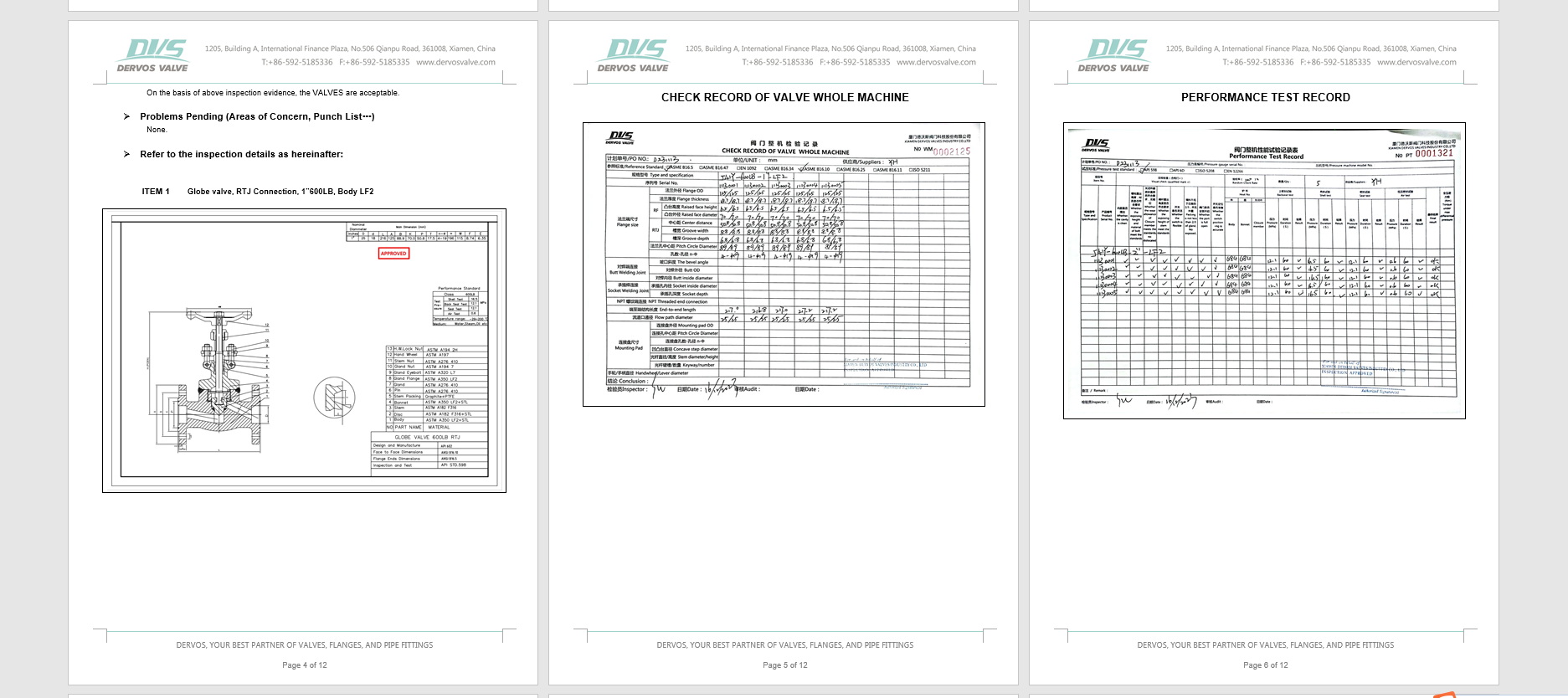

Inspection report

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel

RTJ, 1" 600LB Forged Steel Globe Valve, Body LF2, API602, Hand Wheel
