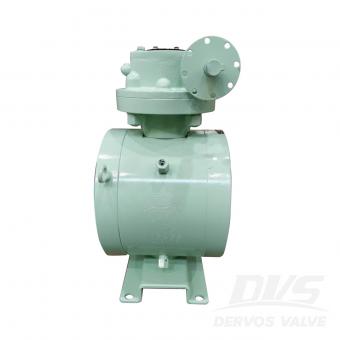

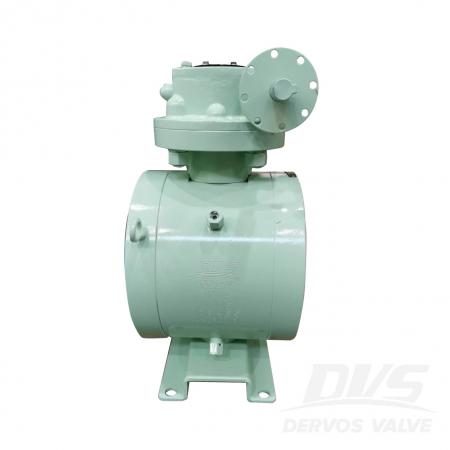

DN150 PN25 ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of fixed ball and full bore. Its connection mode is EN 1092-1 B1. And it has turbine operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A105Method of Operation:
TurbineProduct Description
Type |
Ball Valve |
Size |
DN150 |
Pressure |
PN25 |
Connection |
EN 1092-1 B1 |
Operation |
Turbine |
Body Material |
ASTM A105 |
Design Norm |
ISO 17292 |
Ends Connection |
RF |
Connection Ends |
EN 1092-1 |
Fire Safe Design |
API 607 |
Test & Inspection Code |
EN 12266 |
Temperature |
-29 ~ 120°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Simple structure, small size, and light weight;
2. Easy to operate, fast to open and close, good sealing, and widely used in vacuum systems.

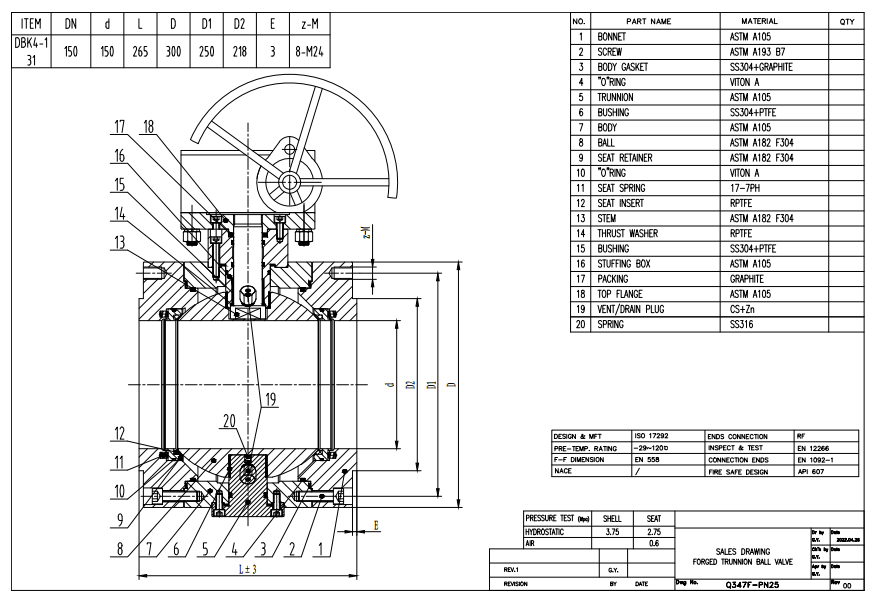

Technical Drawing

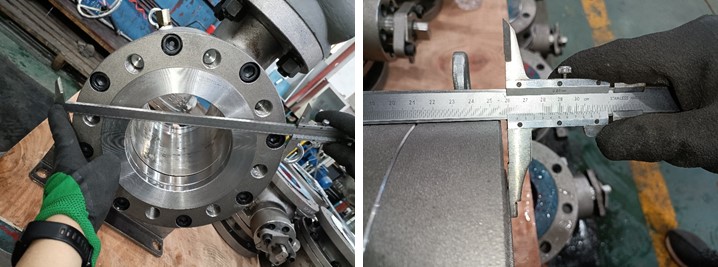

Dimension Checking

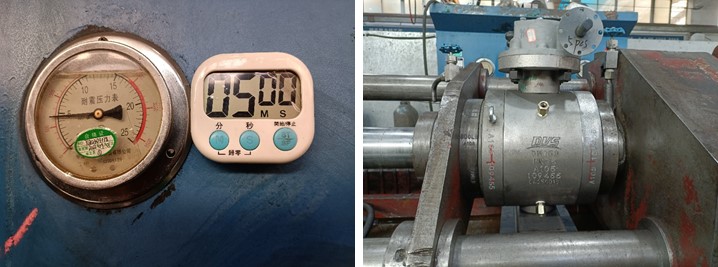

Pressure Testing

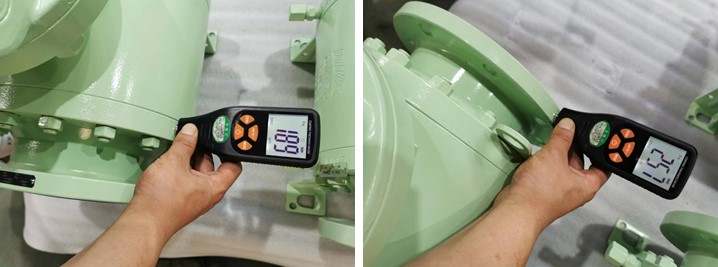

Painting

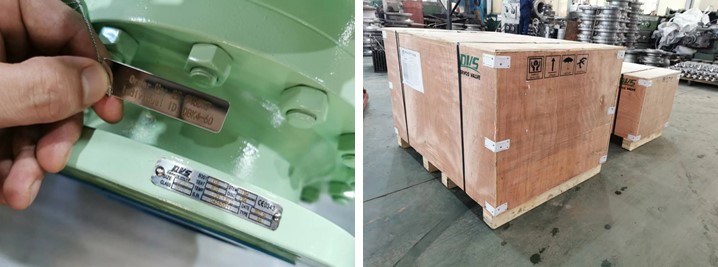

Nameplate & Packing

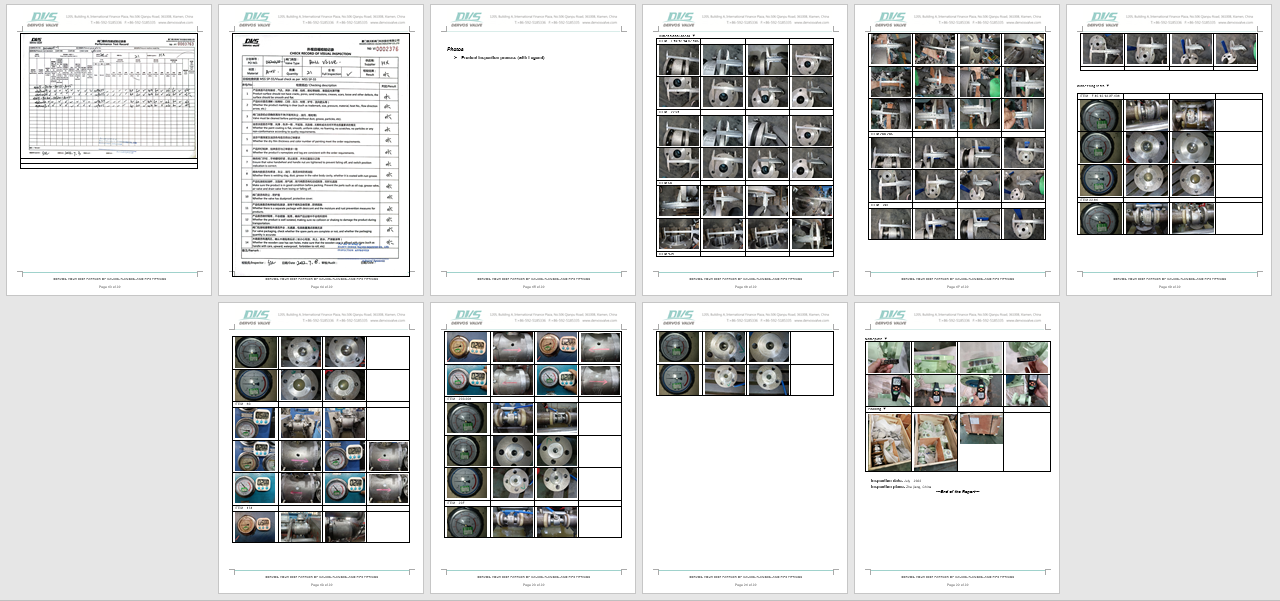

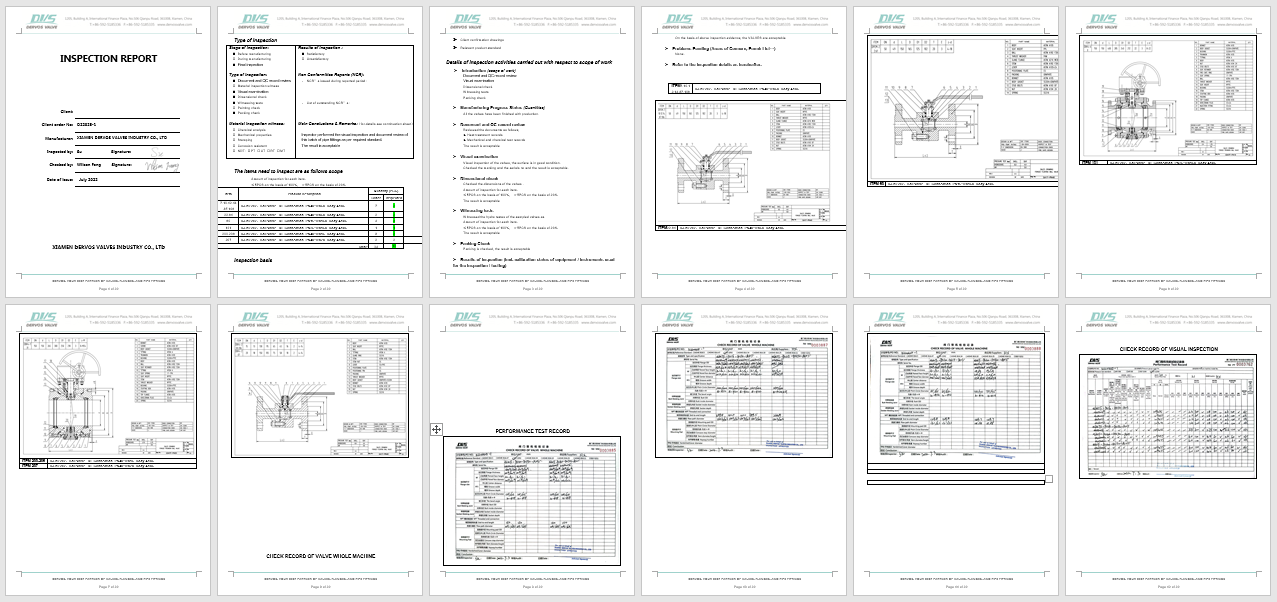

Inspection report
