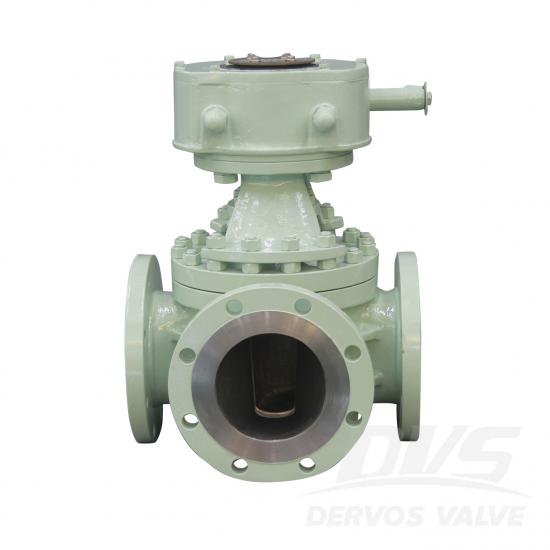

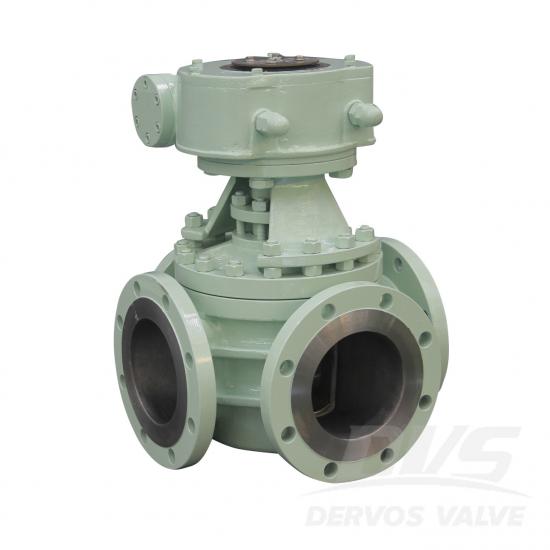

2" 150LB plug valve is made according to API 599 standard. The valve body is made of A216 WCB. It has the structural characteristics of four way and bolt cover. Its connection mode is RF. And it has turbine operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A216 WCBMethod of Operation:
API 599Product Description
|
Type |
Plug Valve |
|
Size |
2" |
|
Pressure |
150LB |
|
Connection |
RF |
|
Operation |
Turbine Operation |
|
Body Material |
A216 WCB |
|
Design Norm |
API 599 |
|
End Flange Dimensions |
ASME B16.5 |
|
Face to Face |
Factory standards |
|
Test & Inspection Code |
API 598 |
|
Pressure-Temp |
ASME B16.34 |
|
Temperature |
≤ 120°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Simple structure, small size, light weight, easy maintenance;
2. The sealing performance is not limited by the installation direction, and the flow direction of the medium can be arbitrary.
3. It is suitable for frequent operation and can be opened and closed quickly and easily.

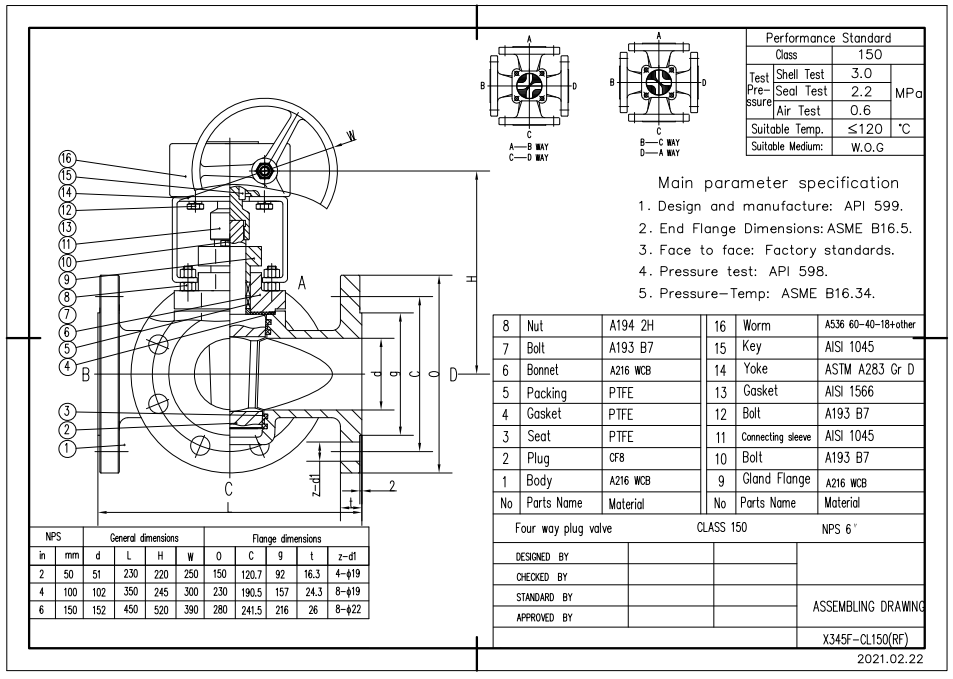

Technical Drawing

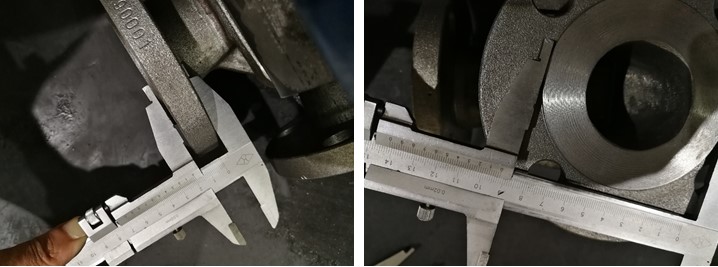

Dimension Checking

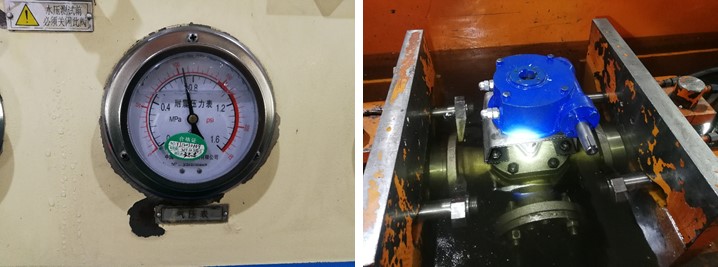

Pressure Testing
Painting

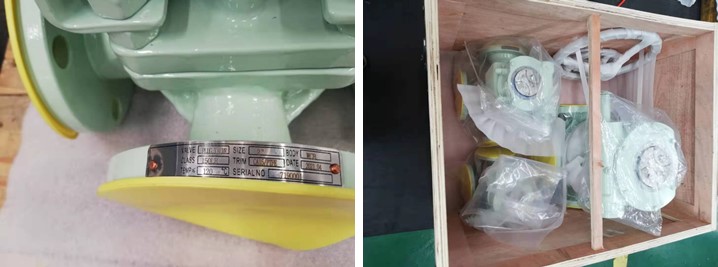

Nameplate & Packing

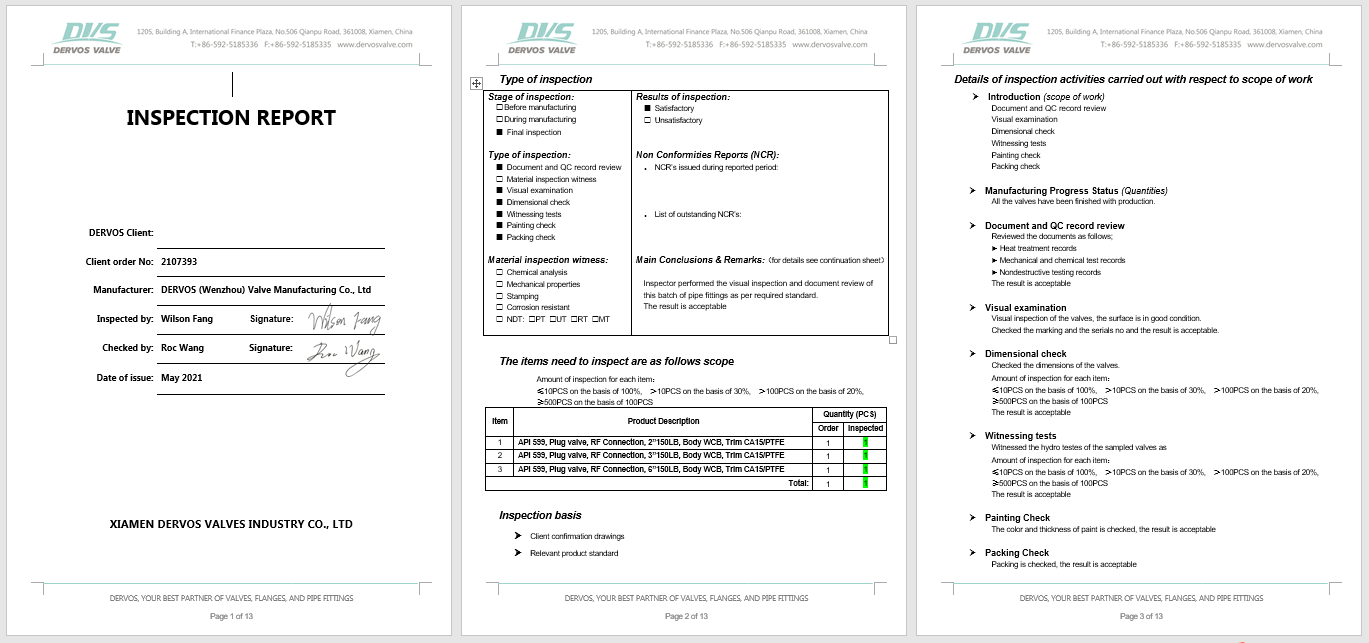

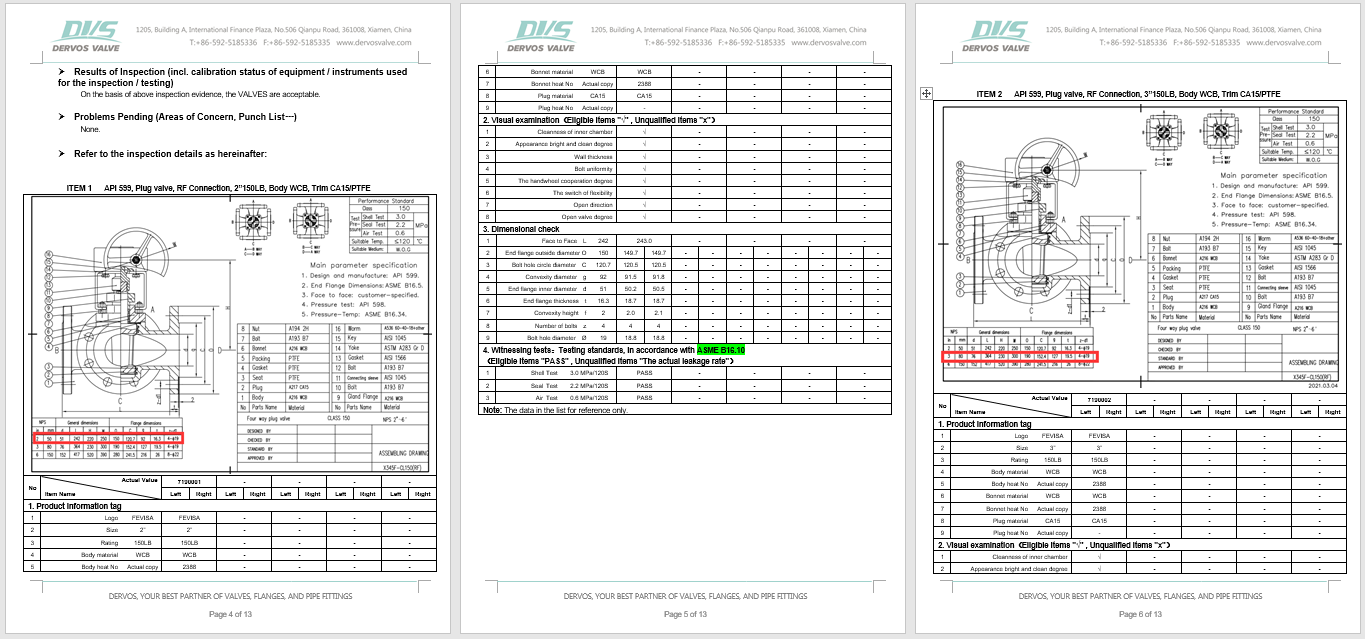

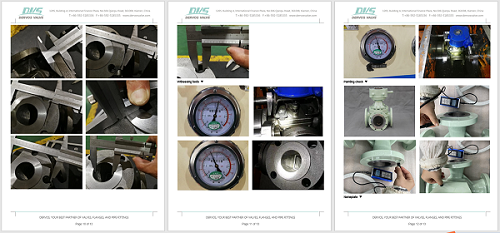

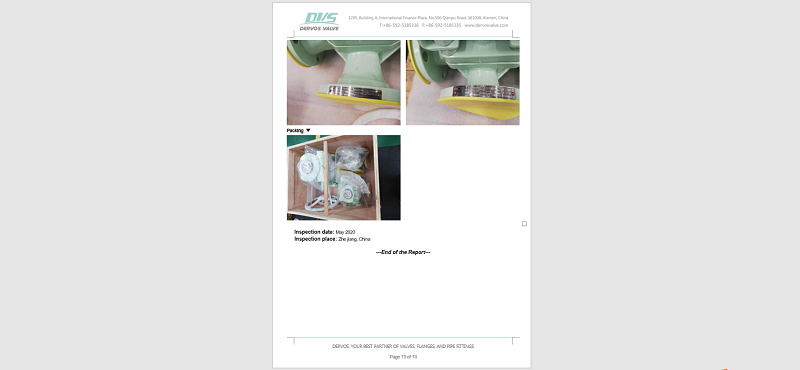

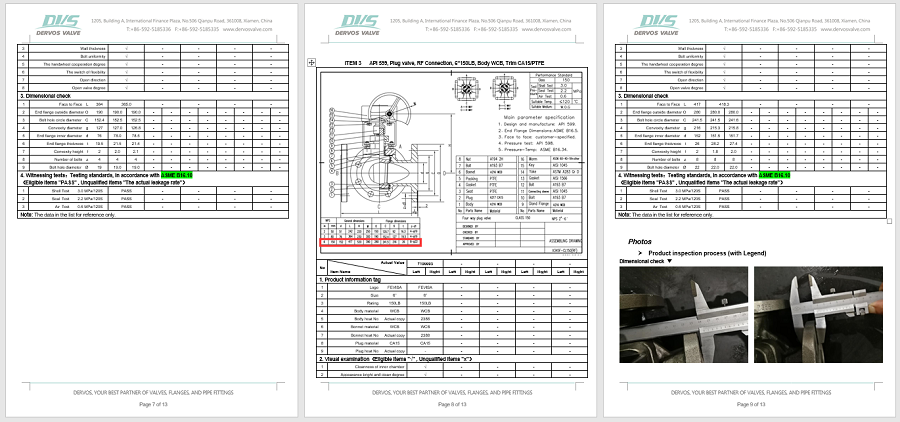

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 3 way plug valve is made of WCB body and stainless steel trim as per API 599. The plug valve that could connect any two ports together is applicable for natural gas service, water, oil and so on. Quick Detail Type Plug Valve Size 4'' DesignPressure 150LB Construction Three Way Type Plug Valve ConnectionType Flange Connection Operation Lever/Wrench Design Code API 599 Face to Face ASME B16.10 End Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB TemperatureRange -29℃~+425℃ Application WOG Related Knowledge What are types of plug valves? Lubricated Plug Valve The plug gets lubricated by injecting sealant through injection fitting. The lubricant make sure the smooth movement and prevent the corrosion of plug. Usually, the seat of lubricated plug valve is metal, thus they can withstand higher temperature, available in larger size and higher pressure. Non-Lubricated Plug Valve A non-metallic sleeve or liner is installed in the body cavity of the plug valve. This sleeve reduce the fricion beween plug and body. Meanwhile it prevents the corrosion of plug. Due to non-metallice sleeve, the non-lubricated plug valve cannot be used in high temperature condition. Multiway Plug Valve The multiway plug valve is used for diverting flow in transfer lines. The multiway plug valves we often see are 3 way plug valve or 4 way plug valve. Dervos Packaging Based on sufficient experience, we have developed complete packing specifications and procedures to ensure clear and safe transportation so that you can receive good and sound products. And this is also an important factor that we earn good reputation from our customers.
80A JIS 10K three-way plug valve is made according to API 599 standard. The valve body is made of A351 CF8. It has the structural characteristics of 3-way and L-shaped. Its connection mode is RF.
2" 300LB dual plate wafer check valve is made according to API 594 standard. The valve body is made of A182 F316. It has the structural characteristics of double disc. Its connection mode is RF.
1" 600LB plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of inverted pressure balance lubricated and fire safe conform to API 6FA. Its connection mode is RF. And it has lever operation mode.
14" CL300 swing check valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of swing type and BC. Its connection mode is RF.
DN50 PN40 ball valve is made according to EN 17292 standard. The valve body is made of A182 F304. It has the structural characteristics of floating ball, full bore, anti-fire, anti-static, and anti-flying valve stem. Its connection mode is EN1092-1 B. And it has lever operation mode.
DN15 PN40 steam trap valve is made according to GB/T22654-2008° standard. The valve body is made of A105. It has the structural characteristics of bimetal type and BK47-Y model. Its connection mode is RF.
The 6 inch stainless steel gate valve, designed as per MSS-SP-81, has the lug type connection per Class 150 and electric actuator. Quick Detail Type Knife Gate Valve Size 6'' Design Pressure ANSI 150 Construction Knife Type Gate Valve ConnectionType Lug Type OperationType Electric Actuator Body Material ASTM A351 CF8 TrimMaterial SS304 Design Code MSS SP81 Medium Water, Oil and Gas Origin China Related Knowledge What are knife gate valves used for? Knife gate valves are originally designed for paper industry. The knife gate valve is especially applicable for heavy liquids with solid particulates, like slurry liquid, that are most corrosive, erosive and abrasive. Compared to wedge gate valve, the knife gate valve has a shorter end to end dimension and lighter weight. Plus, the knife valve has a more sharpened disc to cut through slurry and viscous medium. Both wedge gate valve and knife gate valve can only be used for on-off function not for regulating the flow. Dervos Customer Service With Dervos customer service, you will not have any concern before, during and after buying valves. Pre-sales We will reply on time and also provide technical support upon your request. Order We will check the production details with factory and customers. Sales confirmation will also be sent. During production, we will also send weekly report to let you know the order status. Before shipment, delivery note will be sent to let you know the situation. 18 Month warranty Dervos is always responsible for their products. We will provide 18 months warranty to let our customers without concern.
DN150 PN40 Stainless Steel Gate Valve is made according to EN 1984 standard. The valve body is made of X6CrNiMoTi17-12-2. EN 1.4571 (AISI 316Ti) is widely used in medium- to high-temperature applications where resistance to intergranular corrosion and moderate chloride corrosion is required, especially in welded systems without post-weld heat treatment. Its connection mode is EN558. And it has Hand Wheel operation mode. Product Parameters Type Stainless Steel Gate Valve Size DN150 Pressure PN40 Connection EN 558 Operation Hand Wheel Body Material X6CrNiMoTi17-12-2 Design Norm EN 1984 Face to Face dimension EN 1092 End connection EN 558 Test & Inspection Code EN 12266-1,2 Temperature -29 ~ 425°C Applicable Medium Water, Oil and Gas Features 1.EN 1.4571 stainless steel construction provides strong resistance to pitting and stress corrosion in aggressive media. 2.DN150 PN40 configuration designed to EN 1984 standard ensures stable operation and tight isolation in medium-pressure pipelines. Technical Drawing Dimension Checking Pressure Testing Spectrum Nameplate & Packing
The Class 300 flanged ball valve has cast steel WCB body, stainless steel ball, stem, seat ring along with Devlon seat insert. We also supply more types of trunnion mounted ball valve, accept customized. Design Feature 1.Firesafe design as per API 607 2.With sealant injection for self lubricating 3.With antistatic design 4.With anti-blowout stem 5.With vent and drain port 6.Full bore design 7.Three-piece type and trunnion ball 8.Gear operated for easy operation Quick Detail Type Ball Valve Size 24" Pressure ANSI 300 Construction Trunnion Type Ball, 3-Piece Body, Side Entry, Full Bore Connection Flange Connection Operation Gearbox Operation Body Material ASTM A216 WCB Design Code API 6D Pressure & Temp Code ASME B16.34 Face to Face ASME B16.10 End Connection ASME B16.5 Test & Inspection Code API 598, API 6D Fire Safe API 607 Temperature Range -29℃~+200℃ Medium WOG Origin China Dimension CLASS 300 DN mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 NPS in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 L (RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143 1346 in 8.5 9.5 11.13 12 15.88 19.75 22.38 25.5 30 33 36 39 45 53 L1 (BW) mm 216 241 283 305 457 521 559 635 762 838 914 991 1143 1346 in 8.5 9.5 11.13 12 18 20.5 22 25 30 33 36 39 45 53 L2 (RTJ) mm 232 257 298 321 419 518 584 664 778 854 930 1010 1165 1372 in 9.13 10.13 11.75 12.63 16.5 20.38 23 26.13 30.63 33.63 36.63 39.75 45.89 54 H mm 153 165 195 213 272 342 495 580 625 720 790 840 1050 1150 in 6.02 6.5 7.68 8.39 10.7 13.5 19.5 22.85 24.6 28.35 31 33.1 41.34 45.3 Do(W) mm 400 400 600 850 1100 1500 *350 *350 *600 *600 *800 *800 *800 *800 in 15.74 15.74 23.62 33.46 43.3 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5 31.5 RF(Kg) 18 27 47 80 118 200 365 530 740 1030 1320 1540 2600 3900 BW(Kg) 14 2 38 65 105 185 342 503 713 1000 1285 1498 2540 3825 *Worm Gear or Electric Actuator Operated Dervos Quality Checking System In Dervos, we control quality throughout the whole manufacturing process. Casting inspection: Though casting inspection, we can find out the problem of raw material, such as shoddy casting, unqualified wall thickness, chemical composition and so on, which ensure that you will not be cheated. Machining Inspection: On the one hand, we could ensure machining accuracy through this process. On the other hand, we can find out machining mistake as early as possible, to win more time for repairing and remaking Final Inspection: Final inspection activities include document and QC record review, visual examination, dimension check, pressure test, painting and packing check. You don’t need to come and inspect in person and all the documents could be provided as proof.
6" 150LB gate valve is made according to API 600 standard. The valve body is made of ASTM A217 WC6. It has the structural characteristics of bolt cover, elastic gate, rising stem, OS&Y, full bore, body valve seat. Its connection mode is RF (125~250AARH）. And it has hand wheel operation mode.
3" 150LB wafer check valve is made according to API594 standard. The valve body is made of A995 5A. It has the structural characteristics of built-in type and dual plate. Its connection mode is wafer type.
