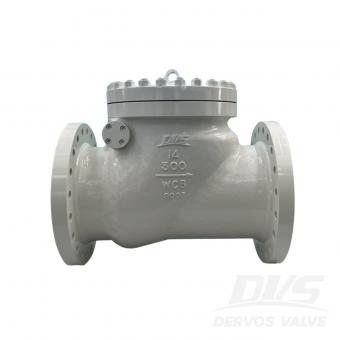

14" CL300 swing check valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of swing type and BC. Its connection mode is RF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCBProduct Description
Type |
Swing Check Valve |
Size |
14" |
Pressure |
CL300 |
Connection |
RF |
Body Material |
ASTM A216 WCB |
Design Norm |
API 6D |
Face to Face Dimension |
ASME B16.10 |
Flange Dimension |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 425°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. All opening and closing components of the valve are installed inside the valve body and do not penetrate the valve body;
2. Small size, light weight, low water hammer pressure, and fast closing of valve disc.

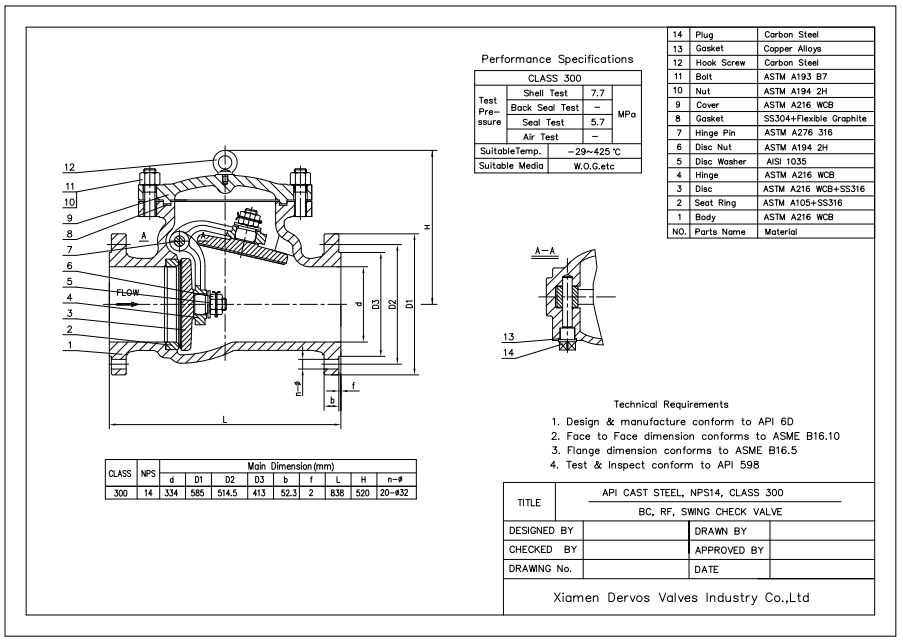

Technical Drawing

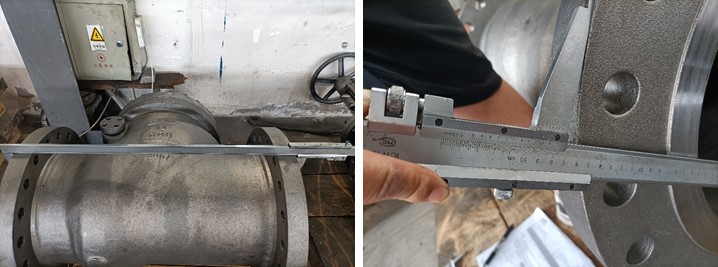

Dimension Checking

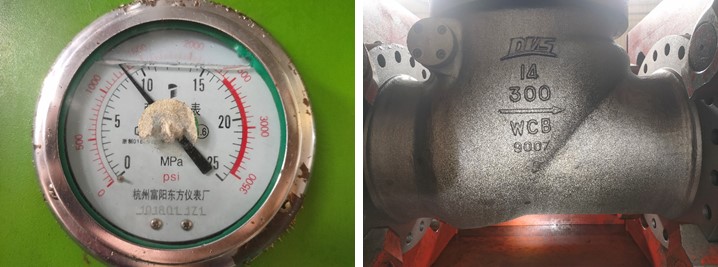

Pressure Testing

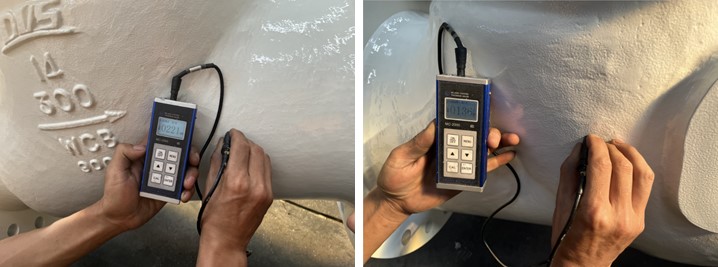

Painting

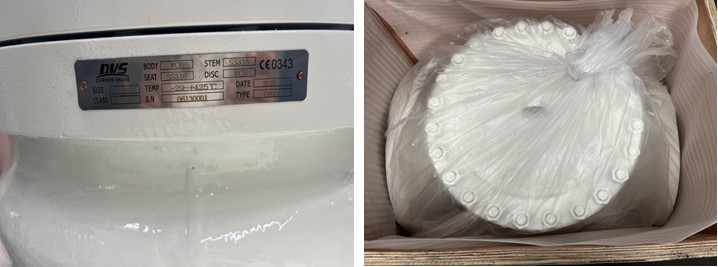

Nameplate & Packing

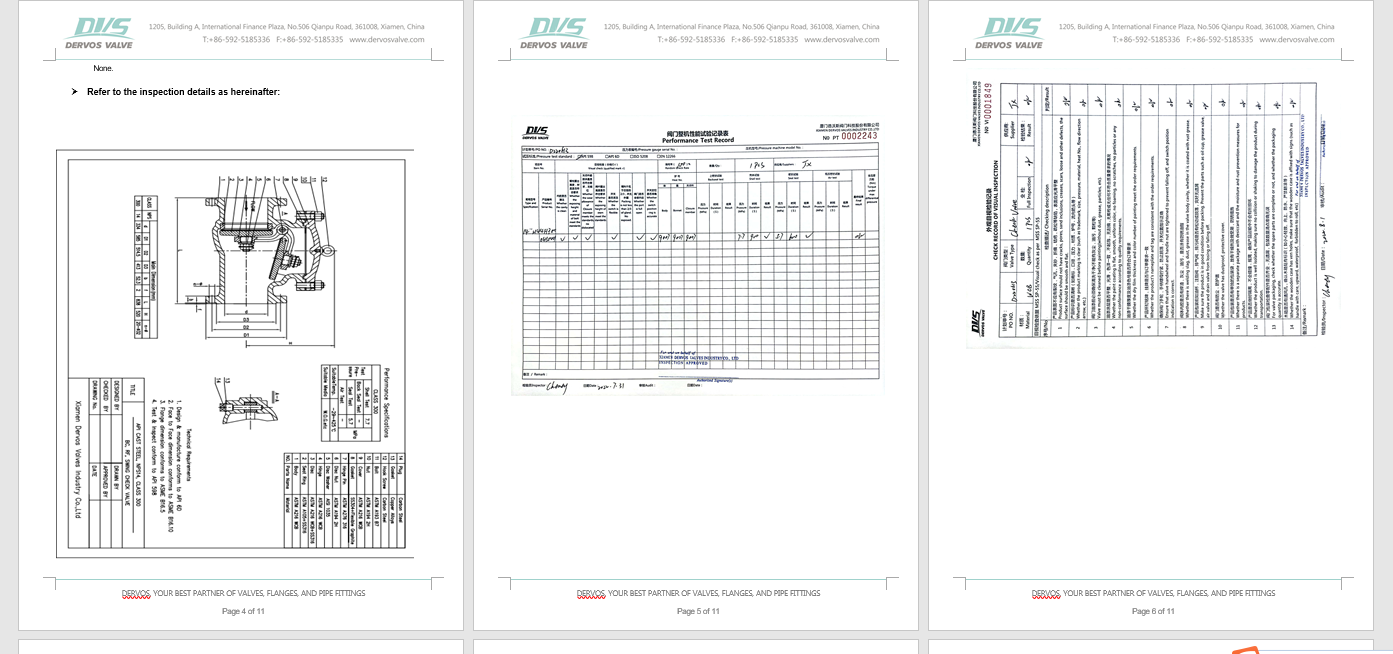

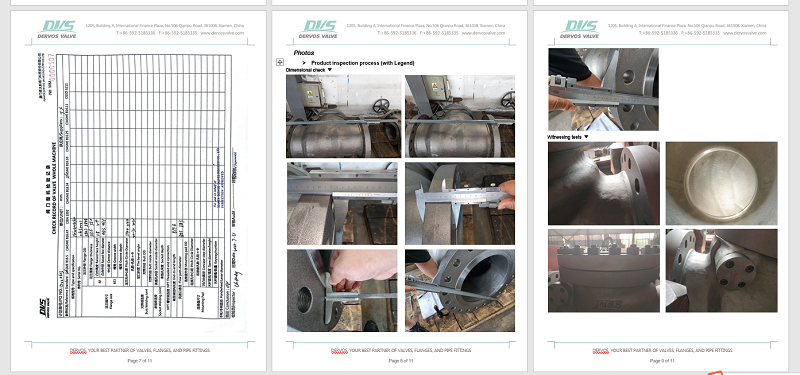

Inspection report
