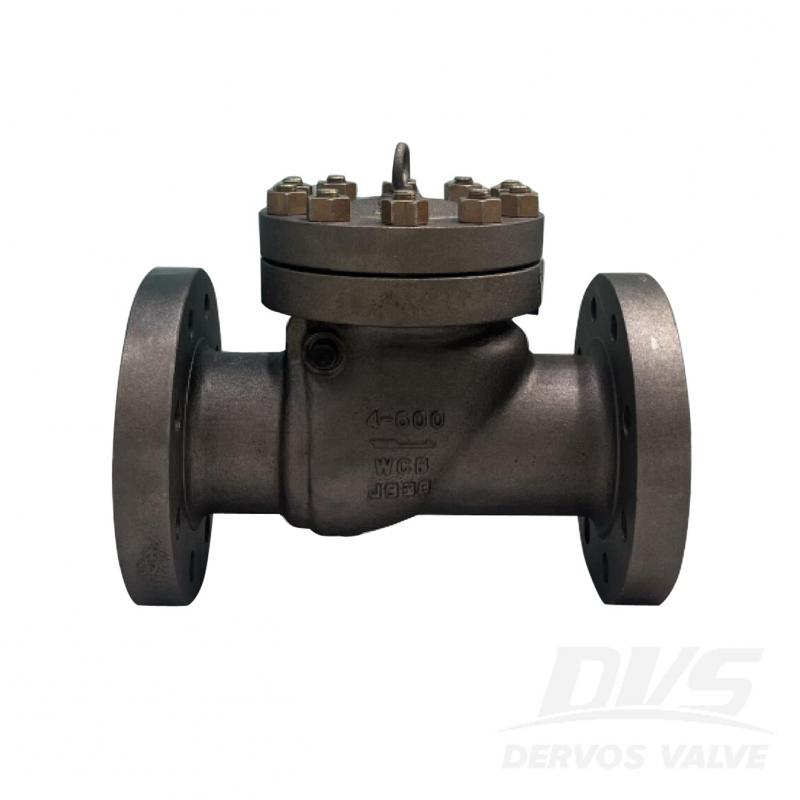

4" 600LB check valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of swing type, external pin. Its connection mode is RF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCBProduct Description
Type |
Check Valve |
Size |
4" |
Pressure |
600LB |
Connection |
RF |
Body Material |
ASTM A216 WCB |
Design Norm |
API 6D |
Face to Face Dimension |
ASME B16.10 |
Flange Dimension |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 425°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Small size, light weight, and fast closing of valve disc;
2. Suitable for high flow rate environments, small opening and closing torque, reliable sealing, suitable for various media.

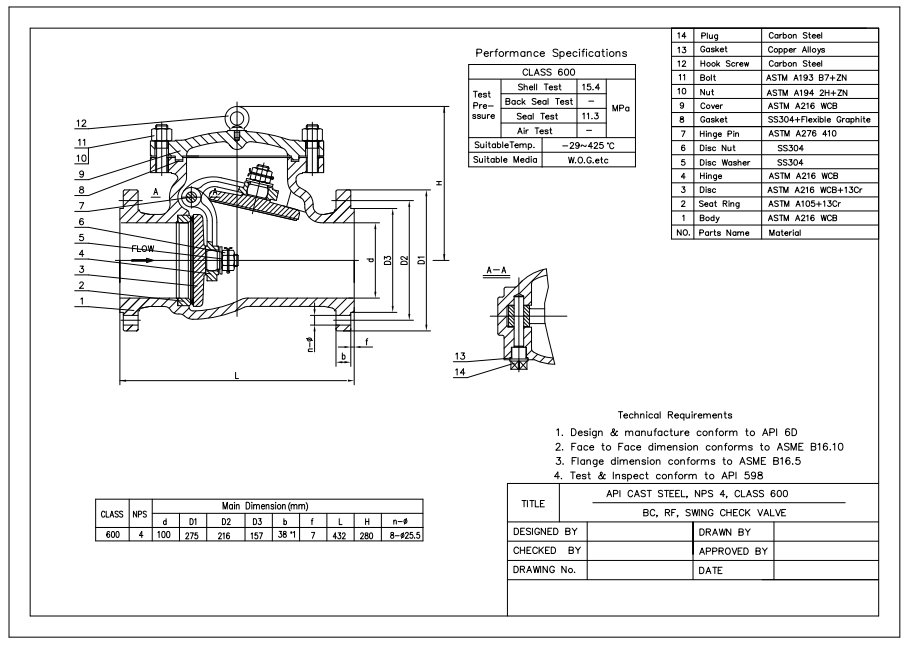

Technical Drawing

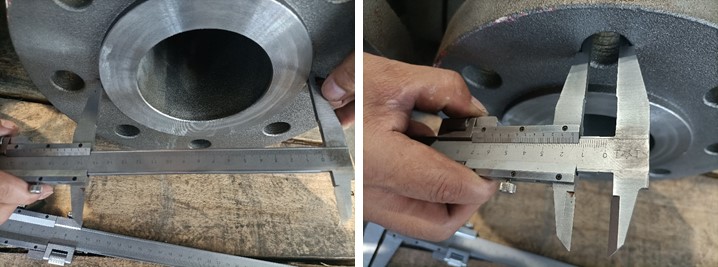

Dimension Checking

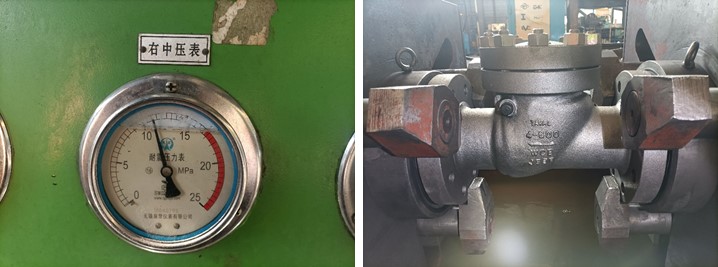

Pressure Testing

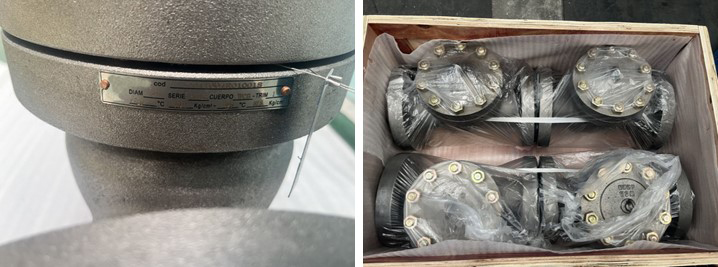

Nameplate & Packing

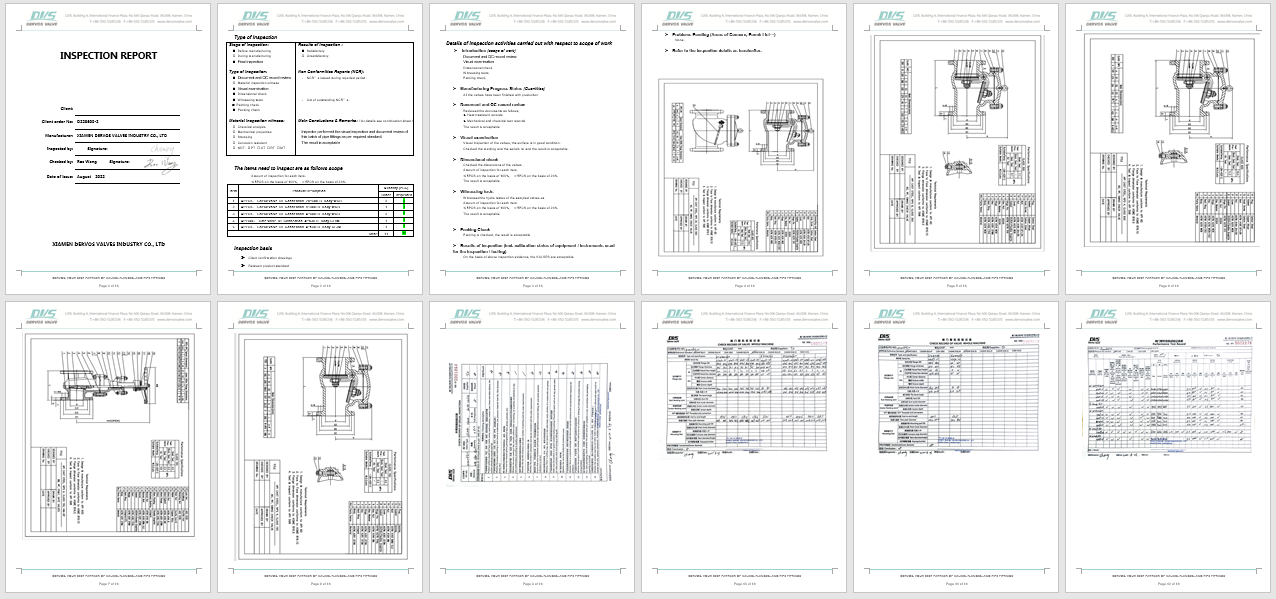

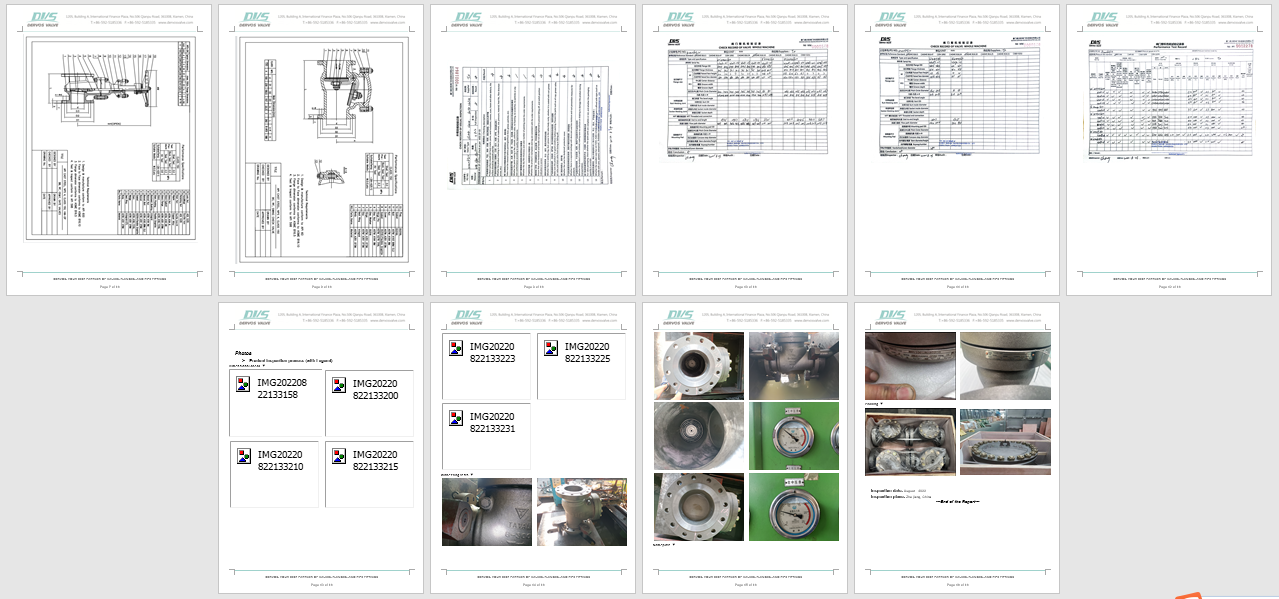

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
