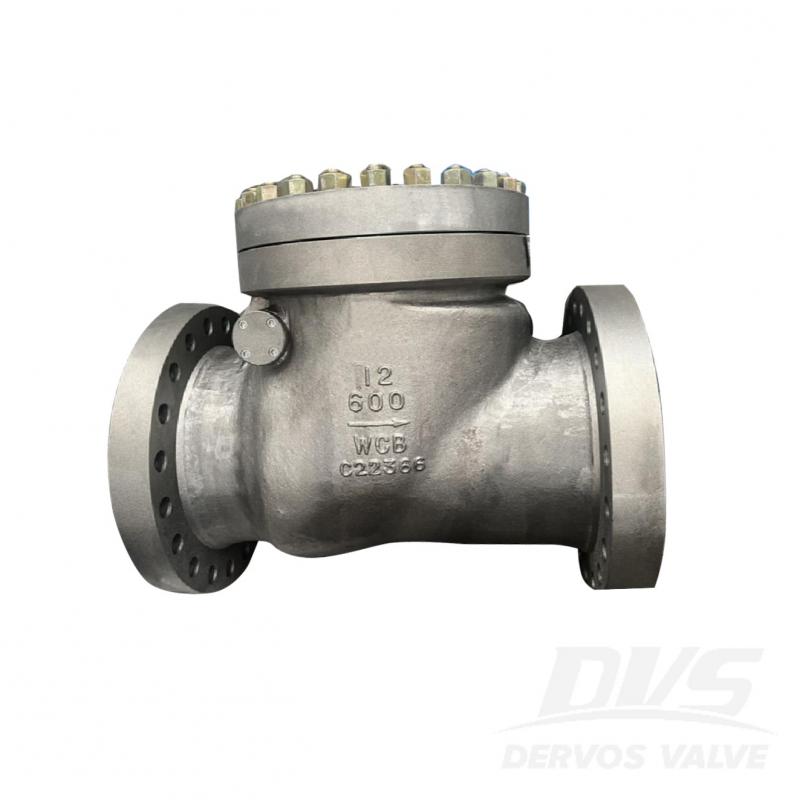

12" 600LB swing check valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of swing type and external latch. Its connection mode is RF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCBProduct Description
Type |
Swing Check Valve |
Size |
12" |
Pressure |
600LB |
Connection |
RF |
Body Material |
ASTM A216 WCB |
Design Norm |
API 6D |
Face to Face Dimension |
ASME B16.10 |
Flange Dimension |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 425°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Simple and compact structure, beautiful appearance, reliable performance, and long service life;
2. Widely used in multiple fields such as chemical, metallurgical, pharmaceutical, etc.

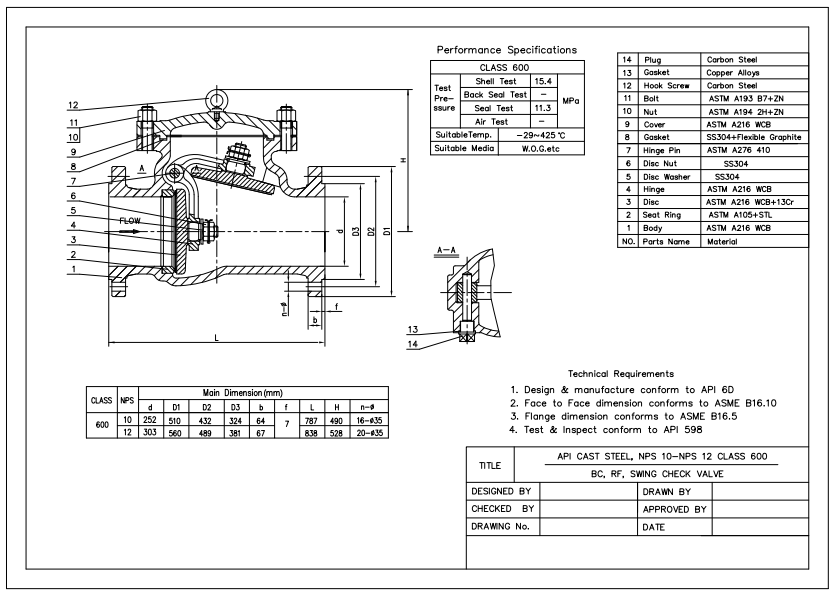

Technical Drawing

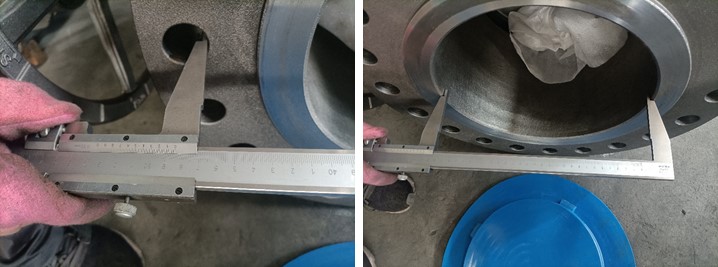

Dimension Checking

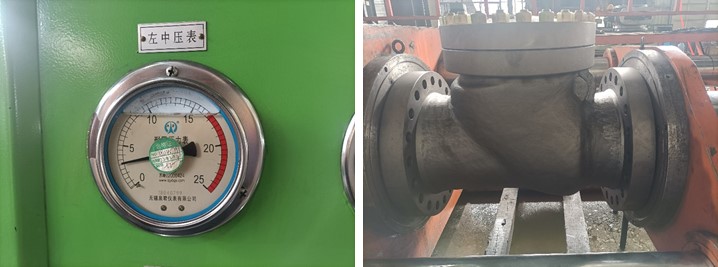

Pressure Testing

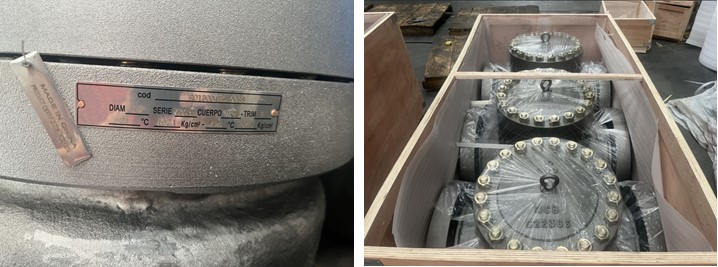

Nameplate & Packing

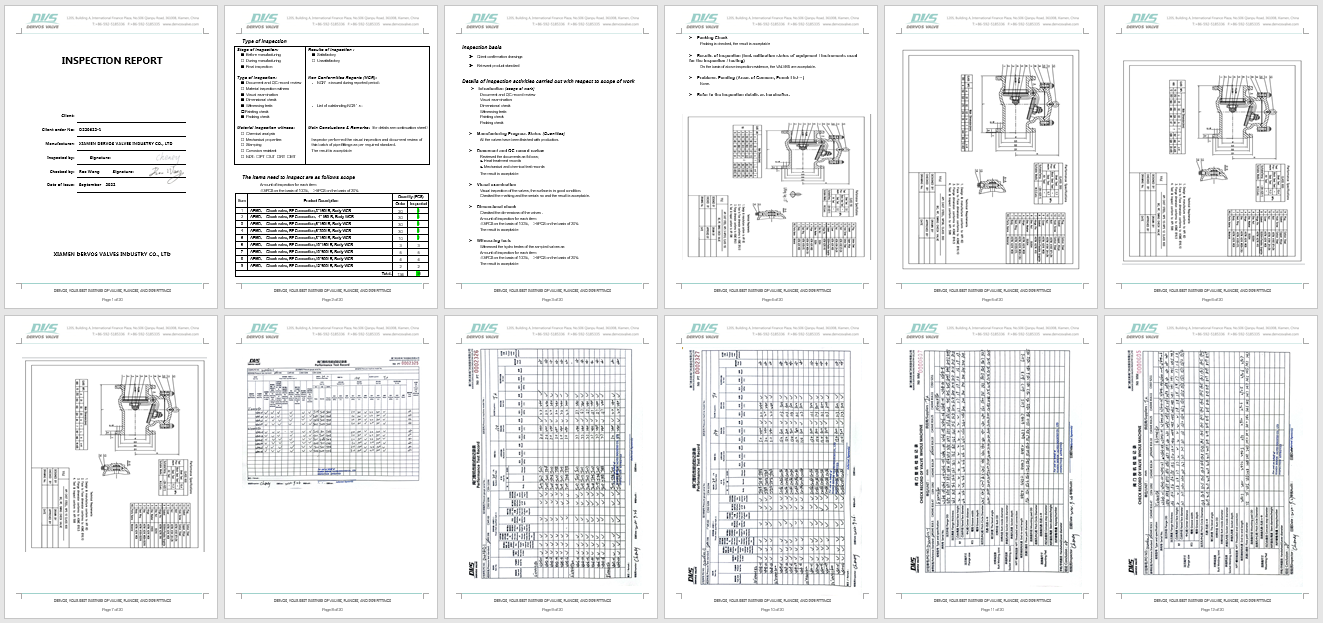

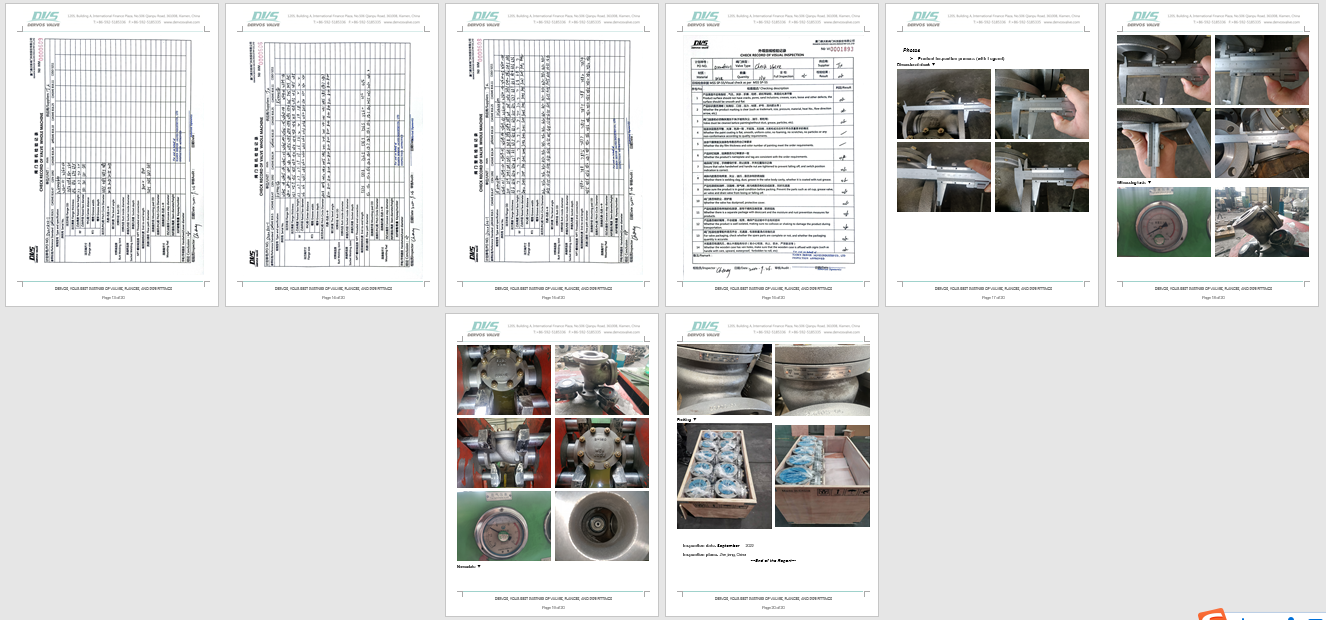

Inspection report
