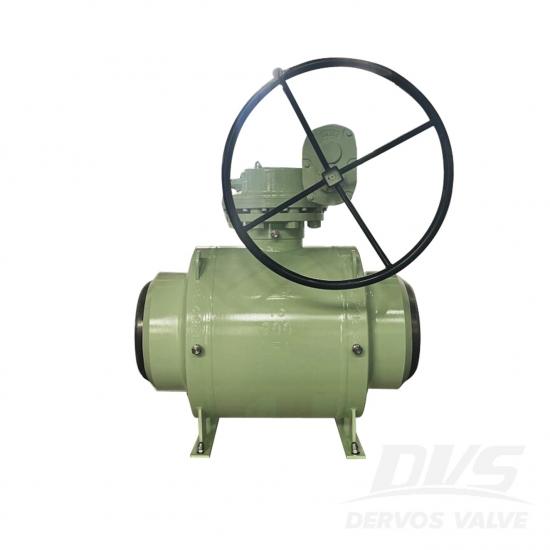

16" 900LB ball valve is made according to API 6D standard. The valve body is made of A350 LF2. It has the structural characteristics of fully welded, fixed ball and full bore. Its connection mode is BW. And it has turbine operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A350 LF2Method of Operation:
Turbine OperationProduct Description
|
Type |
Ball Valve |
|
Size |
16" |
|
Pressure |
900LB |
|
Connection |
BW |
|
Operation |
Turbine Operation |
|
Body Material |
A350 LF2 |
|
Design Norm |
API 6D |
|
Pressure/temperature |
ASME B16.34 |
|
Face to face |
API 6D |
|
BW END |
ASME B16.25 |
|
Test & Inspection Code |
API 6D |
|
Temperature |
-29 ~ 121°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. The valve body structure is welded as a whole, without external leakage;
2. Easy to install, long-term reliable operation.

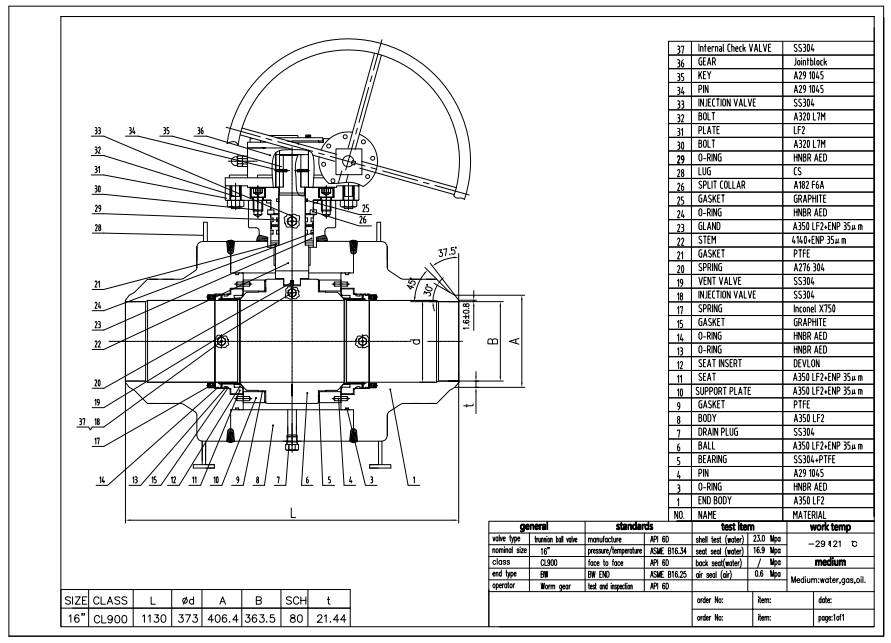

Technical Drawing
Dimension Checking

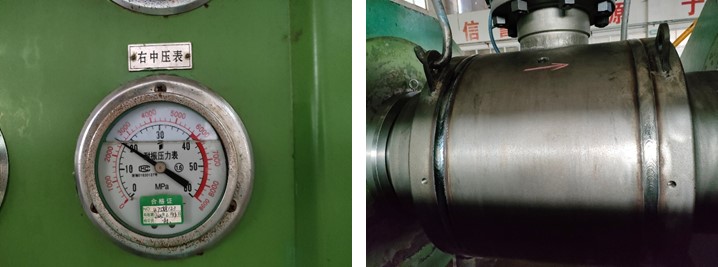

Pressure Testing
Painting

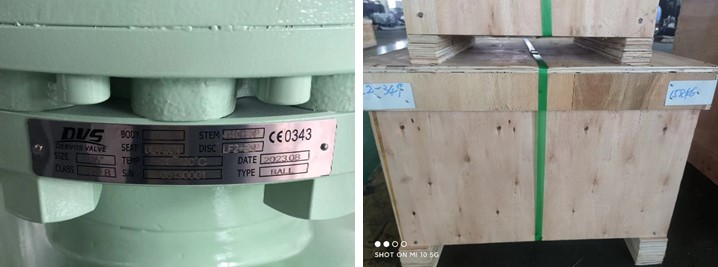

Nameplate & Packing
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
With butt weld end and gearbox, the fully welded ball valve is designed per ASME B16.34. The one piece ball valve has trunnion type ball, antistatic design and full port structure. Quick Detail Type Ball Valve Size 10" Pressure ANSI 300 Construction Trunnion Type, One Piece Body, Full Bore, Fully Welded Connection Butt Weld (BW) Operation Gearbox Body Material Forged Steel A105 Design API 6D Pressure & Temp ASME B16.34 Face to Face ASME B16.10 End Connection ASME B16.25 Inspection API 598 Temperature Range -29℃~+125℃ Media W.O.G Related Knowledge What is a fully welded ball valve? What is the benefit and advantage of a fully welded ball valve? A fully welded ball valve is welded after forging without any bolted connection on the body. Compared with flanged ball valve, it features in maximum strength at minimum weight. The design of the valve gives it advantage: -Overall small size and light weight -Fewer leak paths on the body -High machining precision of ball part -High resistance to external and internal pressure and strength Our Service Dervos customer service is one of our biggest competitive advantages. In Dervos, we provide- 1.Quotation within 24 hours or no later than 3 days This will let you meet the quotation submission deadline and enhance your working efficiency 2.Weekly status report of your order In this way, you will have a clear picture of your order. You do not need to waste time on pushing us for status update 3.An 18-month warranty period A warranty certificate will issued after shipment and you will not have any concern after buying valves. 4.Solutions to complaints within 3 days Quick and responsible actions to complaints will protect your reputation and reduce the financial loss as much as possible.
The 20 inch metal seated ball valve is designed for high temperature application or application with solid particulate. The valve has welded body, RF flange connection, bare stem for actuators, belonging to trunnion mounted type. Quick Detail Type Ball Valve Size 20" Pressure ANSI 600 Construction Trunnion Type, One-Piece Body, Fully Welded, Metal to Metal Seat Connection Flanged Operation Bare Stem Body Material Forged Steel ASTM A105 Design Standard API 6D Pressure & Temp ASME B16.34 Face to Face Dimension ASME B16.10 End Connection ASME B16.5 Inspection API 598 Temperature Range -29℃~+200℃ Media Oil, Water, Gas Dimension CLASS 600 DN mm 50 65 80 100 150 200 250 300 350 400 450 500 NPS in 2 2.5 3 4 6 8 10 12 14 16 18 20 L (RF) mm 292 330 356 432 559 660 787 838 889 991 1092 1194 in 11.5 13 14 17 22 26 31 33 35 39 43 47 L1 (BW) mm 292 330 358 432 22 660 787 838 889 991 1092 1194 in 11.5 13 14 17 559 26 31 33 35 39 43 47 L2 (RTJ) mm 295 333 359 435 562 664 791 841 892 994 1095 1200 in 11.63 13.13 14.13 17.13 22.13 26.13 31.13 33.13 35 39.5 43.1 47.3 H mm 153 165 195 213 272 342 495 580 630 725 800 850 in 6.02 6.5 7.68 8.39 10.7 13.5 19.5 22.85 24.8 28.5 31.5 33.5 Do(W) mm 600 850 1250 1300 1500 *350 *350 *600 *600 *800 *800 *800 in 23.62 33.46 49.25 51.22 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5 RF(Kg) 38 56 66 122 217 350 660 820 830 1160 1420 1650 BW(Kg) 31 51 58 117 200 327 605 790 800 1030 1305 1505 *Worm Gear or Electric actuator operated Related Knowledge When to use metal seated ball valve? The seat of a metal seated ball valve is often stellite, stainless steel, or tungsten carbide instead of soft seat material like ptfe, peek, nylon, teflon, and devlon. These metal to metal seat ball valves are especially applicable for: -Media with high temperature -Media with solid particulate for high abrasion -Media with severe condition, like high erosion and corrosion -Media with high viscosity like heavy oil Our Main Product Range Dervos main products include ball valves, butterfly valves, check valves, gate valves, globe valves, and plug valves in different materials, sizes, standards and types as per clients’ requests.
DN50 PN40 Y type strainer is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of Y-shaped, mesh size: 0.25 mm, without drain plug. Its connection mode is RF.
2”CL150 Axial Flow Check Valve is made according to API 6D standard. The valve body is made of ASTM A352 LCB+316SS. It has the structural characteristics of axial flow. Its connection mode is RF.
The top entry full port ball valve with drain, vent and sealant injection is designed as per API 6D. The high pressure ball valve has Class 900 raised face flange and gearbox. Quick Detail Type Ball Valve Size 16" Pressure ANSI 900 Construction 1 Piece Body, Top Entry, Bolted Bonnet Connection Flanged End Operation Mode Gearbox Body Material A216 WCB Design & Manufacture API 6D Pressure & Temp Code ASME B16.34 End to End ASME B16.10 End Connection ASME B16.5 Inspection API 6D, API 598 Temperature Range -29℃~+200℃ Medium Oil, Water, Gas Related Knowledge What is a top entry ball valve and its advantage? A top entry ball valve is the valve which we assemble from the top side. It has a one single piece body. The less thread connection on the valve body means less weight and leakage paths. Plus, we could have access to the ball part without removing it from the pipeline. The top entry ball valves are often used in the pipeline with less maintenance for internal parts. Inspection Reports For each order, Dervos will provide inspection reports to show you the whole inspection process and results. Plus, we will provide material report to let you know that the material we provide is as per standards.
The 12 inch high pressure check valve is designed with pressure seal bonnet, RTJ flange, tilting disc, made of carbon steel WCB body and hard face sealing. Quick Detail Type Check Valve Size 12'' DesignPressure 2500LB Construction Pressure Seal Bonnet, Tilting Disc Type Connection RTJ Flange Design & Manufacture ASME B16.34 End to End ASME B16.10 Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB Trim Material 13CR+STL Temp Range -29℃~+350℃ Media W.O.G. Product Range Body Material Range: WCB, WCC, WC1,CF8M, CF8, CF3, CF3M, LCB, LCC Size Range: 2”~60” (DN50~DN1500) End Connection Type: Flange End, Weld End Design Pressure Range: 150lbs~600lbs Temp Range: -46℃~ +425℃ Related Knowledge What is a tilting disc check valve? The disc of a tilting disc check valve has a pivot point at the center of it. It is desinged to overcome weaknesses of general type swing check valve. Compared to swing type check valve, the tilting check valve could remain fully open and steady at lower flow rates. That is to say, the swing check valve needs a high velocity of fluid to keep disc open and a higher cracking pressure. For low pressure situation, the pressure drop of a tilting disc check valve is much lower than the swing type. But at a higher flow rate, the tilting check valve has higher pressure drop than swing type.
DN25 PN40 ball valve is made according to ISO17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of floating ball and full bore. Its connection mode is EN 1092-1 B1. And it has lever operation mode.
3/4" 1500LB Forged Steel Globe Valve is made according to API602 standard. The valve body is made of A105N+STL. It has the structural characteristics of Body–Bonnet Bolted Connection, OS&Y Yoke, Plug-Type Disc. Its connection mode is SW. And it has hand wheel operation mode.
The 1 inch forged steel gate valve is constructed of integral flange, bolted bonnet, rising stem and solid wedge and bolted bonnet. The valve has the design standard API 602 and inspection standard API 598. Dervos could offer customizing service by providing clients with valves in different sizes, materials, standards, design pressure, structure, operation type and connection type.
The 3 way plug valve is made of WCB body and stainless steel trim as per API 599. The plug valve that could connect any two ports together is applicable for natural gas service, water, oil and so on. Quick Detail Type Plug Valve Size 4'' DesignPressure 150LB Construction Three Way Type Plug Valve ConnectionType Flange Connection Operation Lever/Wrench Design Code API 599 Face to Face ASME B16.10 End Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB TemperatureRange -29℃~+425℃ Application WOG Related Knowledge What are types of plug valves? Lubricated Plug Valve The plug gets lubricated by injecting sealant through injection fitting. The lubricant make sure the smooth movement and prevent the corrosion of plug. Usually, the seat of lubricated plug valve is metal, thus they can withstand higher temperature, available in larger size and higher pressure. Non-Lubricated Plug Valve A non-metallic sleeve or liner is installed in the body cavity of the plug valve. This sleeve reduce the fricion beween plug and body. Meanwhile it prevents the corrosion of plug. Due to non-metallice sleeve, the non-lubricated plug valve cannot be used in high temperature condition. Multiway Plug Valve The multiway plug valve is used for diverting flow in transfer lines. The multiway plug valves we often see are 3 way plug valve or 4 way plug valve. Dervos Packaging Based on sufficient experience, we have developed complete packing specifications and procedures to ensure clear and safe transportation so that you can receive good and sound products. And this is also an important factor that we earn good reputation from our customers.
4" 150LB wafer check valve is made according to API 594 standard. The valve body is made of A351 CF8M+STL. It has the structural characteristics of double disc. Its connection mode is wafer.
2 Inch 300LB Cast Steel Globe Valve is made according to API623 standard. The valve body is made of ASTM A352 LCB. It has the structural characteristics of Low Inlet, High Outlet, Welded Seat. Its connection mode is RF. And it has hand wheel operation mode.
