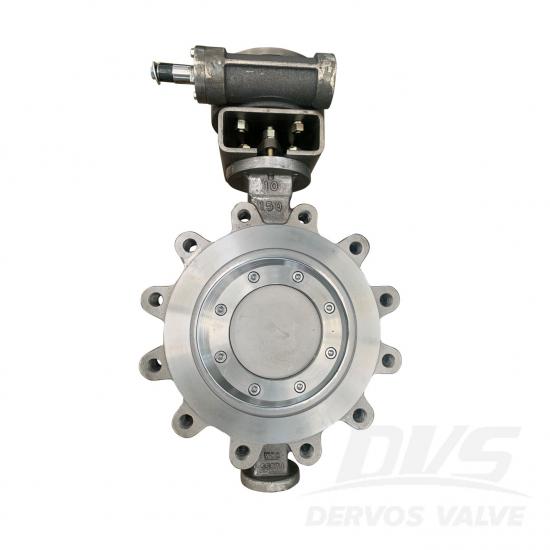

10" 150LB butterfly valve is made according to API609 & ANSI B16.34 standard. The valve body is made of WCB + inconel. It has the structural characteristics of double eccentric, two-way pressure, reverse pressure 10bar. Its connection mode is lug type. And it has turbine operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
WCB + inconelMethod of Operation:
Turbine OperationProduct Description
|
Type |
Butterfly Valve |
|
Size |
10" |
|
Pressure |
150LB |
|
Connection |
Lug type |
|
Operation |
Turbine Operation |
|
Body Material |
WCB + inconel |
|
Design Norm |
API609 & ANSI B16.34 |
|
Face to Face |
API 609 |
|
Flange Dimension |
ANSI B16.5 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 150°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Reasonable design, compact structure, easy assembly and disassembly, easy maintenance;
2. Suitable for various media and different temperatures.

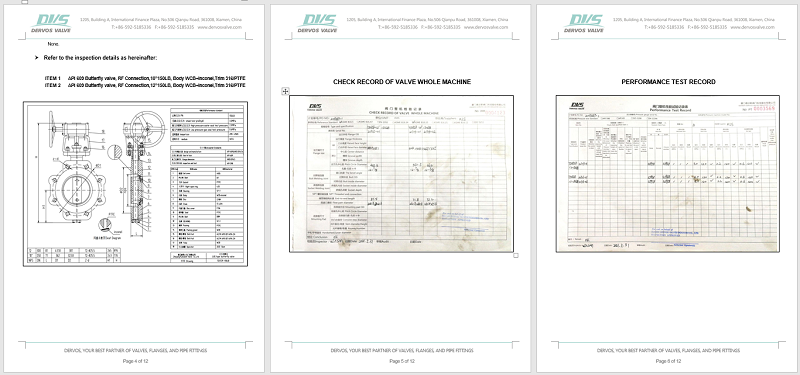

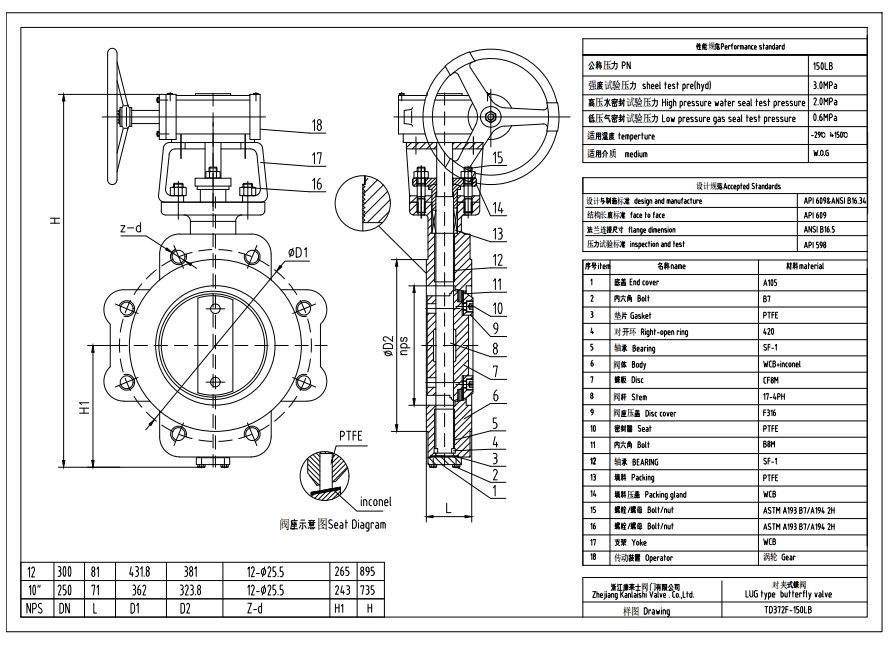

Technical Drawing

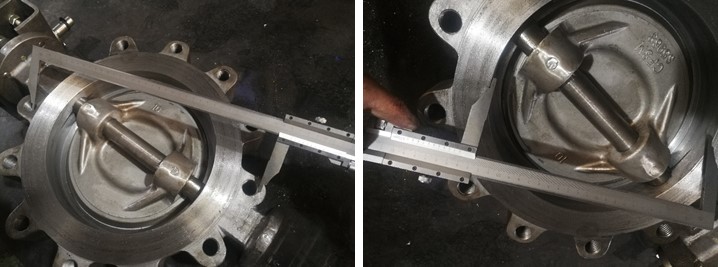

Dimension Checking

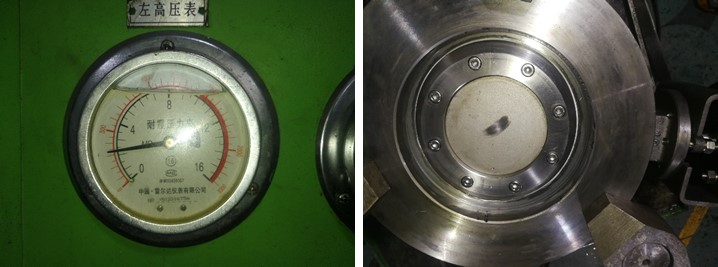

Pressure Testing

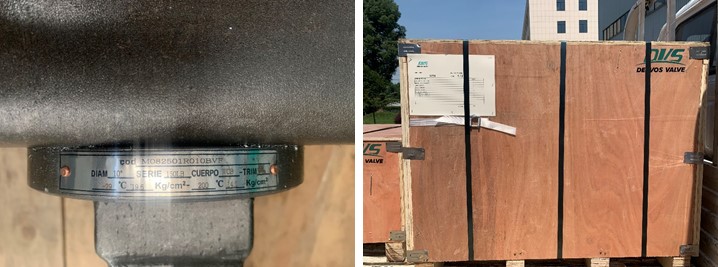

Nameplate & Packing

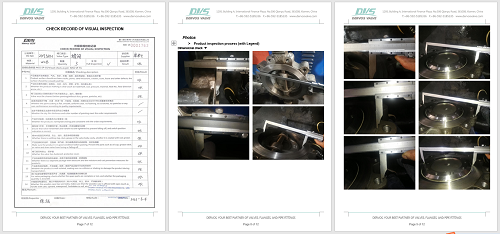

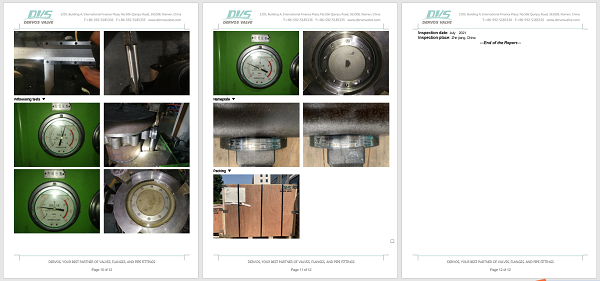

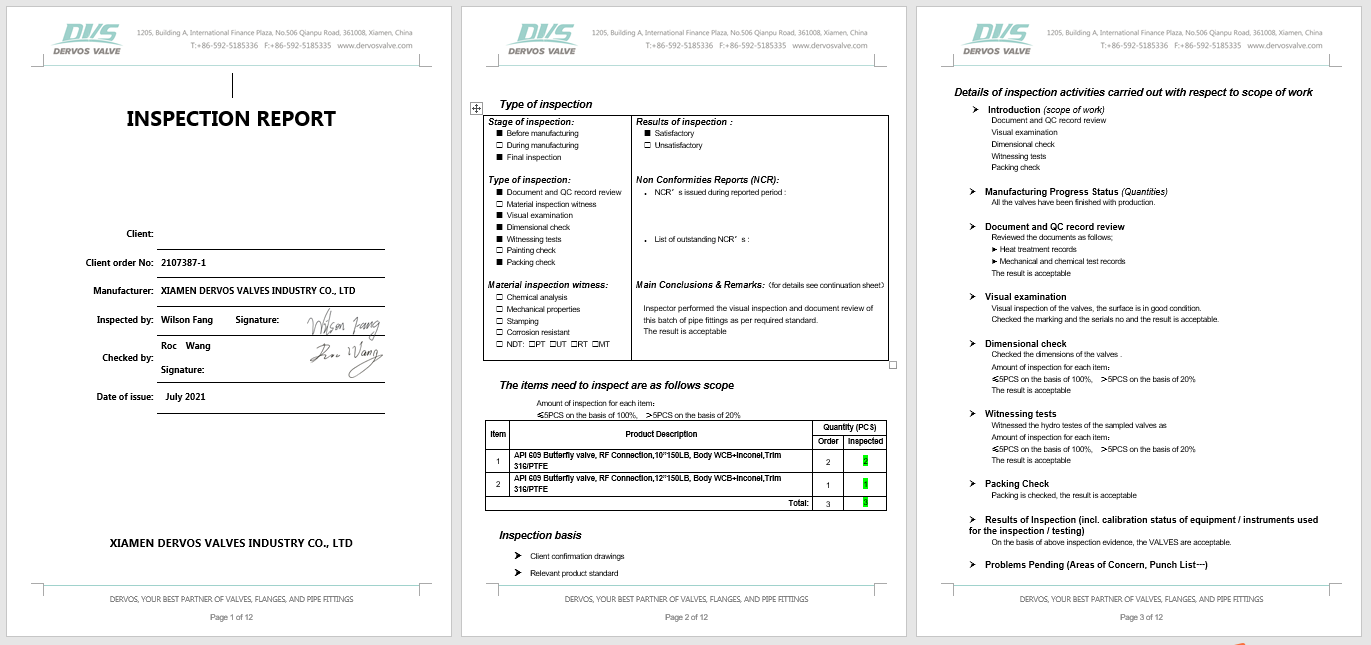

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
