Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A105Method of Operation:

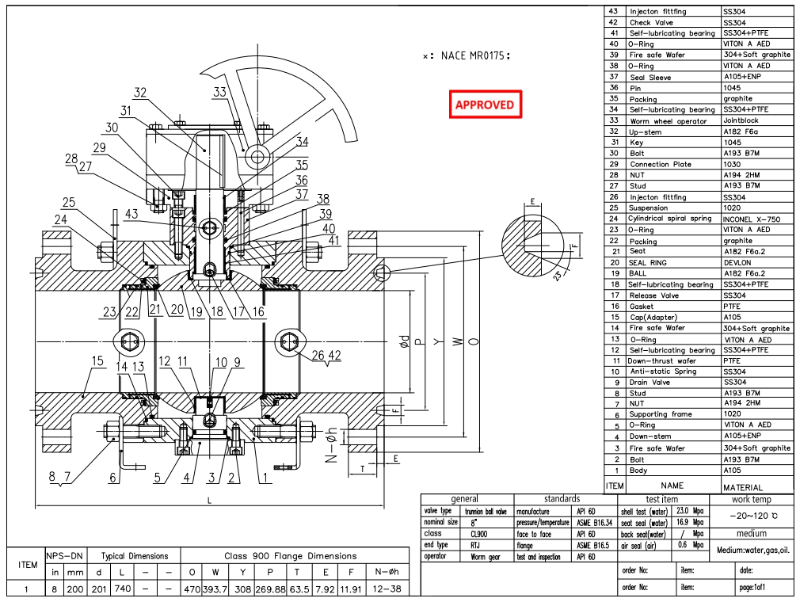

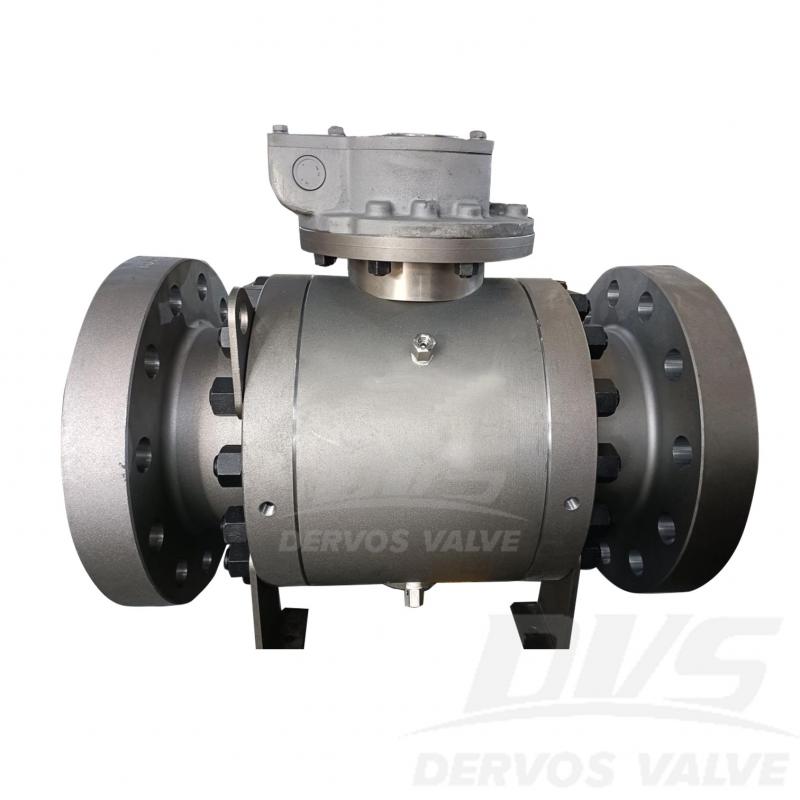

Worm wheel8" 900LB Trunnion Ball Valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of Three-Piece Side Entry Trunnion Mounted Ball Valve with Full Bore Design, Fire-Safe & Anti-Static Features, Blowout-Proof Stem, and Double Block and Bleed (DBB). Its connection mode is RTJ. And it has Worm wheel operation mode.
|
Type |
Trunnion Ball Valve |
|
Size |
8” |
|
Pressure |
900LB |
|
Connection |
RTJ |
|
Operation |
Worm wheel |
|
Body Material |
A105 |
|
Design Norm |
API 6D |
|
Face to face |
API 6D |
|
Flange |
ASME B16.5 |
|
Test & Inspection Code |
API 6D |
|
Temperature |
-20 ~ 120°C |
|
Applicable Medium |
Water, Oil and Gas |
1. Trunnion Ball Valve 8" 900LB API 6D A105 RTJ provides low operating torque and stable sealing performance, ideal for high-pressure oil & gas pipeline systems (trunnion mounted ball valve 900LB A105).
RTJ Flanged A105 Trunnion Ball Valve ensures secure metal-to-metal sealing and reliable operation under extreme pressure conditions (8 inch API 6D trunnion ball valve RTJ).
