Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A105N+STLMethod of Operation:

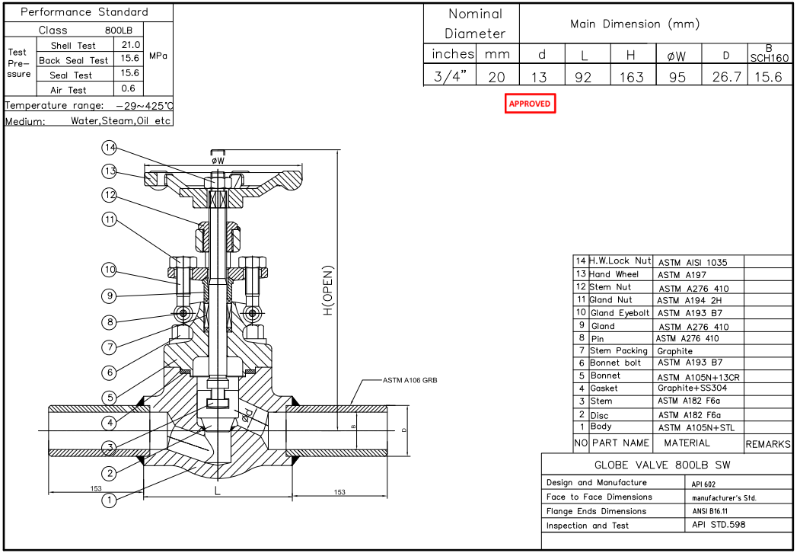

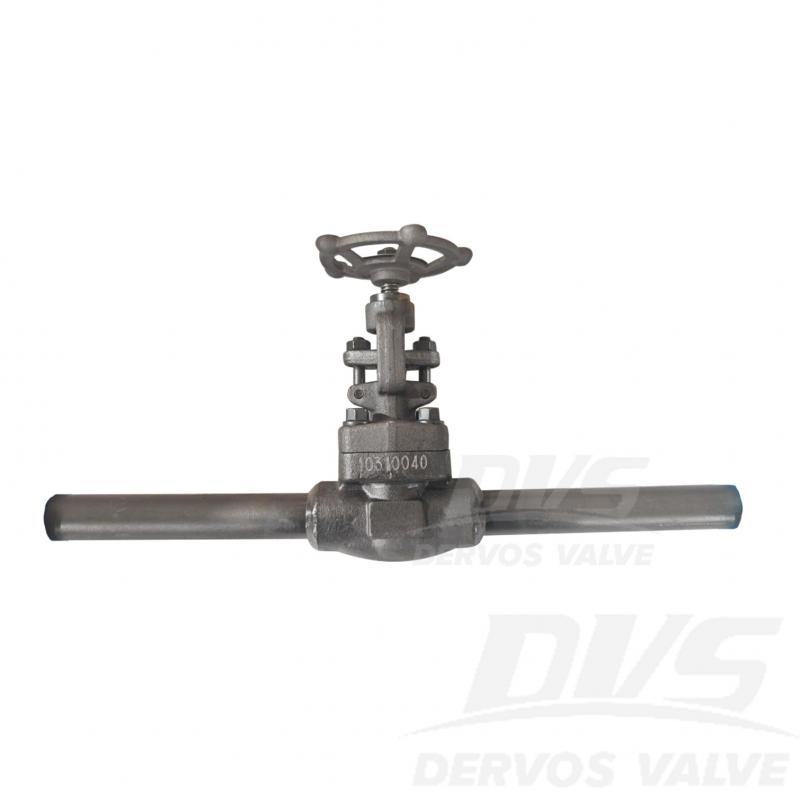

Handwheel3/4" 800LB Forged Steel Globe Valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105N+STL. It has the structural characteristics of Bolted Bonnet, OS&Y, Plug-Type Disc, A106 Gr. B Pipe, SCH 160. Its connection mode is SW. And it has Handwheel operation mode.
|
Type |
Forged Steel Globe Valve |
|
Size |
3/4" |
|
Pressure |
800LB |
|
Connection |
SW |
|
Operation |
Handwheel |
|
Body Material |
ASTM A105N+STL |
|
Design Norm |
API 602 |
|
Face to Face |
manufacturer's Std. |
|
Flange Ends Dimensions |
ANSI B16.11 |
|
Test & Inspection Code |
API STD.598 |
|
Temperature |
-29 ~ 425°C |
|
Applicable Medium |
Water, Oil and Steam |
1.Forged A105N body built to API 602 standard provides high strength and reliable performance in Class 800 pressure service.
2.Globe valve design ensures precise throttling control and stable flow regulation in compact piping systems.
