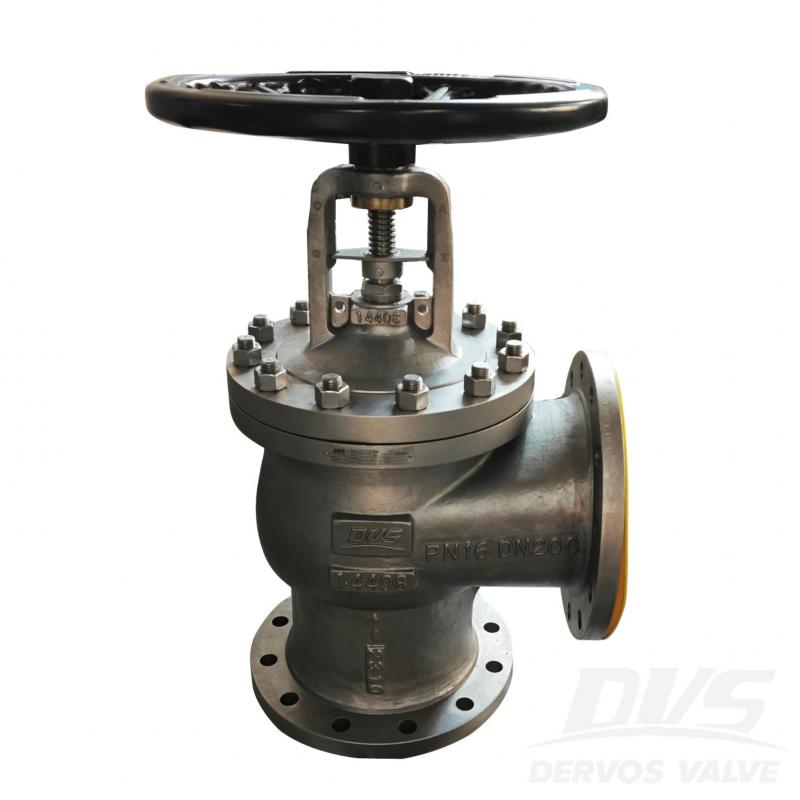

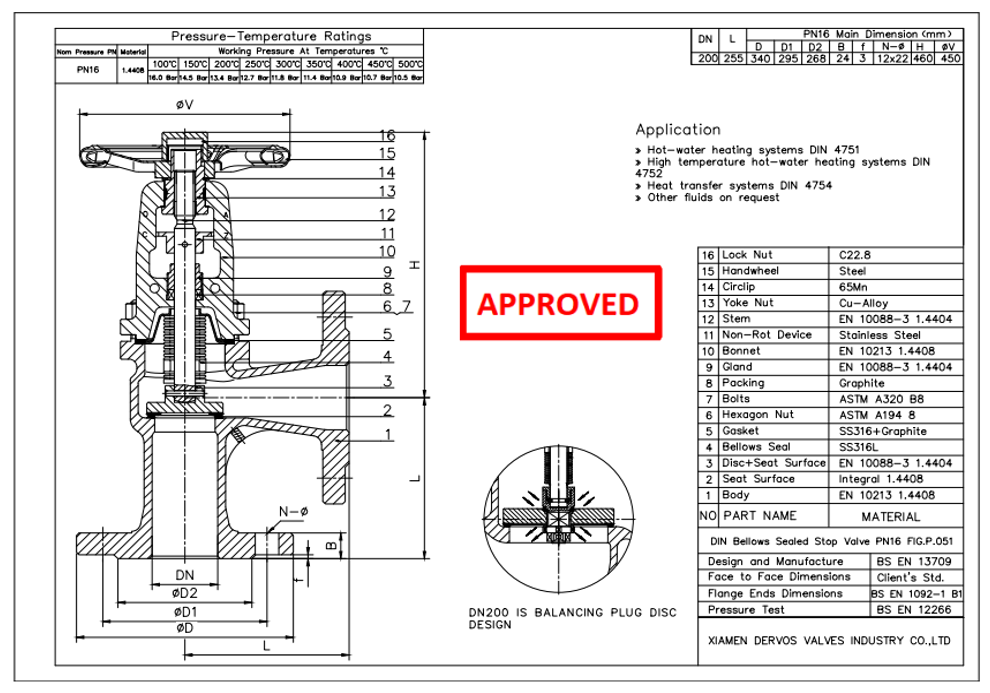

DN200 PN16 Bellow Seal Globe valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.4408. It has the structural characteristics of body cover bolt, rising pole bracket, angle type, corrugated pipe seal and structural length of 255mm. Its connection mode is RF. And it has hand wheel operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
EN 10213 1.4408Method of Operation:
Hand Wheel
|
Type |
Bellow Seal Globe Valve |
|
Size |
DN200 |
|
Pressure |
PN16 |
|
Connection |
RF |
|
Operation |
Hand Wheel |
|
Body Material |
EN 10213 1.4408 |
|
Design Norm |
BS EN 13709 |
|
Face to Face Dimensions |
Client's Std. |
|
Flange Ends Dimensions |
BS EN 1092-1 B1 |
|
Test & Inspection Code |
BS EN 12266 |
|
Applicable Medium |
Water, Oil and Gas |
1. Adopting a double seal of corrugated tube and packing to prevent medium leakage and ensure zero leakage;
2. Built in guiding structure to avoid excessive expansion and contraction of the corrugated pipe, extending its service life.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 1.5 inch 800LB bellow seal globe valve is designed with outside screw and yoke, handwheel operation, sw end. The reduced port globe valve is has forged steel A105N body. Design Feature 1.Outside screw and yoke 2.Rising stem 3.Bolted bonnet design 4.Bellow seal packing for reliable stem sealing 5.Reduced bore design 6.Handwheel Operated Quick Detail Type Globe Valve Size 1.5'' Design Pressure Class 800 Structure BB, OS&Y, Reduced Port, Bellow Seal Packing Connection Type Socket Weld Operation Handwheel Design Code API 602 End to End ASME B16.10 Connection End ASME B16.11 Pressure & Temperature ASME B16.34 Test & Inspection Standard API 598 Body Material Forged Steel ASTM A105 Trim Material Trim 8 Applicable Temperature -29℃~+425℃ Application W.O.G Origin China Related Knowledge What is a bellw seal valve? For bellow seal globe valves, the lower end bellows is welded on the valve stem to prevent the process fluid from eroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. The double seal design ensure that if bellow seal pakcing fails, the stem packing will also function. The bellow seal globe valves are applicable for media like steam, flammable, explosive, heat transfer oil, high purity, and toxic media etc. Special Tests Besides general tests we will do (hydraulic and air test), we could also do tensile strength test, metallographic test, fugitive emission test, and NDE test (UT,RT,PT,MT) upon customers’ specific requests.
Dervos bellow seal globe valve is designed as per EN13709 with face to face dimesnsion per EN558. The special designed bellow seal make sure zero leakage from stem. Quick Detail Type Globe Valve Norminal Size DN 65 NorminalPressure PN 40 Construction Bolted Bonnet, Rising Stem, Bellow Sealed ConnectionType RF Flange Operation Handwheel Design Code EN13709 Face to Face EN 558 Connection EN1092 Test & Inspection EN12266 Body Material Carbon Steel 1.0619 Bellow Material SS304, SS316, SS316L and etc ApplicableTemp -29℃~+420℃ Application Water, Oil, Gas Structure Feature 1. Standard design of double-wall bellow seal 2. Heat-dissipating bonnet design; 3. With lubricant storage device; 4, With design of circlip to fix stem nut; 5. Reasonable product structure, reliable sealing performance and good appearance; 6. The sealing surface is welded with Co-based hard alloy, which has good wear resistance, corrosion resistance, anti-friction performance and long service life; 7. Stem has nitriding treatment with good corrosion resistance and anti-friction performance; 8. With position indicator for stem movement;
The bellows seal globe valve adopts the bellows seal design, which completely eliminates the shortcomings of the normal valve stem packing seal aging and easy to leak, not only improves the energy efficiency, increases the safety of the production equipment, reduces the maintenance cost and frequent maintenance. It also provides a clean and safe working environment.Its simple structure and the low price makes it almost no "competitors". Quick Detail Type Globe Valve Norminal Size 1.5 Inch NorminalPressure 150LB Construction Bolted Bonnet, Outside Screw & Yoke, Rising Stem, Bellow Seal ConnectionType RF Flange Operation Handwheel Design Code ASME B16.34, API 602 Face to Face ASME B16.10 Flange End ASME B16.5 Test & Inspection API 598 Body Material ASTM A105 ApplicableTemp -29℃~+425℃ Application Water, Oil, Gas Structure Feature 1. Double seal design (corrugated pipe + packing). If the bellows fails, the stem packing will also be avoided; 2. External leakage, and in line with international sealing standards; 3. No fluid loss, reduce energy loss, and improve plant equipment safety; 4. Long service life, reduce the number of maintenance, reduce operating costs; 5. Rugged bellows seal design, ensuring zero leakage of the valve stem, providing maintenance-free conditions. Technical Drawing Dimension Our Service Dervos customer service is one of our biggest competitive advantages. In Dervos, we provide- 1.Quotation within 24 hours or no later than 3 days This will let you meet the quotation submission deadline and enhance your working efficiency 2.Weekly status report of your order In this way, you will have a clear picture of your order. You do not need to waste time on pushing us for status update 3.An 18-month warranty period A warranty certificate will issued after shipment and you will not have any concern after buying valves. 4.Solutions to complaints within 3 days Quick and responsible actions to complaints will protect your reputation and reduce the financial loss as much as possible.
The refinery of MOL, located in Hungary, requires regular ball valve and check valve replacements to maintain optimal performance. As a trusted check and ball valve supplier of MOL, DERVOS continues to provide ball valves for their operations. In this project, DERVOS supplied a batch of high-performance ball valves and check valves for fluid control in oil and gas applications. They required various types and specifications of ball and check to meet the operational and sealing requirements of different pipeline systems.
DN32 PN16 Y type strainer is made according to EN12516-1 standard. The valve body is made of WCB. It has the structural characteristics of pressure Y type. Its connection mode is RF.
The DN80 PN16 cast iron gate valve has face to face dimension as per DIN3202 F4 or DIN3202 F5. This GG25 gate valve is designed with resilient seat, non rising stem, bb, RF flange, suitable for water treatment application. Quick Detail Type Gate Valve Nominal Diameter DN 80 Nominal Pressure PN 16 ConstructionType Non-rising stem, Bolted Bonnet, Resilient Seat ConnectionType Flanged OperationType Handwheel Operation Body Material Cast Iron GG25 TrimMaterial Cast Iron Wedge, SS420 Stem, EPDM Seat Design Code DIN 3352 End to End Code DIN 3202 Flange Dimesion DIN 2501 Medium Water Origin China Design Feature 1.Resilient seat for good sealing performance 2.Low flow resistance and small pressure drop 3.Non-rising stem for installation space is limited 4.No limitation for flow direction of medium 5.Epoxy painting available for internal and external part of the valve for anti corrosive function Company Brief Introduction Specializing in valve industry over 10 years, Dervos becomes the leading vendor of gate, globe, check, ball, butterfly, plug valves and strainers. We serve oil and gas user such as LUKOIL, MOL, YPF with local partners. Dervos show its advantages in: 1. Our partnerships with tens of stable suppliers allow us to provide customers with a wide range of high-quality products at a competitive price. 2. Each order is under strict quality control with inspection reports before delivery. 3. We value delivery time as much as our customers do. With the powerful purchasing system, we follow each order closely to secure on-time delivery. 4. One-stop solutions will be offered in a timely manner
3" 150LB Swing Check Valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of Bolted Bonnet, Swing Type. Its connection mode is RF.
The 6 inch Wafer check valve is made in strict accordance to API 594. The body material LCC make sure the lug type valve is capable to handle harsh environment, and the INCONEL-X 750 spring promise the valve a long service life.
China Welded Bonnet Gate Valve Producer Fabricates Reduced Bore Forged Steel Gate Valve, A105N, 1/2-4 Inch, 150-1500 LB, Welded Bonnet, Integral Flanged.
The valves are widely used in electric power, petroleum chemical industry, metallurgy, Marine, oil, natural gas, coal gas, pharmaceutical and other industries.
3” 150LB Dual Plate Wafer Type Check Valve is made according to API 594 standard. The valve body is made of A351 CF8M+STL. It has the structural characteristics of Dual Plate. Its connection mode is Wafer Type.
1 1/2" 600LB floating ball valve is made according to API 6D standard. The valve body is made of A350-LF2. It has the structural characteristics of floating ball, full bore, split type, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF (125 AARH).
