Concentric Butterfly Valve DN350 PN16 GGG40 API609
加载中...

Concentric Butterfly Valve DN350 PN16 GGG40 API609

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    china
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    GGG40
  • Method of Operation:

    Gear Operated
Inquiry now
Product Detail

DN350 PN16 Concentric Butterfly Valve is made according to EN12266 standard. The valve body is made of GGG40. It has the structural characteristics of Centerline type, WRAS approved for drinking water service. Its connection mode is Wafer Type. And it has Worm Gear operation mode.



Concentric Butterfly Valve Specifications

Type

Concentric Butterfly Valve

Size

DN350

Pressure

PN16

Connection

Wafer Type

Operation

Gear Operated

Body Material

GGG40

Design Norm

API 609

Face to Face

EN558-1

Top Flange

ISO 5211

Test & Inspection Code

EN12266

Temperature

-10 ~ 110°C

Applicable Medium

Water, Oil and Gas



Key Features of Concentric Butterfly Valve

1. Designed in accordance with API 609 standards to provide reliable shut-off performance in industrial piping systems.

2.Manufactured with durable GGG40 ductile iron body for excellent strength and long-term service life.

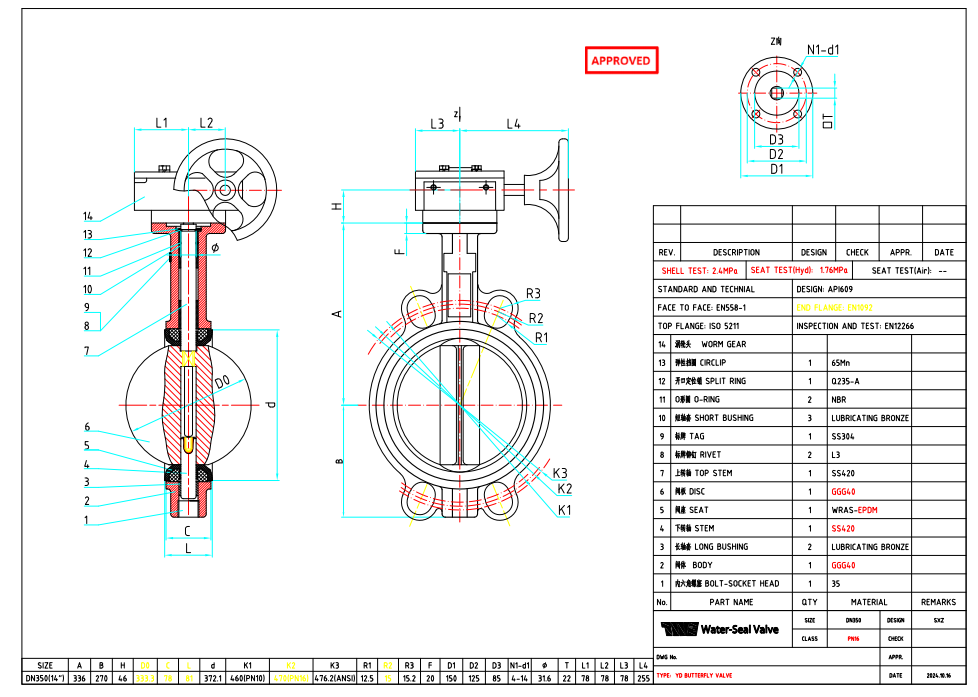

Concentric Butterfly Valve Technical Drawing

Concentric Butterfly Valve

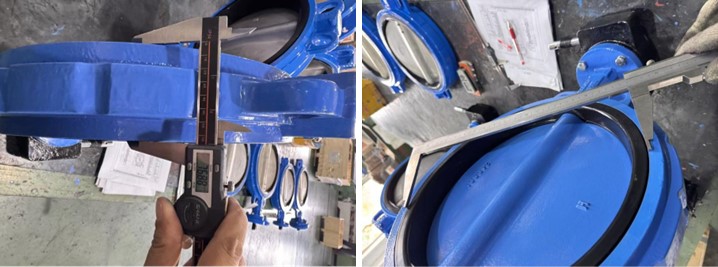

Concentric Butterfly Valve Dimension Inspection

Concentric Butterfly Valve

Concentric Butterfly Valve Pressure Testing

Concentric Butterfly Valve

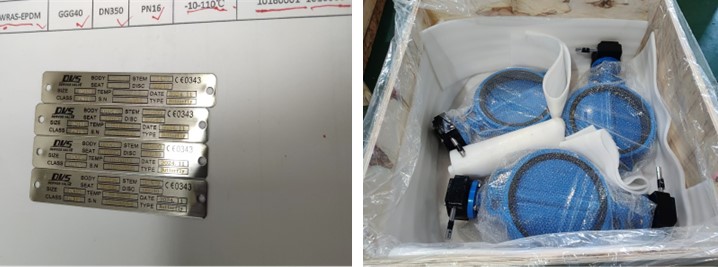

Nameplate, Marking and Packing

Concentric Butterfly Valve

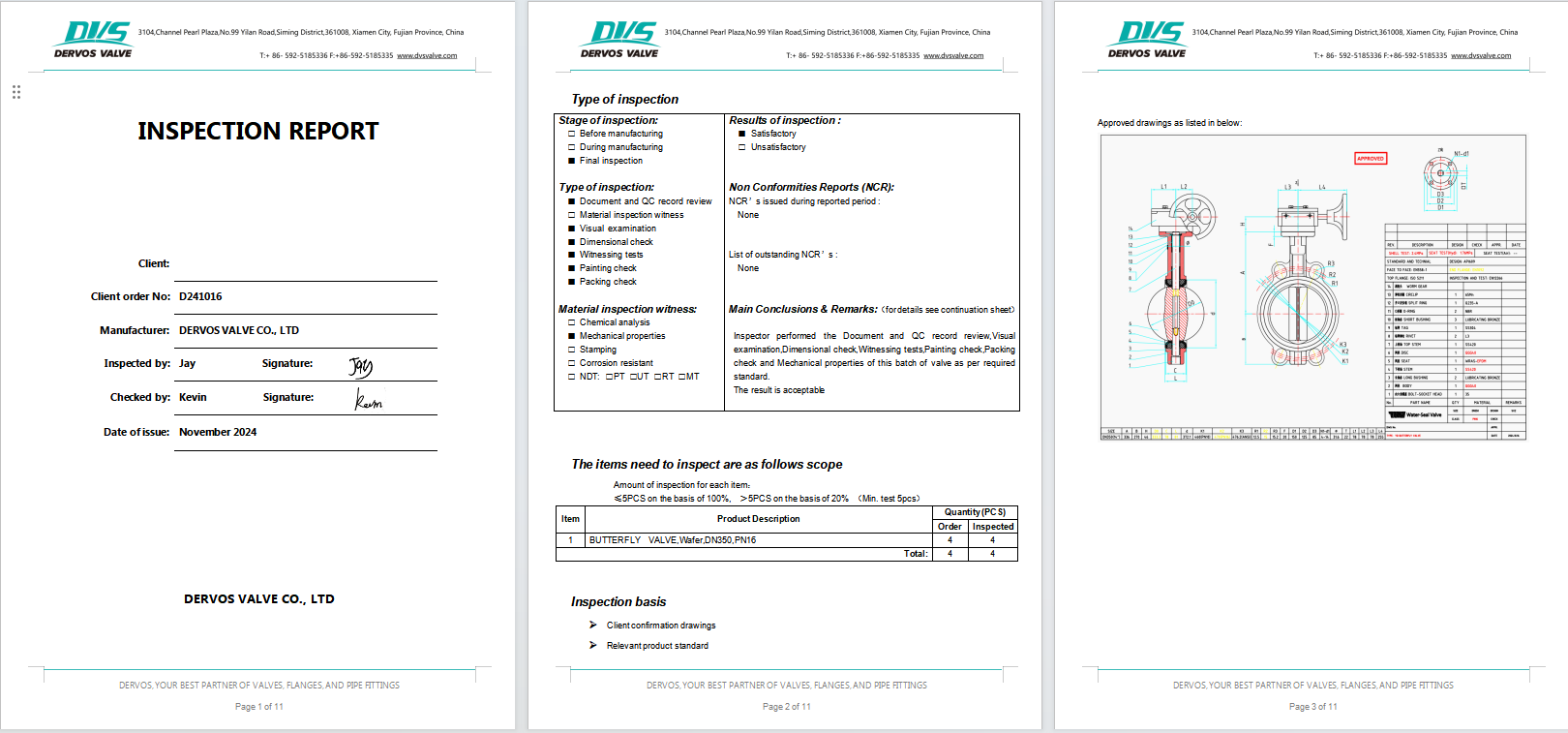

Inspection Report and Documentation

Concentric Butterfly Valve
