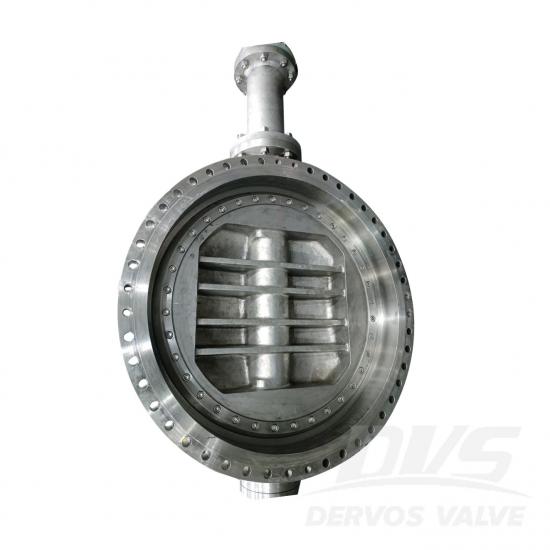

42" 150LBS butterfly valve is made according to API 609 standard. The valve body is made of CF8M. It has the structural characteristics of triple eccentric, multi-level and NACE. Its connection mode is RF flange. And it has turbine operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A351 CF8M+STL21Method of Operation:
Turbine OperationProduct Description
Type |
Butterfly Valve |
Size |
42" |
Pressure |
150LBS |
Connection |
RF Flange |
Operation |
Turbine Operation |
Body Material |
ASTM A351 CF8M+STL21 |
Design Norm |
API 609 |
Face to Face |
API 609 |
End Flange Connection |
ASTM B16.47B |
Pressure Test |
API 598 |
Temperature |
-80~ 375°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Good sealing performance improves the reliability of the system;
2. Small friction resistance, labor-saving and flexible opening and closing;
3. It has a long service life and can be switched on and off repeatedly;
4. Strong pressure and high temperature resistance, wide application range.

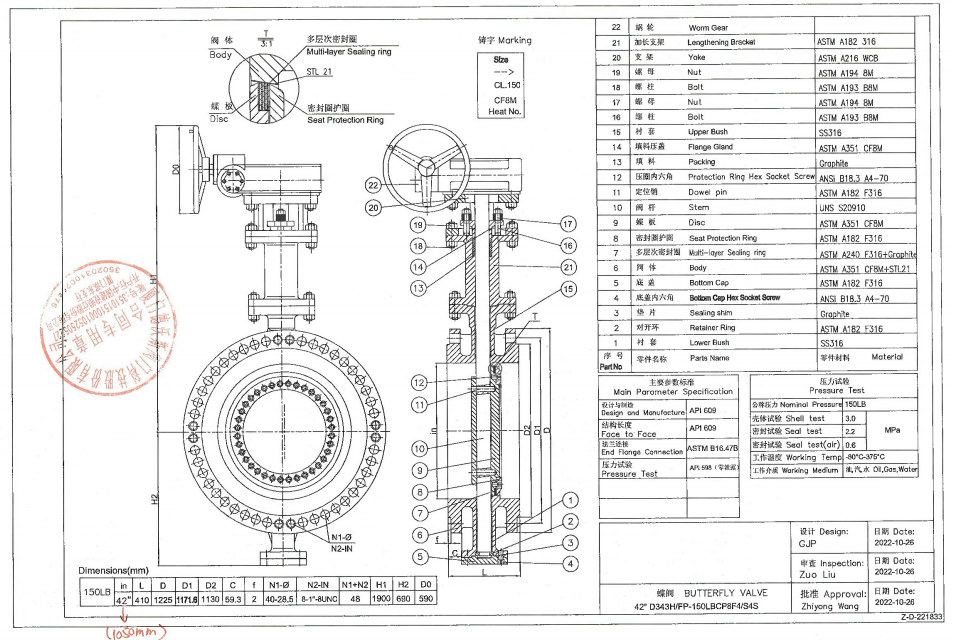

Technical Drawing

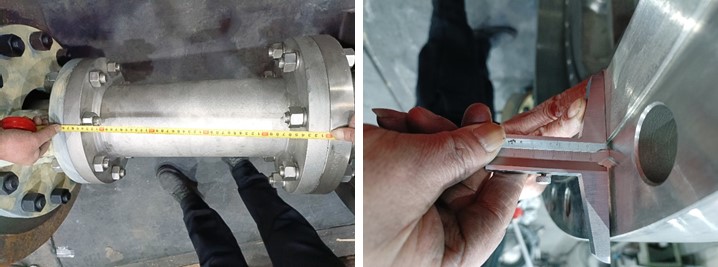

Dimension Checking

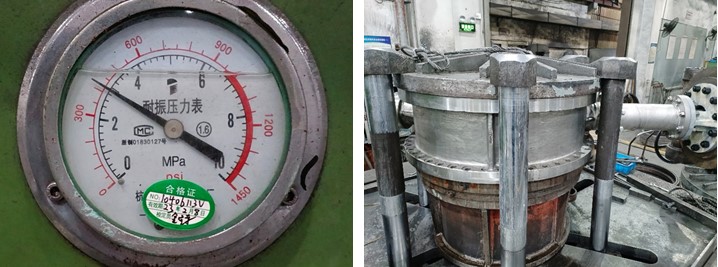

Pressure Testing

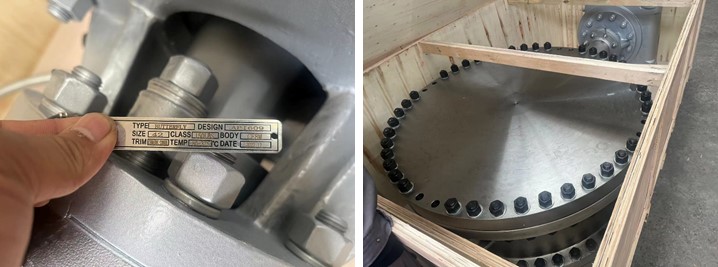

Nameplate & Packing

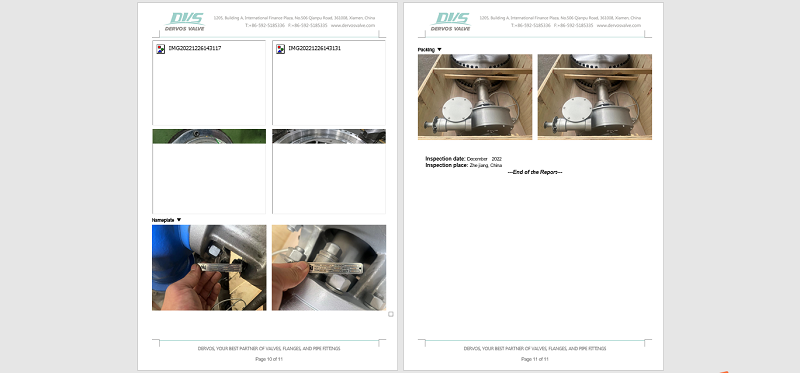

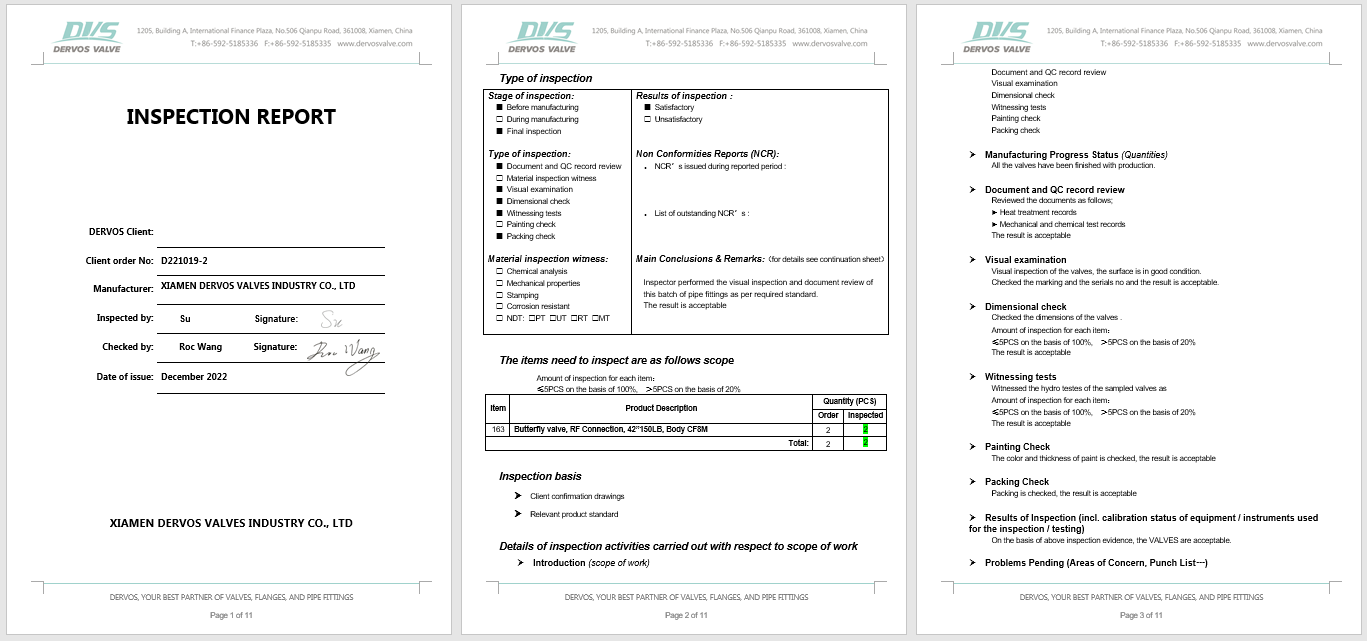

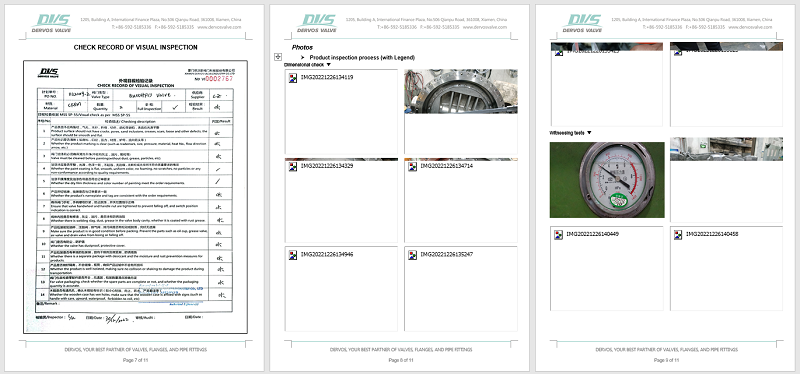

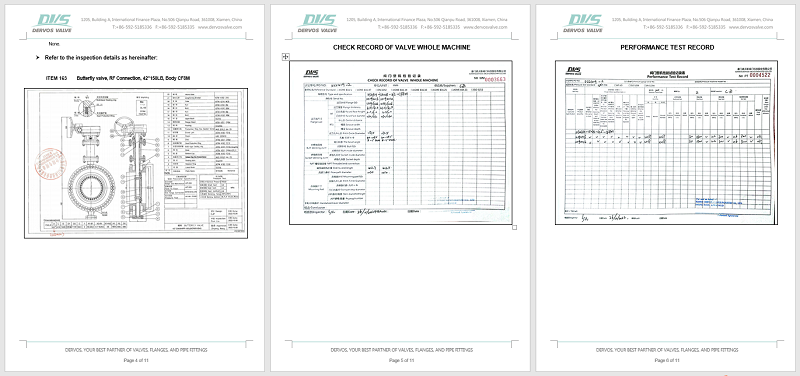

Inspection report
