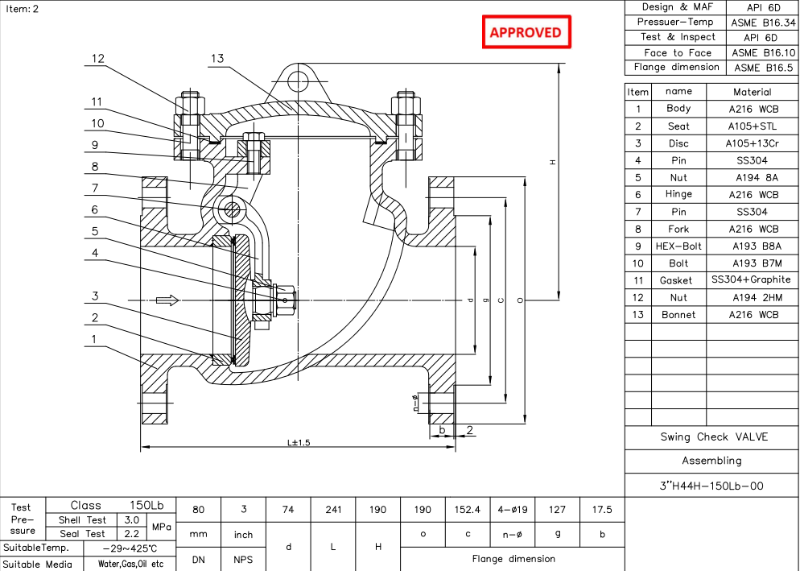

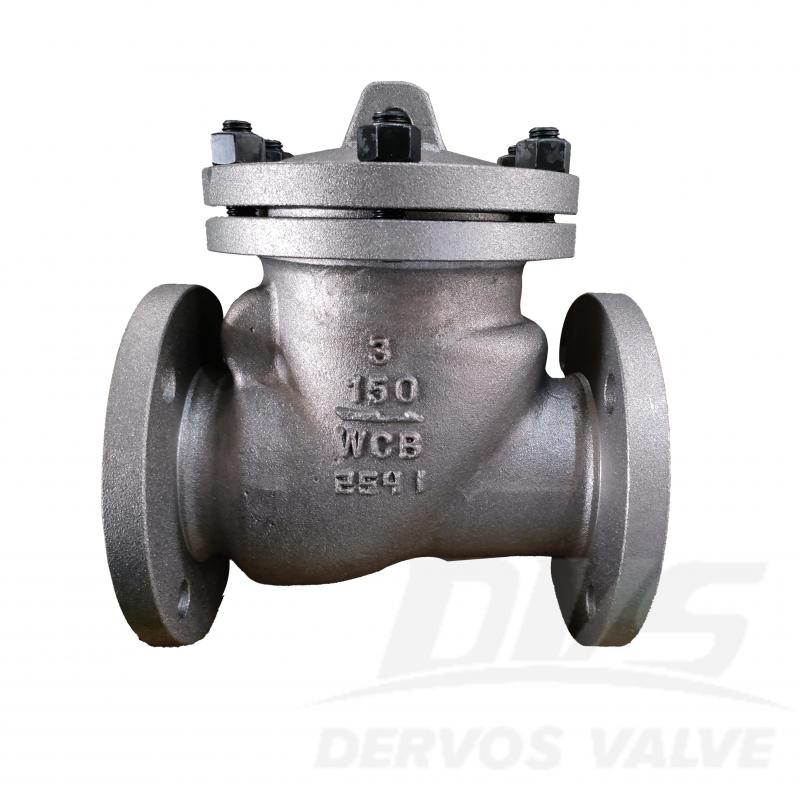

3" 150LB Swing Check Valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of Bolted Bonnet, Swing Type. Its connection mode is RF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A216 WCBMethod of Operation:
no
|
Type |
Swing Check Valve |
|
Size |
3” |
|
Pressure |
150LB |
|
Connection |
RF |
|
Body Material |
A216 WCB |
|
Design Norm |
API 6D |
|
Face to Face |
ASME B16.10 |
|
Flange Ends |
ANSI B16.5 |
|
Test & Inspection Code |
API 6D |
|
Temperature |
-29 ~ 425°C |
|
Applicable Medium |
Water, Oil and Steam |
1. Durable Construction: Made from WCB material, ensuring long-lasting performance under high-pressure conditions.
2. Reliable Operation: Designed as a 3" 150LB swing check valve with RF flange, providing efficient backflow prevention according to API 6D standards.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 8 inch non return check valve conforms to BS 1868 design code, with bolted bonnet and swing type disc. The flanged check valve is made of carbon steel A216 WCB. Design Feature 1.BB: bolted bonnet 2.Swing type disc 3.Reduced bore design 4.Superior flow rates 5.Minimized friction loss 6.Standard trim material for selection 7.External or internal hinge pin available on request 8.Cylinder and counter weight available on request 9.Bare stem and actuators are available on request Quick Detail Type Check Valve Size 8'' Design Pressure ANSI 1500 Construction Bolted Bonnet, Swing Type Connection Raised Face Flange Design & Manufacture BS 1868 End to End ASME B16.10 Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material Carbon Steel Applicable Temp -29℃~+400℃ Media W.O.G. Dimension Class 1500 NPS in 2 2 1/2 3 4 6 8 10 12 DN mm 50 65 80 100 150 200 250 300 L-L1 (RF-BW) in 14-1/2 16-1/2 18-1/2 21-1/2 27-3/4 32-3/4 39 44-1/2 mm 368 419 470 546 705 832 991 1130 L2 (RTJ) in 14-5/8 16-5/8 18-5/8 21-5/8 28 33-1/8 39-3/8 45-1/8 mm 371 422 473 549 700 841 1000 1146 H (OPEN) in 12-1/4 12-1/4 13 14 15-3/4 20-7/8 22-1/16 25-5/8 mm 310 310 330 355 400 530 560 650 WT (kg) RF 69 93 140 232 490 990 1490 1970 BW 49 74 111 185 375 803 1250 1625
The swing type check valve, designed with PN40 RF flange, bolted cover, is made of cast steel 1.0619 and ss316 trim material. The full bore check valve can be manufactured per client's special requests. Quick Detail Type Non Return Valve ( Check Valve) Nominal Size DN 150 NominalPressure PN 40 Construction BB, Swing Type Disc, Exnternal Pin Connection Raised Face Flange Design & Manufacture DIN 3356 End to End EN 558 Connection EN 1092 Test & Inspection EN 12266 Body Material GS-C25 (1.0619) ApplicableTemp -29℃~+425℃ Media W.O.G. Material No Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM WCB LCB WC6 WC9 C5 CF8 CF8M CF3 CF3M 1 Body A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 2 Seat Ring A105 A350 LF2 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L 3 Disc nut A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 4 Disc washer A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 5 Disc A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 6 Hinge A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 7 Hinge pin A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 8 Yoke A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 9 Bonnet nut A194 2H A194 4 A194 7 A194 8 10 Bonnet bolt A193 B7 A193 L7 A193 B16 A193 B8 11 Gasket Stainless Steel Spiral Wound graphite or Stainless Steel Spiral Wound PTFE 12 Cover A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 13 Hook screw Steel 14 Name Plate Stainless steel or Aluminum 15 Rivet Stainless steel or Aluminum Other Material ( Alloy 20, ANSI 321, Monel Hastelloy, etc)are available on request Our Service A good customer service is as valuable as product itself. In Dervos, we will offer a full range of customer service to make you feel easy when doing business with us. Providing weekly production report When production begins, you will get production report weekly, so that you can have good command of product status and report to your customer at the meantime. Offering warranty of 18 months 18 months warranty period will be offered after shipment, no concern to purchase valve from Dervos. Providing solutions within 3-days for complaints All the complaints will be solved within 3 days, in this case, you can timely reply and solve problems for your customer, to relax them even when complaints happening.
The stainless steel CF8 non return valve features in non slam type disc, ANSI 150 flange end, and full port design. Quick Detail Type Non Return Valve ( Check Valve) Size 8'' DesignPressure Class 150 Construction Non Slam Type Connection RF Flange Design & Manufacture ASME B16.34 End to End ASME B16.10 Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A351 CF8 Trim Material SS304 Media W.O.G. Available Modifications for Dervos Valves -Valve Pressure -Valve Size -Reduced Bore & Full Bore -Body & Trim Material (Disc, Seat, Pin, Spring) -End Connection (Flange, BW, SW, Thread, Wafer, Lug) -Available Operation (Bare Stem, With Actuators) -Available Counterweight -Available Cylinder -Customizing Coating -Customizing Packaging Related Knowledge What is non-slam check valve? Water hammer is a hydraulic phenomenon that undergoes an abrupt change in its rate of flow and are caused by sudden shutting or slamming. Water hammer will reduce process efficiency, cause valve damage, gasket joint leaks and other problems. The non-slam check valve is designed to reduce water hammer. An internal spring can prevent the disc from slamming close.The design of a non-slam check valve could eliminate pressure flutuations, vibration and damges. Plus, the disc and spring experience minimal wear over time, which will largely extend the service lives of non-slam check compared to swing check valve.
API6D swing type check valve RF connnection bolted bonnet full pore WCB body, WCB+13Cr disc, A105+13Cr seat ring, WCB hinge. Suitable temperature in -29℃~+425℃ Quick Detail Type Swing Check Valve Size 4 inch-6 inch Design Pressure CL600 Construction BC, Swing type ConnectionType Flange OperationType - Body Material WCB DiscMaterial WCB+13Cr Hinge Material WCB Seat Material A105+13Cr Design Code API 6D Face to Face Dimension ASME B16.10 Test and Inspect API 598 Pressure & Temp ASME B16.34 Medium Water, Oil and Gas Origin China
Chinese manufacturer Dervos offers 14 Inch swing check valves made according to API 6D. Other features cover CL300, RF End Connection, WCB body.
The swing check valve is made of A216, a kind of WCB. Manufactured according to BS1868, the check valve is 6 inch and 150LB. And the valve is capable in working temperature between -19 to 425 degree Celsius.
The swing check valve is made of 1.0619, a kind of carbon steel, as per DIN standard.The check valve is DN80 and PN40, or 3 inch and 300LB. And the valve is capable in working temperature between -19 to 425 degree Celsius.
The 1 inch swing check valve has the construction of bolted bonnet and RF flange end. The forged steel swing check valve is designed with reduced bore as per API 602. Dervos could also do customizing service as per clients’ requests on sizes, design ratings, materials, and standards and so on.
Made of high-quality casting, the DIN swing check valve has a cast steel body with bolted bonnet structure and flange connection. The valve is designed with good sealing performance and minimal water hammer effect.
DN400 PN10 check valve is made according to DIN standard. The valve body is made of WCB. It has the structural characteristics of swing type and structural length of 310mm. It has the connection mode of RF. This valve has a built-in damper, which is mainly used for shock absorption and energy dissipation.
6" 1500LB swing check valve is made according to API 6D standard. The valve body is made of WCB. It has the structural characteristics of swing type. It has BW connection mode.
1" 150LB swing check valve is made according to API 602 standard. The valve body is made of A105. It has the structural characteristics of bolt cover, swing type and full bore. Its connection mode is RF (Welded Flange).
