Knife Gate Valve
加载中...

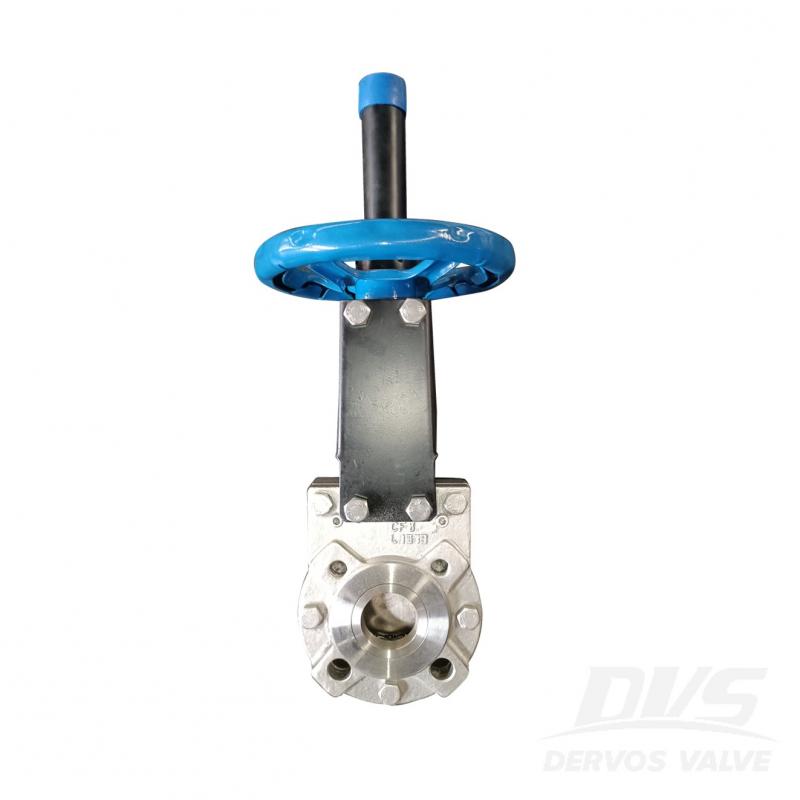

2" 150LB Knife Gate Valve CF8 Lug Handwheel

2" 150LB knife gate valve is made according to MFS standard. The valve body is made of ASTM A351 CF8. It has the structural characteristics of bilateral sealing and with flow deflector. Its connection mode is lug. And it has hand wheel operation mode.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    ASTM A351 CF8
  • Method of Operation:

    Hand Wheel
Inquiry now
Product Detail

Product Description

Type

Knife Gate Valve

Size

2"

Pressure

150LB

Connection

Lug

Operation

Hand Wheel

Body Material

ASTM A351 CF8

Design Norm

MFS

Flange Connection

AS2129 TABLE E

Face to Face

EN558

Test & Inspection Code

MSS SP-81

Applicable Medium

Water, Oil and Gas

Features

1. Simple structure, easy to manufacture and maintain;

2. Simple structure, low fluid resistance, good sealing performance, and fast opening and closing.

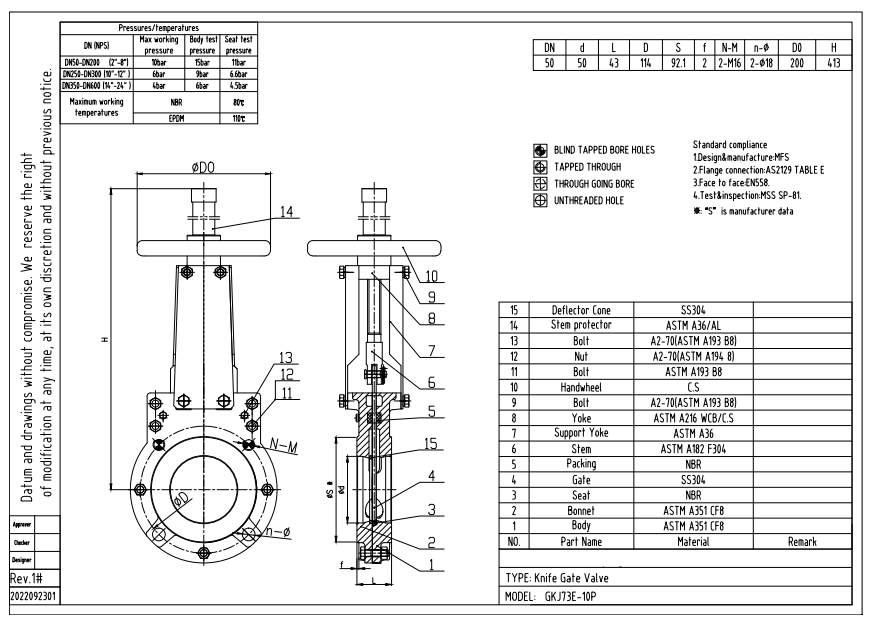

Technical Drawing

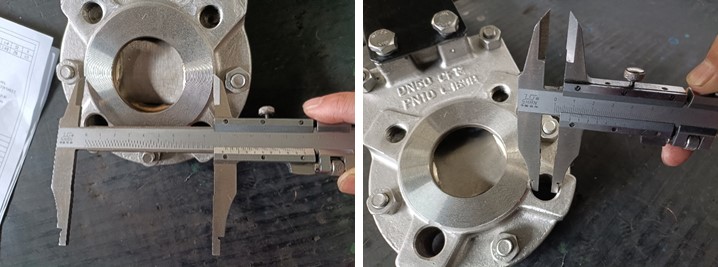

Dimension Checking

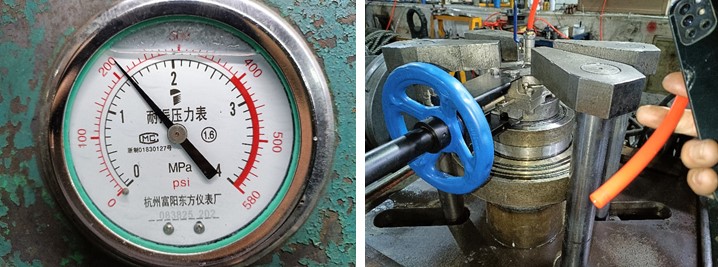

Pressure Testing

Nameplate & Packing

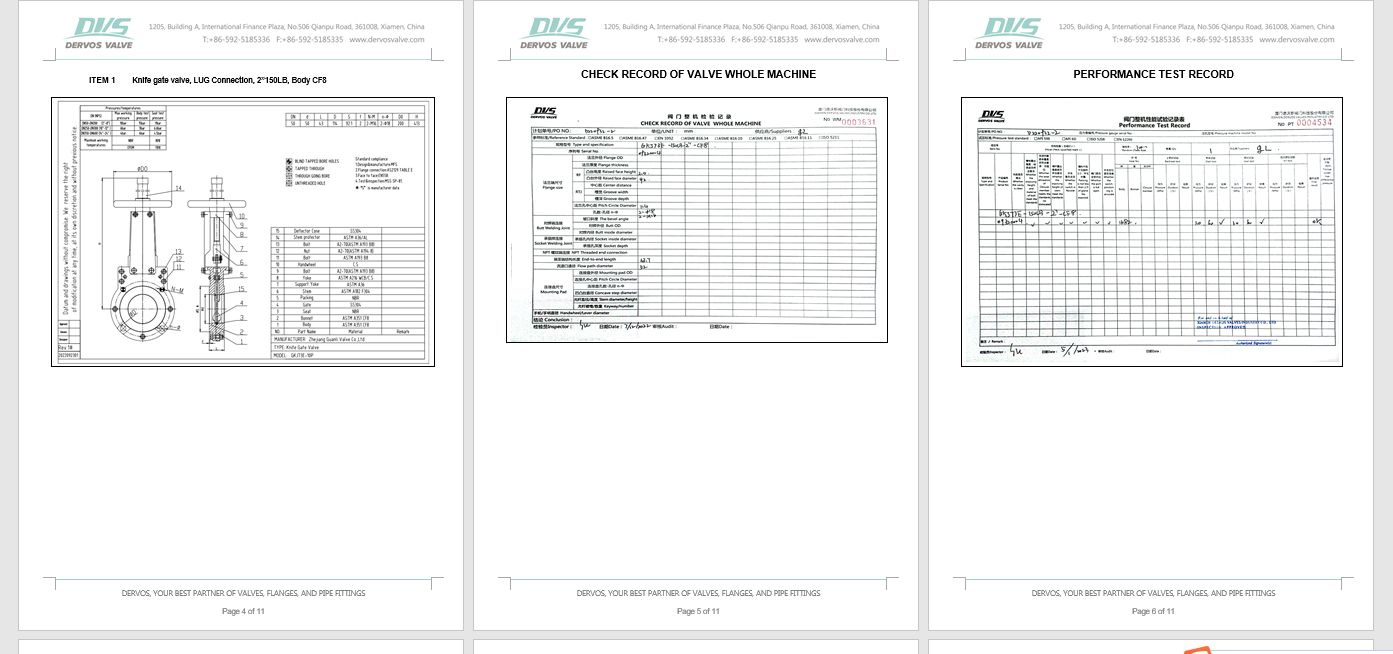

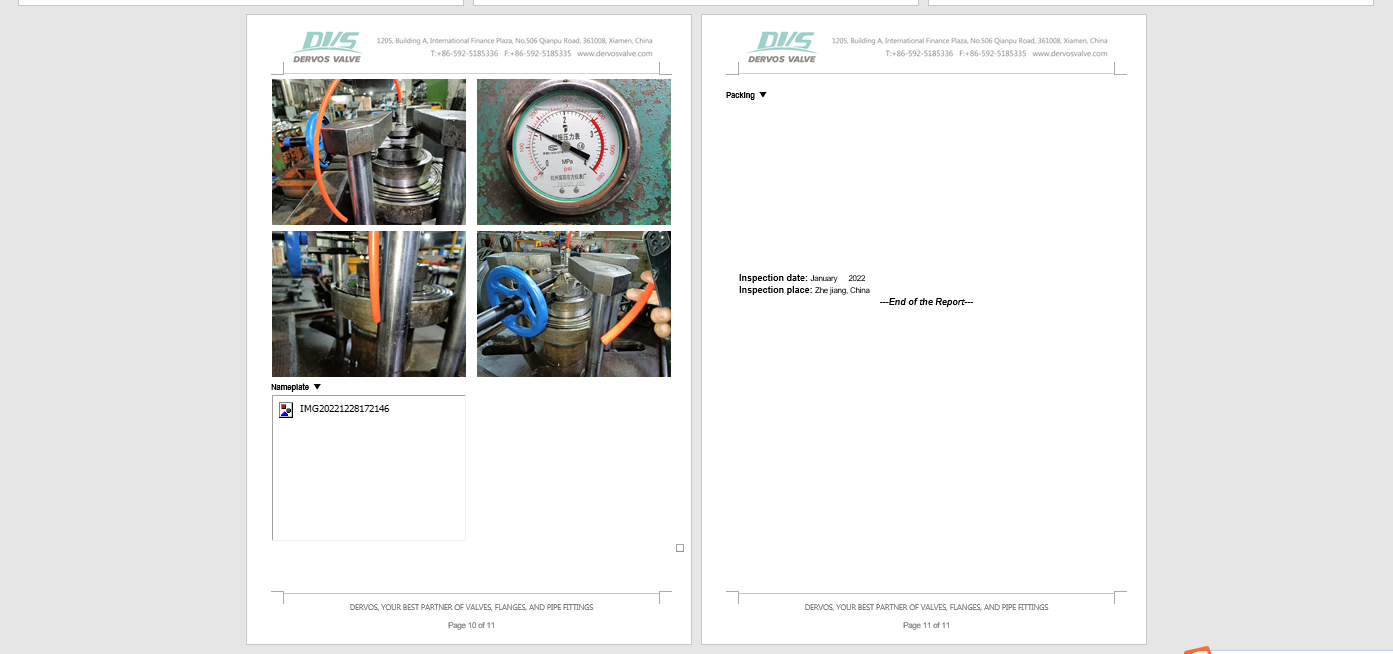

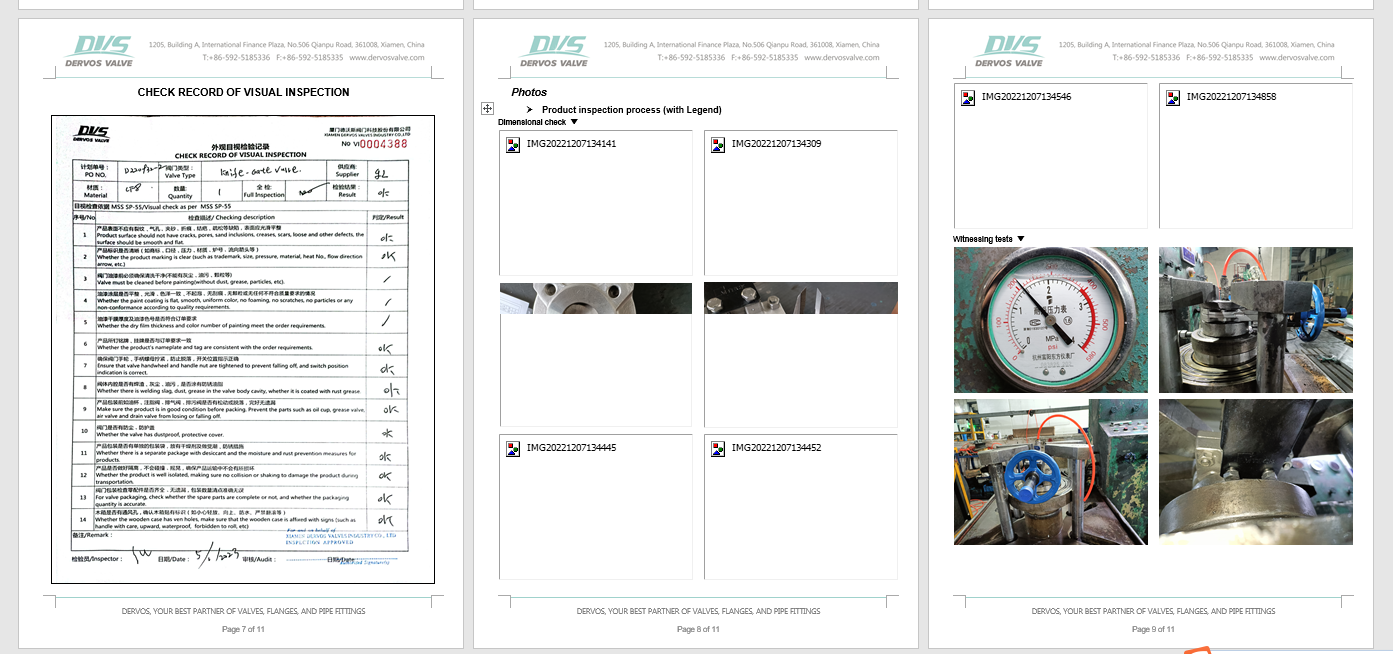

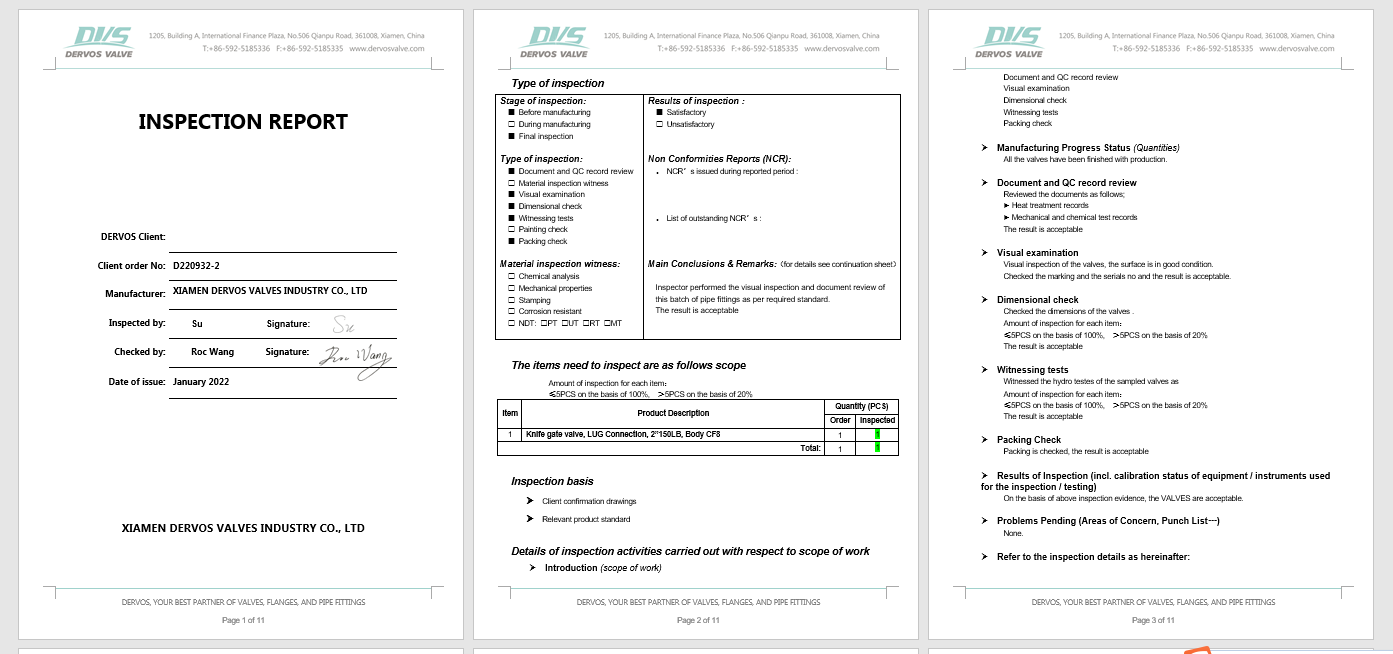

Inspection report

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Electric Actuated Gate Valve

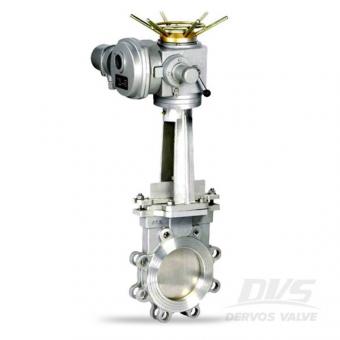

Stainless Steel Knife Gate Valve Lug Electric 6 Inch

The 6 inch stainless steel gate valve, designed as per MSS-SP-81, has the lug type connection per Class 150 and electric actuator. Quick Detail Type Knife Gate Valve Size 6'' Design Pressure ANSI 150 Construction Knife Type Gate Valve ConnectionType Lug Type OperationType Electric Actuator Body Material ASTM A351 CF8 TrimMaterial SS304 Design Code MSS SP81 Medium Water, Oil and Gas Origin China Related Knowledge What are knife gate valves used for? Knife gate valves are originally designed for paper industry. The knife gate valve is especially applicable for heavy liquids with solid particulates, like slurry liquid, that are most corrosive, erosive and abrasive. Compared to wedge gate valve, the knife gate valve has a shorter end to end dimension and lighter weight. Plus, the knife valve has a more sharpened disc to cut through slurry and viscous medium. Both wedge gate valve and knife gate valve can only be used for on-off function not for regulating the flow. Dervos Customer Service With Dervos customer service, you will not have any concern before, during and after buying valves. Pre-sales We will reply on time and also provide technical support upon your request. Order We will check the production details with factory and customers. Sales confirmation will also be sent. During production, we will also send weekly report to let you know the order status. Before shipment, delivery note will be sent to let you know the situation. 18 Month warranty Dervos is always responsible for their products. We will provide 18 months warranty to let our customers without concern.

Unidirectional Knife Gate Valve
Flanged Knife Gate Valve DN800 PN6 CF8M Gearbox

The stainless steel knife gate valve is designed with DN800 PN6 flange end and gearbox operation. The soft seated knife gate valve has a unidirectional sealing. Quick Detail Type Gate Valve Size DN800 Design Pressure PN6 Construction Unidirectional, Soft Seated ConnectionType Flange End OperationType Gearbox Operated Body Material CF8M DiscMaterial SS316L StemMaterial SS316 SeatMaterial PTFE Design Code MSS SP81 Medium Water, Oil and Gas Origin China  Dimension Checking Pressure Tesing

MSS SP-81 Manual Lug Type Knife Gate Valve Bi-directional
MSS SP-81 Manual Lug Type Knife Gate Valve Bi-directional

The knife gate is a bi-directional lug type valve designed according to MSS-SP-81 and for industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids in industries.

Knife Gate Valve
DN150 PN10 Unidirectional Knife Gate Valve Wafer RF Cast Iron

The DN150 PN10 unidirectional knife gate valve features a single piece, stainless steel body design provides tested performance in applications ranging from general purpose to severe media.

Gate Valve

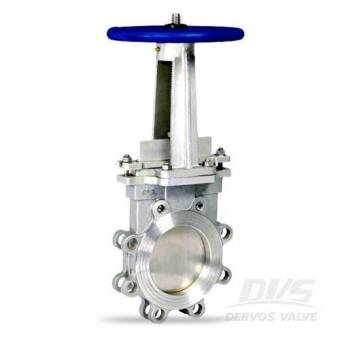

Knife Gate Valve CF8 4 Inch 150LB Lug Type Handwheel

The lug type knife gate valve is designed per MSS-SP-81.Made by stainless steel CF8, the 4 inch gate valve has 150 LB flange connection and handwheel operation.
