Payment:
30% T/T When Order, 70% T/T Before ShipmentColor:
CustomizationLead Time:
35~60 days Ex Works After Order ConfirmationMaterial:
WCBMethod of Operation:
Gearbox

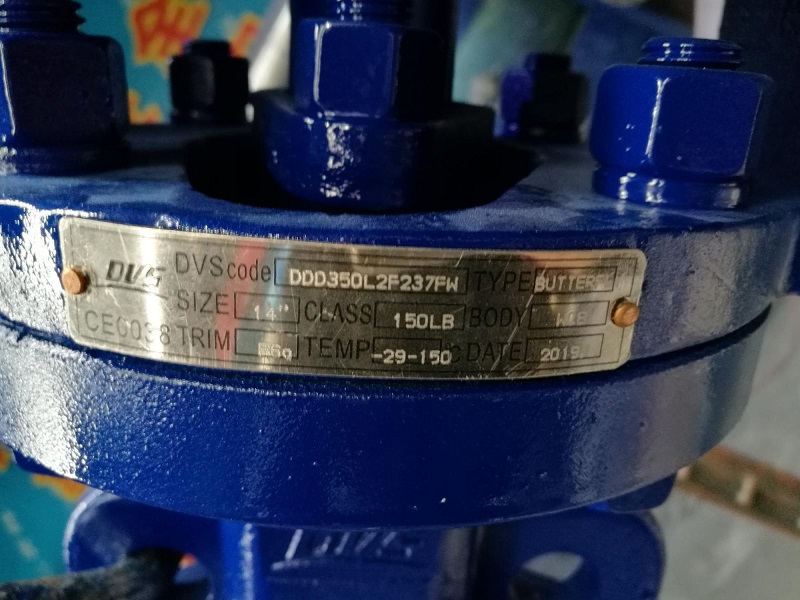

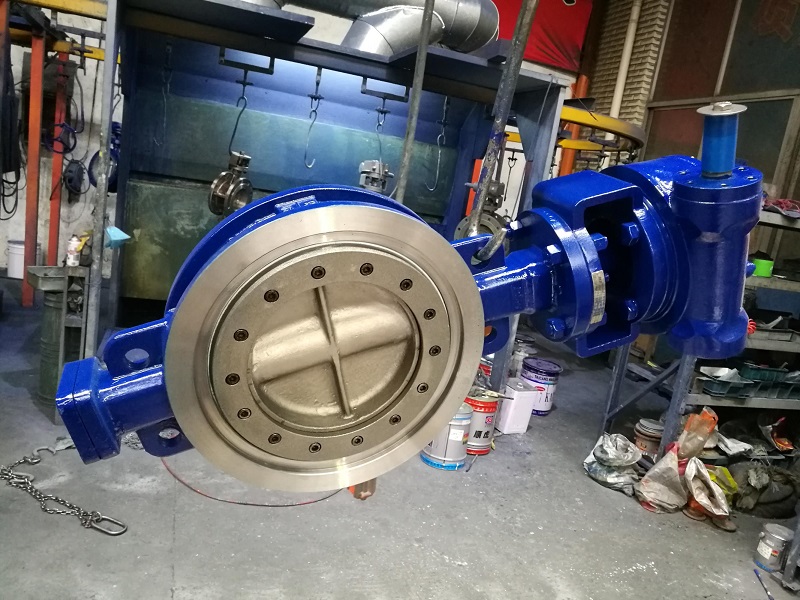

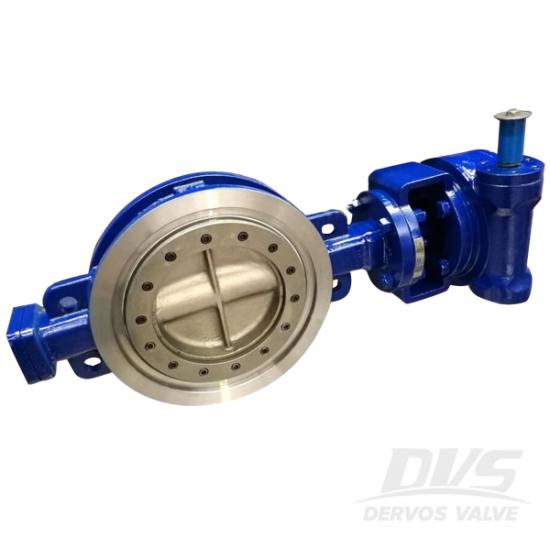

WCB 14inch 150LB Butterfly Valve Triple Eccentric Un-directional Seal Wafer Type Gear Handwheel Operation WCB Body WCB Disc F6a Stem PTFE Seal Ring 13Cr Overlay on Seat.
Design and Manufacture API 609. Face to Face Dimension API 609. Flange and Dimension ASME B16.5. Test and Inspection API 598.
Quick Detail
Type |
Butterfly Valve |
Size |
14” |
Pressure |
150LB |
Construction |
Triple Eccentric |
Connection |
Wafer |
Operation Mode |
Gearbox |
Body Material |
A216 WCB |
Trim Material |
Ball/Stem F6a, Seat PTFE |
Design & Manufacture |
API 609 |
Pressure & Temp Code |
ASME B16.34 |
End to End |
ASME B16.10 |
End Connection |
ASME B16.5 |
Inspection |
API 598 |
Temperature Range |
-29℃~+200℃ |
Medium |
Oil, Water, Gas |
