The installation requirements of fully welded ball valves in underground pipelines are crucial, as the unique characteristics of the underground environment pose higher demands on the performance and safety of the valves. Proper installation not only ensures the normal operation of the valves but also prolongs their service life and enhances the safety and reliability of the pipeline system. The following are the specific requirements for installing fully welded ball valves in underground pipelines: 1. Selecting the appropriate valve type When installing fully welded ball valves in underground pipelines, it is necessary to choose the appropriate valve type based on the operating conditions and fluid characteristics of the pipeline system. Fully welded ball valves, with advantages such as simple structure and reliable sealing, are suitable for high-pressure, high-temperature, and corrosive fluid applications in pipeline systems. 2. Underground burial depth consideration When installing fully welded ball valves, it is imperative to consider the depth of underground burial. Typically, the burial depth of underground pipelines should comply with relevant standards and specifications to ensure the valves are positioned securely while facilitating maintenance and operation. 3. Corrosion protection measures The dampness of the underground environment and the presence of chemicals in the soil can lead to corrosion and damage to valves. Therefore, when installing fully welded ball valves, it is necessary to implement appropriate corrosion protection measures. This includes selecting valves manufactured from corrosion-resistant materials and applying corrosion-resistant coatings to the valves to extend their service life. 4. Sealing performance requirements Fully welded ball valves in underground pipeline systems must possess excellent sealing performance to prevent fluid leakage and contamination of groundwater sources. During installation, it is imperative to ensure that the valve's sealing components are intact and properly installed to ensure that the sealing performance meets design requirements. 5. Consideration of groundwater level fluctuations Fluctuations in groundwater levels may affect the operational status and safety of fully welded ball valves. When selecting installation locations, it is essential to consider the range of groundwater level fluctuations and implement corresponding waterproofing measures to prevent groundwater from affecting the valves. 6. Regular inspection and maintenance The underground environment has a significant impact on fully welded ball valves; therefore, regular inspection and maintenance of the valves are essential. Inspection tasks include assessing the sealing performance of the valves, checking the condition of moving parts, evaluating the effectiveness of corrosion protection measures, and promptly addressing any issues to ensure the safe operation of the valves. When installing fully welded ball valves in unde...
We are delighted to announce that our company is on the brink of a new beginning - the acquisition of a new office space. This marks a fresh start for our company's development, and we eagerly anticipate crafting a brighter future in this new environment. The selected location enjoys excellent geographic positioning, convenient transportation, and a pleasant environment. The choice of our new office space has been meticulously considered, aiming to provide our employees with a spacious and comfortable working environment while offering ample support and motivation for the company's development. Starting from April 15, 2024, our office address will be changed to: [Unit 3104, Channel Pearl Plaza, No.99 Yilan Road, Siming District, 361008, Xiamen City, Fujian Province, China]。This relocation is not only a natural choice for the continued development of our company, but also a testament to our confidence and aspirations for the future. The utilization of the new premises will further enhance internal collaboration and communication within the company, ignite the creativity and vitality of our team, and elevate our efficiency and service standards. We aim to deliver even higher-quality products and services to our customers and partners as a result. Finally, we would like to express our heartfelt gratitude for your long-standing support and trust in our company. We believe that this new beginning will bring forth fresh hope and opportunities. We will continue to uphold the principle of 'Customer First, Innovative Development', striving for excellence and working towards our long-term corporate goals. Let us join hands and work together to create a brighter future.
A steam trap valve is a device designed on devices that require steam, which can automatically discharge condensate, air, and non condensable gases from the steam system and prevent steam from being discharged. Important Functions (1) Able to quickly remove condensate generated; (2) Prevent steam leakage; (3) Remove air and other non condensable gases. The necessity of using steam equipment to remove condensate and air: (1) Prevent water hammer: If there is condensate in the steam pipeline, it will be strongly impacted by the high-speed flowing steam on the pipe wall, valves, and steam equipment, causing damage or damage to the pipeline bends, valves, and steam equipment. (2) To prevent a decrease in the efficiency of steam using equipment: Steam using equipment (especially indirect heating devices) is aimed at effectively utilizing the latent heat of steam. Excessive condensate trapped in these devices comes into contact with the heating surface, reducing the heating area and uneven heating up and down, resulting in a significant decrease in equipment efficiency. (3) Prevent corrosion of steam inside equipment: Oxygen in water and air coming into contact with the equipment can cause chemical reactions, leading to rust corrosion. (4) Prevent damage to steam using equipment: Due to the different temperatures of steam and water, the condensed water inside the equipment generates temperature differences locally, causing temperature difference stress and equipment damage. Specific requirements for steam trap valves: (1) No steam leakage during the discharge of condensate; (2) It can eliminate all condensed water from any part of the steam system; (3) Capable of simultaneously discharging air and condensate; (4) Suitable for a wide range of pressures; (5) Easy to repair and maintain: simple structure with few moving parts; (6) High practicality: small size, light weight, long lifespan, low price, and no loss of emission capacity due to air and steam.
Payment:
30% T/T When Order, 70% T/T Before ShipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai ChinaLead Time:
35~60 days Ex Works After Order ConfirmationMaterial:
Forged Steel Ball Valve, Carbon Steel Ball Valve, A105NMethod of Operation:
Manual Ball Valve, Gear OperatedQuick Detail
|
Type |
Ball Valve |
|
Size |
10" |
|
Pressure |
ANSI 300 |
|
Construction |
Trunnion Type, One Piece Body, Full Bore, Fully Welded |
|
Connection |
Butt Weld (BW) |
|
Operation |
Gearbox |
|
Body Material |
Forged Steel A105 |
|
Design |
API 6D |
|
Pressure & Temp |
ASME B16.34 |
|
Face to Face |
ASME B16.10 |
|
End Connection |
ASME B16.25 |
|
Inspection |
API 598 |
|
Temperature Range |
-29℃~+125℃ |
|
Media |
W.O.G |
Related Knowledge

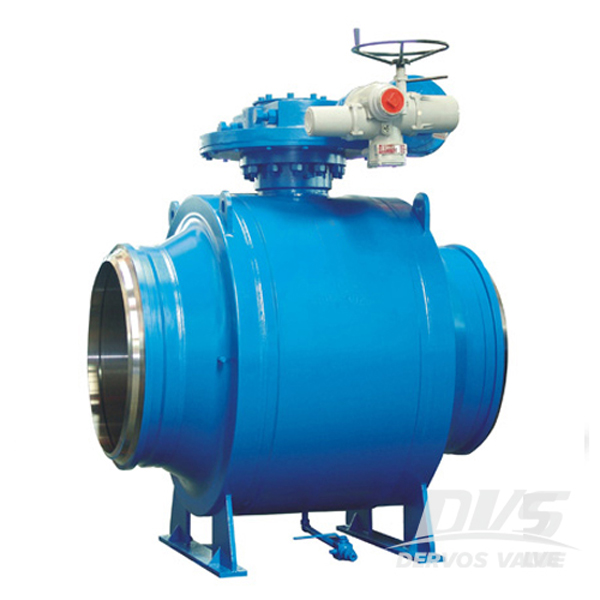

What is a fully welded ball valve? What is the benefit and advantage of a fully welded ball valve?
A fully welded ball valve is welded after forging without any bolted connection on the body. Compared with flanged ball valve, it features in maximum strength at minimum weight.
The design of the valve gives it advantage:
-Overall small size and light weight
-Fewer leak paths on the body
-High machining precision of ball part
-High resistance to external and internal pressure and strength
Our Service
Dervos customer service is one of our biggest competitive advantages. In Dervos, we provide-
1.Quotation within 24 hours or no later than 3 days
This will let you meet the quotation submission deadline and enhance your working efficiency
2.Weekly status report of your order
In this way, you will have a clear picture of your order. You do not need to waste time on pushing us for status update
3.An 18-month warranty period
A warranty certificate will issued after shipment and you will not have any concern after buying valves.
4.Solutions to complaints within 3 days
Quick and responsible actions to complaints will protect your reputation and reduce the financial loss as much as possible.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 20 inch metal seated ball valve is designed for high temperature application or application with solid particulate. The valve has welded body, RF flange connection, bare stem for actuators, belonging to trunnion mounted type. Quick Detail Type Ball Valve Size 20" Pressure ANSI 600 Construction Trunnion Type, One-Piece Body, Fully Welded, Metal to Metal Seat Connection Flanged Operation Bare Stem Body Material Forged Steel ASTM A105 Design Standard API 6D Pressure & Temp ASME B16.34 Face to Face Dimension ASME B16.10 End Connection ASME B16.5 Inspection API 598 Temperature Range -29℃~+200℃ Media Oil, Water, Gas Dimension CLASS 600 DN mm 50 65 80 100 150 200 250 300 350 400 450 500 NPS in 2 2.5 3 4 6 8 10 12 14 16 18 20 L (RF) mm 292 330 356 432 559 660 787 838 889 991 1092 1194 in 11.5 13 14 17 22 26 31 33 35 39 43 47 L1 (BW) mm 292 330 358 432 22 660 787 838 889 991 1092 1194 in 11.5 13 14 17 559 26 31 33 35 39 43 47 L2 (RTJ) mm 295 333 359 435 562 664 791 841 892 994 1095 1200 in 11.63 13.13 14.13 17.13 22.13 26.13 31.13 33.13 35 39.5 43.1 47.3 H mm 153 165 195 213 272 342 495 580 630 725 800 850 in 6.02 6.5 7.68 8.39 10.7 13.5 19.5 22.85 24.8 28.5 31.5 33.5 Do(W) mm 600 850 1250 1300 1500 *350 *350 *600 *600 *800 *800 *800 in 23.62 33.46 49.25 51.22 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5 RF(Kg) 38 56 66 122 217 350 660 820 830 1160 1420 1650 BW(Kg) 31 51 58 117 200 327 605 790 800 1030 1305 1505 *Worm Gear or Electric actuator operated Related Knowledge When to use metal seated ball valve? The seat of a metal seated ball valve is often stellite, stainless steel, or tungsten carbide instead of soft seat material like ptfe, peek, nylon, teflon, and devlon. These metal to metal seat ball valves are especially applicable for: -Media with high temperature -Media with solid particulate for high abrasion -Media with severe condition, like high erosion and corrosion -Media with high viscosity like heavy oil Our Main Product Range Dervos main products include ball valves, butterfly valves, check valves, gate valves, globe valves, and plug valves in different materials, sizes, standards and types as per clients’ requests.
16" 900LB ball valve is made according to API 6D standard. The valve body is made of A350 LF2. It has the structural characteristics of fully welded, fixed ball and full bore. Its connection mode is BW. And it has turbine operation mode.
China Flanged End Ball Valve Producer,Dervos Offers Flanged End Ball Valve, ASTM A350 LF6, Class 600, 1/2 Inch, Two Piece, Forging, API 608, BS 5351, ASME B16.34.
The forged steel lift check valve is designed with class 150 pressure and 1 inch nominal size according to standard API 602. We also call it as piston check valve. Quick Detail Type Check Valve Size 1'' DesignPressure 150LB Construction Lift Type, Piston Type Connection RF Flange Design & Manufacture API 602 End to End ASME B16.10 Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material ASTM A105N Trim Material Trim 5 Temp Range -29℃~+425℃ Media W.O.G. Dimension Checking Pressure Tesing Packing
4" 600LB ball valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of split type, fixed ball, full bore, fireproof, anti-static, anti-flying valve stem. Its connection mode is RF.
DN100 PN40 butterfly valve is made according to EN 593 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of three eccentric, bidirectional one to one pressure test. Its connection mode is EN1092-1 B. And it has turbine operation mode.
DN250 PN40 Y-type strainer is made according to EN13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of Y-type. It connection mode is RF.
2-1/2" 150LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of double eccentric. Its connection mode is lug. And it has lever operation mode.
1" 300LB gate valve is made according to API 602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of bolted cover and rigid wedge. Its connection mode is RF integral flange. And it has hand wheel operation mode.
China Welded Bonnet Gate Valve Producer Fabricates Reduced Bore Forged Steel Gate Valve, A105N, 1/2-4 Inch, 150-1500 LB, Welded Bonnet, Integral Flanged.
DN25 PN100 Forged Steel A105 NPT Connection Way 2 Pieces Construction Full Pore Lever Operation Floating Ball Fire Safety Body and Bonnet A105 Ball a182 F304 Seat Ring PTFE Stem A182 F304 Stem O Ring Viton Packing Graphite Gland Stainless Steel Design and Manufacture ASME B16.34 Face to Face Design Manufacture Standard Manufacture Standard Screw and Dimension ANSI B1.20.1 Inspection and Test API598 Fire Safety Design API 607 Quick Detail Type Ball Valve Size DN25 Pressure PN100 Construction 2 Pieces Connection NPT Operation Mode Lever Body Material A105 Cover A105 Design & Manufacture ASME B16.34 End to End ASME B16.10 End Connection ANSI B1.20.1 Inspection API 598 Temperature Range -29℃~+538℃ Medium Oil, Water, Gas
Designed with 800 LB sw end, the 2 inch globe valve features in plug disc, bolted bonnet, and y type structure. The handwheel operated globe valve is made of forged steel body and stainless steel trim. Quick Detail Type Globe Valve Size 2'' Pressure ANSI 800 Structure Y Type, Y Pattern, Bolted Bonnet ConnectionType SW Operation Handwheel Operated Design Code API 602 Face to Face ASME B16.10 Connection Standard ASME B16.11 Pressure & Temperature ASME B16.34 Test & Inspection Standard API 598 Body Material ASTM A105 ApplicableTemperature -29℃~+425℃ Application Water, Oil, Gas Related Knowledge What is the main reason to use Y-pattern globe valve? A Y type globe is designed with 45° between seat and stem. In other words, the flow will remain straight linear from inlet to outlet ports.Compared to staight pattern globe valve, the y pattern globe valve reduce the flow resistance and pressure drop. This kind of y pattern globe valve is well suited for high pressures and severe application. FAQ 1. How long have you been in business and how long have you producing valves? We have been in valve exporting industry for more than 10 years since foundation in 2008. Our business has expanded tremendously to five continents all around the world. 2. What are your main products and their advantages? Our main products include gate, globe, check, ball, butterfly, plug valves and strainers, available in different materials, sizes and pressure, which are widely used in various industries. 3. Does Xiamen Dervos Valves Industry Co., Ltd. make products for other companies? Yes, of course. We have a reference list with customer information like country, product type, order volume and some even with project names.
