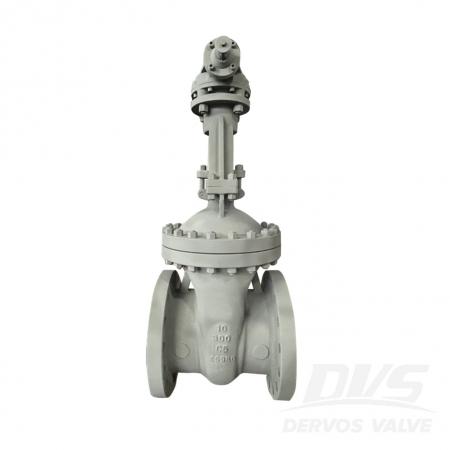

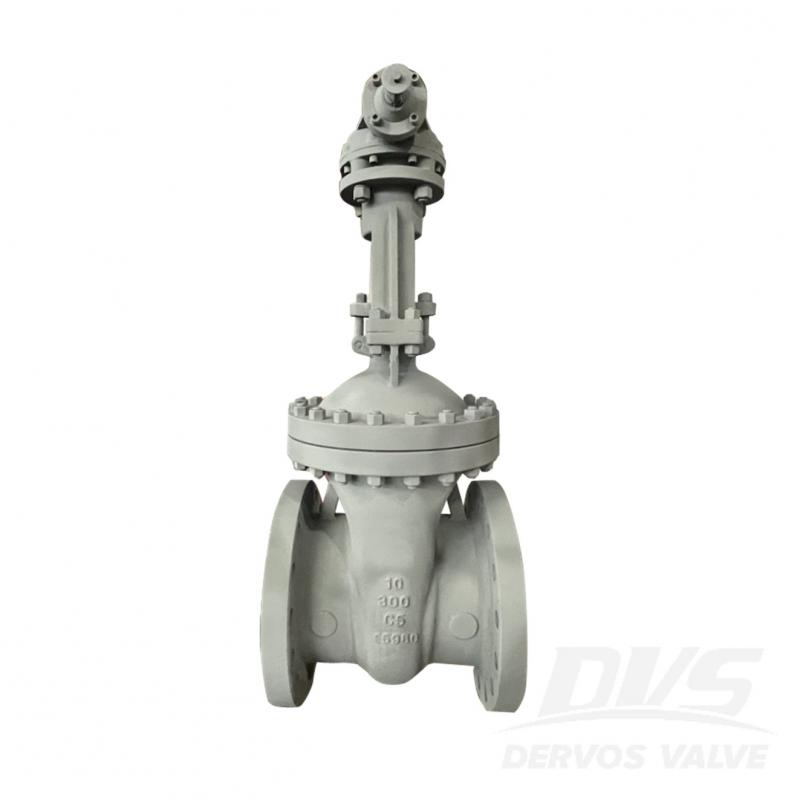

10" 300LB gate valve is made according to API 600 standard. The valve body is made of ASTM A217 C5. It has the structural characteristics of bolt cover, elastic gate, rising stem, OS&Y, full bore and body valve seat. Its connection mode is RF (125~250AARH). And it has bevel gear operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A217 C5Method of Operation:
Bevel GearProduct Description
|
Type |
Gate Valve |
|
Size |
10" |
|
Pressure |
300LB |
|
Connection |
RF (125~250AARH） |
|
Operation |
Bevel Gear |
|
Body Material |
ASTM A217 C5 |
|
Design Norm |
API 600 |
|
Face to Face Dimension |
ASME B16.10 |
|
Flange Dimension |
ASME B16.5 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 650°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Compact structure, reasonable design, smooth channel, and low flow resistance coefficient;
2. Long service life, widely used in pipelines of various systems in petroleum, chemical, hydraulic, and thermal power plants.

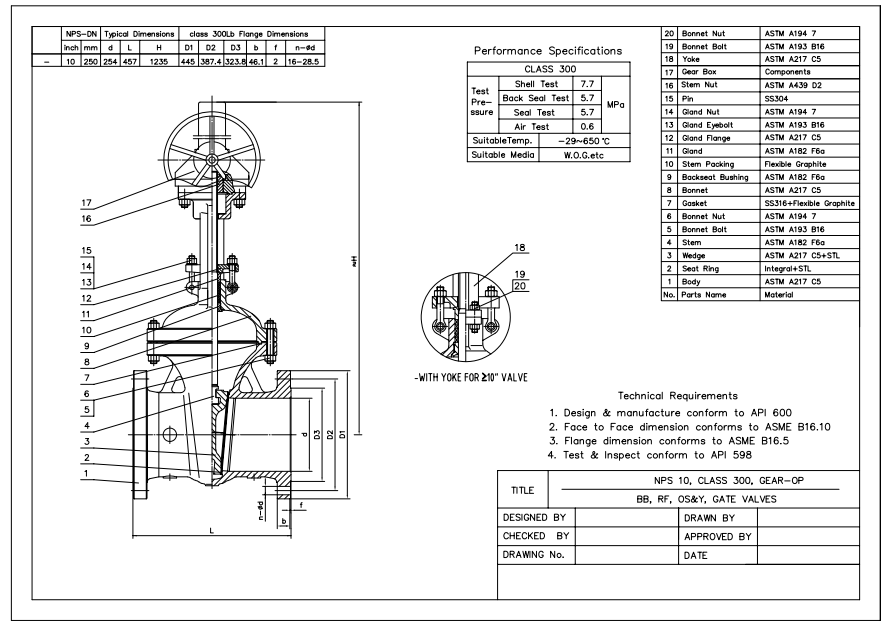

Technical Drawing
Dimension Checking

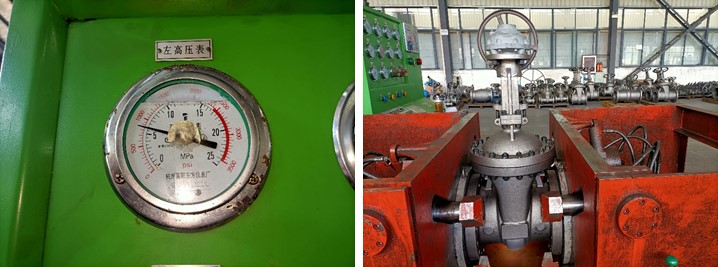

Pressure Testing
Painting

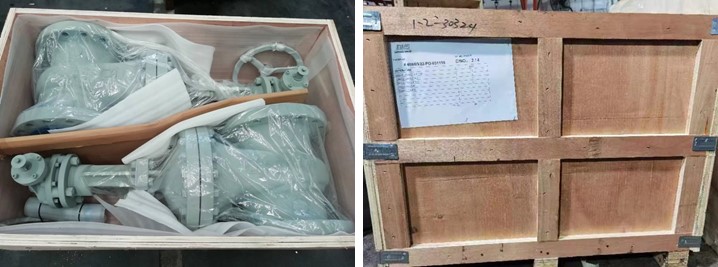

Packing

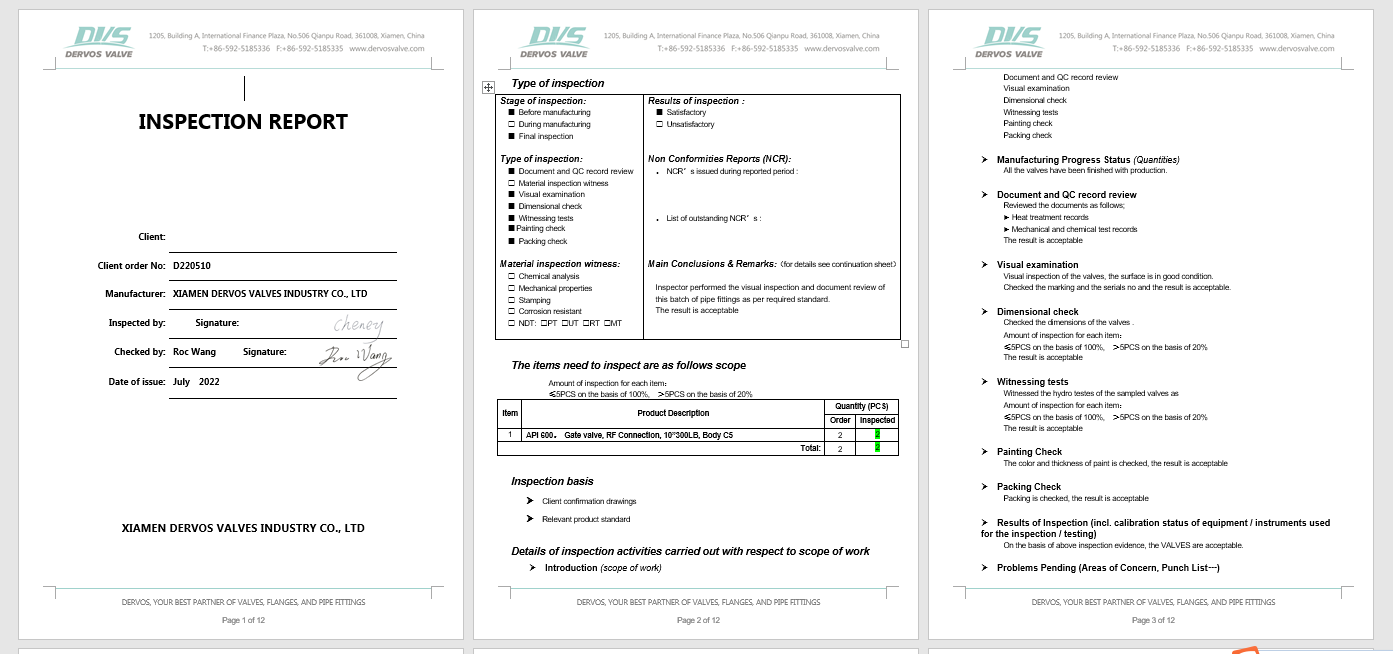

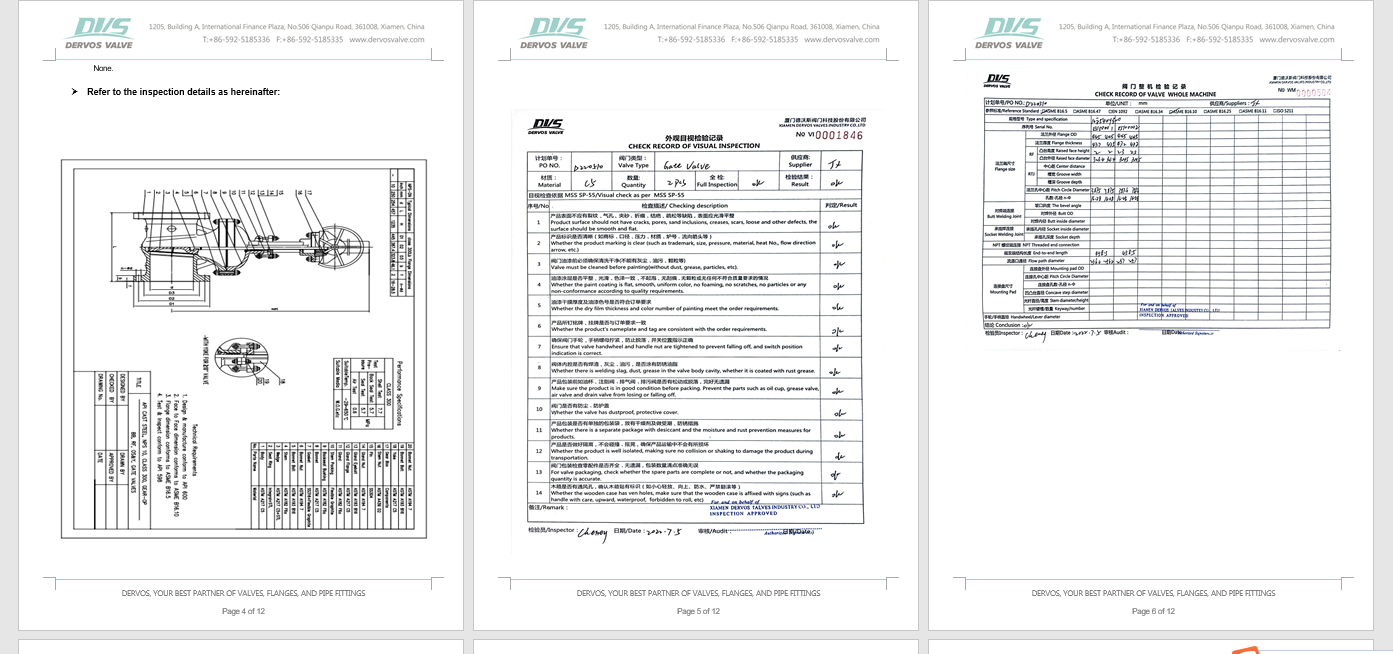

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
10’’ 300LB gate valve is made according to API 600 standard. The valve body is made of ASTM A217 C5 + STL. It has the structural characteristics of rising stem and bolt cover. The gate valve connected by flange has the operation mode of hand wheel.
6" 150LB gate valve is made according to API 600 standard. The valve body is made of ASTM A217 WC6. It has the structural characteristics of bolt cover, elastic gate, rising stem, OS&Y, full bore, body valve seat. Its connection mode is RF (125~250AARH）. And it has hand wheel operation mode.
2" 600LB Alloy Steel Gate Valve is made according to API 600 standard. The valve body is made of ASTM A217 WC6. It has the structural characteristics of Body cover bolt. Its connection mode is BW SCH 80. And it has Non lifting handwheel operation mode.
3" 300LB Alloy Steel Globe Valve is made according to API623 standard. The valve body is made of A217 WC6. It has the structural characteristics of through way type and structural length of 317.5mm. Its connection mode is RF. And it has hand wheel operation mode.
1/2" 6000PSI needle valve is made according to ASME B16.34 standard. The valve body is made of SS316. It has the structural characteristics of straight through. Its connection mode is FNPT. And it has lever operation mode.
The 6 Inch PSB globe valve has 1500LB design pressure, butt weld end, and gearbox. The full bore globe valve is made of carbon steel WCB body and trim 5 material. Quick Detail Type Globe Valve Size 6'' Design Pressure Class 1500 Construction Pressure Seal Bonnet, Plug Type Disc, Rising Stem Connection Type Butt Weld Operation Type Bevel Gearbox Opearted Design Code BS 1873 End to End ASME B16.10 Connection End ASME B16.25 Pressure & Temperature ASME B16.34 Test & Inspection Standard API 598 Body Material Cast Steel WCB Trim Material Trim NO. 5 Temperature Range -29℃~+425℃ Application WOG Origin China Material & Dimension NPS DN Class 2 2 1/2 3 4 6 8 50 65 80 100 150 200 L(RF) L1(BW) 900LB 368 419 381 457 610 737 1500LB 368 419 470 546 705 832 2500LB 451 508 578 673 917 1022 L2(RTJ) 900LB 371 422 384 460 613 740 1500LB 371 422 473 549 711 841 2500LB 454 514 584 683 927 1038 H(Opne) 900LB 550 605 678 798 930 1230 1500LB 550 605 866 956 1260 1263 2500LB 560 720 755 1230 1791 2086 W 900LB 350 350 400 450 458 610* 1500LB 400 400 450 560 610* 610* 2500LB 400 450 560 310* 610* 760 Weight (RF) 900LB 78 108 102 142 400 960 1500LB 85 110 135 230 660 1590 2500LB 140 168 247 620 1500 3200 Weight (BW) 900LB 66 91 87 128 355 868 1500LB 77 101 122 209 595 1440 2500LB 100 118 180 438 1148 2594 *Manual gear operator is recommended No Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM WCB WC6 WC9 C5 CF8 CF8M CF3 CF3M 1 Body A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 2 Seat Ring A105 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L 3 Disc A105 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L 4 Stem A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 5 Disc nut A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 6 Cap SS Spiral Wound graphite or SS Spiral Wound PTFE 7 Body Seal Flexible Graphite+316 8 Adjustment Gasket F6 F6 F316 9 Stem packing Flexible Graphite+316 10 Gland Nut A194 2H A194 8 11 Gland Eyebolt A193 B7 A193 B8 12 Pin Carbon steel or Stainless Steel 13 Cap Nut Carbon steel or Stainless Steel 14 Gland A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 15 Gland Flange A216 WCB A351 CF8 16 Yoke A216 WCB A351 CF8 17 Stem Nut A439 D2 or B148-952A 18 Screw Carbon steel 19 Handwheel Ductile Iron or carbon steel 20 Name Plate Stainless steel or Aluminum 21 Washer Carbon steel 22 Nut Carbon steel or Stainless Steel Related Knowledge Why do we use pressure seal bonnet? Pressure sealed bonnet are often used for valves with high design pressure. The higher the internal pressure gets, the greater the sealing force beween body and bonnet become. For bolted bonnet valves, the body and bonnet are joined by studs and nuts with a gasket between the flange faces to facilitate sealing. However,as system pressure increases,the potential for leakage through the body and bonnet increases. But for pressure sealed valve, “bonnet take-up bolts” to pull the bonnet up and seal against the pressure seal gasket. That is why when pressure increase, the performance of pressure seal gasket between body and bonnet becomes better.
DN150 PN63 check valve is made according to API 594 standard. The valve body is made of A216 WCB+STL. It has the structural characteristics of dual plate and wafer type. Its connection mode is wafer (suitable for EN1092-1 D).
The 1 inch self-lubricated or non-lubricated plug valve is made of A315 CF3 as per API 599. It enjoys outstanding sealing and anti-corrosion performance, owing to its PTFE seat. Besides that, the sleeve type valve is only suitable for the normal temperature up to 120 degree. Quick Detail Type Plug Valve Size 1'' Design Pressure 150LB Construction Self-Lubricated Type, Sleeved Type, Soft Seat Connection Flange Operation Lever Operation Design Code API 599 Face to Face ASME B16.10 End Connection ASME B16.5 Test & Inspection API 598 Body Material A351 CF3 Temperature Range -29℃~+120℃ Application Water, Oil, Gas Dimension Checking Hydro-static Testing
A three-way ball valve has three ports or openings that are connected to piping or tubing for gas or fluid flow (media) to pass through.
DN150 PN16 Ball Valve is made according to ISO 17292 standard. The fire resistance test meets the requirements of API 607 standard. The valve body is made of ASTM A105. Its operation mode is turbine operation. The trunnion mounted ball valve with a structural length of 400mm has the structural characteristics of full bore.
The DN150 PN10 unidirectional knife gate valve features a single piece, stainless steel body design provides tested performance in applications ranging from general purpose to severe media.
The 8 inch Class 2500 gate valve is designed with pressure seal bonnet, butt weld connection, and gearbox operation. The 8 inch gate valve has carbon steel WCB body and trim 5. Quick Detail Type Gate Valve Size 8'' Design Pressure ANSI 2500 Construction Pressure Seal Bonnet, Flexible Wedge, Metal to Metal Seat ConnectionType Butt Weld (SW) OperationType Gearbox Operation Body Material A217 WC6 TrimMaterial Trim 5 Design Code API 600 Face to Face Dimension ASME B16.10 End Connection ASME B16.25 Pressure & Temp ASME B16.34 Medium Water, Oil and Gas Origin China Dimension & Material NPS DN Class 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24 50 65 80 100 150 200 250 300 350 400 450 500 600 L(RF) 900LB 368 419 381 457 610 737 838 965 1029 1130 1500LB 368 419 470 546 705 832 991 1130 1257 1384 2500LB 451 508 578 673 917 1022 1270 L1(BW) 900LB 216 254 305 355 508 660 787 914 991 1092 1346 1473 1600 1500LB 216 254 305 406 559 711 864 991 1067 1194 1697 2500LB 279 330 368 457 610 762 914 1041 1118 1245 L2(RTJ) 900LB 371 422 384 460 613 740 841 968 1038 1140 1500LB 371 422 473 549 711 841 1000 1146 1276 1407 2500LB 454 514 584 683 927 1038 1292 H(Opne) 900LB 554 637 680 796 1084 1372 1494 1550 1960 2210 1500LB 554 637 767 875 1094 1372 1655 1834 2150 2260 2460 2721 2940 2500LB 610 654 753 850 1254 1374 1685 1894 2226 2382 2585 W 900LB 300 350 350 400 560 460* 610* 610* 610* 760* 1500LB 300 450 450 560 305* 460* 610* 610* 760* 760* 2500LB 500 500 600 600 460* 460* 610* Weight (RF) 900LB 50 84 92 154 341 622 950 1295 1720 2380 1500LB 60 91 128 182 394 795 1370 2120 2800 3870 2500LB 121 175 195 229 720 1295 2250 Weight (BW) 900LB 39 64 82 120 266 524 760 1090 1450 2018 1500LB 46 71 85 130 292 578 974 1615 2010 2815 3315 4150 5219 2500LB 88 135 144 158 500 892 1550 1978 2580 3780 5988 *Manual gear operator is recommended No. Part WCB WC6 WC9 C5 CF8 CF8M 1 Body A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 2 Seat A182 F6a A182 F22 A182 F22 A182 F5 A182 F304 A182 F316 3 Wedge A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 4 Stem A182 F6a SAEHNV3 A182 F304 A182 F316 5 Stuffing Box A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 6 Seal Ring ANSI 316L Flexible Graphite+316 7 Split Ring Steel F6 F6 F6 A182 F304 F316 8 Back Ring Steel Steel Steel Steel SS SS 9 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 10 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 11 Yoke A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 12 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 13 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 14 Packing Plate ANSI 410 ANSI 410 ANSI 410 ANSI 410 ANSI 304 ANSI 316 15 Packing Flexible Graphite(Braided and Ring) or PTFE 16 Split Pin Steel Steel Steel Steel Steel Steel 17 Eyebolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 18 Gland A182 F6 A182 F6 A182 F6 A182 F6 A182 F304 A182 F316 19 Gland Flange A105 A105 A105 A105 A182 F304 A182 F316 20 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 21 Stud A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 22 Stem Nut Ni-resist A439-D2 23 Gear Box Purchased 24 Protector Steel 25 Nameplate ANSI 304 26 Rivet ANSI 304
