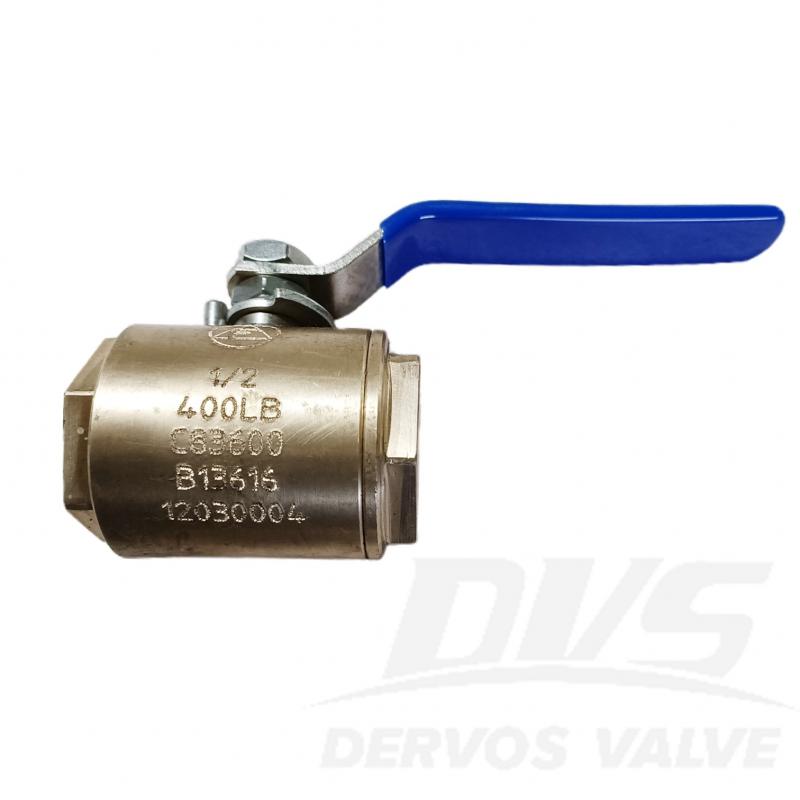

1/2” 400LB Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of B62 C83600. It has the structural characteristics of Two-Piece. Its connection mode is Lever OP..
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
B62 C83600
|
Type |
Floating Ball Valve |
|
Size |
1/2” |
|
Pressure |
400LB |
|
Connection |
Lever OP. |
|
Body Material |
B62 C83600 |
|
Design Norm |
ASME B16.34 |
|
End to End |
MANUFACTURER STANDARD |
|
End Connection |
NPT |
|

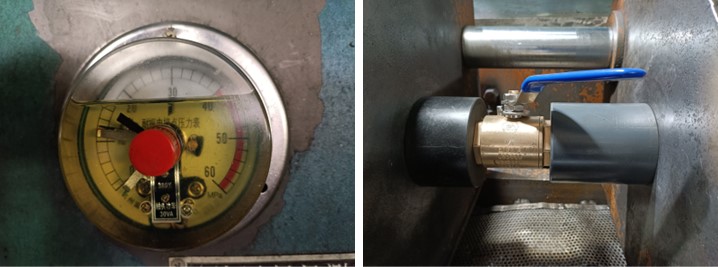

Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 150°C |
|
Applicable Medium |
Water, Oil and Gas |
1.Constructed from high-quality B62 C83600 bronze, ensuring superior corrosion resistance and durability.
2.Floating ball design with lever operation provides smooth control and reliable shut-off performance.
