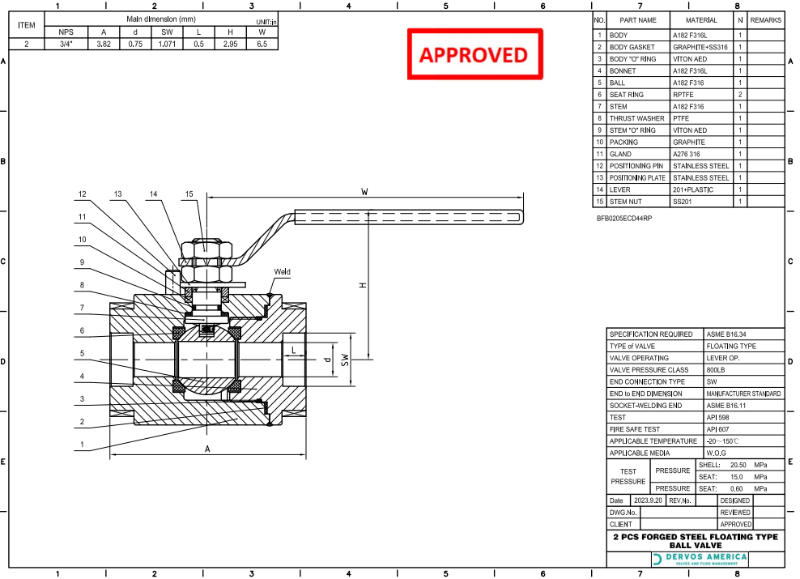

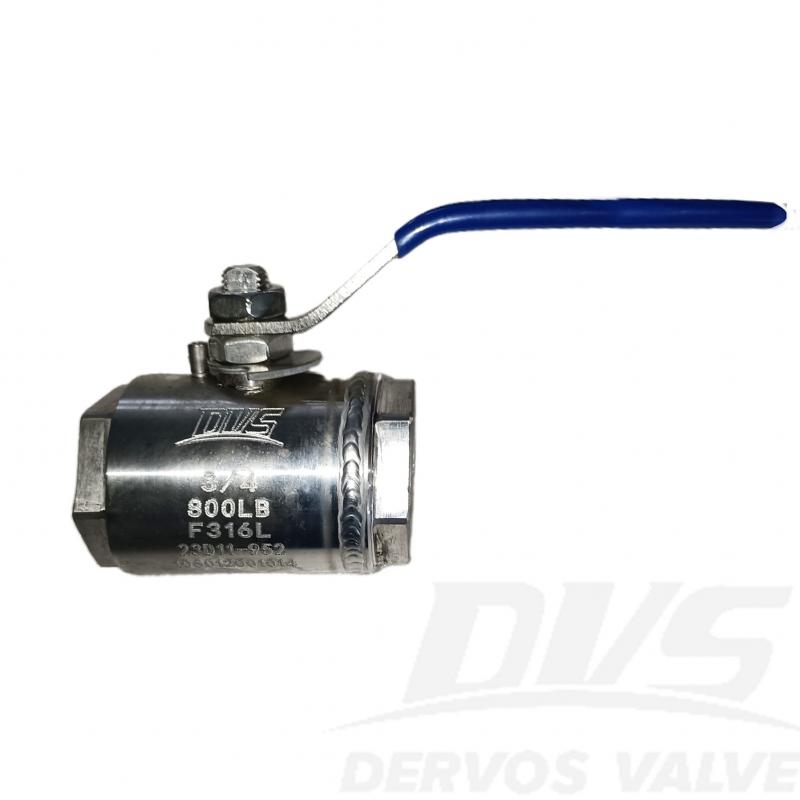

3/4” 800LB Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A182 F316L. It has the structural characteristics of Full Bore, Floating Ball, Middle Welded Body, Fire-safe and Anti-static, Blow-out Proof Stem. Its connection mode is Lever OP..
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A182 F316L
|
Type |
Floating Ball Valve |
|
Size |
3/4” |
|
Pressure |
800LB |
|
Connection |
Lever OP. |
|
Body Material |
A182 F316L |
|
Design Norm |
ASME B16.34 |
|
End to End |
MANUFACTURER STANDARD |
|
End Connection |
SW |
|

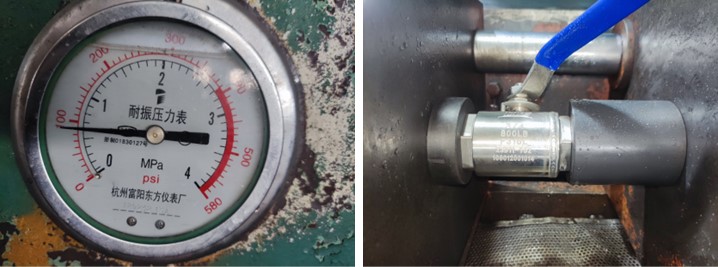

Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 150°C |
|
Applicable Medium |
Water, Oil and Gas |
1.Forged from A182 F316L stainless steel, offering excellent corrosion resistance and high-pressure performance.
2.Floating ball valve with lever operation meets ASME B16.34 standards for precise control and tight sealing.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
