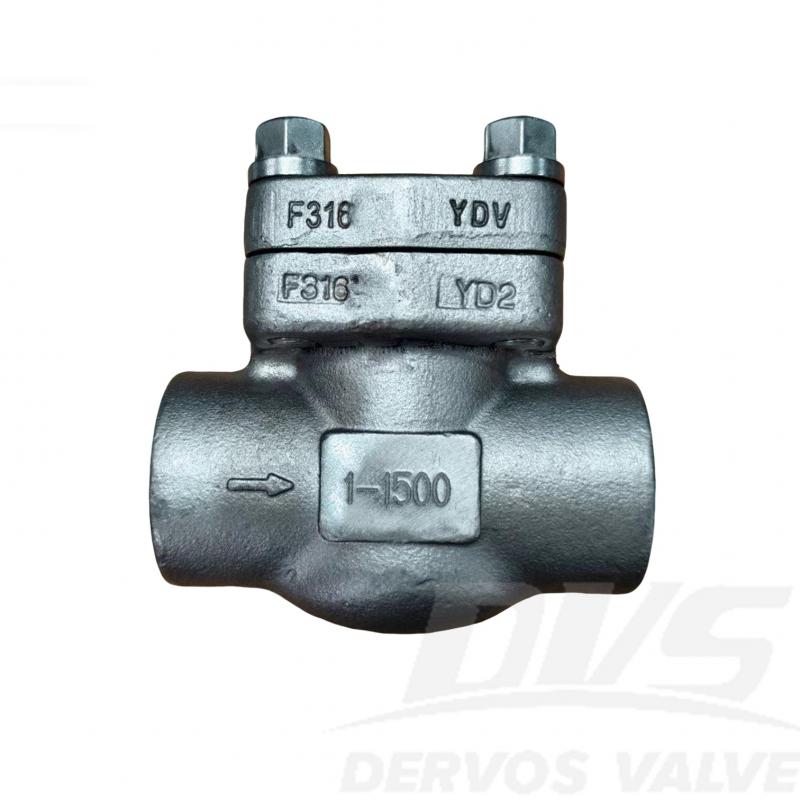

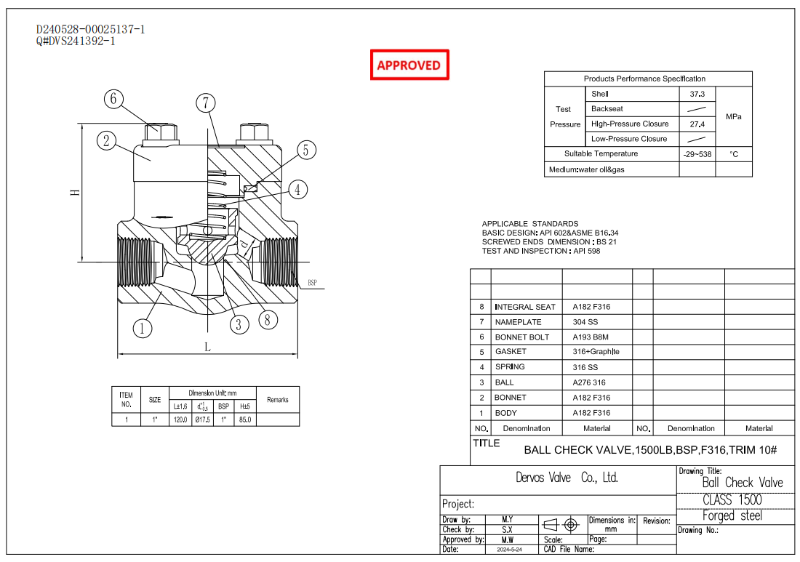

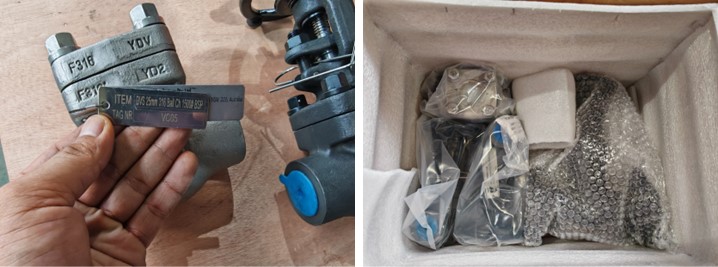

1” 1500LB Forged Steel Ball Check Valve is made according to API 602 ＆ ASME B16.34 standard. The valve body is made of A182 F316. It has the structural characteristics of Hemispherical Ball Check Valve. Its connection mode is BSP.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
chinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A182 F316Method of Operation:
A182 F316
|
Type |
Forged Steel Ball Check Valve |
|
Size |
1” |
|
Pressure |
1500LB |
|
Connection |
BSP |
|
Body Material |
A182 F316 |
|
Design Norm |
ASME B16.34 |
|
Basic Design |
API602&ASME B16.34 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 538°C |
|
Applicable Medium |
Water, Oil and Gas |
1.Made from F316 stainless steel, ensuring superior corrosion resistance and reliable performance under 1500LB pressure.
2.Forged ball check design with BSP ends and ASME B16.34 compliance provides secure backflow prevention and smooth operation.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
