DN800 PN40 Butterfly Type Non-Slam Check Valve CJ/T 282 EF
加载中...

DN800 PN40 Butterfly Type Non-Slam Check Valve CJ/T 282 EF

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    A351 CF8+STL
  • Method of Operation:

    no
Inquiry now
Product Detail

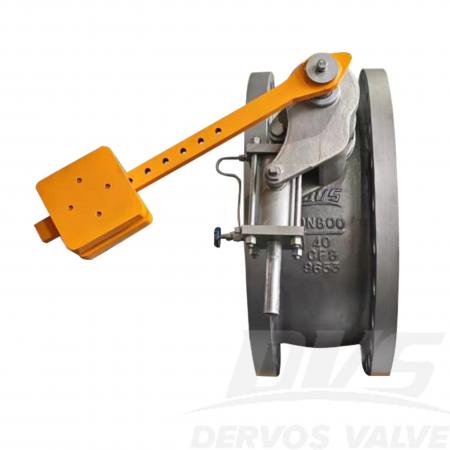

DN800 PN40 Butterfly Type Non-Slam Check Valve is made according to CJ/T 282 standard. The valve body is made of A351CF8+STL. It has the structural characteristics of Equipped with Hydraulic Cylinder and Counterweight. Its connection mode is EF.



Product Parameters



Type

Butterfly Type Non-Slam Check Valve

Size

DN800

Pressure

PN40

Connection

EF

Body Material

A351 CF8+STL

Design Norm

CJ/T 282

Flange Standard

GOST33259

Dimension Standard

GB/T12221

Test & Inspection Code

GOST9544 A

Temperature

-45 ~ 248°C

Applicable Medium

Water

Features

1.Butterfly-type non-slam design minimizes water hammer and ensures smooth, rapid closure in large-diameter pipelines.

2.Manufactured in accordance with CJ/T 282, rated PN40 for reliable performance in municipal and industrial systems.



Technical Drawing

Butterfly Type Non-Slam Check Valve

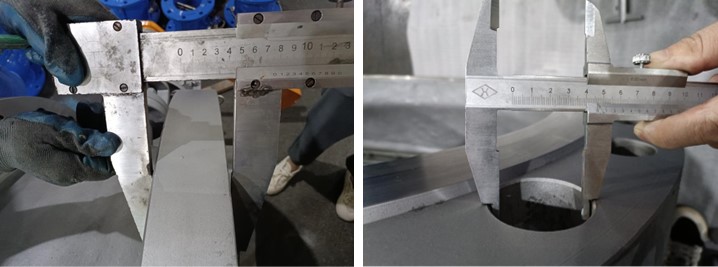

Dimension Checking

Butterfly Type Non-Slam Check Valve

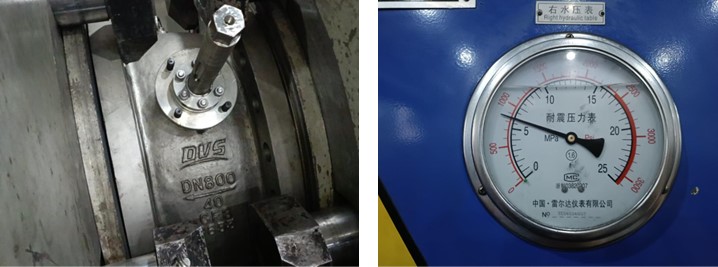

Pressure Testing

Butterfly Type Non-Slam Check Valve

Flange

Butterfly Type Non-Slam Check Valve

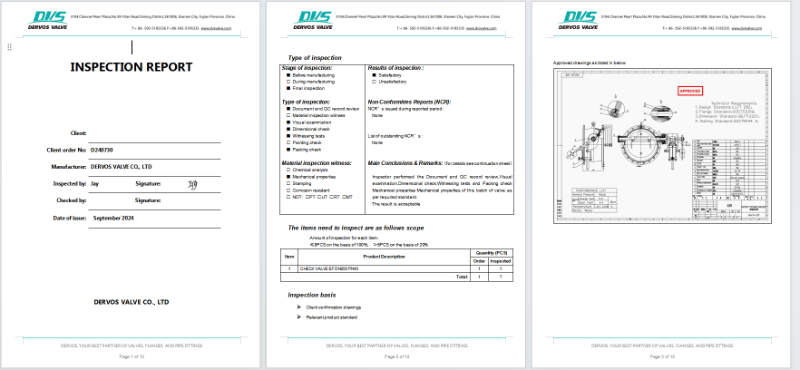

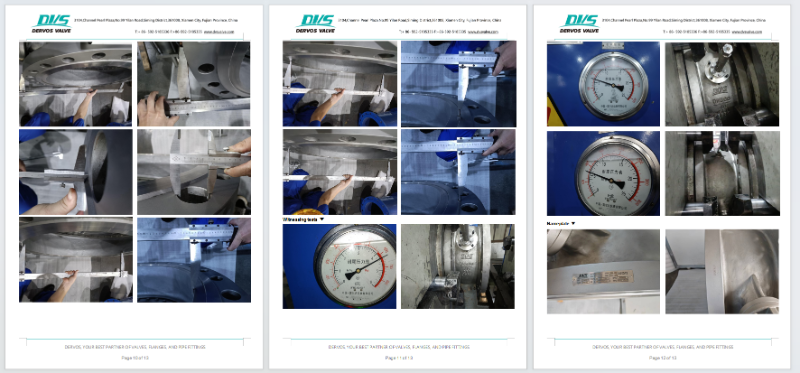

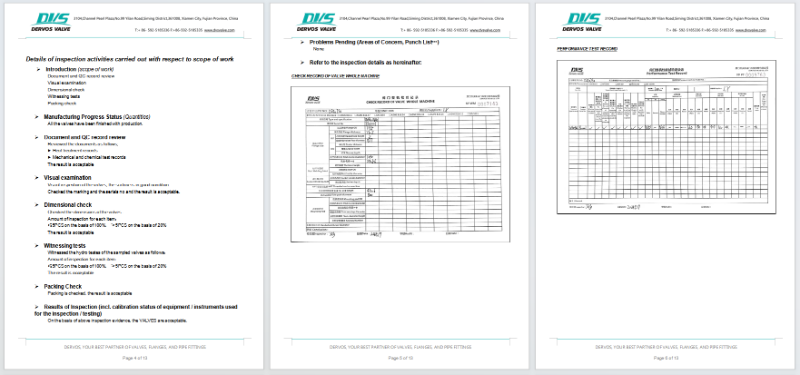

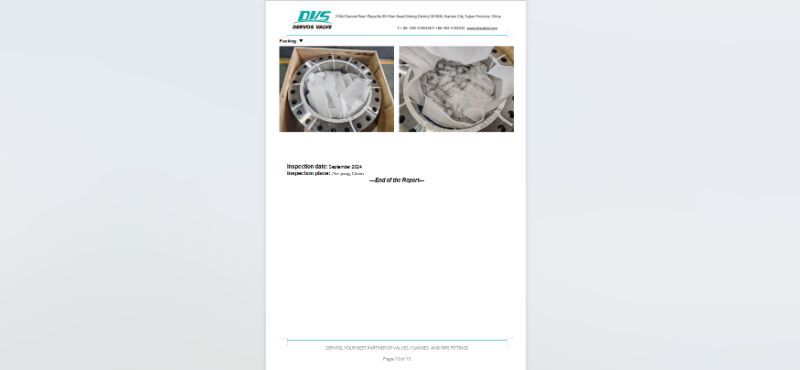

Inspection Report

Butterfly Type Non-Slam Check ValveButterfly Type Non-Slam Check ValveButterfly Type Non-Slam Check ValveButterfly Type Non-Slam Check Valve

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
2500LB High Pressure Non Return Valve
Pressure Seal Tilting Disc Check Valve 12 Inch 2500LB

The 12 inch high pressure check valve is designed with pressure seal bonnet, RTJ flange, tilting disc, made of carbon steel WCB body and hard face sealing. Quick Detail Type Check Valve Size 12'' DesignPressure 2500LB Construction Pressure Seal Bonnet, Tilting Disc Type Connection RTJ Flange Design & Manufacture ASME B16.34 End to End ASME B16.10 Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB Trim Material 13CR+STL Temp Range -29℃~+350℃ Media W.O.G. Product Range Body Material Range: WCB, WCC, WC1,CF8M, CF8, CF3, CF3M, LCB, LCC Size Range: 2”~60” (DN50~DN1500) End Connection Type: Flange End, Weld End Design Pressure Range: 150lbs~600lbs  Temp Range: -46℃~ +425℃ Related Knowledge What is a tilting disc check valve? The disc of a tilting disc check valve has a pivot point at the center of it. It is desinged to overcome weaknesses of general type swing check valve. Compared to swing type check valve, the tilting check valve could remain fully open and steady at lower flow rates. That is to say, the swing check valve needs a high velocity of fluid to keep disc open and a higher cracking pressure. For low pressure situation, the pressure drop of a tilting disc check valve is much lower than the swing type. But at a higher flow rate, the tilting check valve has higher pressure drop than swing type.

Check Valve
DN250 PN10 Tilting Disc Check Valve RF WCB API598

DN250 PN10 check valve body is made of A216 WCB+STL. It has the structural characteristics of heavy hammer on both sides and flange type. Its connection mode is RF.

Tilting Disc Check Valve
10" 150LB Tilting Disc Check Valve WCB Wafer API6D

10" 150LB tilting disc check valve is made according to API 6D standard. The valve body is made of A216 WCB+SS316. It has the structural characteristics of swash plate type. Its connection mode is wafer.

Tilting Disc Check Valve
RF Connection, 3" 150LB Tilting Disc Check Valve, Body CF8M, API6D

3" 150LB tilting disc check valve is made according to API 6D & BS1868 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of tilting disc type, bolt cover. Its connection mode is RF.

Double-Flanged Butterfly Check Valve DN450 PN10 DI ASME B16.34
Double-Flanged Butterfly Check Valve DN450 PN10 DI ASME B16.34

DN450 PN10 Double-Flanged Butterfly Check Valve is made according to MFR’S standard. The valve body is made of DI. It has the structural characteristics of Double-Flanged Butterfly Check Valve with Counterweight and Hydraulic Cylinder, Face-to-Face Dimension 330 mm, Medium Sodium Hypochlorite Solution, Working Pressure 3 bar. Its connection mode is Double Flange.   Product Parameters   Type Double-Flanged Butterfly Check Valve Size DN450 Pressure PN10 Connection Double Flange Body Material DI+VITION Design Norm MFR'S Face to Face DN3202-F4 End connection DIN 2501 Test & Inspection Code ISO 5208 Temperature -10 ~ 200°C Applicable Medium Water, Oil and Gas   Features 1.The DN450 PN10 butterfly check valve features double-flanged ends for bolted installation in the pipeline. 2.The valve features a ductile iron body and is specified to ASME B16.34.   Dimension Checking Pressure Testing Painting
