Forged Steel Ball Valve
加载中...

Forged Trunnion Mounted Ball Valve DN50 PN160 A105 Lever

  • Payment:

    30% T/T When Order, 70% T/T Before Shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    Forged Steel A105N
  • Method of Operation:

    Lever
Inquiry now
Product Detail

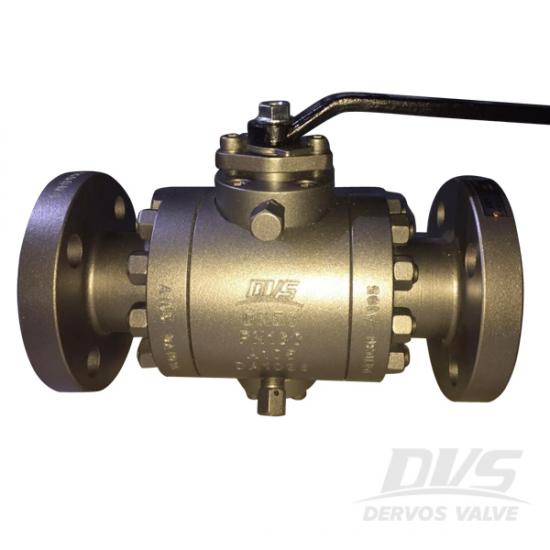

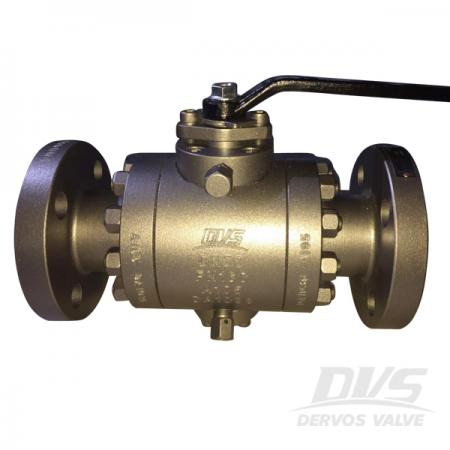

The forged steel ball valve is made of A105N body and 17-4PH trim with RTJ flange end and lever operation. This trunnion mounted ball valve owns features of reliable sealing performance and easy operation.


Quick Detail

Type

Ball Valve

Size

DN50

Pressure

PN160

Construction

Three-Piece Body, Full Bore, Trunnion Mounted Ball

Connection

RTJ

Operation Mode

Lever

Body Material

A105N

Trim Material

F304+ENP Ball, 17-4PH Stem, PEEK Seat

Design & Manufacture

API 6D

Pressure & Temp Code

ASME B16.34

End to End

ASME B16.10

End Connection

ASME B16.5

Inspection

API 6D, API 598

Temperature Range

-29℃~+200℃

Medium

Oil, Water, Gas

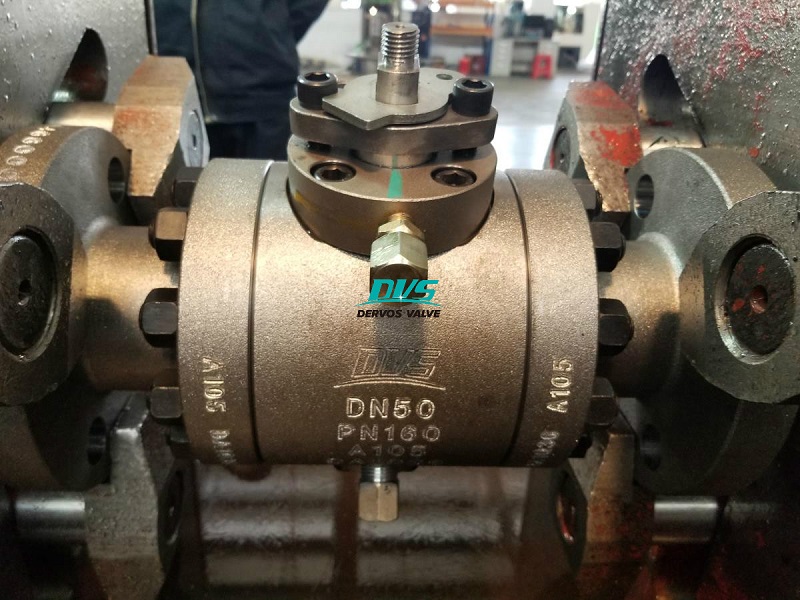

Pressure Testing

Trunnion Ball Valve

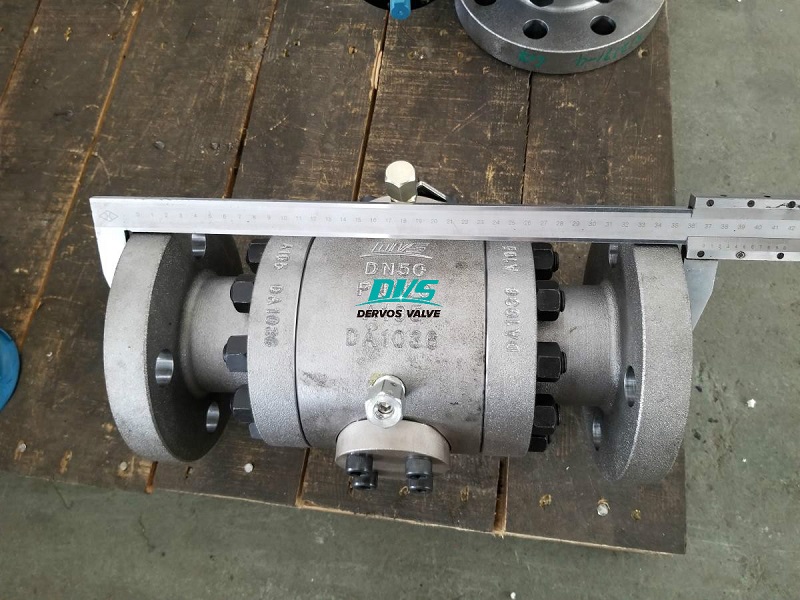

Dimension Checking

High Pressure Ball Valve

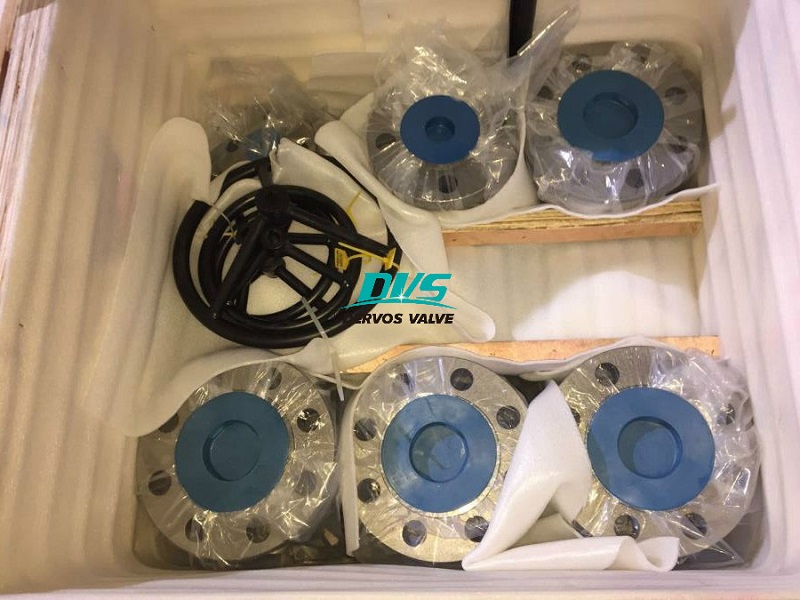

Packing

Trunnion Flanged Ball Valve
