The refinery of MOL, located in Hungary, requires regular ball valve and check valve replacements to maintain optimal performance. As a trusted check and ball valve supplier of MOL, DERVOS continues to provide ball valves for their operations.
In this project, DERVOS supplied a batch of high-performance ball valves and check valves for fluid control in oil and gas applications. They required various types and specifications of ball and check to meet the operational and sealing requirements of different pipeline systems.
Trunnion Mounted Ball Valves (112 units)
· Size: DN80-DN400
· Pressure: PN16-PN63
· Features: Full flow ball valve design, DBB double block and bleed structure, PMSS seal (primary metal + secondary soft seal), anti-blowout stem, IP68 waterproof turbine operation.
Floating Ball Valves (71 units)
· Size: DN20-DN25
· Pressure: PN25-PN63
· Features: Floating ball design, handle operation, suitable for small and medium-sized pipelines.
Swing Check Valve (9 units)
· Size: DN50-DN300
· Pressure: PN25-PN63
· Features: Swing type, simple structure and low flow resistance, suitable for large flow and low-velocity conditions.
In this project, 4 units fixed ball valves were customized with 2-meter extended valve stems and turbines oriented toward the operating platform.
This design ensures operators can safely and efficiently operate and maintain the valves from a distance, fully addressing the site’s needs.
The custom solution showcases DERVOS’s flexibility in meeting customer requirements and engineering expertise.
The end user, MOL, highly recognized the quality and performance of the valves, noting the excellent painting for its durability. They praised DERVOS products as reliable, safe, and fully meeting the project’s requirements.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
In 2017, DERVOS contributed to an innovative environmental initiative led by ECOFUEL, an emerging canadian player in clean technology. This groundbreaking project aimed to produce sustainable diesel from solid waste, setting a precedent in green energy solutions. DERVOS is proud to have provided 136 sets of premium valves to support this pioneering effort.

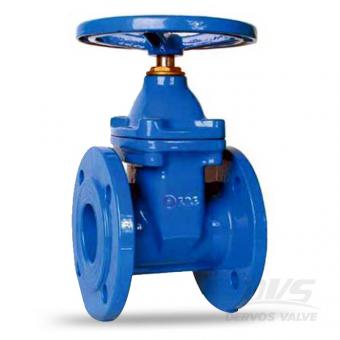

The DN80 PN16 cast iron gate valve has face to face dimension as per DIN3202 F4 or DIN3202 F5. This GG25 gate valve is designed with resilient seat, non rising stem, bb, RF flange, suitable for water treatment application. Quick Detail Type Gate Valve Nominal Diameter DN 80 Nominal Pressure PN 16 ConstructionType Non-rising stem, Bolted Bonnet, Resilient Seat ConnectionType Flanged OperationType Handwheel Operation Body Material Cast Iron GG25 TrimMaterial Cast Iron Wedge, SS420 Stem, EPDM Seat Design Code DIN 3352 End to End Code DIN 3202 Flange Dimesion DIN 2501 Medium Water Origin China Design Feature 1.Resilient seat for good sealing performance 2.Low flow resistance and small pressure drop 3.Non-rising stem for installation space is limited 4.No limitation for flow direction of medium 5.Epoxy painting available for internal and external part of the valve for anti corrosive function Company Brief Introduction Specializing in valve industry over 10 years, Dervos becomes the leading vendor of gate, globe, check, ball, butterfly, plug valves and strainers. We serve oil and gas user such as LUKOIL, MOL, YPF with local partners. Dervos show its advantages in: 1. Our partnerships with tens of stable suppliers allow us to provide customers with a wide range of high-quality products at a competitive price. 2. Each order is under strict quality control with inspection reports before delivery. 3. We value delivery time as much as our customers do. With the powerful purchasing system, we follow each order closely to secure on-time delivery. 4. One-stop solutions will be offered in a timely manner
The 6 inch sleeved plug valve features in non lubricated design and soft seat. The full port plug valve is made of carbon steel body and PTFE seat as per API 6D, with Class 150 flange connection. Quick Detail Type Plug Valve Size 6'' Design Pressure 150LB Construction Self-Lubricated Type, Sleeved Type, Soft Seat Connection Type RF Flange Operation Gearbox Operation Design Code API 599 Face to Face ASME B16.10 End Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB Temperature Range -29℃~+425℃ Application Water, Oil, Gas Material & Dimension No Part Name Carbon steel to ASTM Stainless steel to ASTM WCB LCB CF8 CF8M CF3 CF3M 1 Body A216 WCB A350 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M 2 Bonnet A216 WCB A350 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M 3 Plug A105 A182 F304 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 4 Stem A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 5 Seat Ring PTFE 6 Gasket PTFE or Stainless Steel and Graphite 7 Stem Seat PTFE PTFE PTFE PTFE PTFE PTFE 8 Small spring 17-17PH 9 Small ball A182 F304 or A182 F316 10 Gland A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 11 Gland Flange A216 WCB A350 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M 12 Stem packing PTFE or Graphite 13 Bonnet bolt A193 B7 or A320 L7 or A320 B8 or A193 B8M 14 Bonnet nut A194 2H or A194 4 or A194 8 Class 150 DN mm 15 20 25 40 50 65 80 100 150 200 250 300 NPS in 1/2 3/4 1 1 1/2 2 2 1/2 3 4 6 8 10 12 L(RF) mm 108 117 127 165 178 191 203 229 394 457 533 610 in 4.25 4.6 5 6.5 7 7.5 8 9 15.5 18 21 24 L1(BW) mm 140 152 165 190 216 241 283 305 457 521 559 635 in 5.5 6 6.5 7.48 8.5 9.5 11.13 12 18 20.5 22 25 L2(RTJ) mm 119 129.7 139.7 178 191 203 216 241 406 470 546 622 in 4.69 5.11 5.5 6.9 7.5 8 8.5 905 16 18.5 21.5 24.5 H mm 59 63 75 92 153 165 195 213 272 342 495 580 in 2.3 2.5 2.95 3.74 6.02 6.5 7.68 8.39 10.7 13.5 19.5 22.85 D(W) mm 130 130 160 230 400 400 600 850 1100 1500 350* 350* in 5.1 5.1 6.3 9 15.74 15.74 23.62 33.46 43.3 59 13.8 13.8 Weight (Kg) RF 2.3 3 4.5 7 15 20 25 40 97 160 240 390 BW 2.0 2.5 3.8 5.8 12 17 21 36 92.8 154 227 365
DN20 800LB PN130 Forged Steel A105 SW Connection Way BB OS&Y Handwheel Operation Gate Valve Body and Bonnet A105 API600 Trim 8 Seat 410+STL Wedge 420 Stem 410 Gasket 304+Graphite Design and Manufacture API602 Face to Face ANSI B16.11 Welded end Dimensions API 602 Test and Inspection API 508. Quick Detail Type Gate Valve Size DN20 Pressure 800LB Construction BB,OS&Y Connection SW Operation Mode Handwheel Body Material A105 Cover A105 Design & Manufacture API 602 End Connection API 602 Inspection API 598 Temperature Range -29℃~+425℃ Medium Oil, Water, Gas

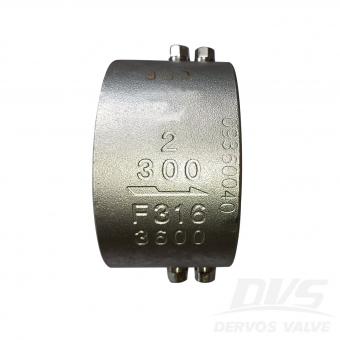

2" 300LB dual plate wafer check valve is made according to API 594 standard. The valve body is made of A182 F316. It has the structural characteristics of double disc. Its connection mode is RF.
DN125*DN80 PN25 ball valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of fixed ball and insulation jacket. Its connection mode is EN1092-1 B. And it has gear operation mode.
API 6D ball valve is designed with an extended stem for special use, like underground ball valve or low temperature application. The length of the extended stem can be customized as per client's request. Quick Detail Type Ball Valve Size 2 Inch Pressure Class 600 Construction Split Body, Side Entry, Floating Type, Firesafe Design, Antistatic System, Anti-Blowout Stem, Extended Bonnet Connection RF Flange Operation Mode Lever Body Material A105N Trim Material SS304 Ball and Stem, RPTFE Seat Design & Manufacture API 6D Pressure & Temp Code ASME B16.34 End to End ASME B16.10 End Connection ASME B16.5 Inspection API 6D, API 598 Temperature Range -29℃~+200℃ Medium Oil, Water, Gas QC Process in Dervos Casting inspection： We can find out the raw material’s problem, such as shoddy casting, unqualified wall thickness, chemical composition and so on, which ensure that you will not be cheated. Machining Inspection: -Ensure machining accuracy -Find out machining mistake as early as possible, to win more time for repairing, remaking Final Inspection: -Final inspection activities include document and QC record review, visual examination, dimension check, pressure test, painting and packing check -Save time and cost: you don’t need to come and inspect in person and all the documents could be provided as proof. Inspection report will be provided free of charge including: -EN 10204 3.1 Mill Test Certificate -Inspection Report, showing the whole inspection process

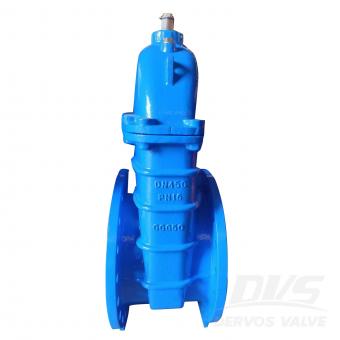

DN450 PN16 ductile iron gate valve is made according to DIN standard. The valve body is made of GGG50. It has the structural characteristics of F4 drinking water soft valve, and structural length of 330mm. Its connection mode is RF. And it has hand wheel operation mode.
4" 600LB ball valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of split type, fixed ball, full bore, fireproof, anti-static, anti-flying valve stem. Its connection mode is RF.

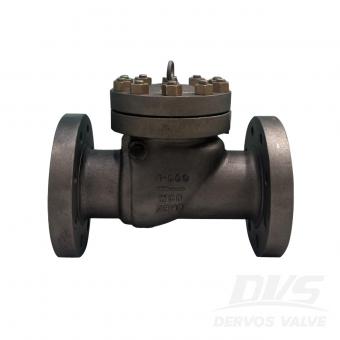

4" 600LB check valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of swing type, external pin. Its connection mode is RF.

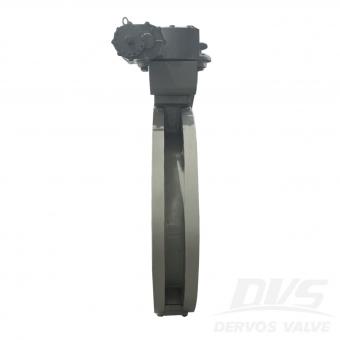

DN800 PN25 double eccentric butterfly valve is made according to EN593 standard. The valve body is made of ASTM A216 WCB + Internal Epoxy Coating. It has the structural characteristics of double eccentricity, unidirectional and structural length of 200mm. Its connection mode is double flange RF EN1092-1.

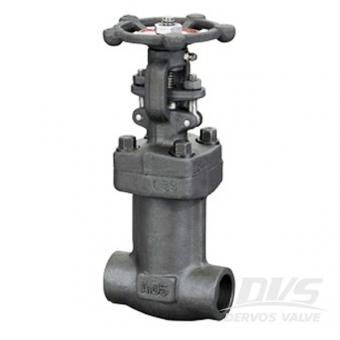

The 1.5 inch 800LB bellow seal globe valve is designed with outside screw and yoke, handwheel operation, sw end. The reduced port globe valve is has forged steel A105N body. Design Feature 1.Outside screw and yoke 2.Rising stem 3.Bolted bonnet design 4.Bellow seal packing for reliable stem sealing 5.Reduced bore design 6.Handwheel Operated Quick Detail Type Globe Valve Size 1.5'' Design Pressure Class 800 Structure BB, OS&Y, Reduced Port, Bellow Seal Packing Connection Type Socket Weld Operation Handwheel Design Code API 602 End to End ASME B16.10 Connection End ASME B16.11 Pressure & Temperature ASME B16.34 Test & Inspection Standard API 598 Body Material Forged Steel ASTM A105 Trim Material Trim 8 Applicable Temperature -29℃~+425℃ Application W.O.G Origin China Related Knowledge What is a bellw seal valve? For bellow seal globe valves, the lower end bellows is welded on the valve stem to prevent the process fluid from eroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. The double seal design ensure that if bellow seal pakcing fails, the stem packing will also function. The bellow seal globe valves are applicable for media like steam, flammable, explosive, heat transfer oil, high purity, and toxic media etc. Special Tests Besides general tests we will do (hydraulic and air test), we could also do tensile strength test, metallographic test, fugitive emission test, and NDE test (UT,RT,PT,MT) upon customers’ specific requests.
