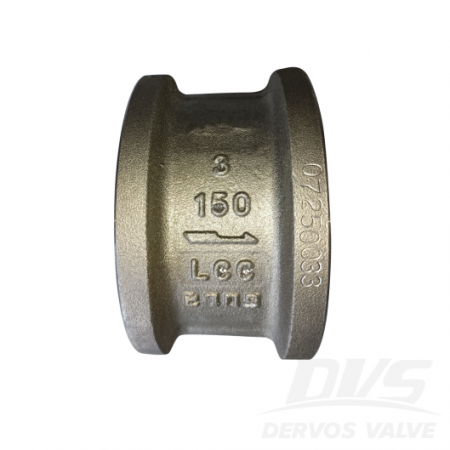

3" 150LB wafer check valve is made according to API 594 standard. The valve body is made of A352 LCC+316. It has the structural characteristics of double disc and wafer type. Its connection mode is RF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A352 LCC+316Product Description
Type |
Wafer Check Valve |
Size |
3" |
Pressure |
150LB |
Connection |
RF |
Body Material |
A352 LCC+316 |
Design Norm |
API594 |
Pressure- temperature |
ANSI B16.34 |
Flange Ends |
ANSI B16.5 |
Face to face Dimension |
API594 |
Test & Inspection Code |
API 598 |
Temperature |
-46 ~ 300°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Short structural length, small volume, light weight, quick valve closure, low water hammer pressure.
2. Both horizontal and vertical pipelines can be used, making installation convenient; Smooth flow channel with low fluid resistance.

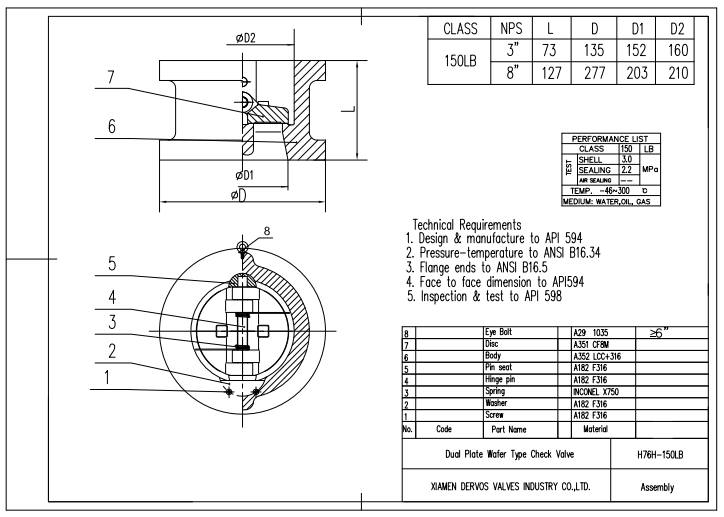

Technical Drawing

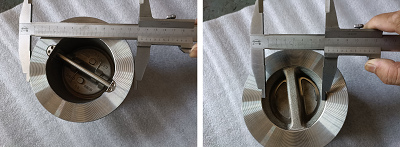

Dimension Checking

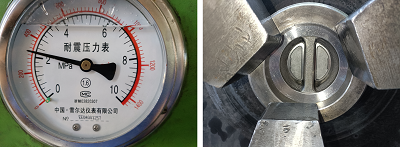

Pressure Testing

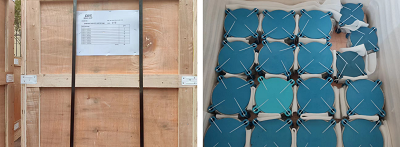

Packing

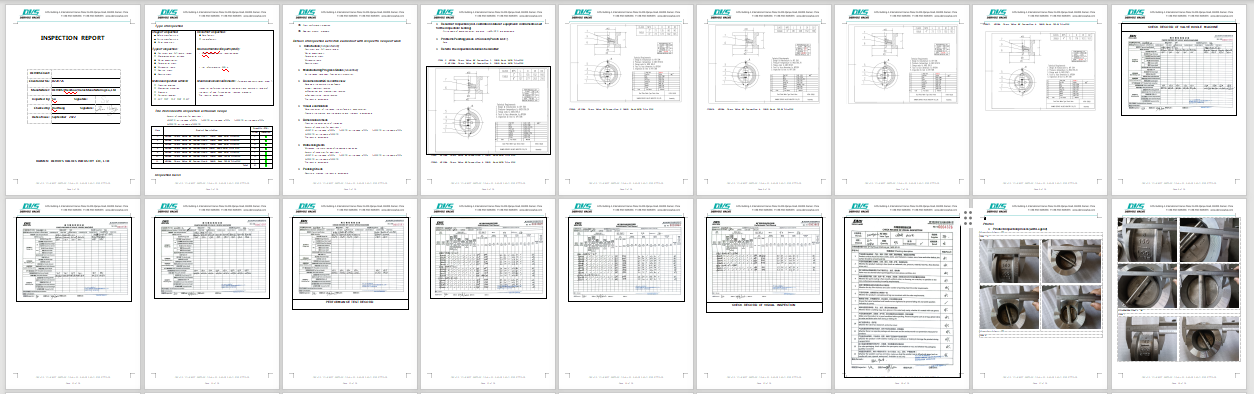

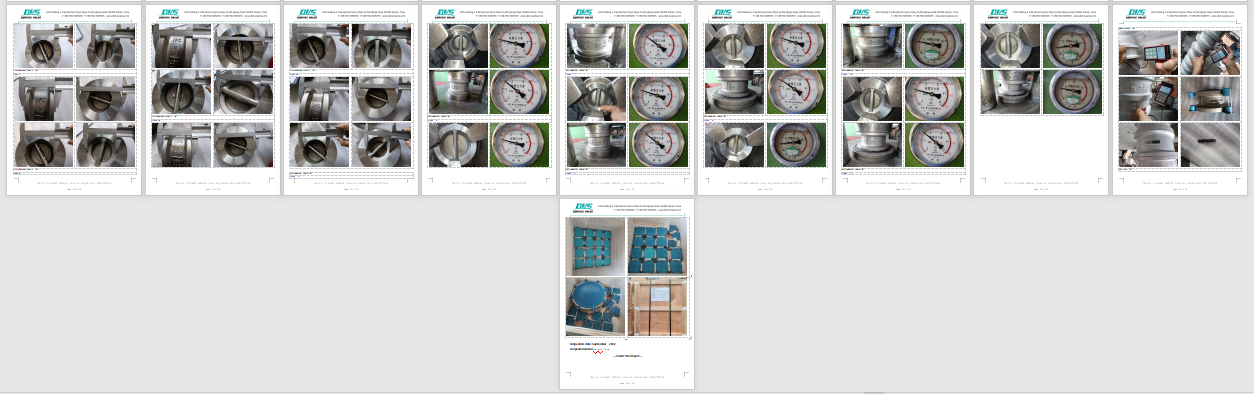

Inspection report
