CF8M API623 2 600LB Stainless Steel Globe Valve RF Handwheel
加载中...

CF8M API623 2" 600LB Stainless Steel Globe Valve RF Handwheel

2" 600LB globe valve is made according to API 623 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of low in and high out and welded valve seat. Its connection mode is RF. And it has hand wheel operation mode.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    ASTM A351 CF8M
  • Method of Operation:

    Hand Wheel
Inquiry now
Product Detail

Product Description

Type

Globe Valve

Size

2"

Pressure

600LB

Connection

RF

Operation

Hand Wheel

Body Material

ASTM A351 CF8M

Design Norm

API 623

Face to Face Dimension

ASME B16.10

Flange Dimension

ASME B16.5

Test & Inspection Code

API 598

Temperature

-29 ~ 425°C

Applicable Medium

Water, Oil and Gas

Features

1. It has been widely used due to its high stability and good sealing performance;

2. Light weight, small size, can be made into large caliber, simple structure, and convenient maintenance.

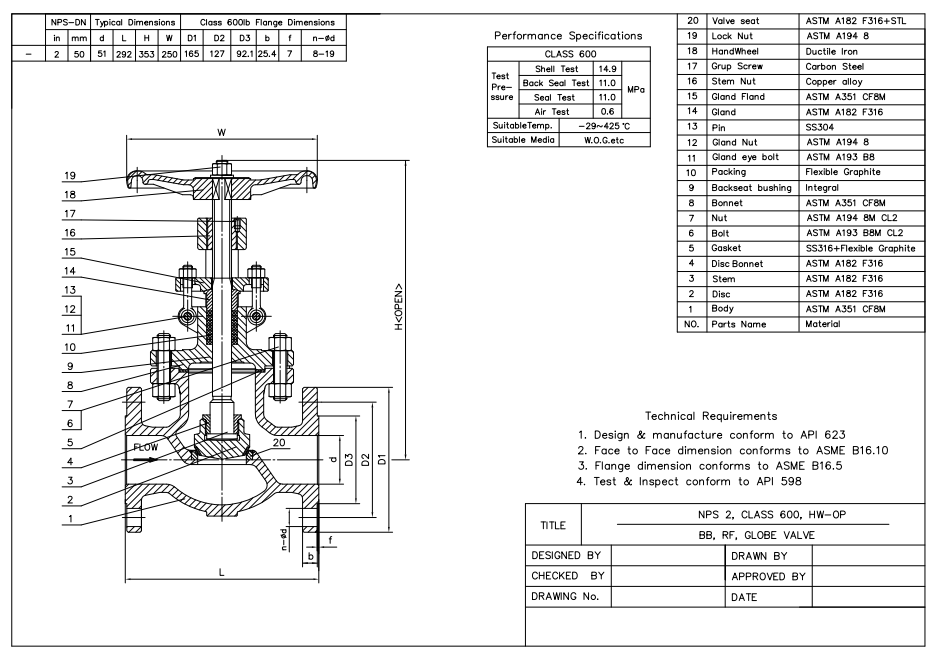

Technical Drawing

CF8M API623 2" 600LB Stainless Steel Globe Valve RF Handwheel

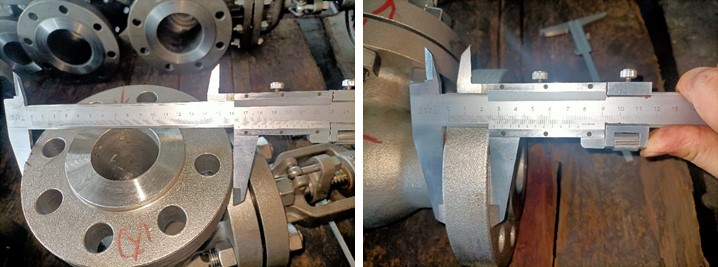

Dimension Checking

CF8M API623 2" 600LB Stainless Steel Globe Valve RF Handwheel

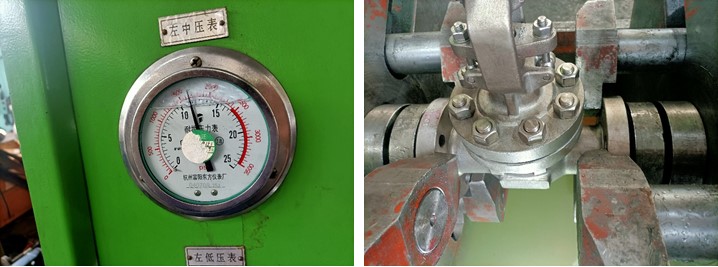

Pressure Testing

CF8M API623 2" 600LB Stainless Steel Globe Valve RF Handwheel

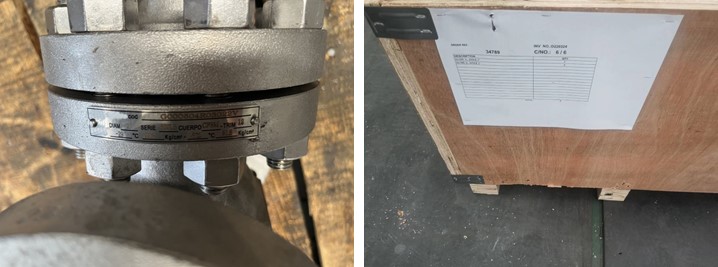

Nameplate & Packing

CF8M API623 2" 600LB Stainless Steel Globe Valve RF Handwheel

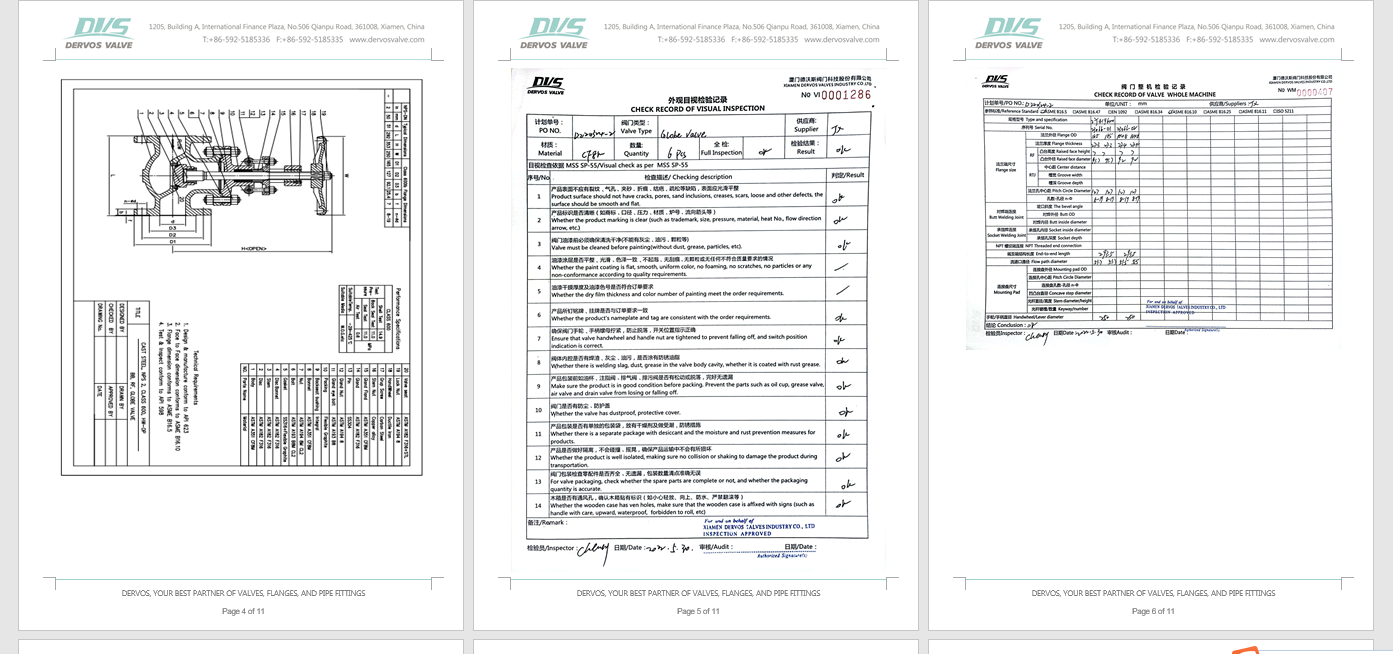

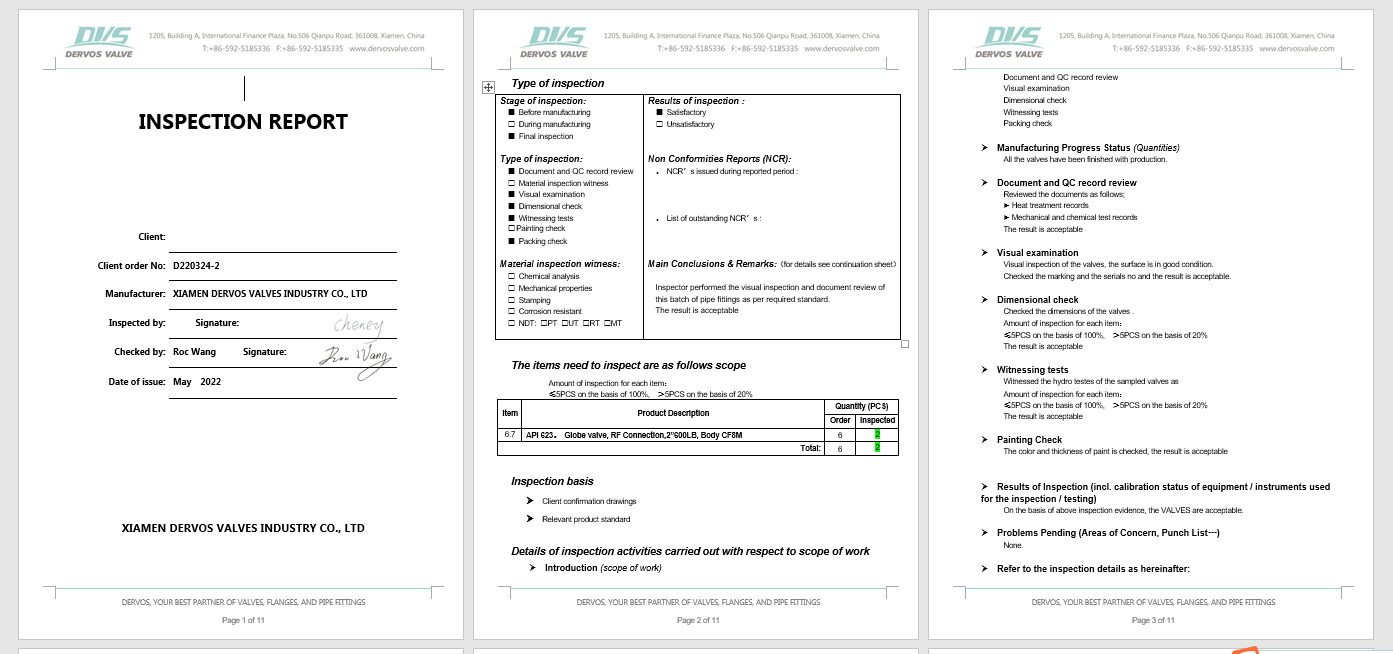

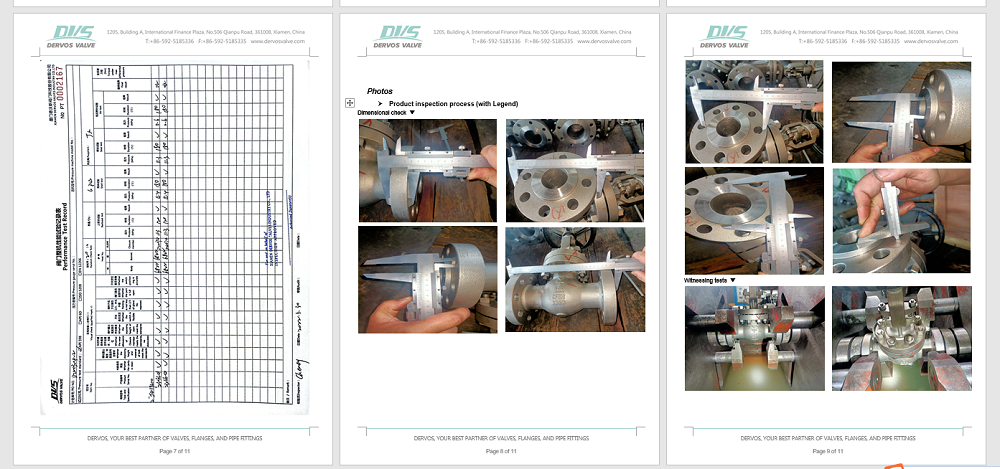

Inspection report

CF8M API623 2" 600LB Stainless Steel Globe Valve RF HandwheelCF8M API623 2" 600LB Stainless Steel Globe Valve RF HandwheelCF8M API623 2" 600LB Stainless Steel Globe Valve RF HandwheelCF8M API623 2" 600LB Stainless Steel Globe Valve RF Handwheel
