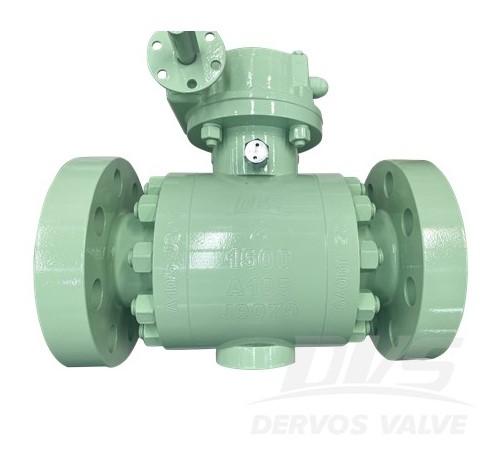

2" 1500LB ball valve is made according to API 6D standard. It also complies with the design standard of NACE MR0175. The valve body is made of ASTM-A105. It has the structural characteristics of full flow and trunnion mounted ball. It has RTJ connection mode and gearbox operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM-A105Method of Operation:
G.OProduct Description
|
Type |
Ball Valve |
|
Size |
2" |
|
Pressure |
1500LB |
|
Connection |
RTJ |
|
Operation |
G.O |
|
Body Material |
ASTM-A105 |
|
Design Norm |
API 6D |
|
Face to Face Dimensions |
ASME B16.10 |
|
Flange Ends Dimensions |
ASME B16.5 |
|
Fire Safe Design |
API 607 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 120°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Small flow resistance, simple structure, light weight, convenient and fast operation;
2. Long service life and high reliability.

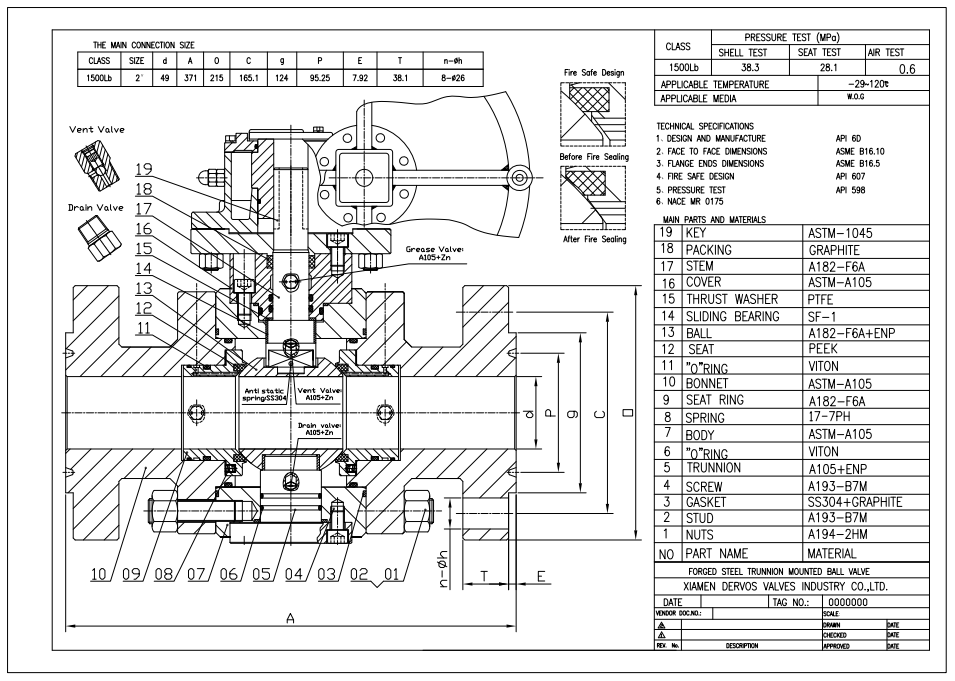

Technical Drawing

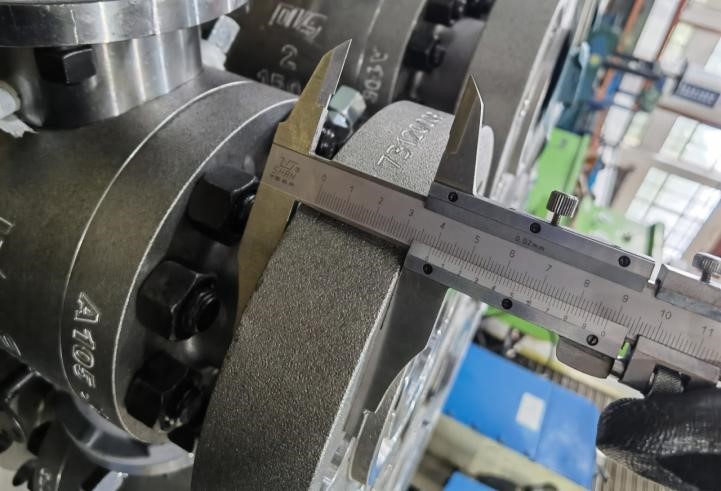

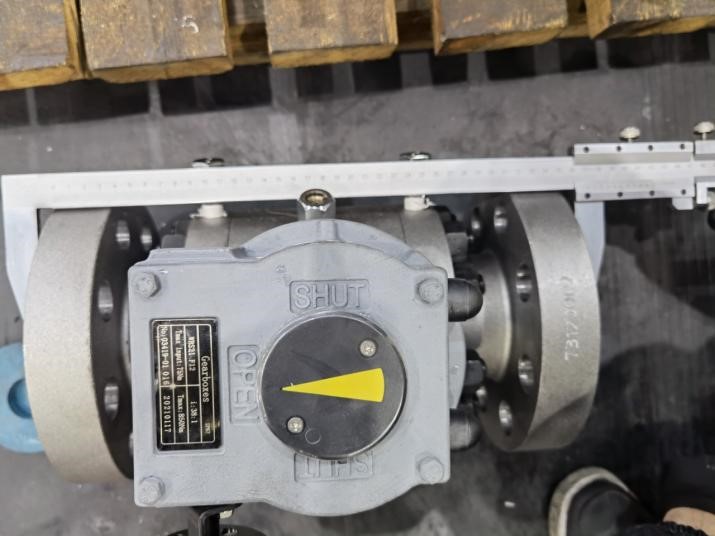

Dimension Checking

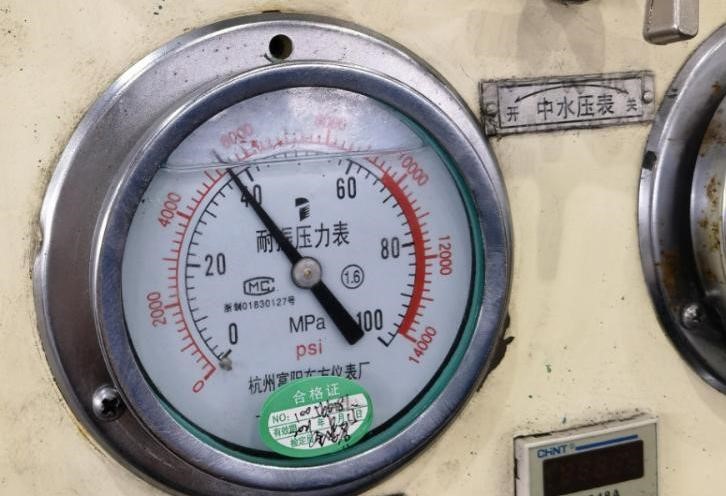

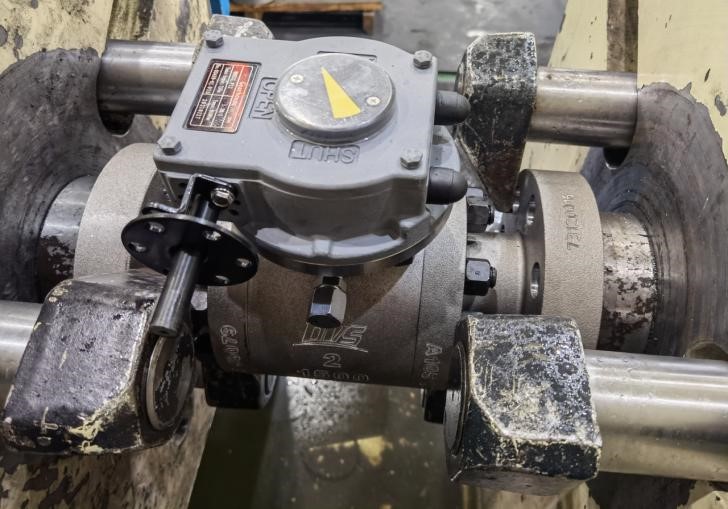

Pressure Testing

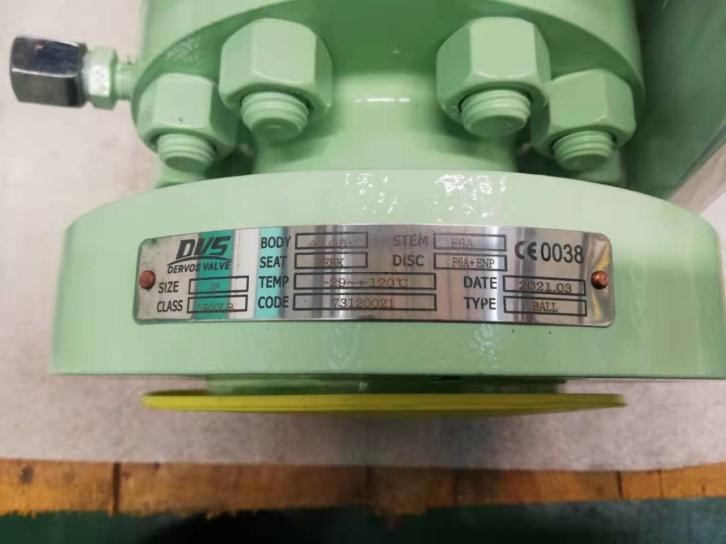

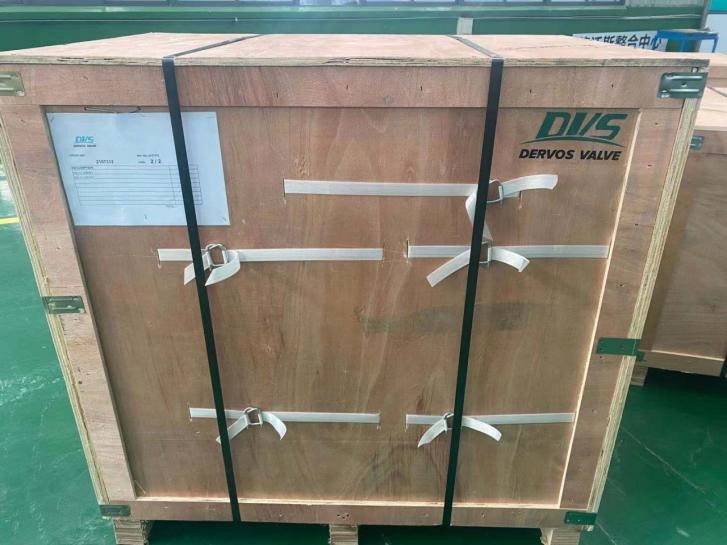

Nameplate & Packing

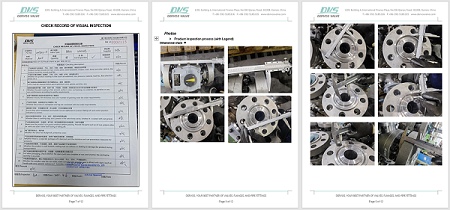

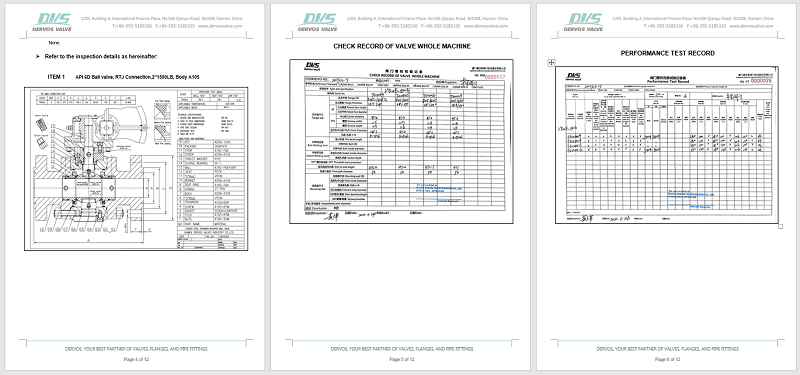

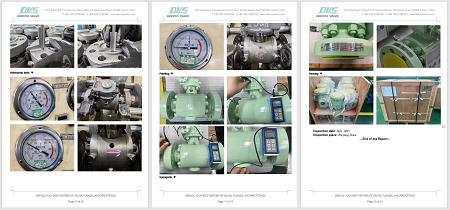

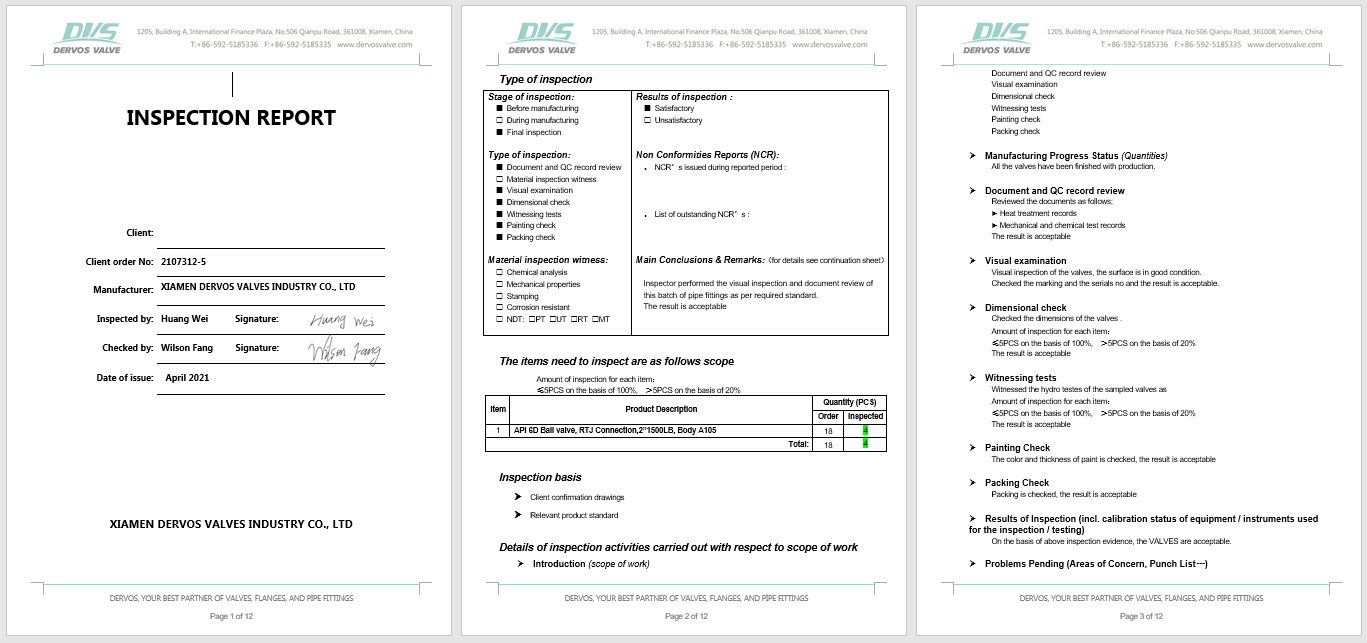

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
