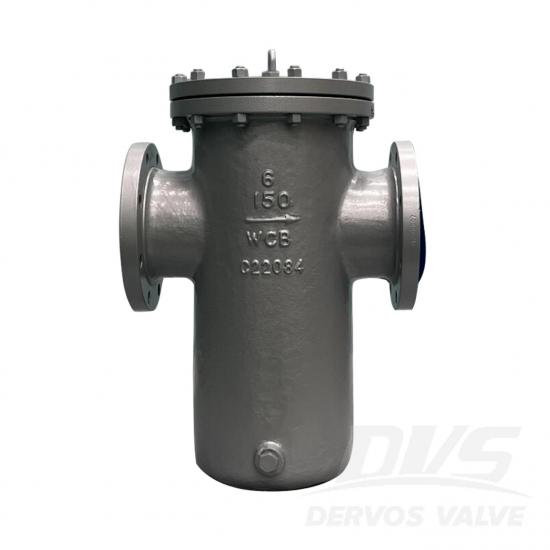

6" 150LB strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of basket type. Its connection mode is RF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCBProduct Description
Type |
Strainer |
Size |
6" |
Pressure |
150LB |
Connection |
RF |
Body Material |
ASTM A216 WCB |
Design Norm |
ASME B16.34 |
Face to Face Dimension |
ASME B16.10 |
Flange Dimension |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 425°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Compact structure, high filtration capacity, and low pressure loss;
2. Wide application range and convenient maintenance.

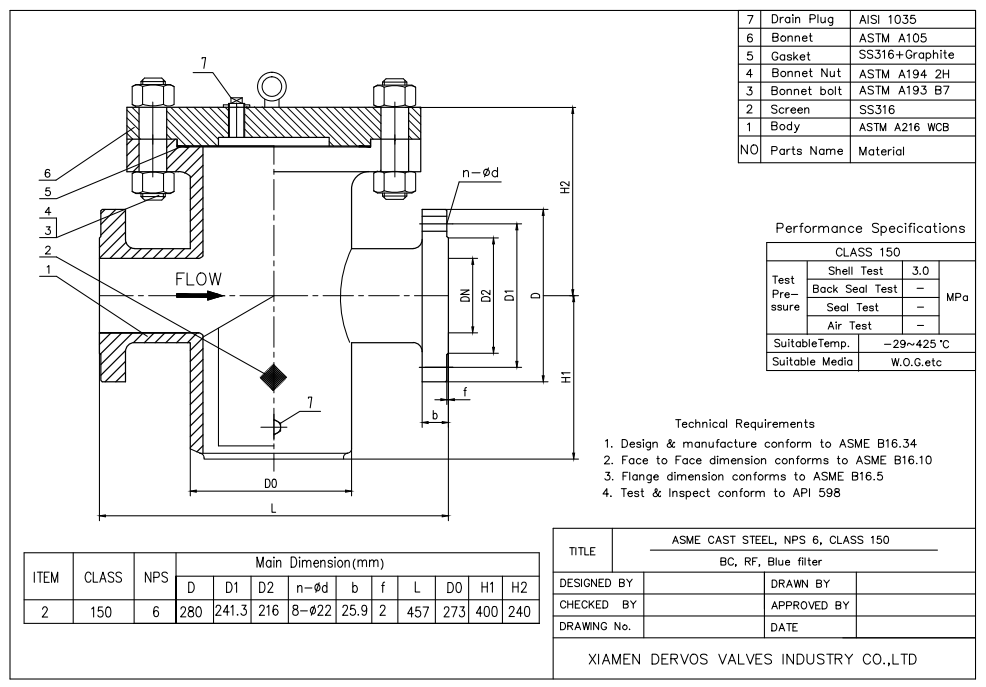

Technical Drawing

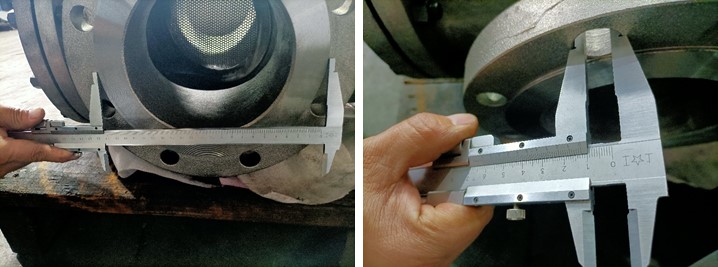

Dimension Checking

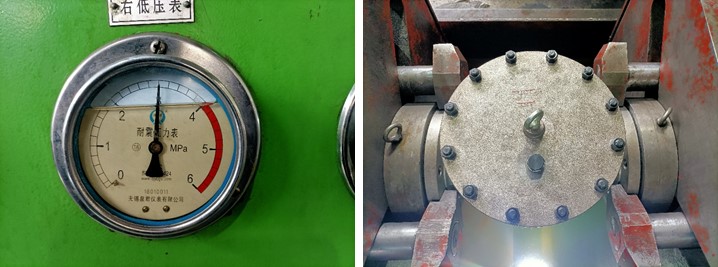

Pressure Testing

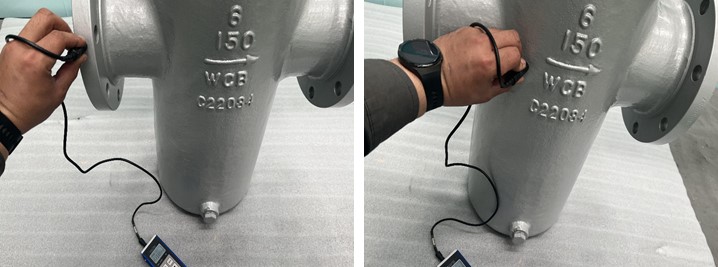

Painting
Packing

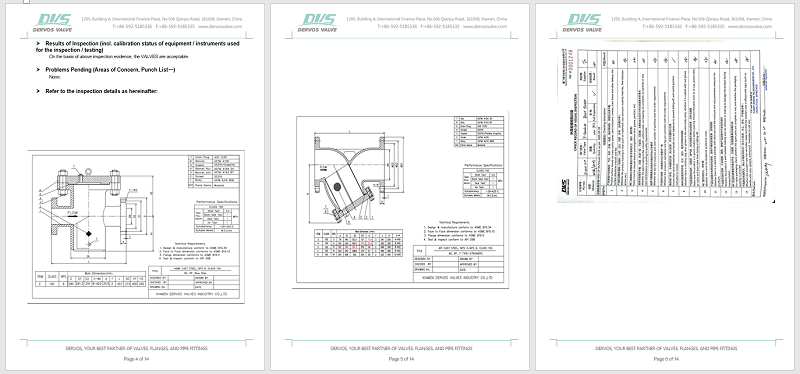

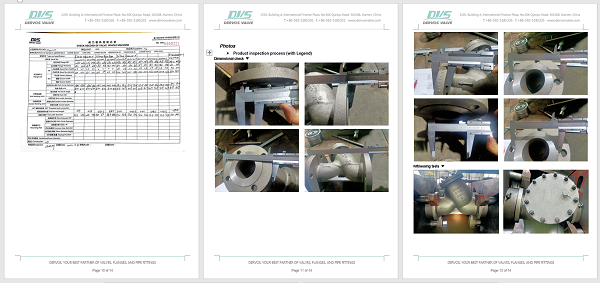

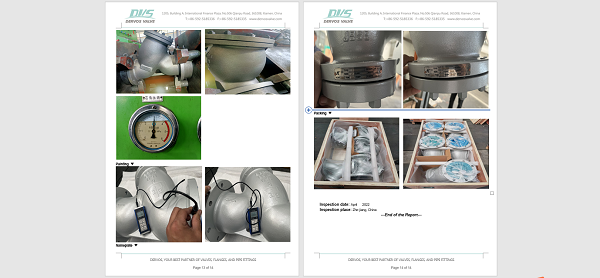

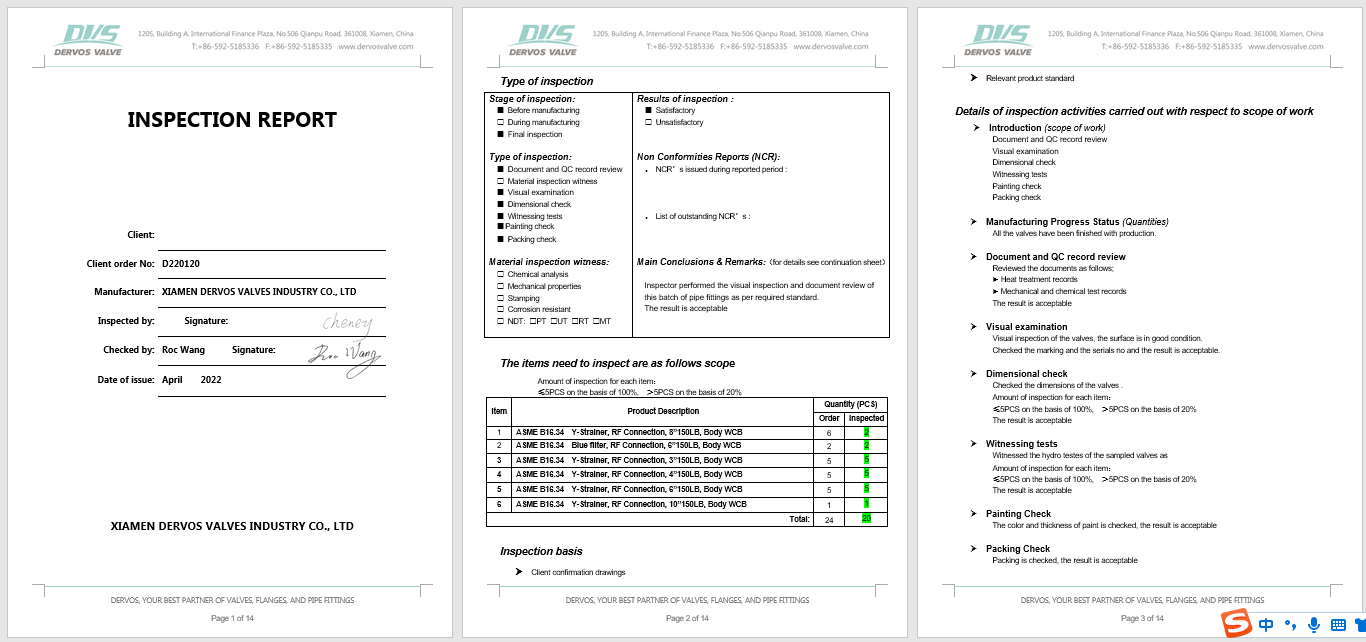

Inspection report
