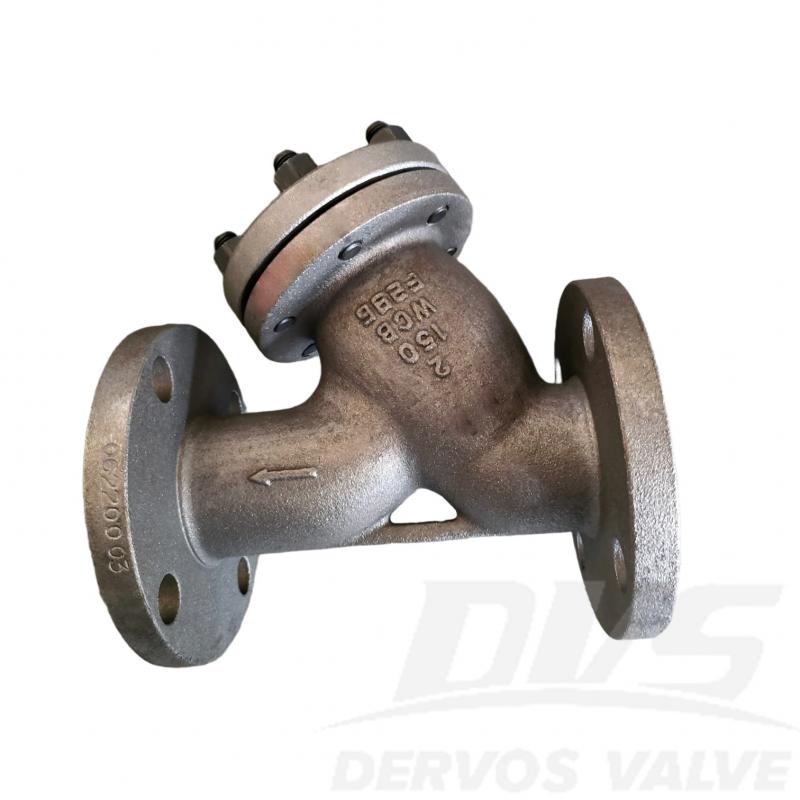

2" 150LB Cast Steel Y Type-Strainer RF ASME B16.34

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    ASTM A216 WCB
  • Method of Operation:

    no
Inquiry now
Product Detail

2" 150LB Cast Steel Y Type-Strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Y type. Its connection mode is RF.



Product Parameters



Type

Cast Steel Y Type-Strainer

Size

2”

Pressure

150LB

Connection

RF

Body Material

ASTM A216 WCB

Design Norm

ASME B16.34

Face to Face

ASME B16.10

Flange dimension

ASME B16.5

Test & Inspection Code

API 598

Temperature

-29 ~ 425°C

Applicable Medium

Water, Oil and Gas



Features

1.Cast steel body designed per ASME B16.34, ensuring strength and reliability under Class 150 service conditions.

2.Y-type configuration with RF flanged ends provides effective debris filtration and easy maintenance in pipeline systems.

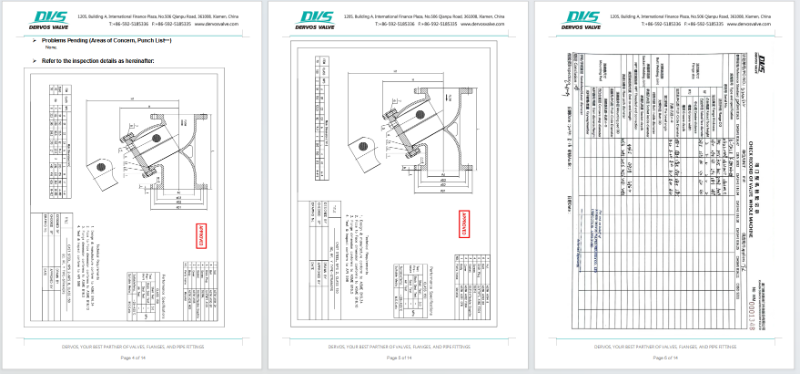

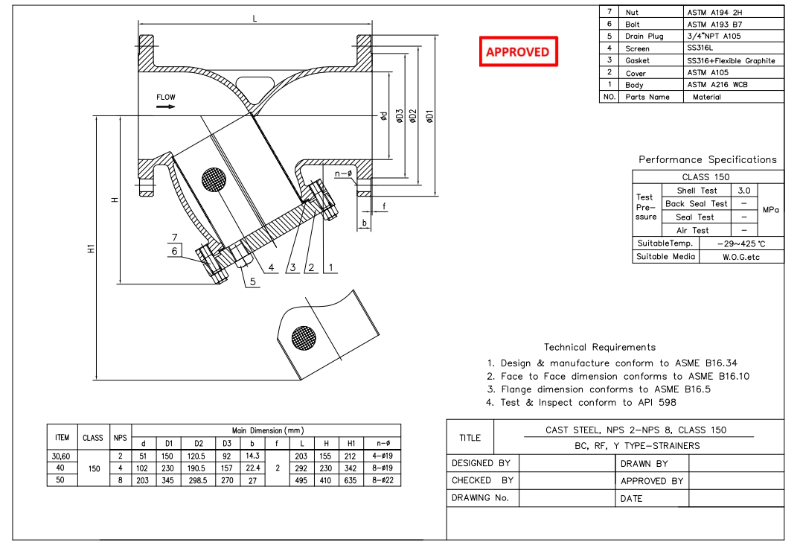

Technical Drawing

High Quality Cast Steel Y Type-Strainer

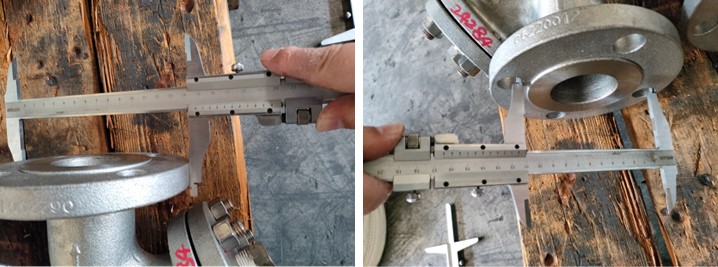

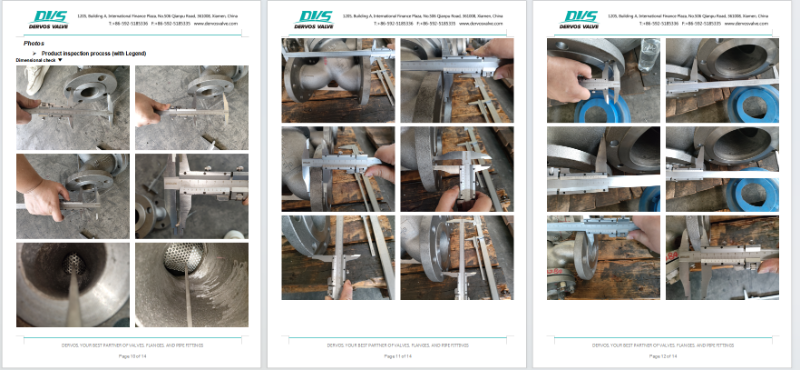

Dimension Checking

High Quality Cast Steel Y Type-Strainer

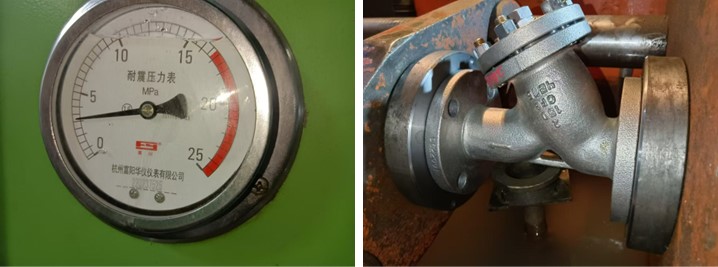

Pressure Testing

High Quality Cast Steel Y Type-Strainer

Painting

High Quality Cast Steel Y Type-Strainer

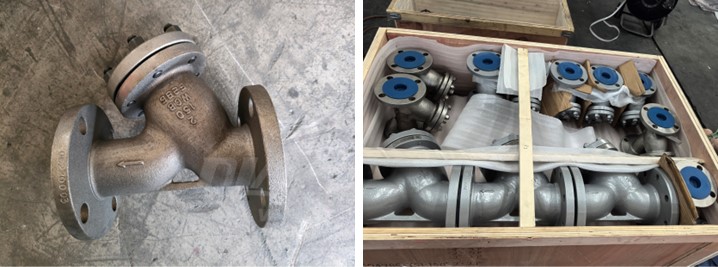

Nameplate & Packing

High Quality Cast Steel Y Type-Strainer

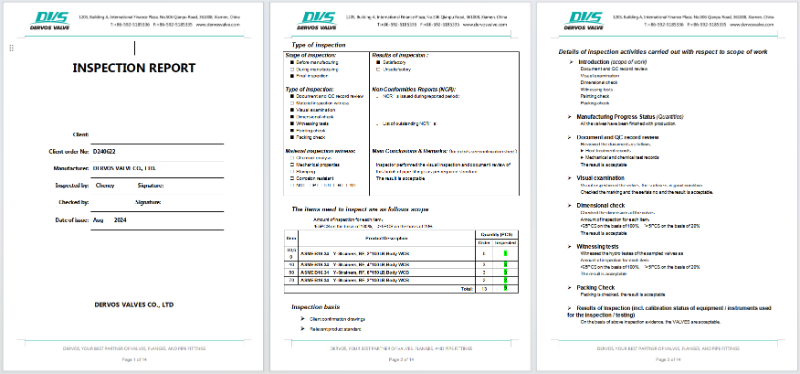

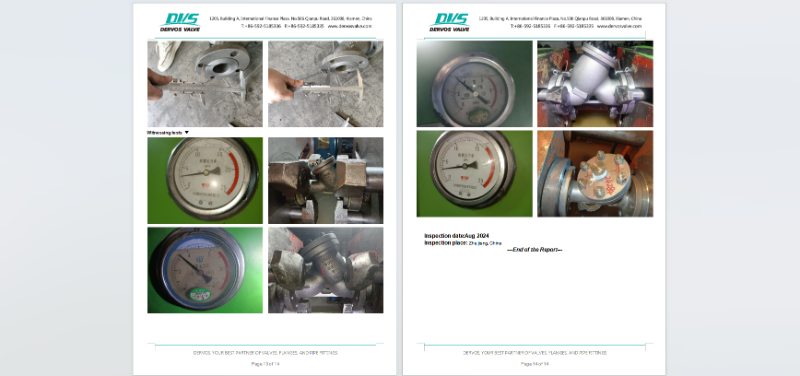

Inspection Report

High Quality Cast Steel Y Type-StrainerHigh Quality Cast Steel Y Type-StrainerHigh Quality Cast Steel Y Type-StrainerHigh Quality Cast Steel Y Type-Strainer
