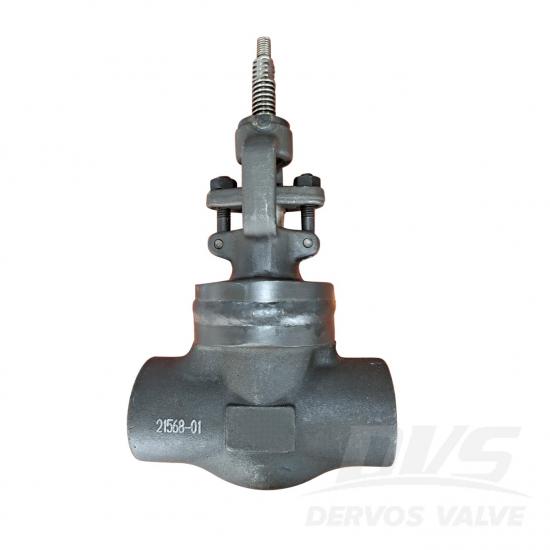

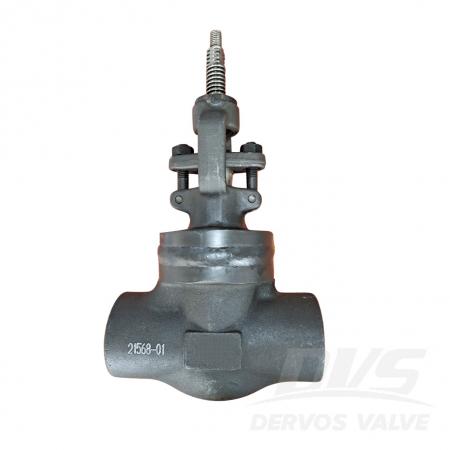

11/2" 800LB globe valve is made according to API602 standard. The valve body is made of A105+STL. It has the structural characteristics of welded bonnet. Its connection mode is SW. And it has hand wheel operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A105+STLMethod of Operation:
Hand WheelProduct Description
|
Type |
Globe Valve |
|
Size |
11/2" |
|
Pressure |
800LB |
|
Connection |
SW |
|
Operation |
Hand Wheel |
|
Body Material |
A105+STL |
|
Design Norm |
API 602 |
|
Socket Welded Dimension |
ANSI B16.11 |
|
Materials |
AISI/ASTM |
|
Test & Inspection Code |
API 598 |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Simple structure, convenient manufacturing and maintenance;
2. The sealing surface of the valve is not easy to wear and scratch, with good sealing performance and long service life.

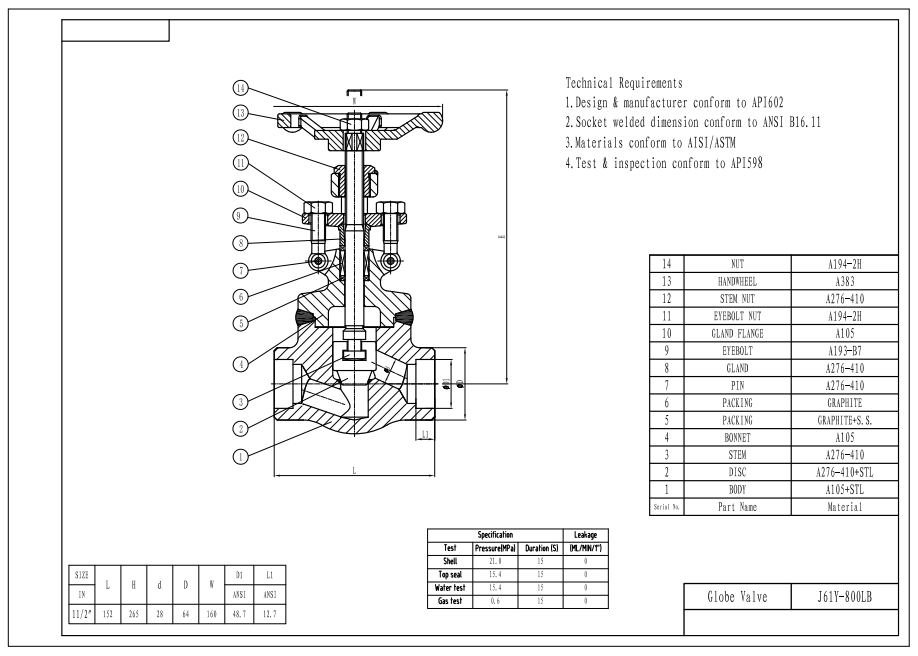

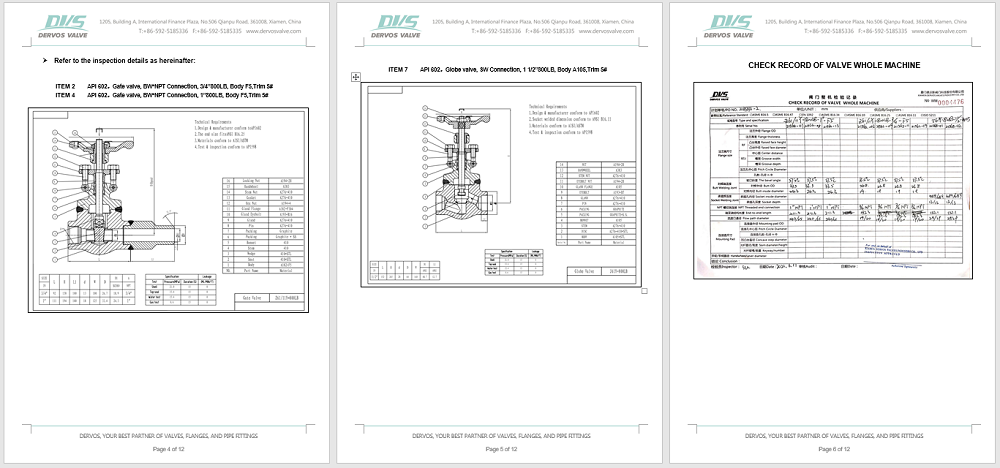

Technical Drawing

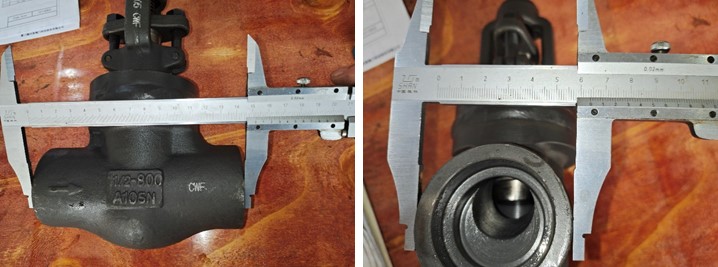

Dimension Checking

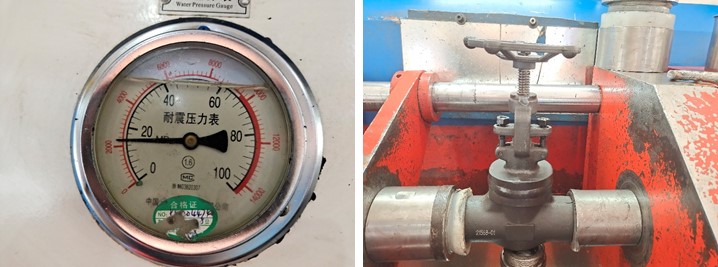

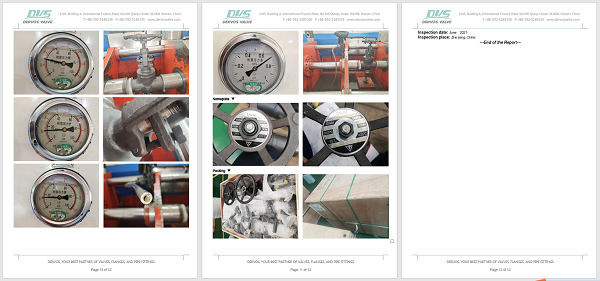

Pressure Testing

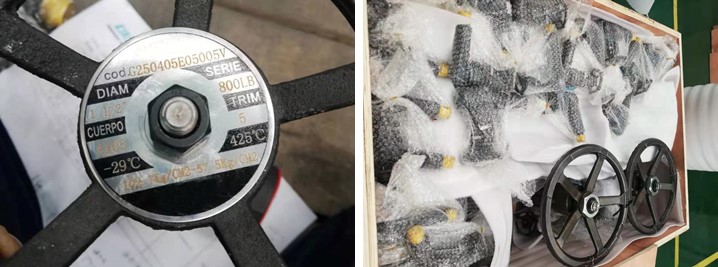

Nameplate & Packing

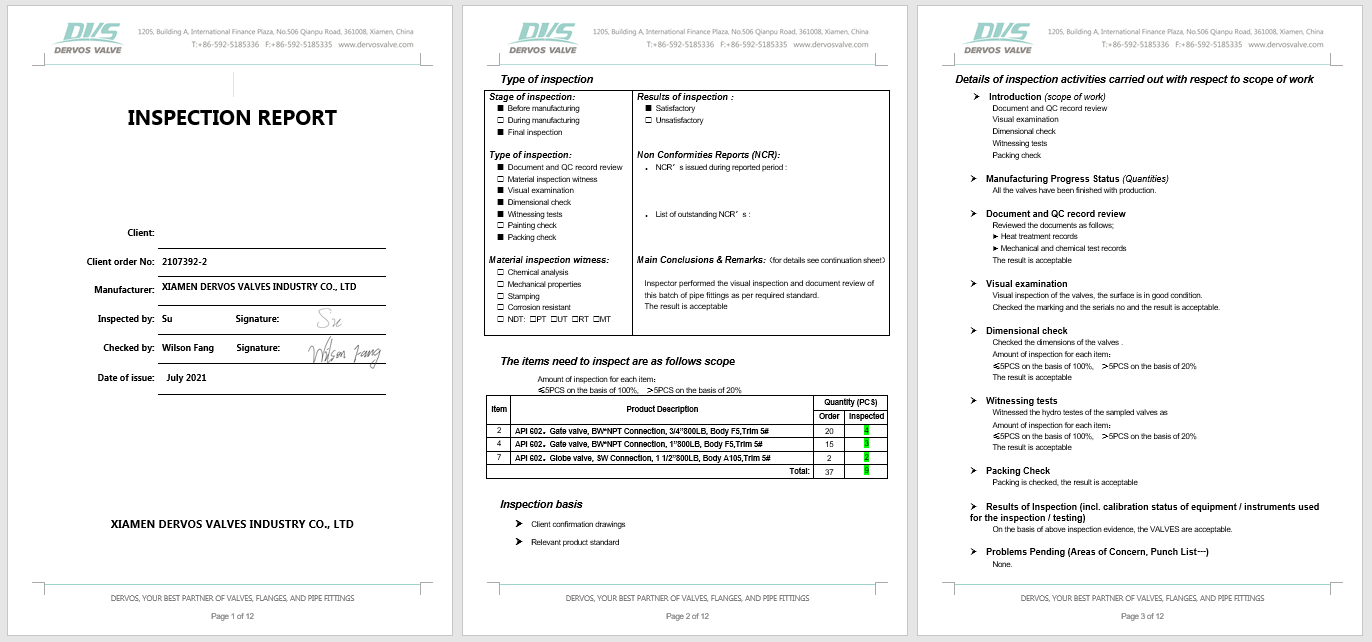

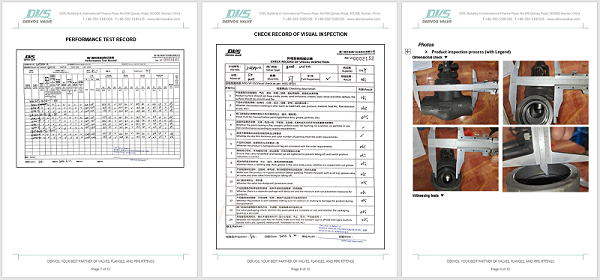

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
