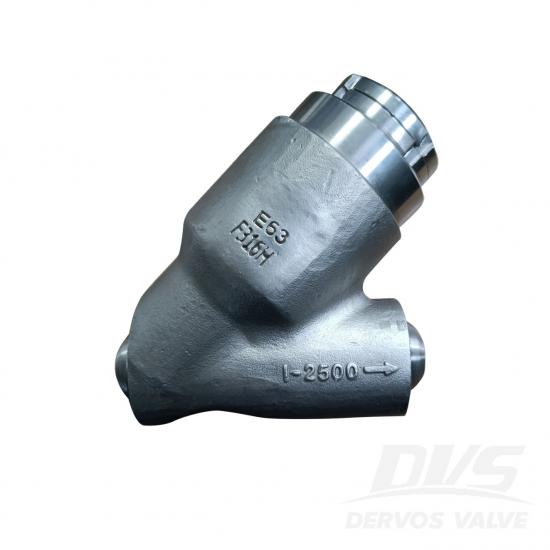

1" 2500LB strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A182 F316H. It has the structural characteristics of pressure self sealing and Y type. Its connection mode is BW SCH160.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A182 F316HProduct Description
Type |
Strainer |
Size |
1" |
Pressure |
2500LB |
Connection |
BW SCH160 |
Body Material |
ASTM A182 F316H |
Design Norm |
ASME B16.34 |
Face to Face Dimensions |
MFG'S |
End Connection |
ASME B16.25 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 300°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Advanced structure, low resistance, and convenient sewage discharge;
2. Less vulnerable parts, no consumables, low operation and maintenance costs, and simple operation and management.

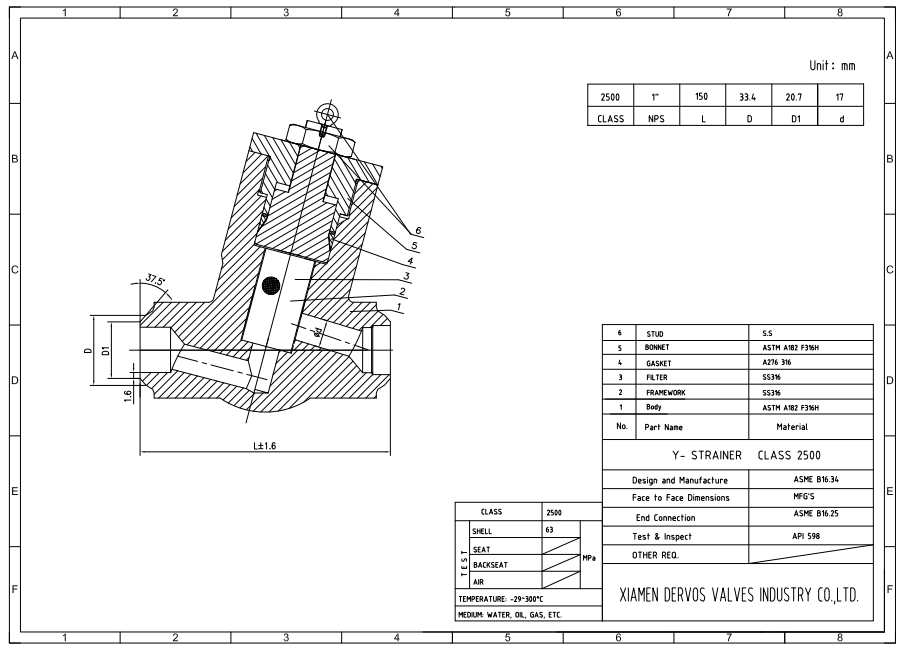

Technical Drawing

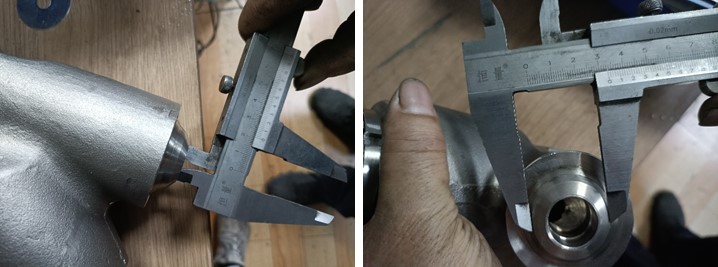

Dimension Checking

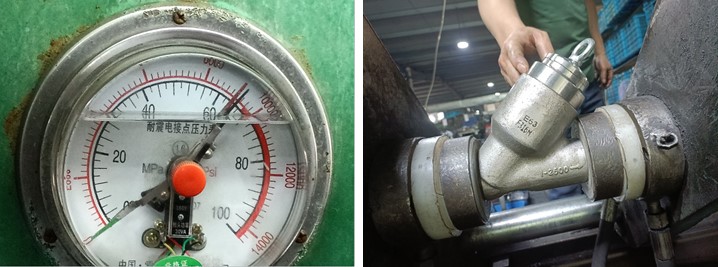

Pressure Testing

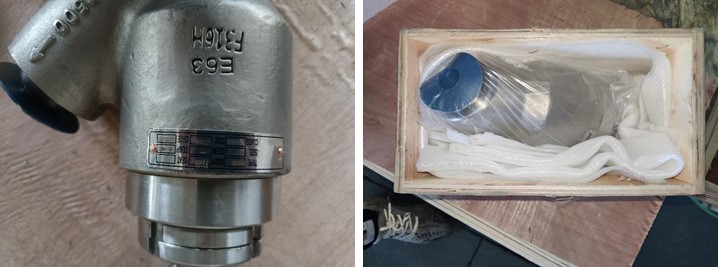

Nameplate & Packing

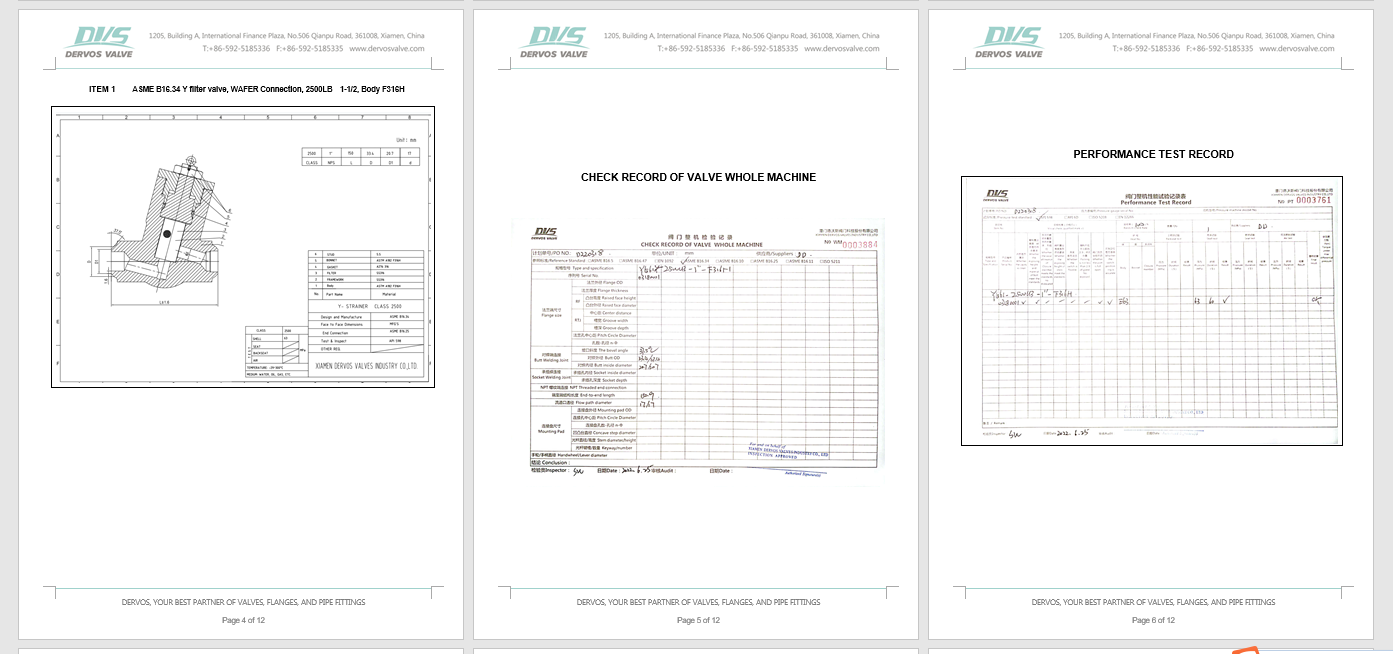

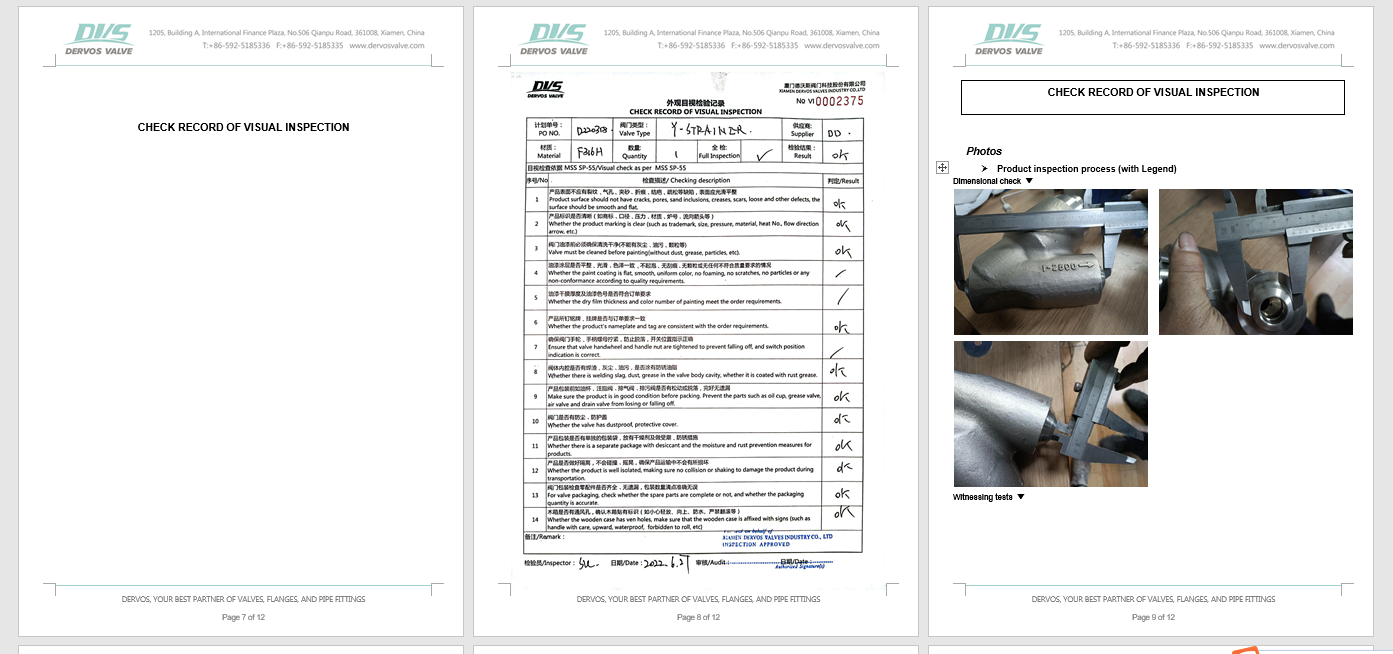

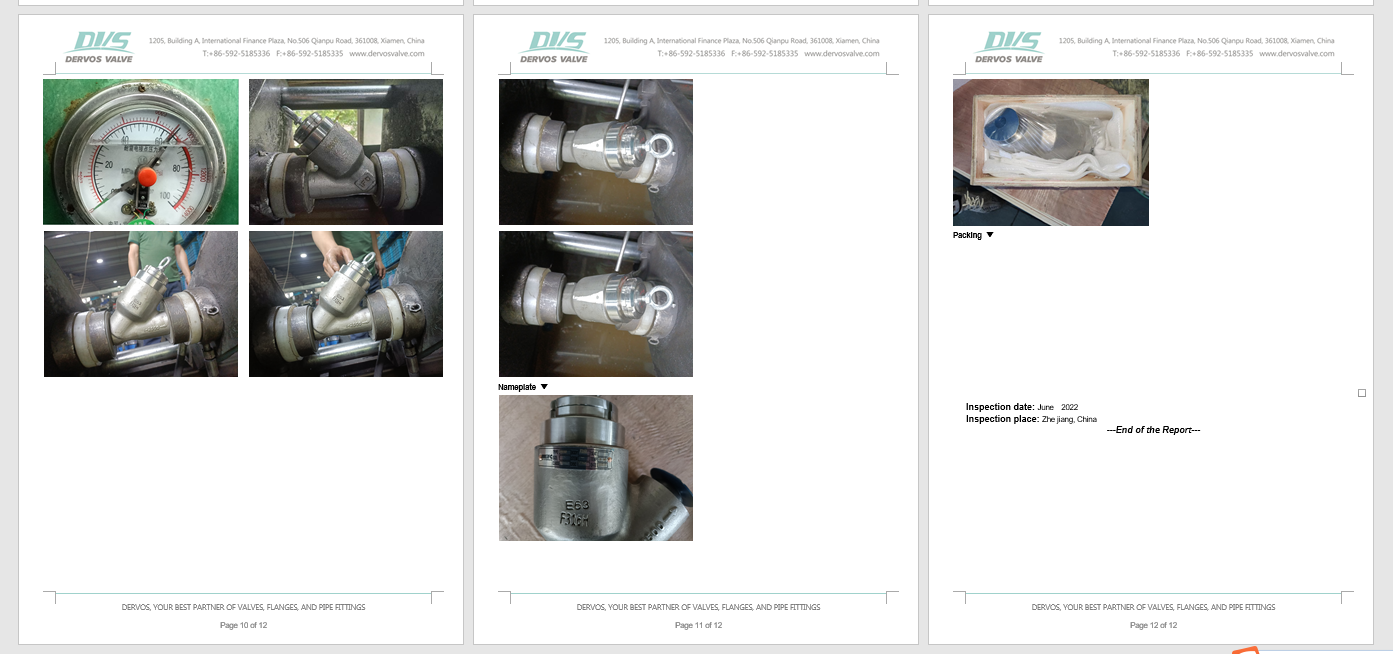

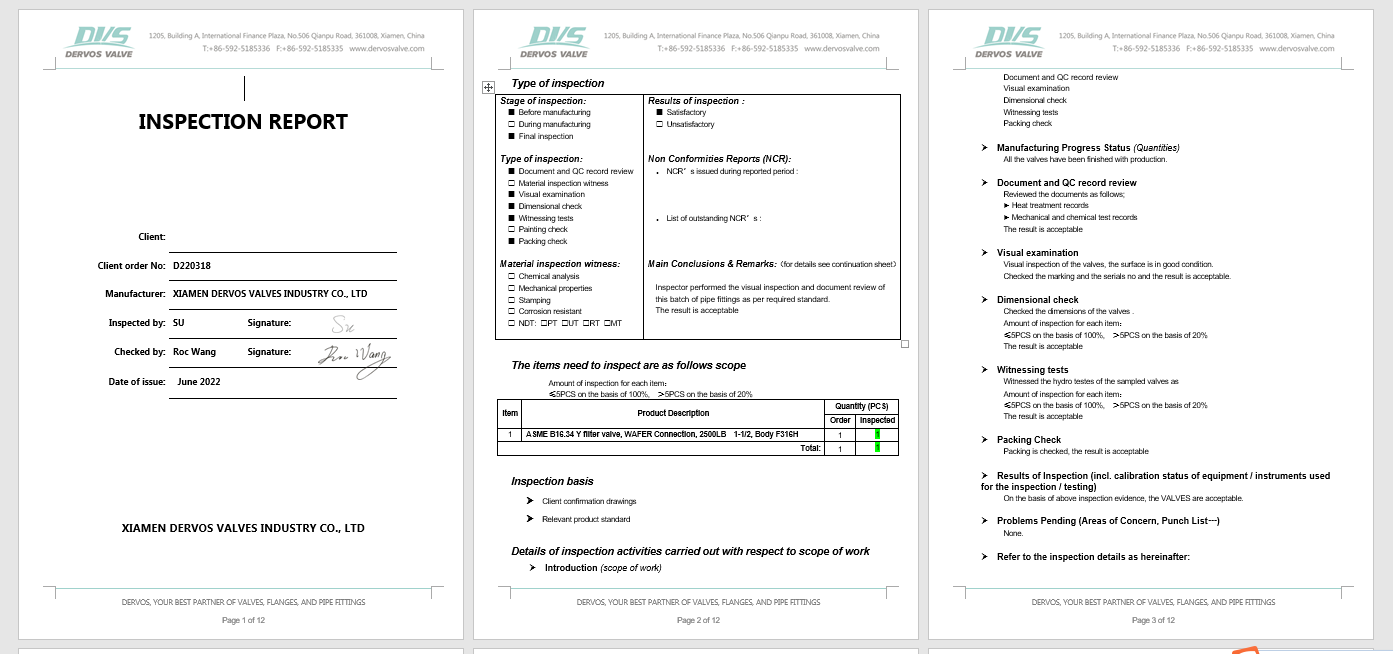

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
