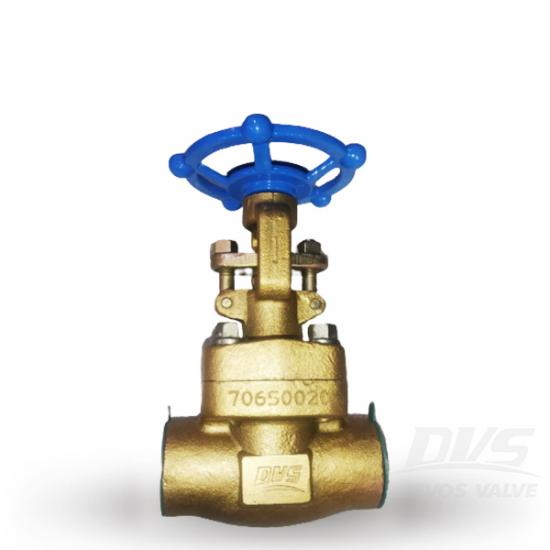

Differing 1/4 inch to 3 inch, this gate valve is made of B62 bronze according to API602. No matter what pressure rating, thread design or size you require, Dervos has a large selection of valves to meet your needs.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
BronzeMethod of Operation:
HandwheelQuick Detail
|
Type |
Gate Valve |
|
Size |
1 Inch |
|
Design Pressure |
ANSI 800 |
|
Construction |
BB; Solid Wedge; Renewable Seat; |
|
Connection Type |
FNPT |
|
Operation Type |
Hand wheel |
|
Body Material |
ASTM B62 |
|
Wedge Material |
Bronze |
|
Stem Material |
Bronze |
|
Seat Material |
PETF |
|
Design Code |
API602 |
|
End Connection |
ASME B1.20.1 |
|
Test & Inspection |
API 598 |
|
Medium |
Water, Oil and Gas |
|
Origin |
China |
Features
--Threaded Bonnet
--Threaded Ends
--B62
--Renewable solid wedges
--Integral seats
--High–Tensile bronze alloy stems

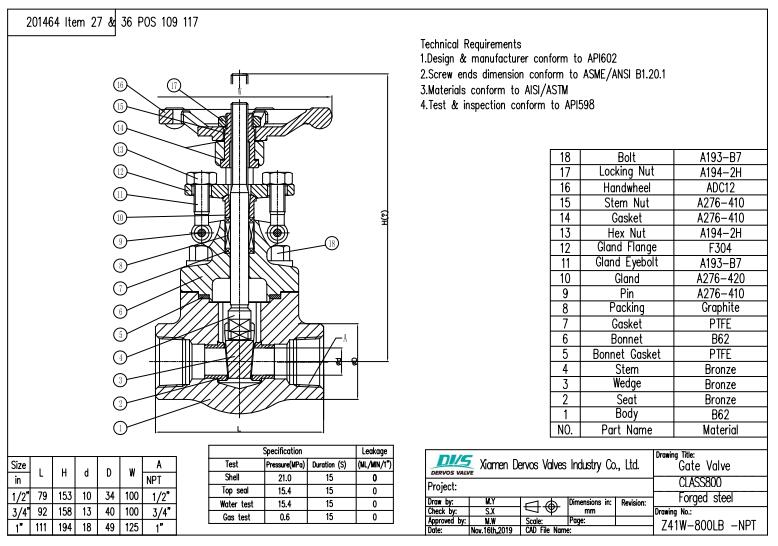

Technical Drawing

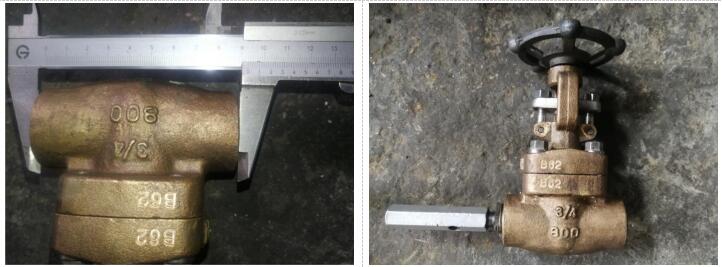

Dimension Check

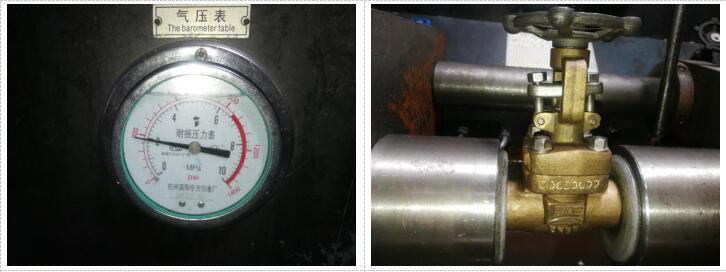

Witnessing Tests

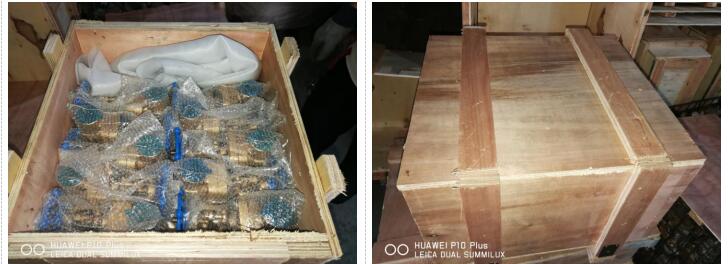

Packing
