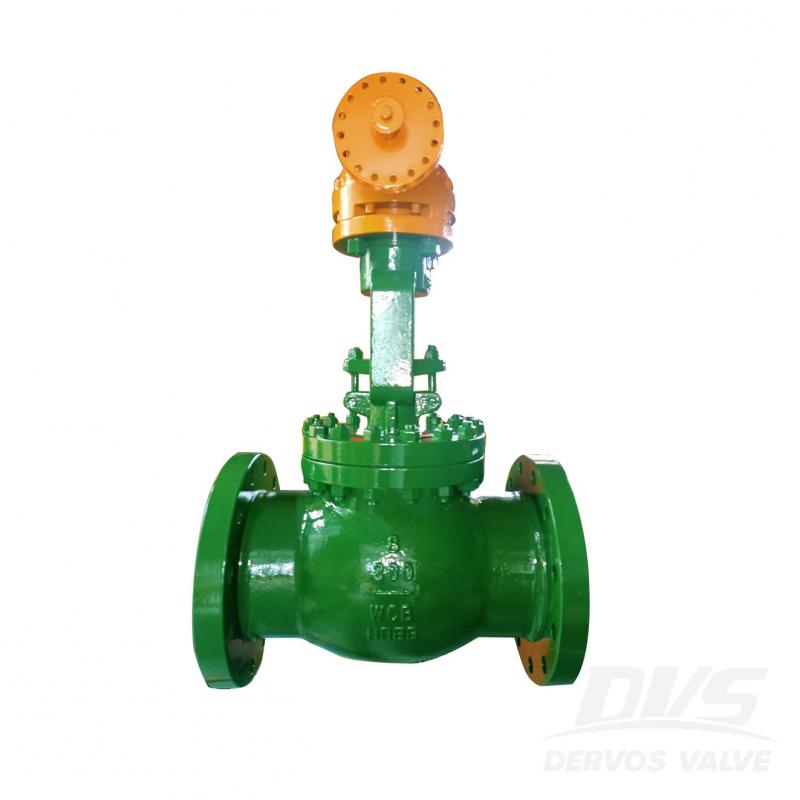

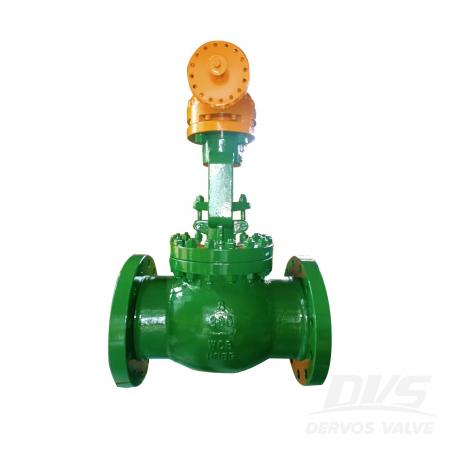

8" 300LB globe valve is made according to BS1873 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of straight through type and rising stem. Its connection mode is RF. And it has gear operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCB+STLMethod of Operation:
G.OProduct Description
Type |
Globe Valve |
Size |
8" |
Pressure |
300LB |
Connection |
RF |
Operation |
G.O |
Body Material |
ASTM A216 WCB+STL |
Design Norm |
BS1873 |
Face to Face Dimension |
ASME B16.10 |
Flange Dimension |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 425°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. High stability, good sealing performance, widely used;
2. Reasonable structure, reliable sealing, excellent performance, and beautiful appearance.

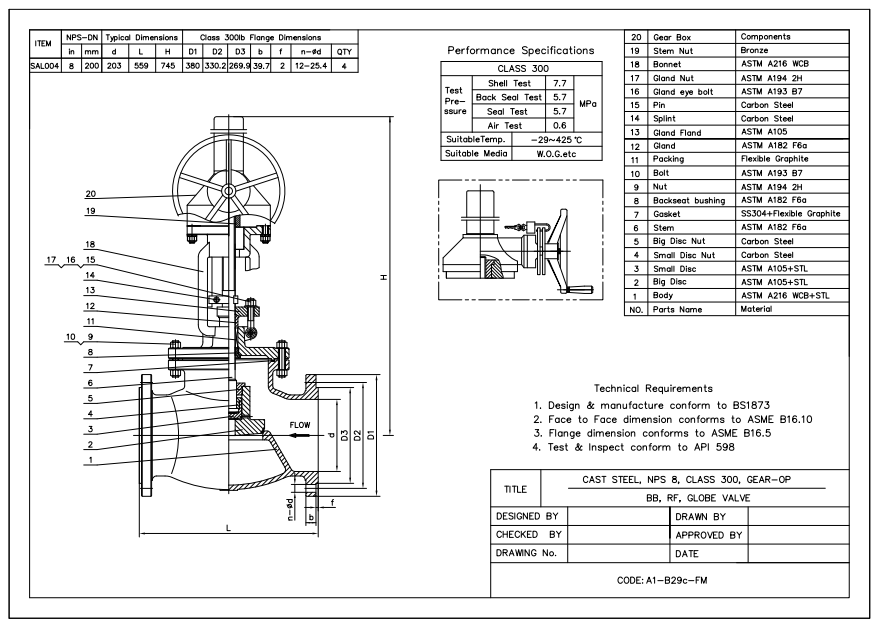

Technical Drawing

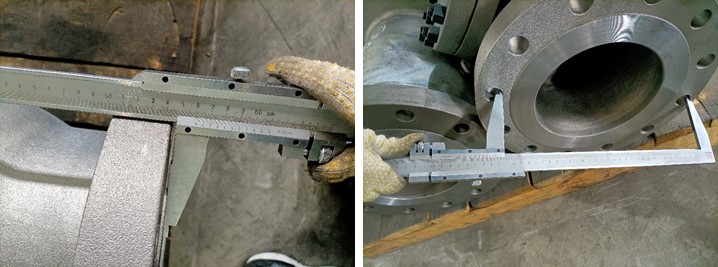

Dimension Checking

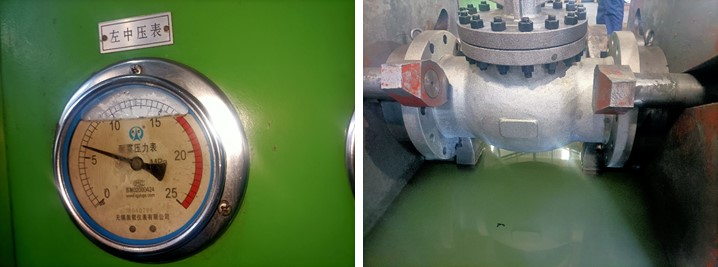

Pressure Testing

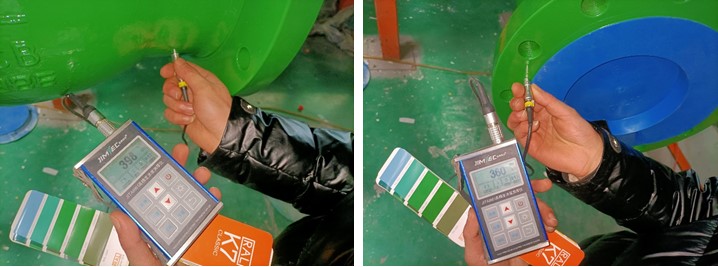

Painting

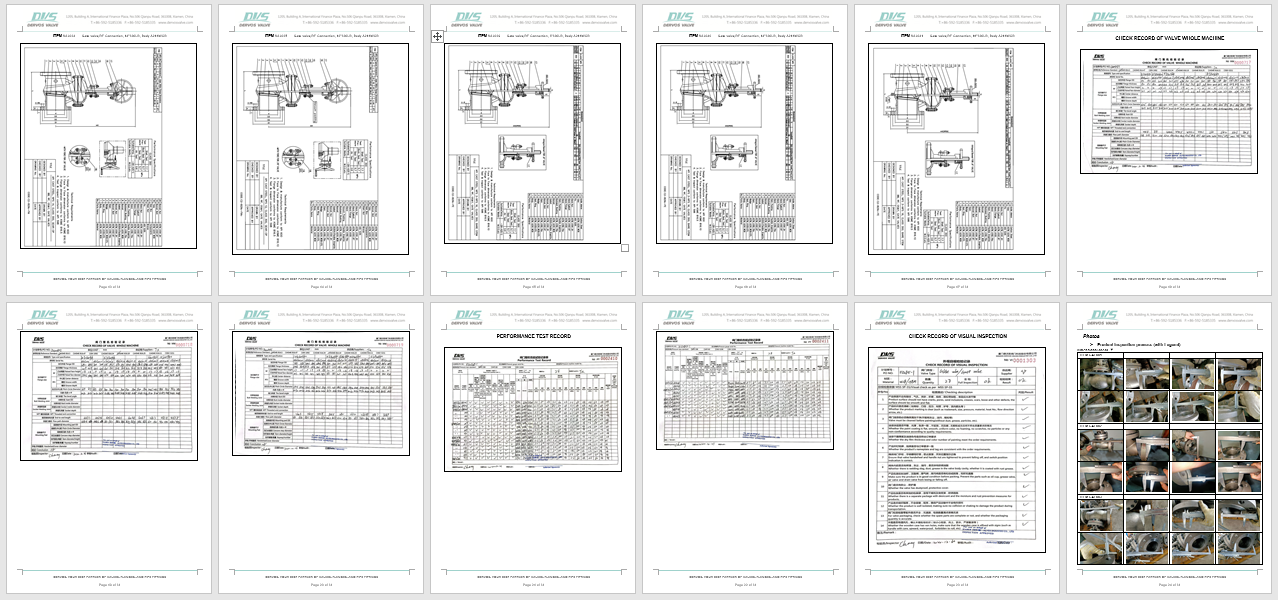

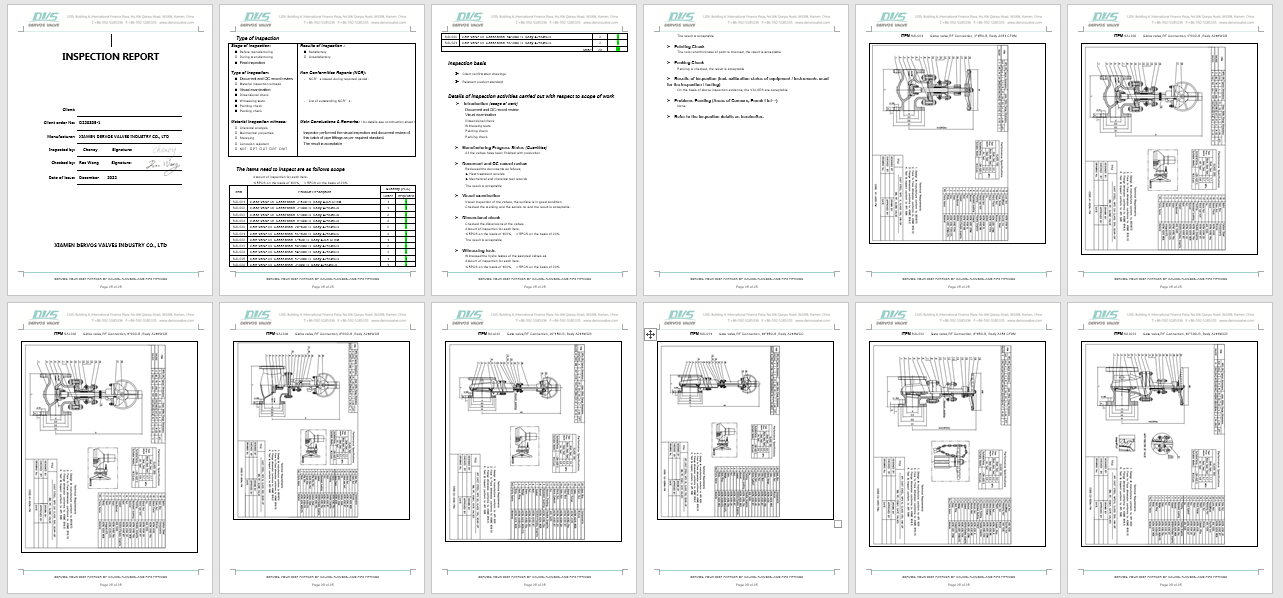

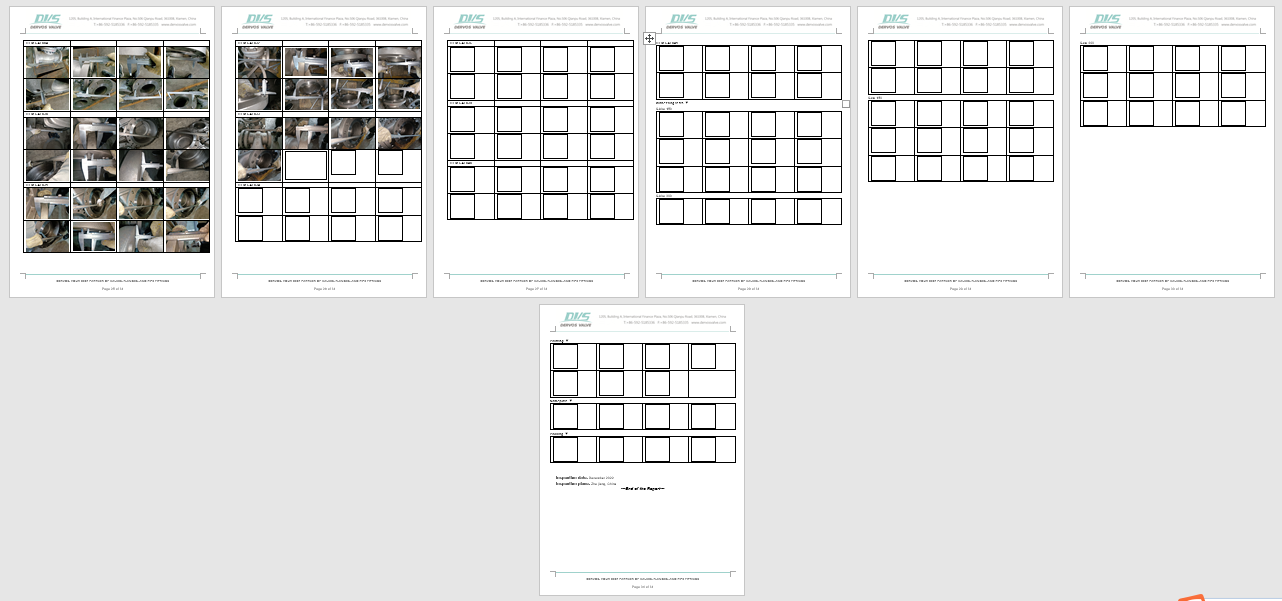

Inspection report
