T Port DN150 PN16 3-Way Ball Valve RF
加载中...

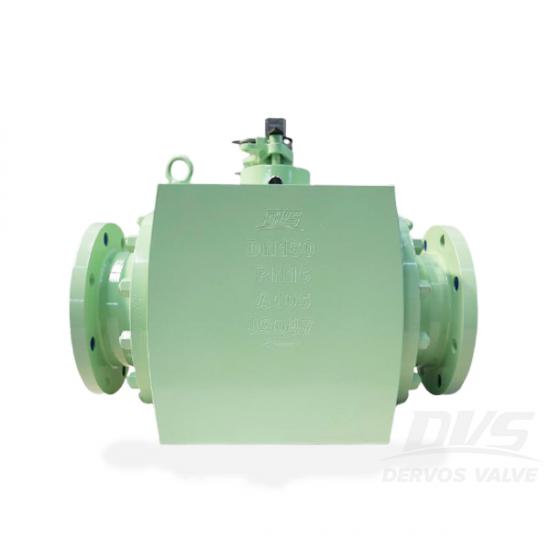

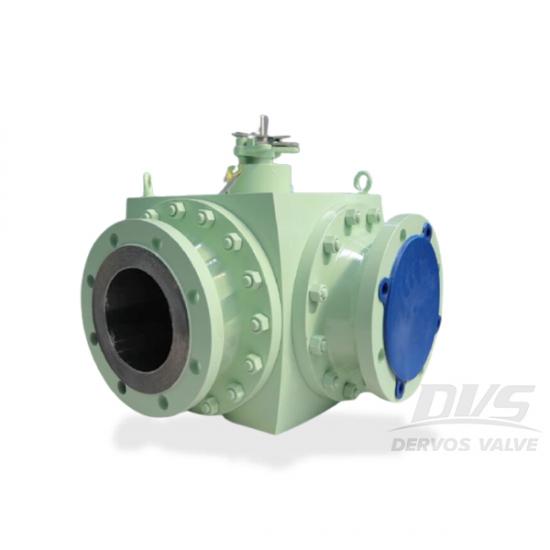

T Port DN150 PN16 3-Way Ball Valve RF

A three-way ball valve has three ports or openings that are connected to piping or tubing for gas or fluid flow (media) to pass through.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    A105
  • Method of Operation:

    Lever
Inquiry now
Product Detail

Quick Detail

Type

Ball Valve

Size

DN150

Pressure

PN16

Construction

Trunnion-mounted Type,Full Bore, Fully Welded

Connection

RF

Operation

Lever

Body Material

Forged Steel A105

Ball Material

Stainless Steel F304

Design

ISO 17292

Pressure & Temp

ASME B16.34

End Connection

EN1092

Inspection

ISO 5208

Temperature Range

-29℃~150℃

Media

W.O.G


Features

•Standard Port
• S.S.F304 Ball
• Suitable for full range of liquids and gas
• PTFE seals and seats
• Temperature range: -29to150 degrees Celsius
• Low operation torque
• 100% individually tested
• Blow-out proof stem

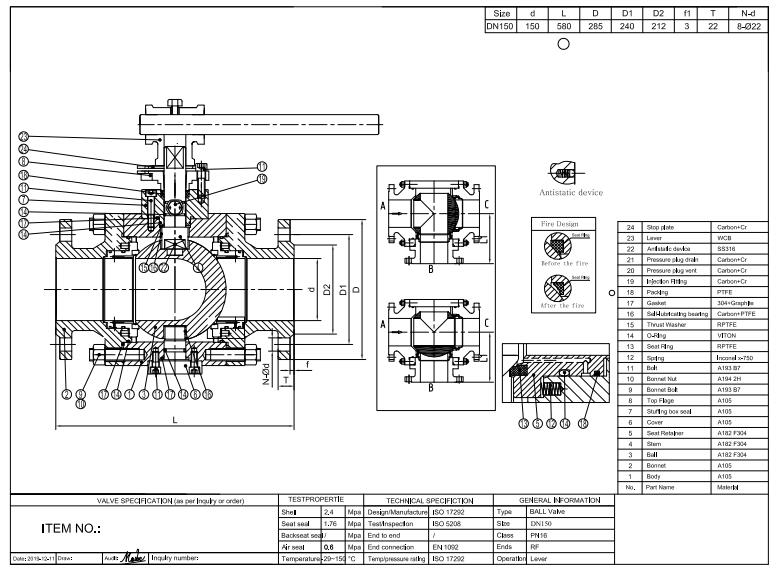

Technical Drawing

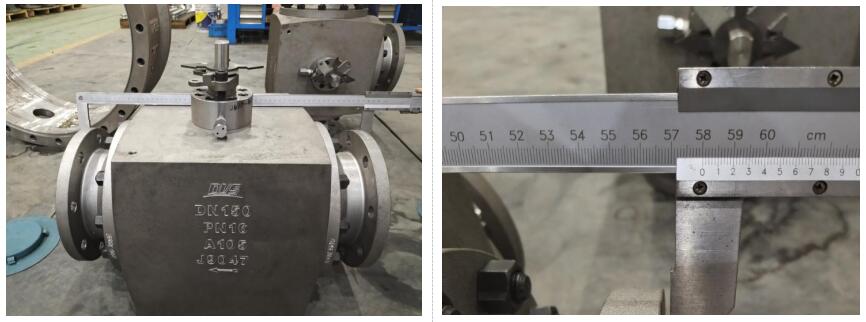

Dimension Check

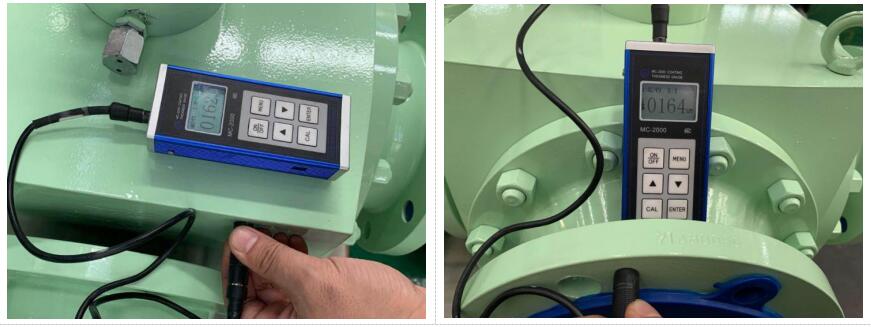

Coat Thickness Test



Certificates

Certificates are one of the factors our clients are caring about. On clients’ request, we could provide API 5L, API 6D, API 607, API 5CT, ISO 9001, PED CE and so on.
