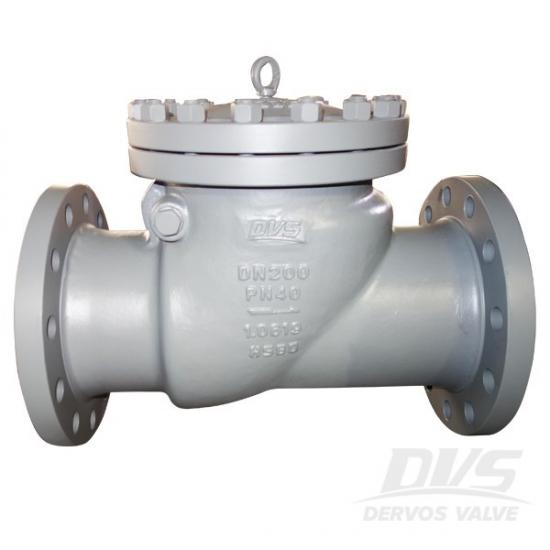

Made of high-quality casting, the DIN swing check valve has a cast steel body with bolted bonnet structure and flange connection. The valve is designed with good sealing performance and minimal water hammer effect.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
Cast Steel 1.0619Product Description
Type |
Check Valve |
Size |
DN200 |
Pressure |
PN40 |
Construction |
Bolted Cover, Swing Type |
Connection |
RF Flange Connection |
Body Material |
Cast Steel 1.0619 |
Design Norm |
DIN 3840 |
Face to Face |
DIN 3202 |
Flange End |
EN 1092-1 |
Test & Inspection |
EN 12266 |
Applicable Medium |
Water, Oil, Gas |
Features
1. All closing part is installed inside the valve body and do not penetrate the valve body;
2. Except for the sealing gasket and sealing ring used at the flange, there are no external leakage points as a whole, eliminate the possibility of valve leakage;
3. The valve disc has appropriate micro position compensation.

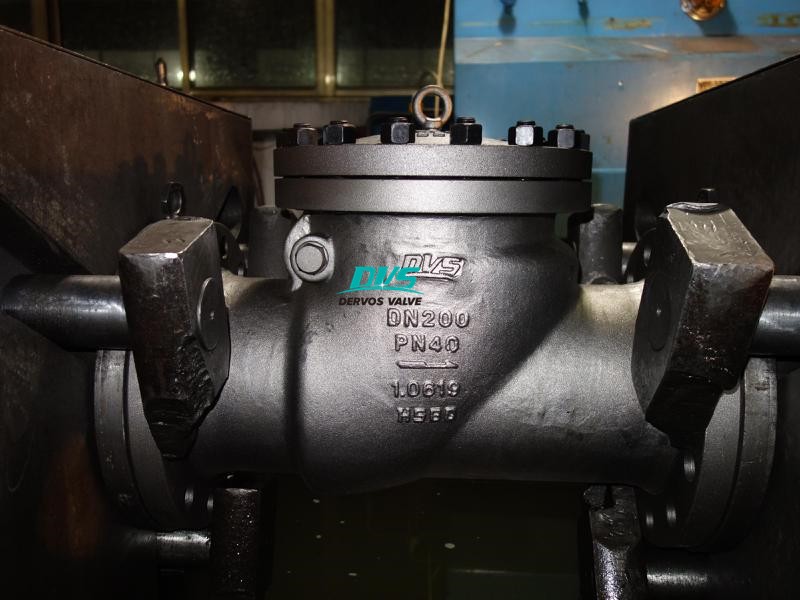

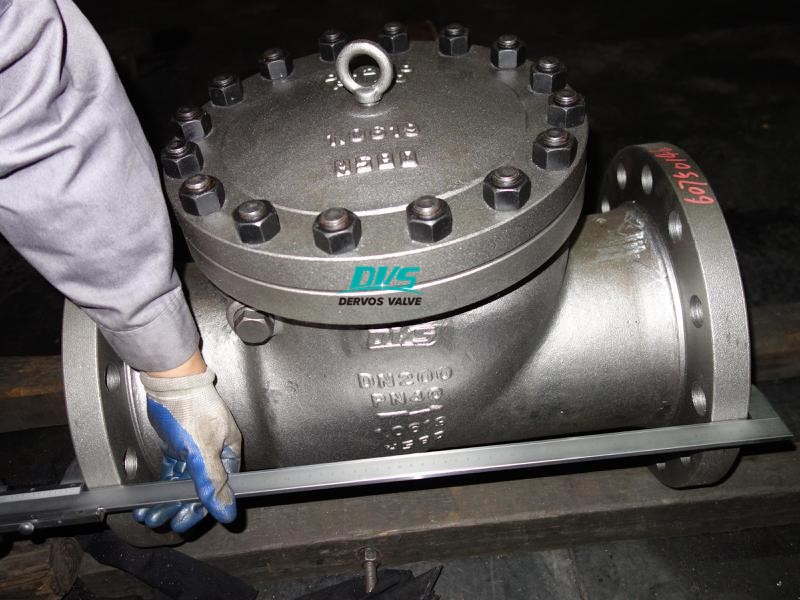

Dimension Checking & Pressure Testing
Nameplate & Packing
