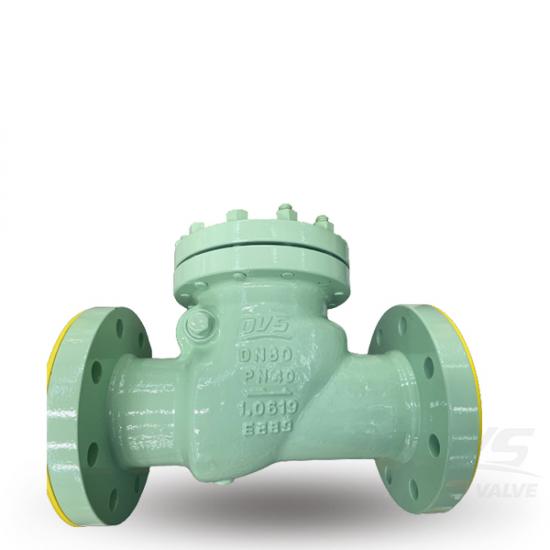

The swing check valve is made of 1.0619, a kind of carbon steel, as per DIN standard.The check valve is DN80 and PN40, or 3 inch and 300LB. And the valve is capable in working temperature between -19 to 425 degree Celsius.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
1.0619Method of Operation:
NonQuick Detail
|
Type |
Check Valve |
|
Size |
DN80 |
|
DesignPressure |
PN40 |
|
Construction |
Swing Type |
|
Connection Type |
RF |
|
Design Code |
DIN 3840 |
|
End to End |
DIN 3202-F6 |
|
Connection End |
EN 1092-1/B1 |
|
Test & Inspection |
EN12266-1/2 |
|
Body Material |
1.0619+STL |
|
Disc Material |
1.0619+13Cr |
|
Temperature Range |
-29℃~425℃ |
|
Application |
W.O.G |
|
Origin |
China |
Product Specifications
Design Standard: API, ANSI, DIN, JIS, BS, GOST, GB, etc;
Nominal diameter: 1/2'' - 24''(DN15-DN600);
Nominal pressure: Class150 - Class2500 (PN10-PN420);
Main material: WCB, WC6, WC9, LCB, LCC, LC1, LC2, C5, C12, C12A, CF8, CF8M, CF3, CF3M, CF10, CF10M, CF8C, CN7M, 904L, 4A, 5A, 6A, Hastelloy C, etc.
We also can cast and produce the valves according to customers' special requirements.

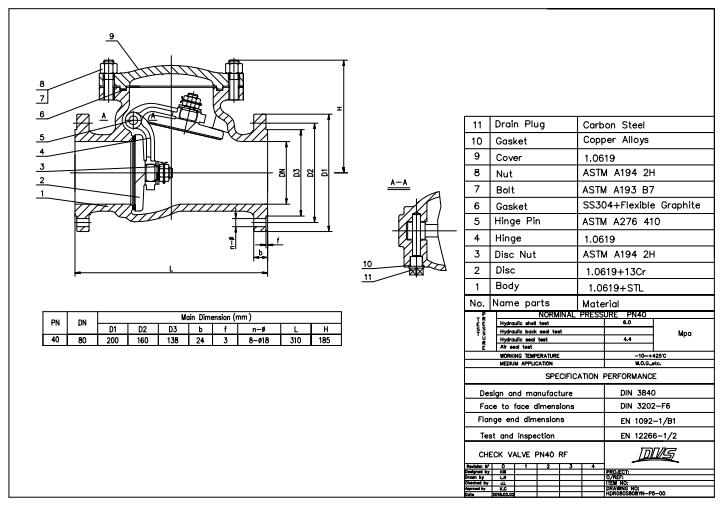

Technical Drawing

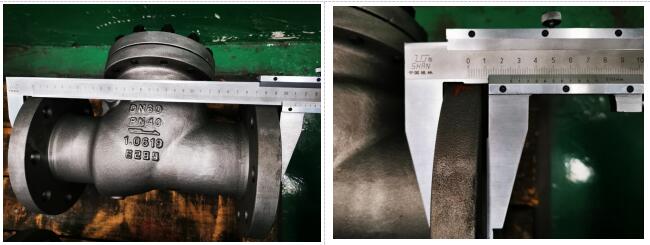

Dimension Check

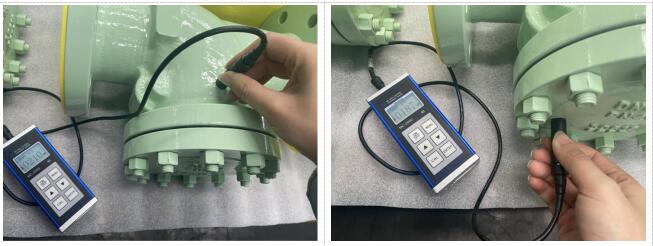

Coat Thickness Check

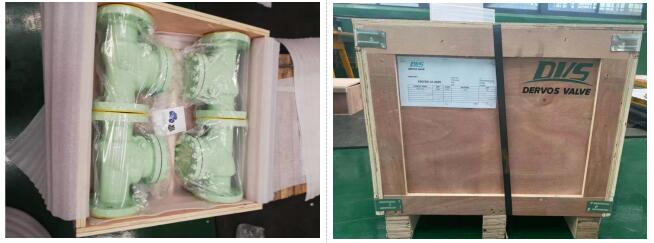

Delicate Packaging
FAQ
Q: Are you factory or trading company?
A: We are both. We have our own factory. At the same time, as for your hard-to-find products, we have our strong supplier base to help you.
Q: What is your products' MOQ?
A: MOQ≥1 set
Q: What is your products' warranty time?
A: Normally is 12 months, pls inform us if you want to extend the warranty time.
Q: Can you provide the sample for free?
A: Yes, we can provide the sample, but you need bear the cost.
Q: Can you produce according to customers' own technical drawings?
A: Yes, we always can fully meet customers' special requirement.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
