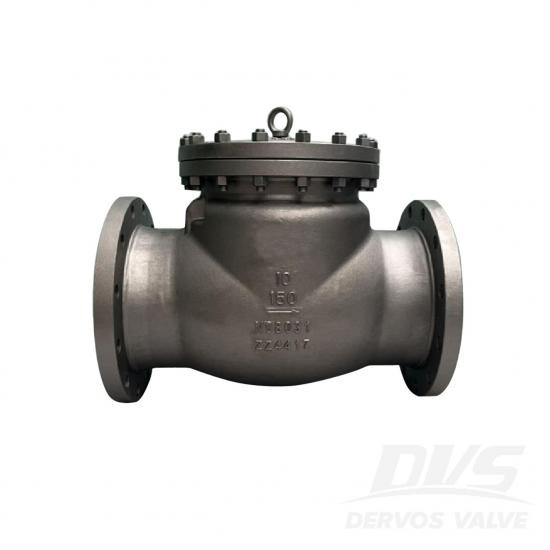

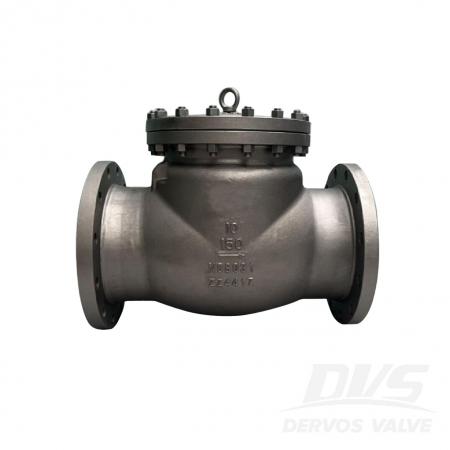

10" 150LB check valve is made according to BS1868 standard. The valve body is made of ASTM UNS N08031. It has the structural characteristics of bolt cover and swing type. Its connection mode is FF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM UNS N08031Product Description
Type |
Check Valve |
Size |
10" |
Pressure |
150LB |
Connection |
FF |
Body Material |
ASTM UNS N08031 |
Design Norm |
BS1868 |
Face to Face Dimension |
Customer Requirements |
Flange Dimension |
ASME B16.5 |
Test & Inspection Code |
API 598 |
Temperature |
-29 ~ 250°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Excellent performance and more reliable sealing;
2. It is widely used in pipelines under various working conditions in the petroleum, chemical, pharmaceutical, and power industries.

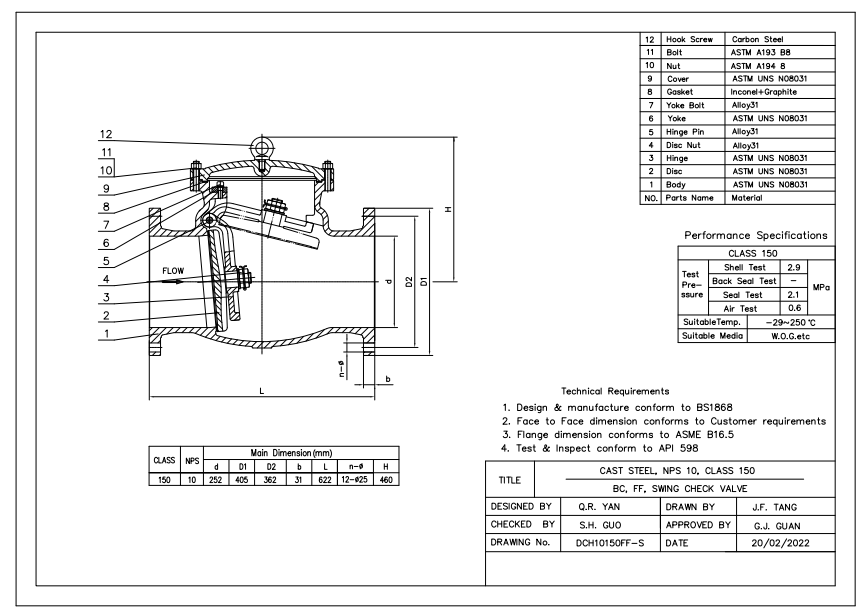

Technical Drawing

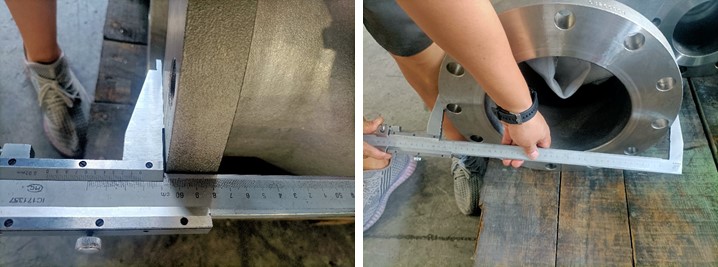

Dimension Checking

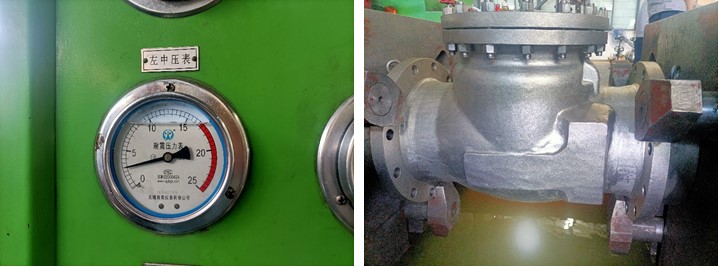

Pressure Testing

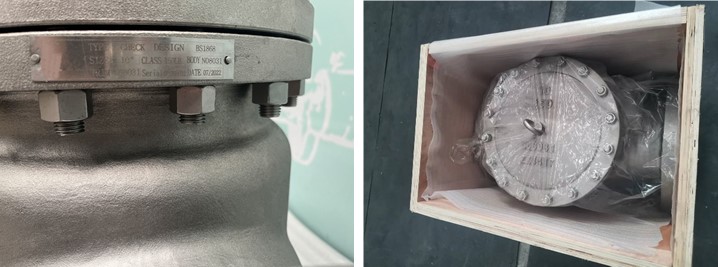

Nameplate & Packing

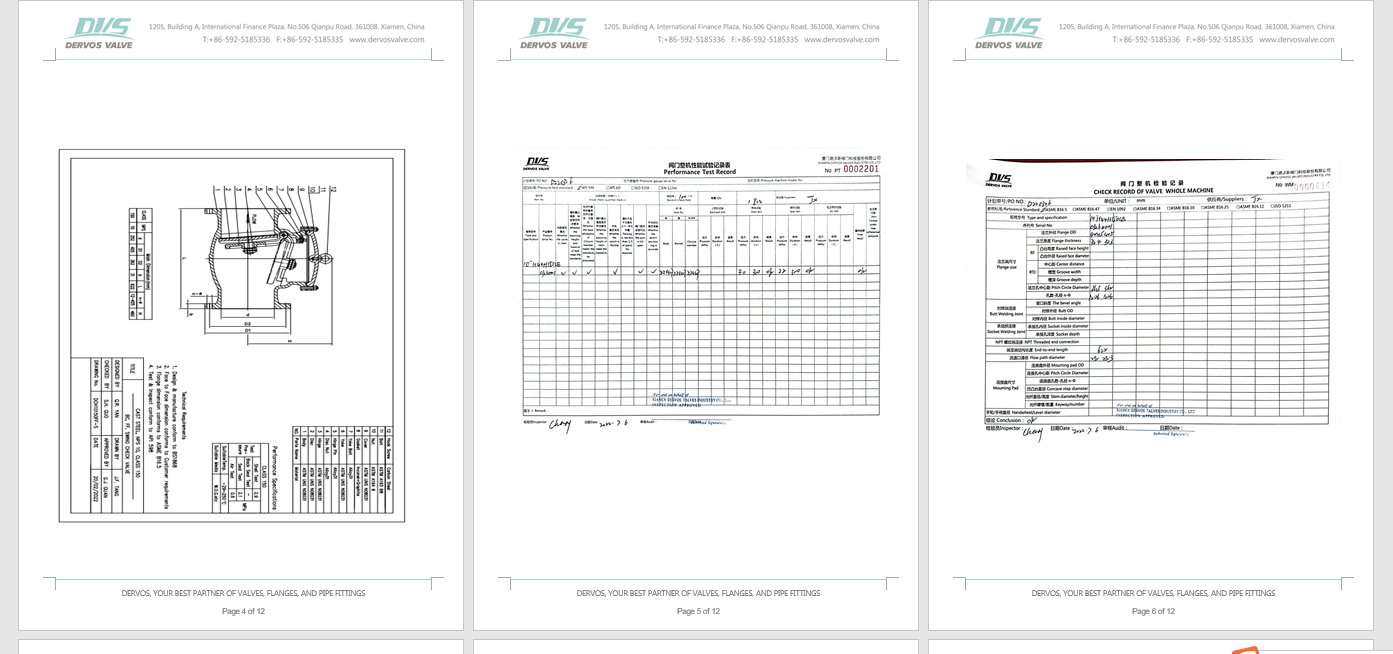

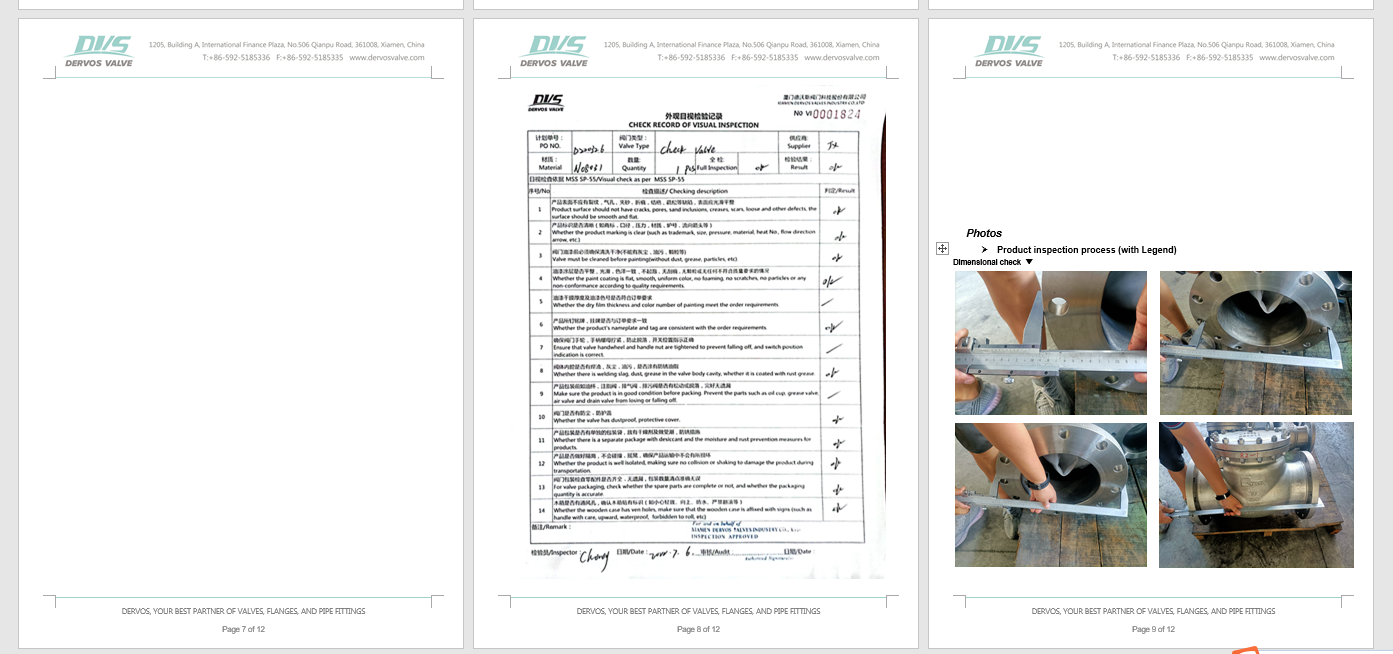

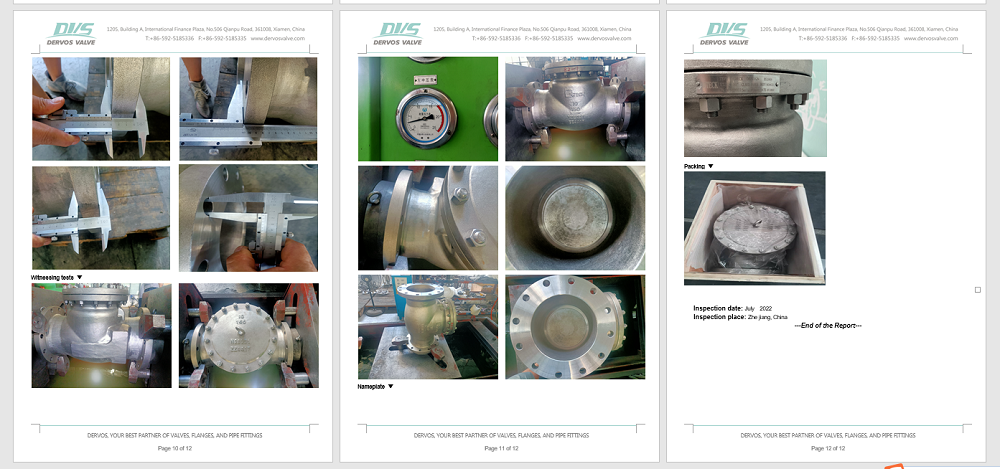

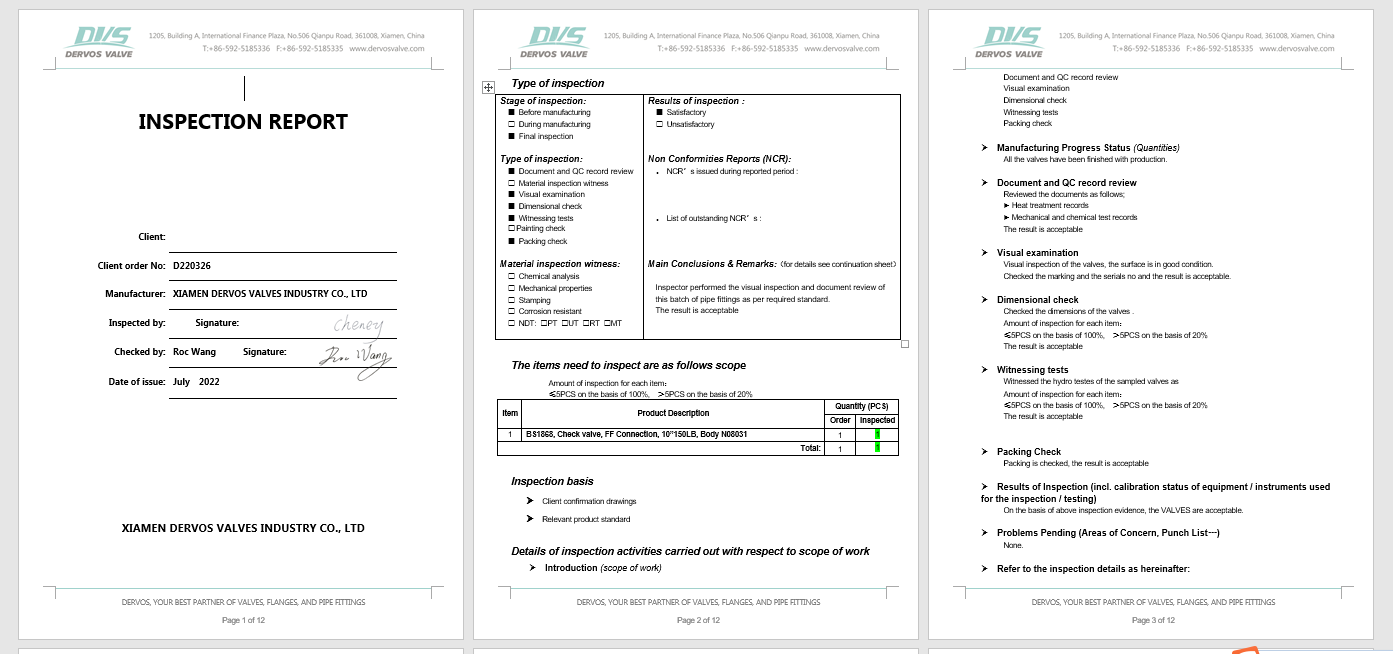

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
