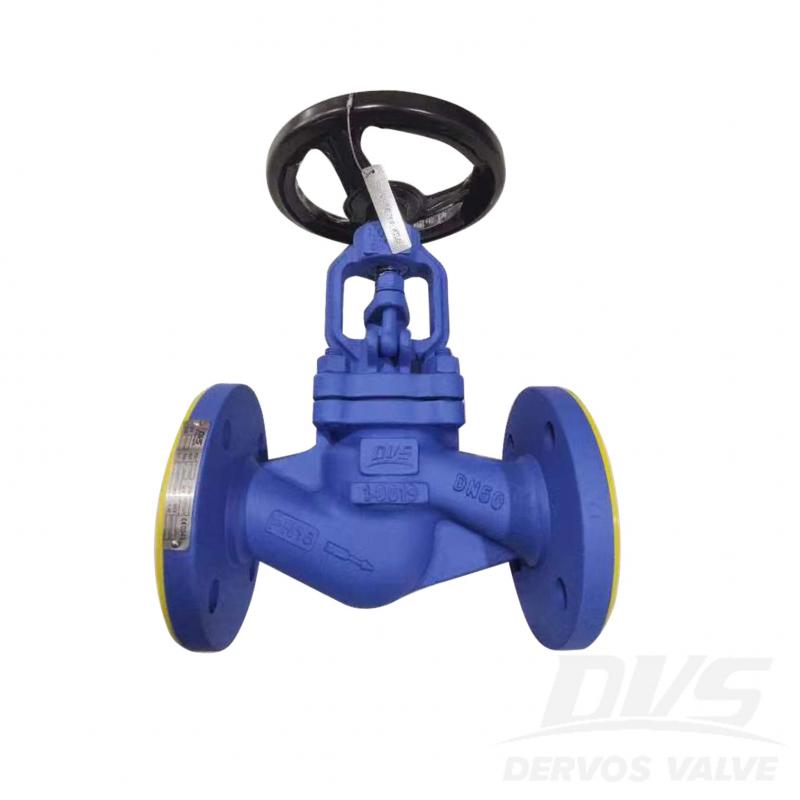

DN50 PN16 cast steel globe valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of flat valve disc, body welded valve seat. Its connection mode is EN1092-1 B. And it has hand wheel operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
EN 10213 1.0619Method of Operation:
Hand WheelProduct Description
Type |
Cast Steel Globe Valve |
Size |
DN50 |
Pressure |
PN16 |
Connection |
EN1092-1 B |
Operation |
Hand Wheel |
Body Material |
EN 10213 1.0619 |
Design Norm |
BS EN 13709 |
Face to Face Dimensions |
BS EN 558-1 S.1 |
Flange Ends Dimensions |
BS EN 1092-B1 |
Test & Inspection Code |
BS EN 12266 |
Applicable Medium |
Water, Oil and Gas |
Features
1. The structure of cast steel globe valve is relatively simple, and maintenance and component replacement are relatively easy, reducing downtime;
2. The opening and closing of the valve is achieved by rotating the valve stem, which is simple and stable to operate, and can be controlled manually, pneumatically, or electrically.

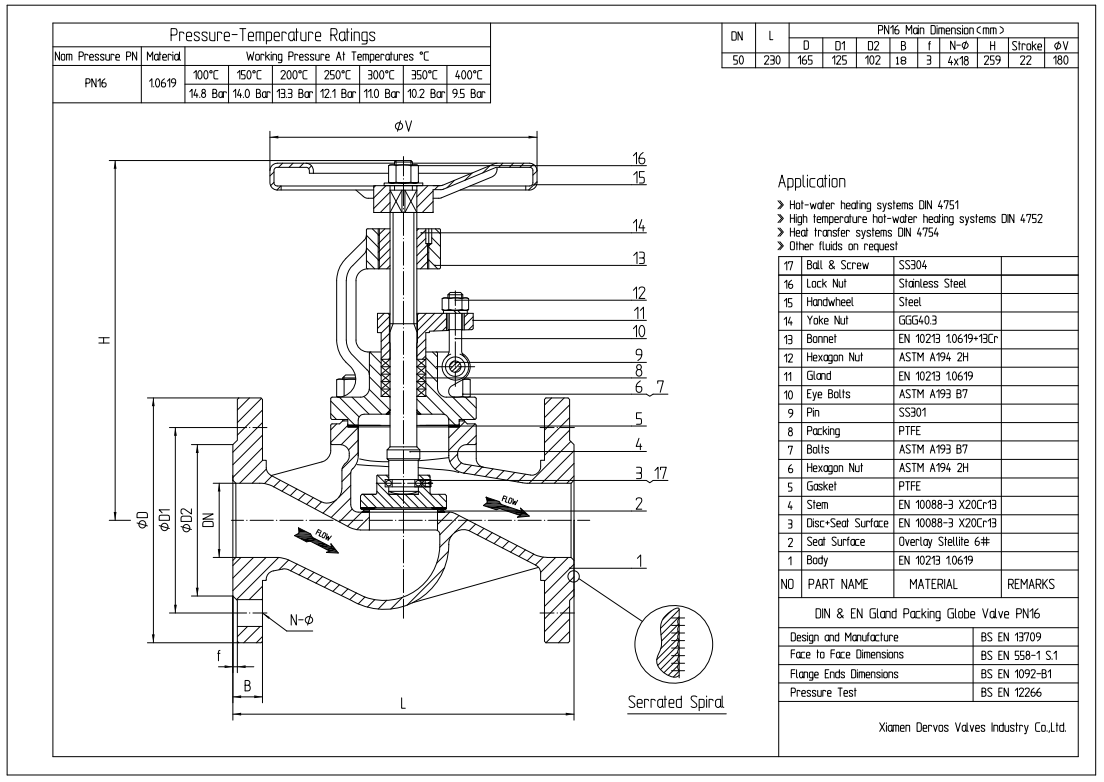

Technical Drawing

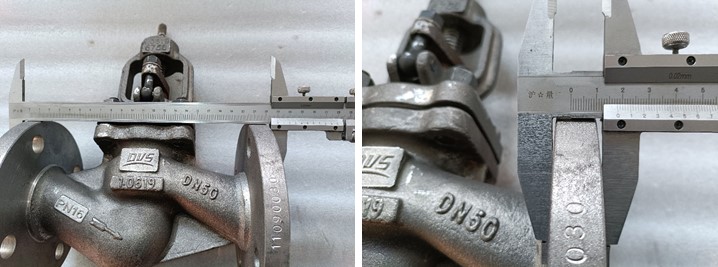

Dimension Checking

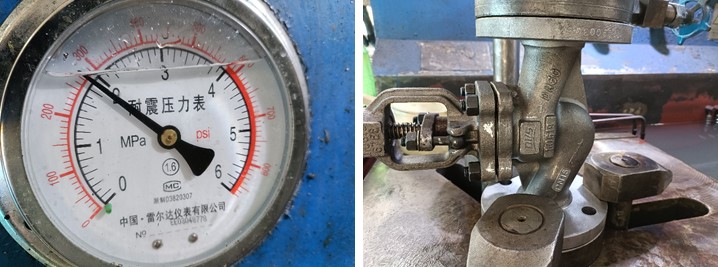

Pressure Testing

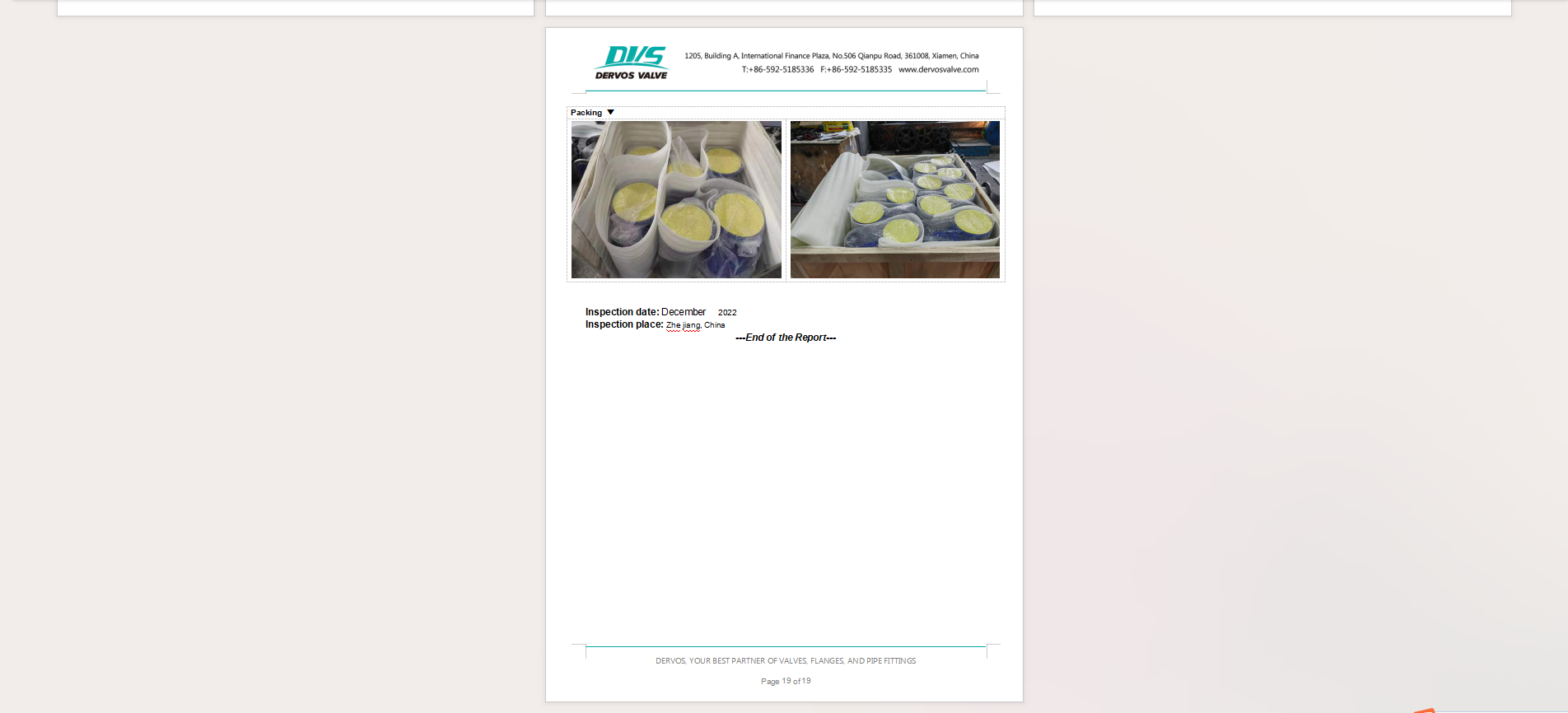

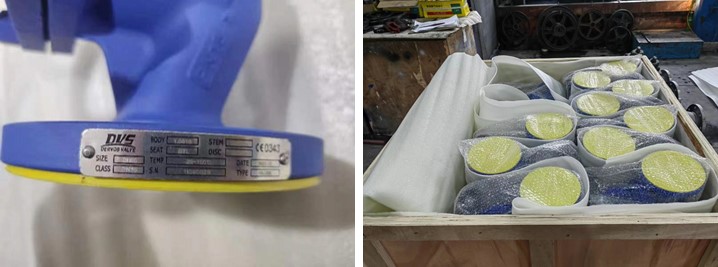

Nameplate & Packing

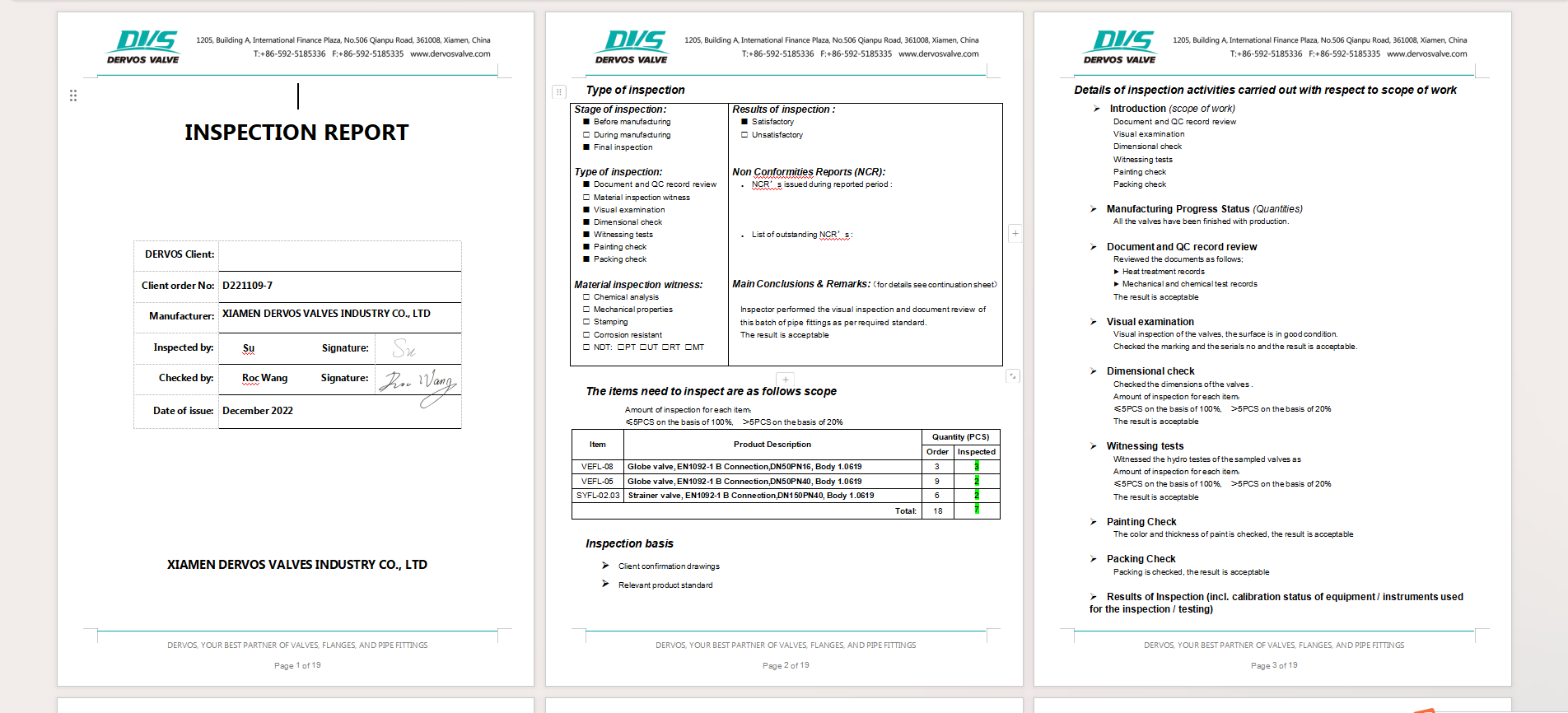

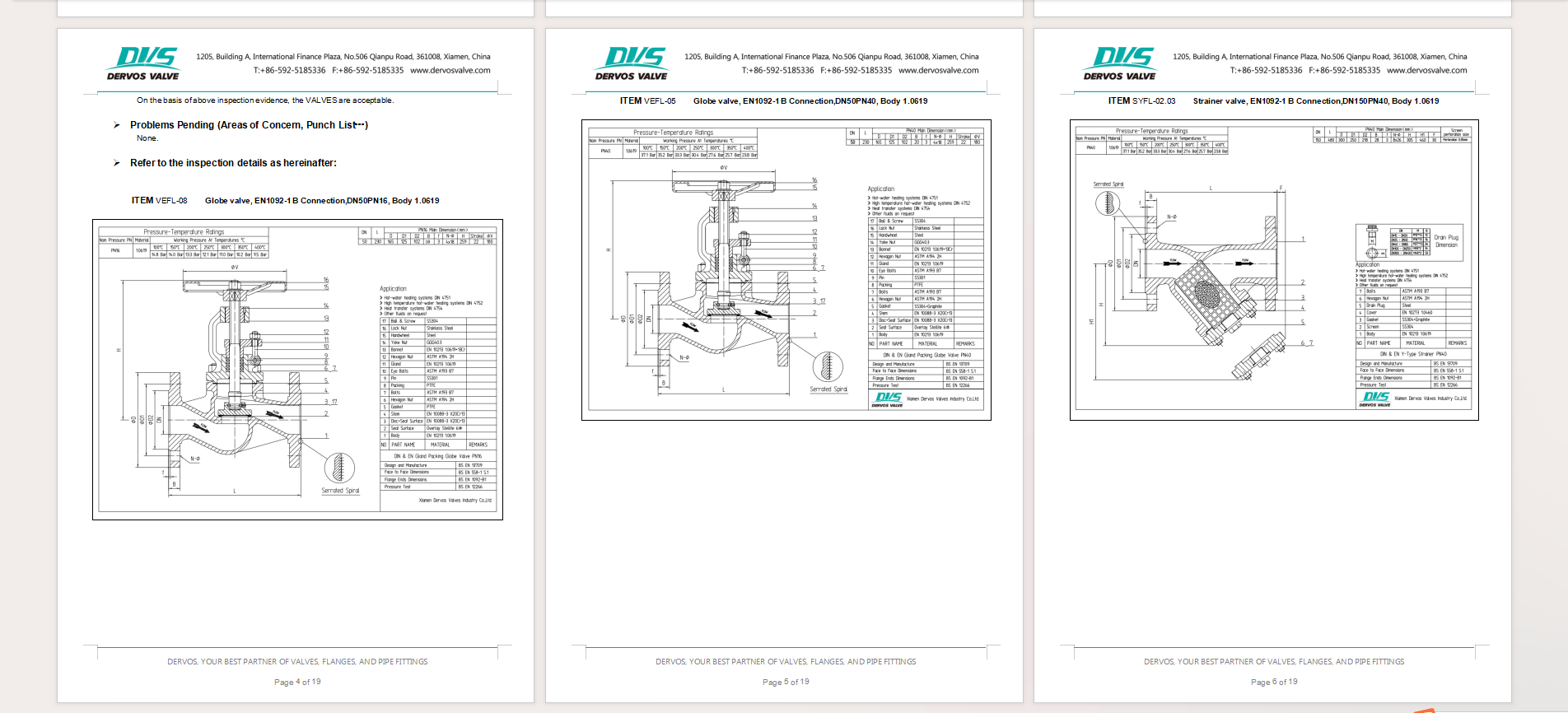

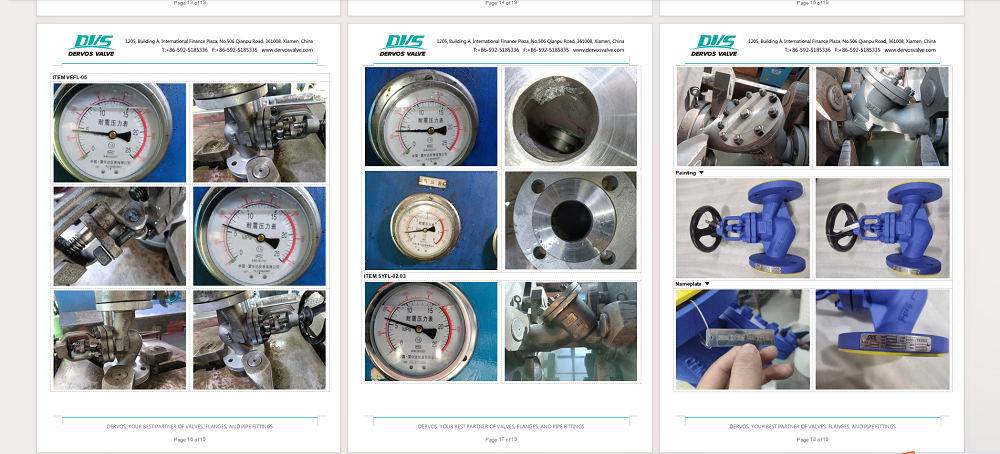

Inspection report
