Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1
加载中...

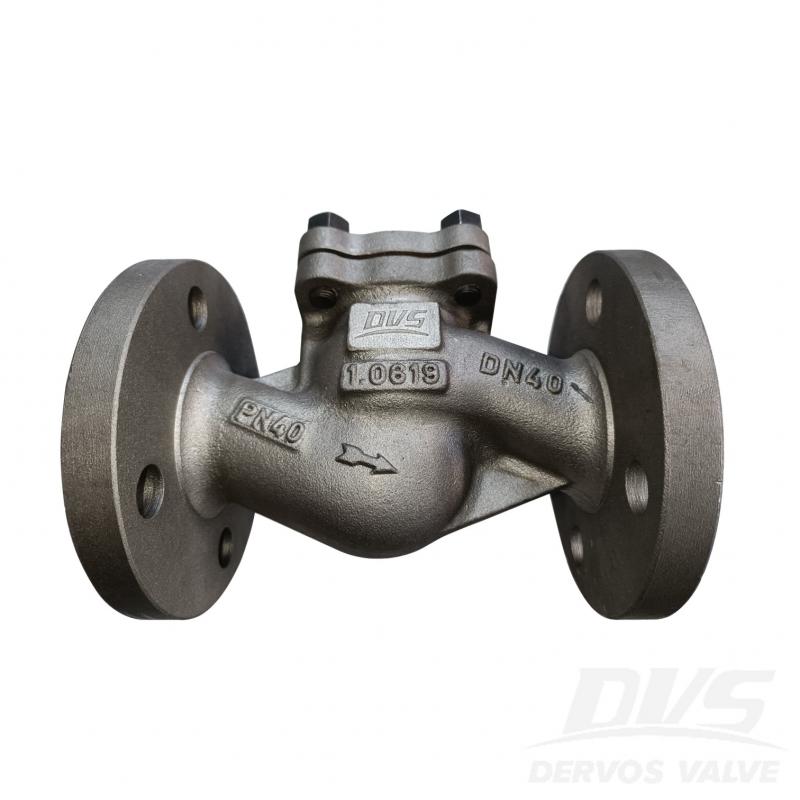

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

DN40 PN40 Lift Check valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of Lift type with spring. Its connection mode is EN1092-1 B1.

  • Payment:

    30% when order confirmed, 70% before shipment
  • Product Origin:

    China
  • Color:

    Customization
  • Shipping Port:

    Shanghai, China
  • Lead Time:

    30~60 days Ex Works after order confirmation
  • Material:

    EN 10213 1.0619
Inquiry now
Product Detail

Product Description

Type

Lift Check Valve

Size

DN40

Pressure

PN40

Connection

EN1092-1 B1

Body Material

EN 10213 1.0619

Design Norm

BS EN 13709

Face to Face Dimensions

BS EN 558-1

Flange Ends Dimensions

BS EN 1092-B1

Pressure Test

BS EN 12266

Applicable Medium

Water, Oil and Gas

Features

1. The opening and closing action is automatically completed by the pressure of the medium;

2. Simple structure, easy maintenance, excellent sealing performance.

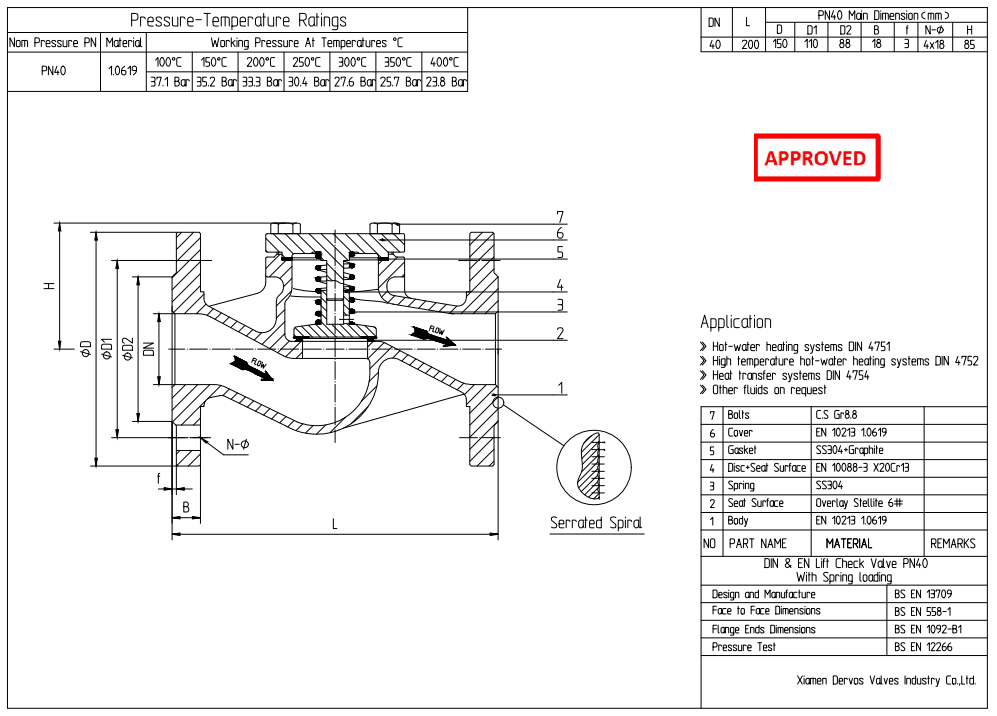

Technical Drawing

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

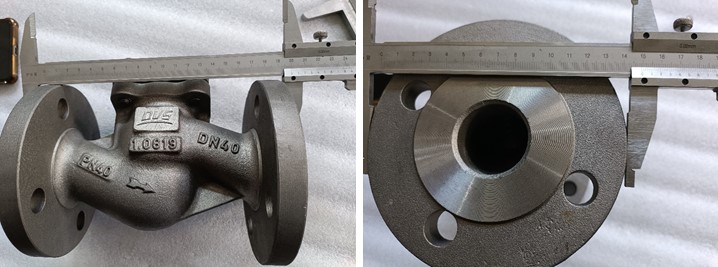

Dimension Checking

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

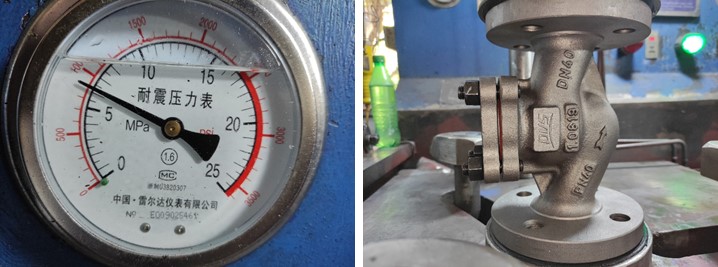

Pressure Testing

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

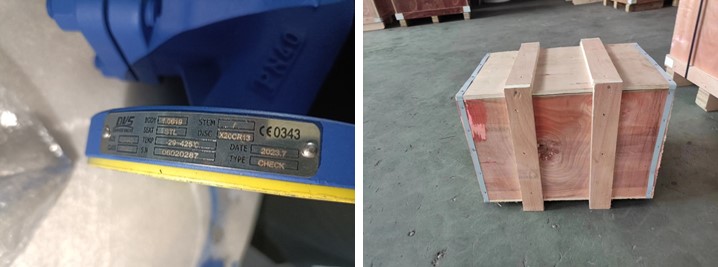

Nameplate & Packing

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

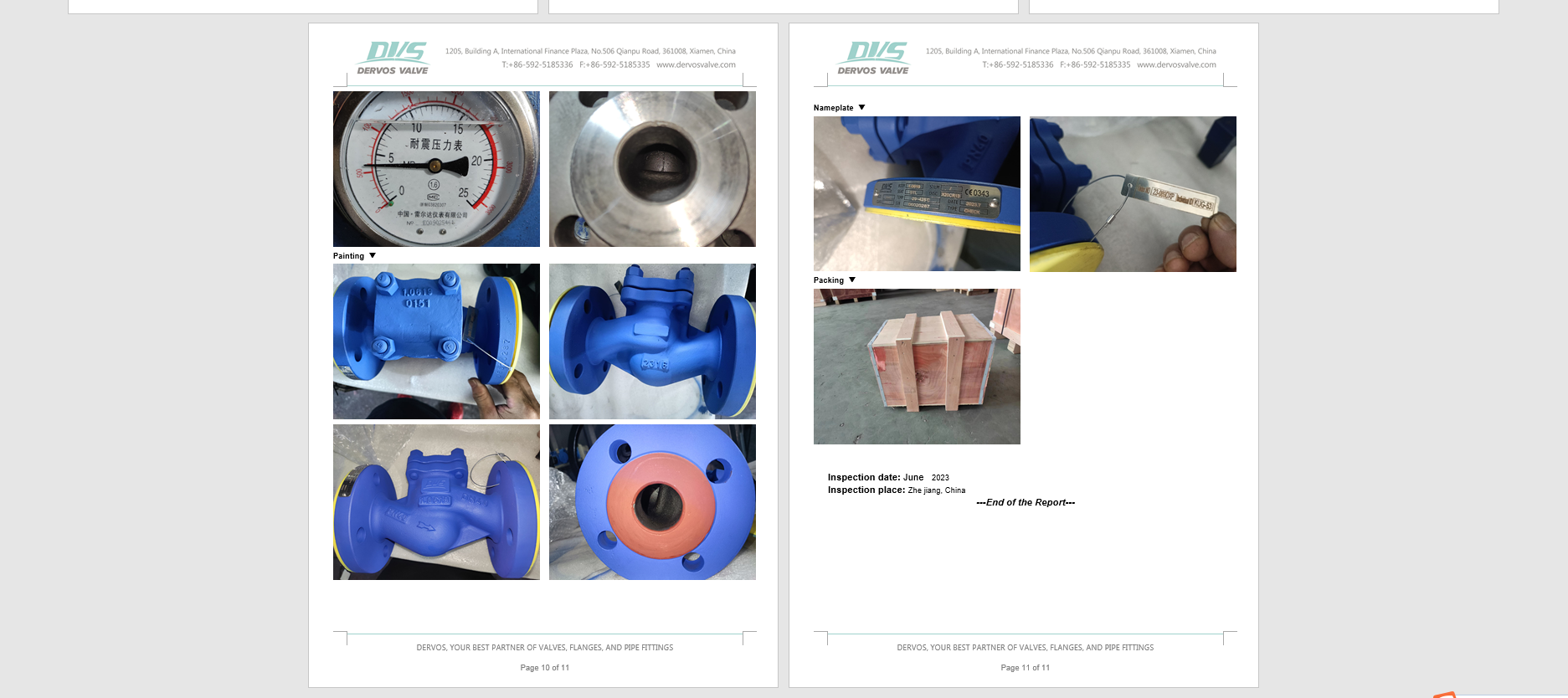

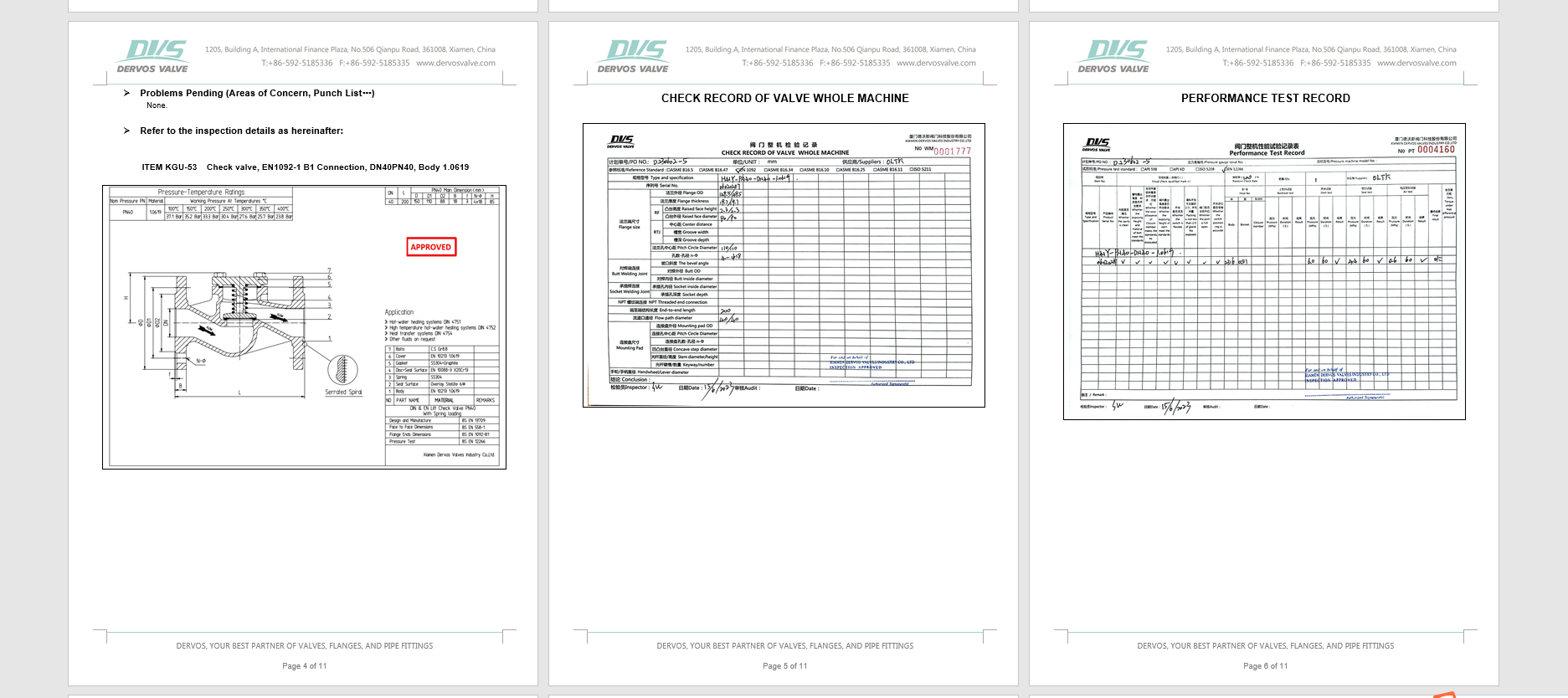

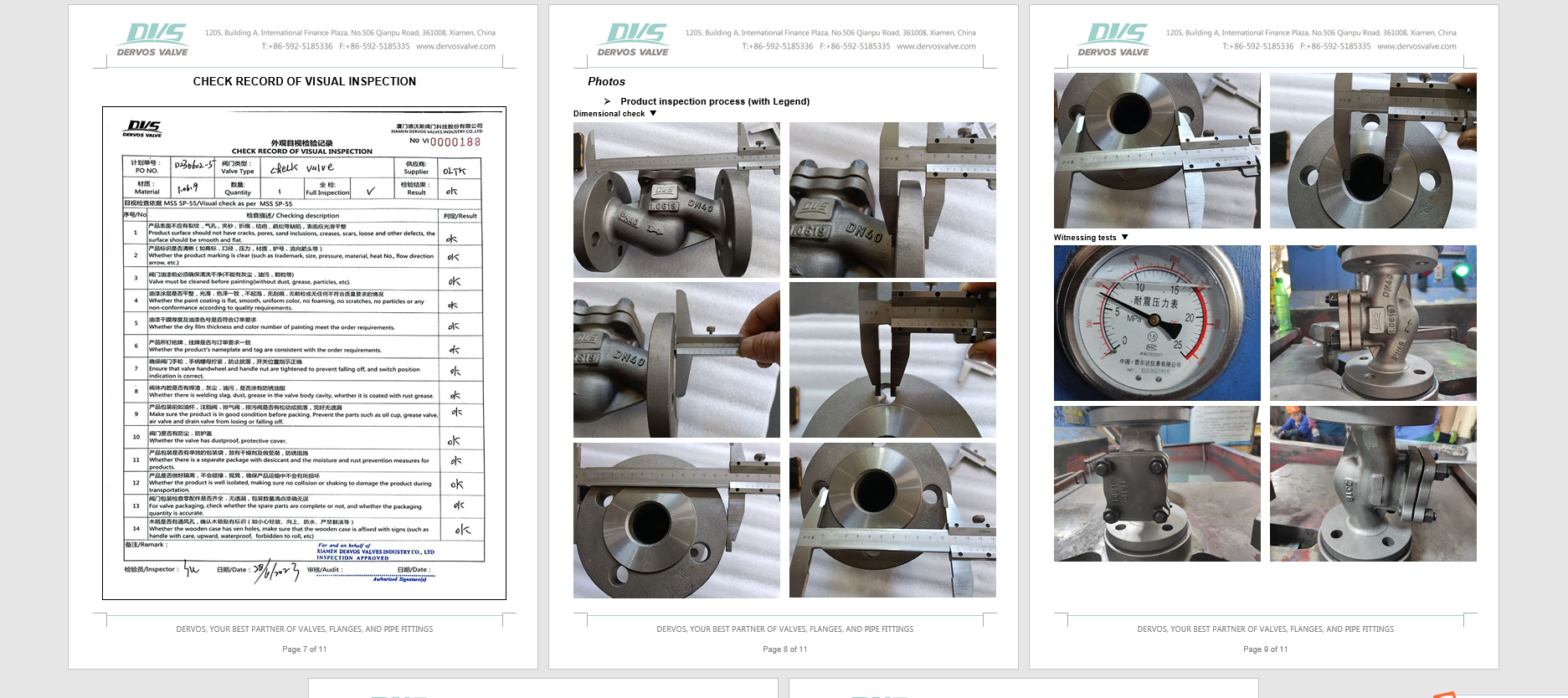

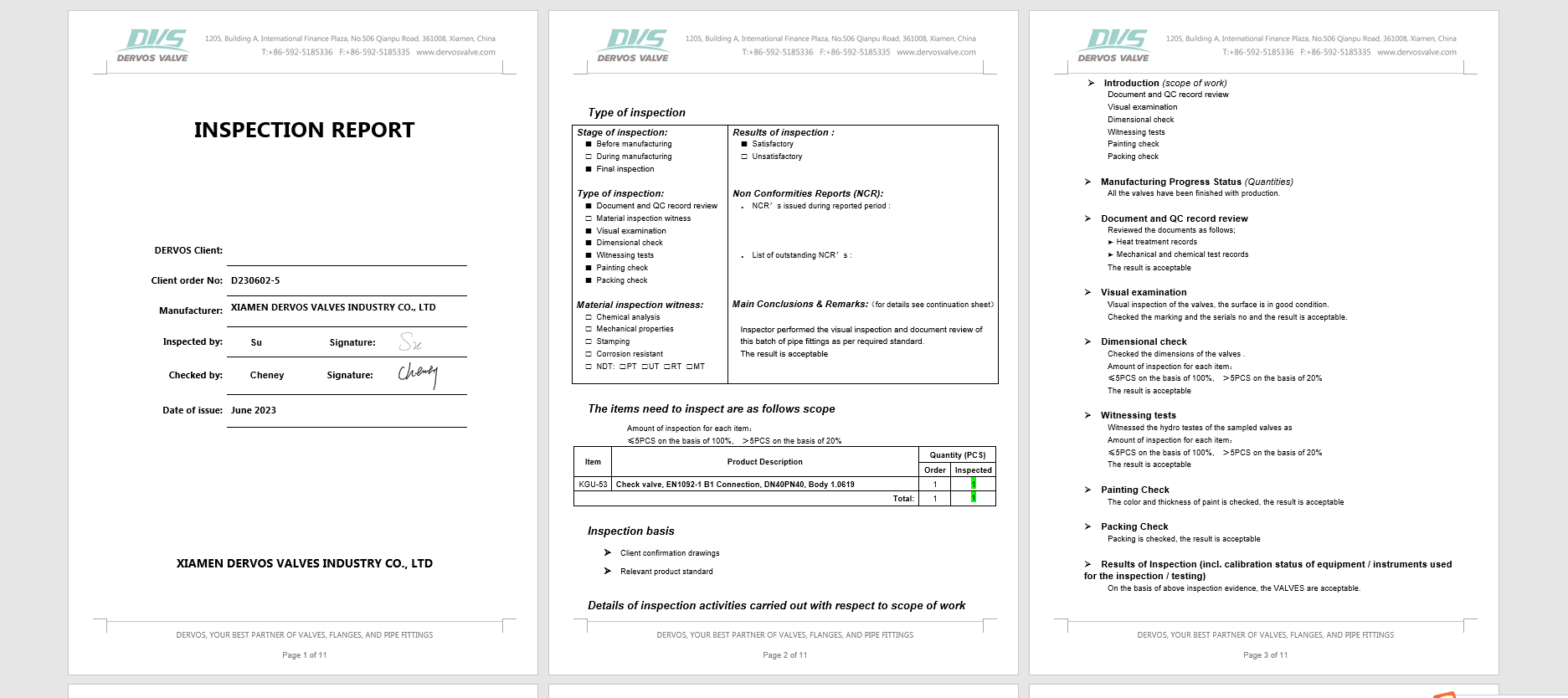

Inspection report

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709

Body 1.0619, DN40 PN40 Lift Check Valve, EN1092-1 B1, BS EN 13709
