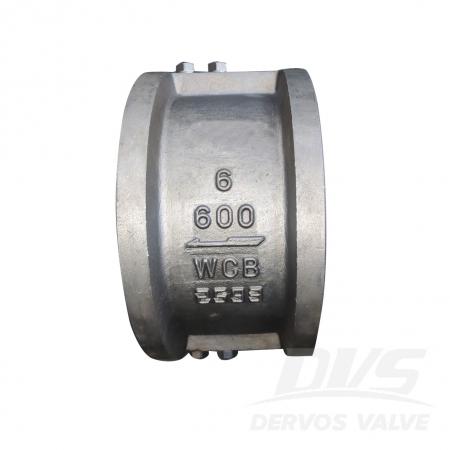

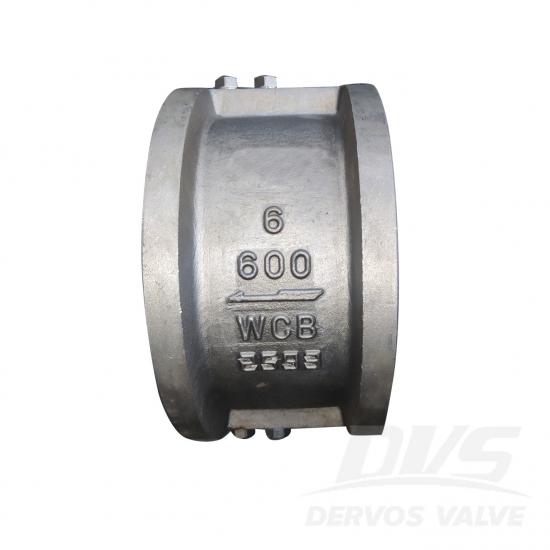

6" 600LB check valve is made according to API 594 standard. The valve body is made of A216 WCB+316. It has the structural characteristics of dual plate and wafer type. Its connection mode is wafer.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A216 WCB+316Product Description
Type |
Check Valve |
Size |
6" |
Pressure |
600LB |
Connection |
Wafer Type |
Body Material |
A216 WCB+316 |
Design Norm |
API 594 |
Pressure-temperature |
ANSI B16.34 |
Flange Ends |
ANSI B16.5 |
Face to Face Dimension |
API 594 |
Test & Inspection Code |
API 598 |
Temperature |
≤ 300°C |
Applicable Medium |
Water, Oil and Gas |
Features
1. Compact structure, light weight, bidirectional opening;
2. Small size, light weight, sensitive movement, reliable sealing, and convenient installation.

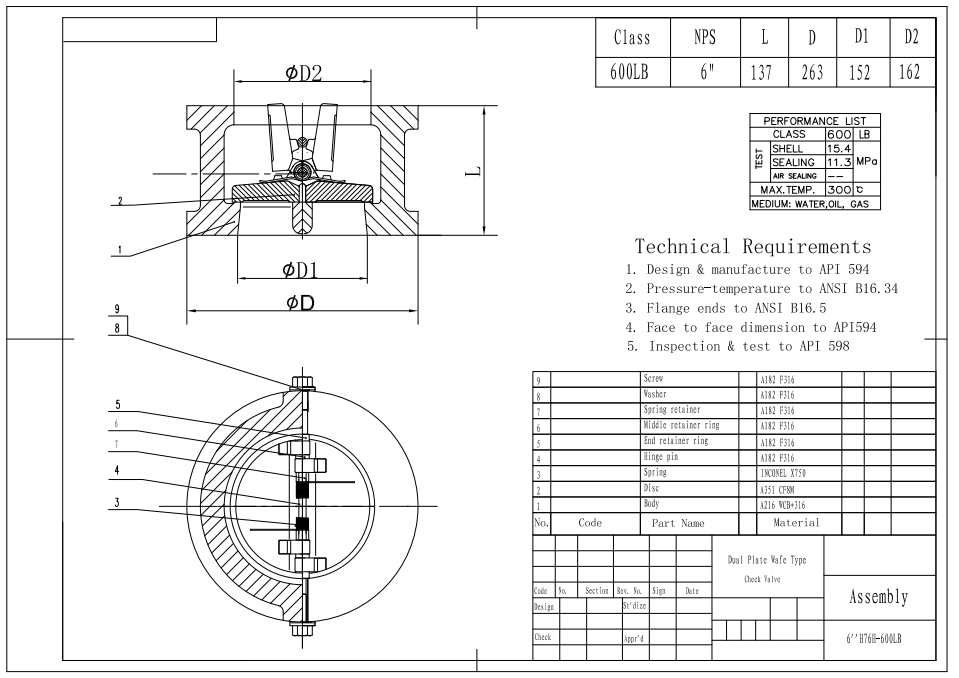

Technical Drawing

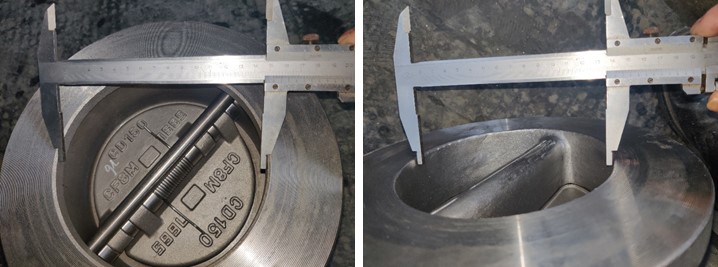

Dimension Checking

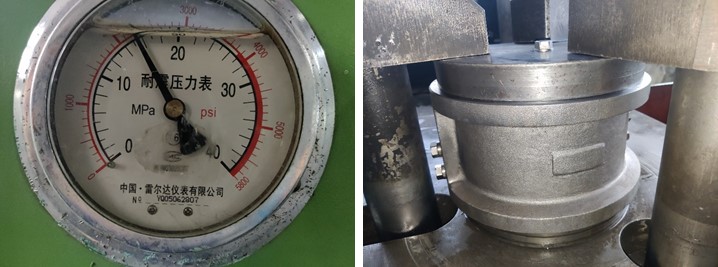

Pressure Testing

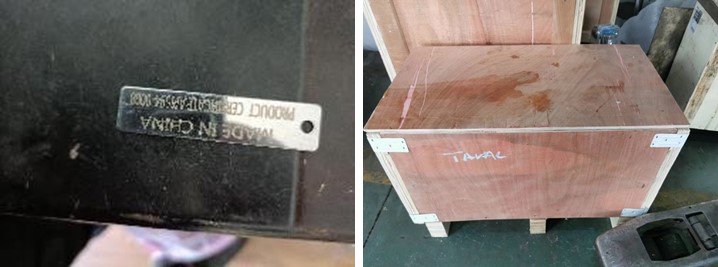

Nameplate & Packing

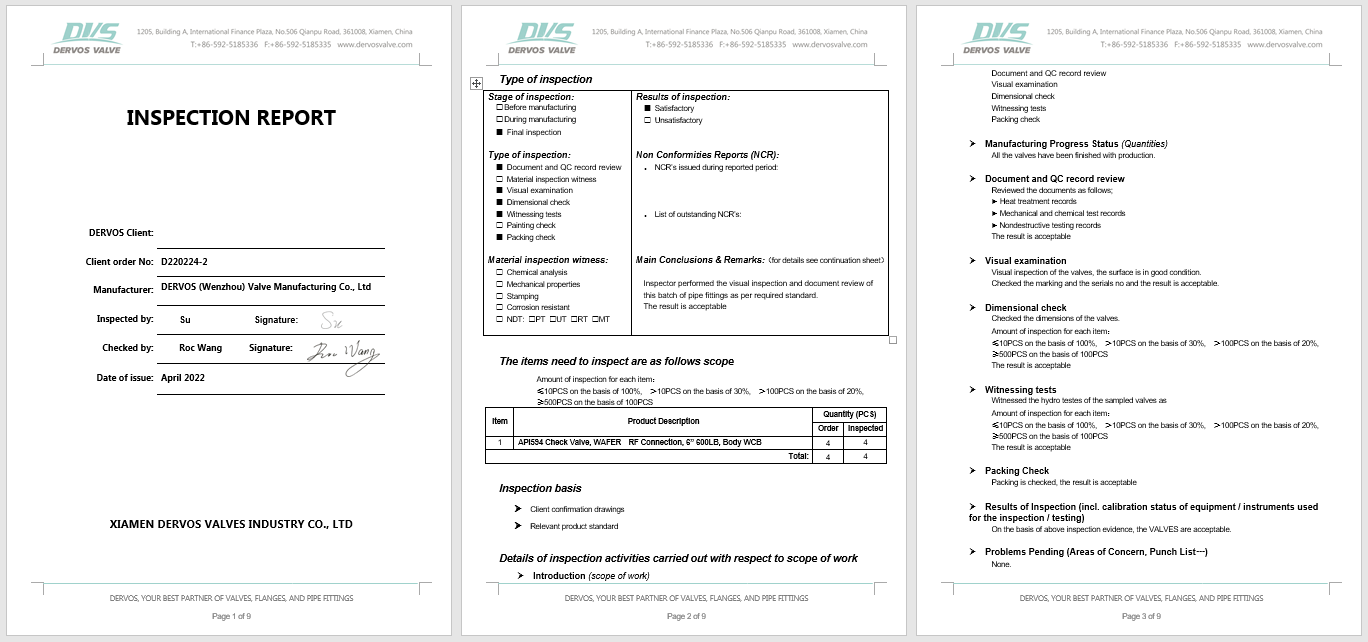

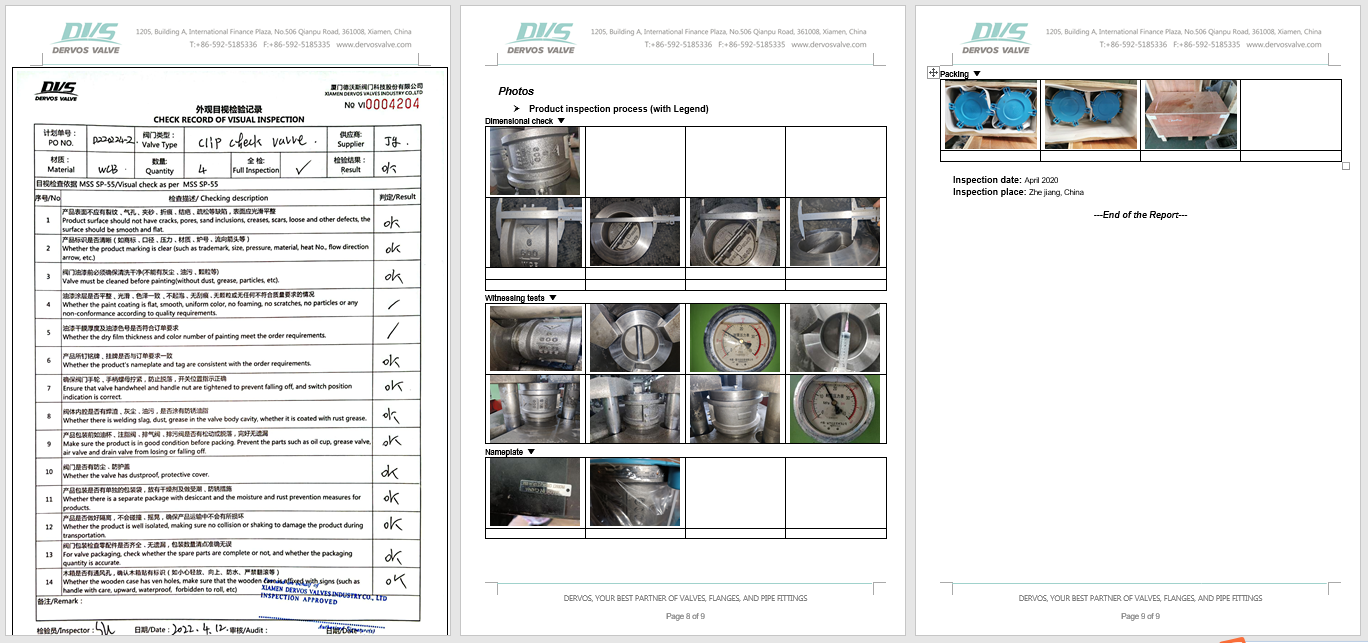

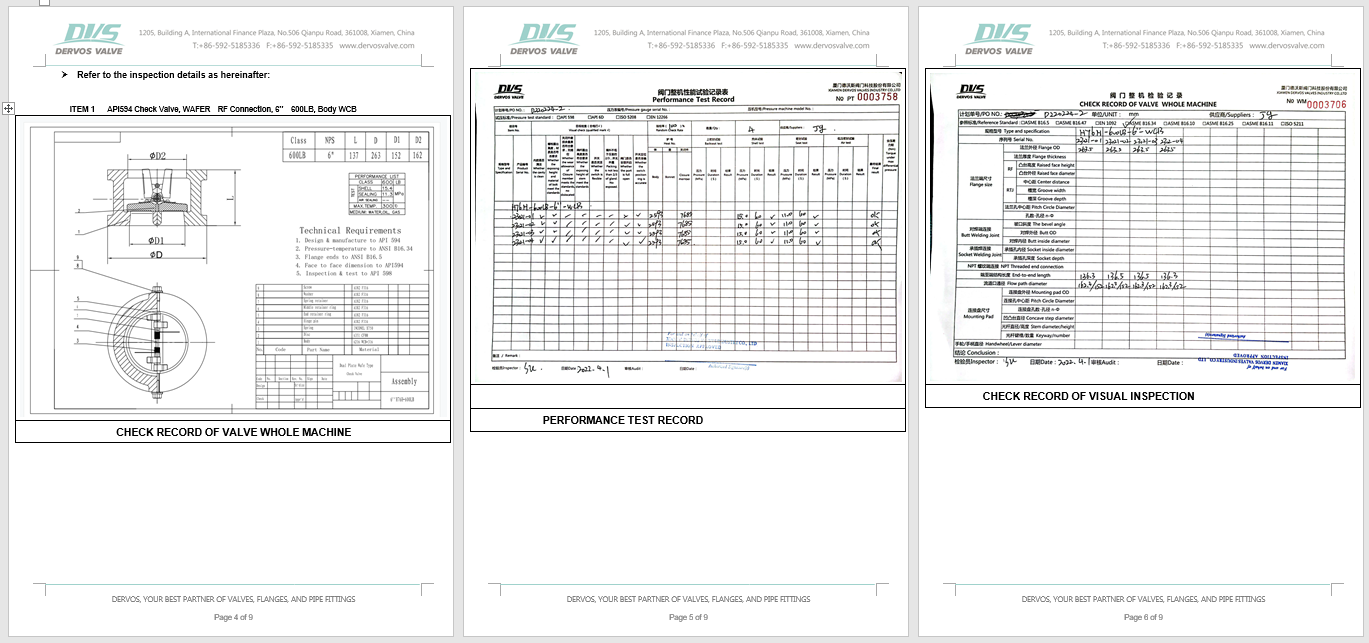

Inspection report
